Description
Extreme performance low latency Ethernet switch, with 8 ultra fast 100G Ethernet connections and 2 high speed 10G Ethernet ports, plus redundant PTP clock ports and control port for NMOS control.
Blackmagic Ethernet Switches are the first Ethernet switches designed for film and television! They deliver high performance with low latency and all connections are on the rear, keeping cables neat, hidden and secure. There are two models, both with 10G and 100G Ethernet ports. The Blackmagic Ethernet Switch 360P includes a dedicated router panel, so you can set 2110 IP multicasting using a familiar video routing control panel. Users won't even know they're routing SMPTE-2110! The Blackmagic Ethernet Switch 820 has 8 x 100G Ethernet connections with data center style front-to-back cooling and basic SMPTE-2110 routing. You get easy to use solutions with the features you need for television!

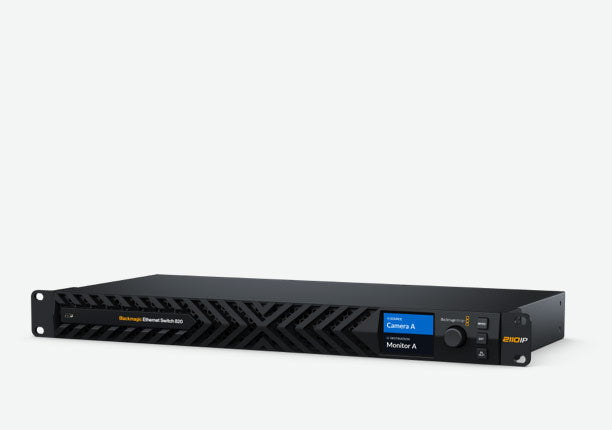

Blackmagic Ethernet Switch models have been designed specifically for television! All network connections are on the rear, the same side as ports on your broadcast equipment, allowing you to loom cables neatly and eliminate cabling mess. The two models have very different designs! The Blackmagic Ethernet Switch 360P includes a built-in front panel that looks like a conventional video router. The Blackmagic Ethernet Switch 820 is a higher performance design with professional front-to-back cooling, 6 fans for redundancy, dual redundant power supplies and simple router control. This quiet design is very important when you're working near equipment such as in broadcast trucks and mini racks!
Now you can build small 2110 IP systems such as fly away kits or small broadcast vans. That's because the 2110 multicast settings are configured using a simple router panel! You don't need an IT technician and there are no complex multicast settings!
Get the ultimate ISO recording and replay solution! You get lots of 10G Ethernet ports for connecting HyperDeck ISO recorders and DaVinci Resolve workstations. Then connect a Blackmagic Cloud Store Ultra to the extremely fast 100G Ethernet ports.
Blackmagic Ethernet Switch 360P has all its Ethernet connections on the rear panel which is the same side as your television equipment. So there's no cable management as the cabling is simple. Now you can connect to and remotely manage all your gear!
1. 2 Extreme Speed 100G Ethernet Connections Get two independent 100G Ethernet connections for extreme speed! Connect to HyperDeck ISO Recorder 100G and Blackmagic Cloud Store Ultra via fast 100G optical fiber. For large ISO recording, Blackmagic Cloud Store Ultra is ideal with the speed needed for many simultaneous Ultra HD streams.
Specifications
Connections
- 100G Ethernet Ports: 8 x 100G QSFP28 connections.
- 10G Ethernet Ports: 2 x 10G RJ45 connections.
- Control Network: 1 x 1G RJ45 for NMOS control.
- Management Network: 1 x 1G RJ45 for configuration and firmware updates.
- Reference Network: 2 x RJ45 Ethernet for 2110 PTP clock.
- Power: 2 x IEC C14 power inputs.
IP Video Compliance
- Precision Time Protocol: IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2
- NMOS IS-04 Discovery and Registration: v1.3.2 Peer-to-peer via mDNS/DNS-SD
- NMOS IS-05 Connection Management: v1.1.2
- NMOS BCP-002-01: Natural Grouping
- NMOS BCP-004-01: Receiver capabilities
Displays
- Front Panel Display: Built in 2.2 inch LCD for monitoring video, audio, video standard and timecode plus menu settings. Use search dial to scrub between all available inputs and monitor on front panel.
- 2110 IP Monitor Out Sender: Displays Ethernet Switch custom name, link speed and live data transfer graph for each port.
- 2110 IP Monitor Out Standards: 1080p50, 1080p59.94, 1080p60
Environmental Specifications
- Operating Temperature: 5° to 40° C (41° to 104° F)
- Storage Temperature: -20° to 45° C (-4° to 113° F)
- Relative Humidity: 0% to 90% non-condensing
