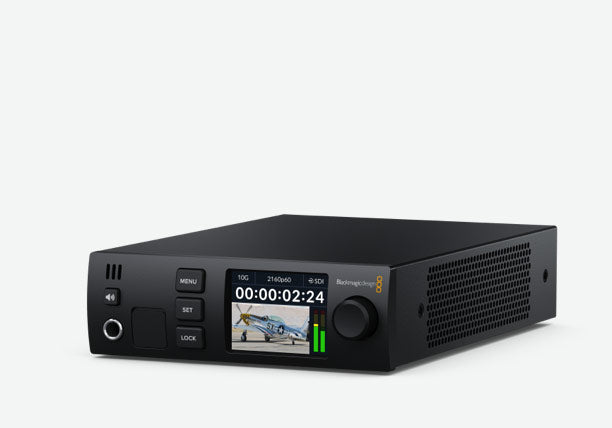

Blackmagic 2110 IP SDI to HDMI 12G, Convert 12G-SDI or SMPTE-2110 to HDMI in a rack mount design

Convert 12G-SDI or SMPTE-2110 to HDMI in a rack mount design. Includes LCD with video, meters and menus, 2 channel XLR outputs with variable gain and delay, 3D LUT, speaker and headphone connector.

Blackmagic Design has a wide range of SMPTE-2110 IP video products, including standards converters, video monitors, audio monitors and even cameras! Plus they support Ultra HD using low cost 10G Ethernet! Most converter models are bidirectional, so they're fantastic to use on cameras when you need an extra program return! The rack mount models have an elegant design with a color LCD for monitoring, menus and diagnostics. All models conform to the SMPTE-2110 standard for IP video, including PTP clocks and even NMOS support so you can make connections using a video router panel. The Blackmagic 2110 IP Converter 3x3G model even includes a reference video output, timed to the 2110 PTP clock!

Blackmagic Design has a wide range of SMPTE-2110 equipment for building anything from small mobile racks to broadcast trucks and entire stations. There are cameras, live production switchers, Ethernet switches, standards converters, monitors and audio monitors. Compact mini-converter models work with cameras and monitors, while rack-mount equipment suits larger installations. With such a wide range, you can build a fully native SMPTE-2110 system. Plus, most 10G Ethernet models can be remotely powered! Adding converters is also a low-cost way to bring your existing gear into SMPTE-2110, including switchers, disk recorders, streaming encoders, graphics systems, cameras and televisions.

Blackmagic 2110 IP products conform to the SMPTE-2110 standard, which specifies the transport, synchronization and description of 10-bit video, audio and ancillary data over managed IP broadcast networks. They can re-sync SDI inputs to a common PTP clock, or external gear can lock to the reference output generated from the PTP clock. Supported standards include SMPTE-2110-20 for uncompressed video, SMPTE-2110-21 for traffic shaping, SMPTE-2110-30 for audio, SMPTE-2110-40 for ancillary data and many models support SMPTE-2022-7 for seamless redundancy. Plus, multicast support efficiently distributes video, audio and data from a single source to multiple destinations simultaneously.

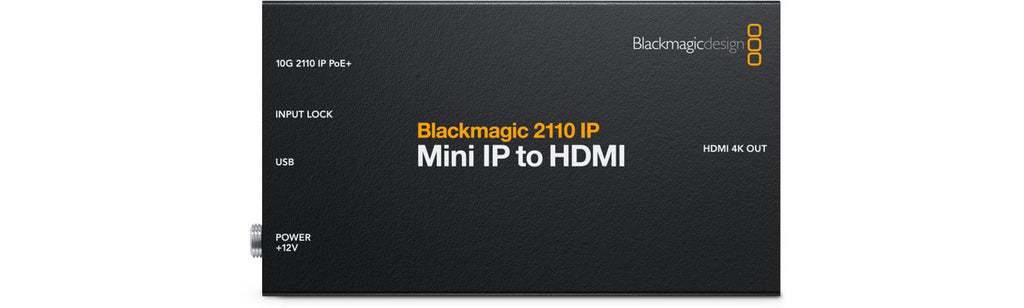

SMPTE-2110 via 10G Ethernet

10G Ethernet is very low-cost, perfect for affordable SMPTE-2110 IP video! Add Blackmagic 2110 IP Mini models to 10G Ethernet systems for an affordable and compact solution. Plus, most models have PoE, so one cable handles both video and power!

SMPTE-2110 via Redundant 10G

Specifications

Connections

• SDI Inputs: 1
• SDI Loop Outputs: 1
• SDI Rates: SD, 1.5G, 3G, 6G and 12G
• HDMI 2.0 Video Outputs: 1
• SMPTE 2110 Input / Output: 1 x 10G Ethernet
• SMPTE ST 2110 IP Audio Inputs / Outputs: 16 channels embedded input and output audio on ST-2110 IP video via 10G Ethernet.
• SDI Audio Inputs: 16 channels embedded audio.
• SDI Audio Outputs: 16 channels embedded audio.
• HDMI Audio Inputs: 8 channels embedded audio.
• HDMI Audio Outputs: 8 channels embedded audio.
• Analog Audio Outputs: 2 channels of professional balanced analog audio with 3-pin XLR connectors. 1 x 6.35 mm headphone jack.
• Webcam Outputs: 1 x USB-C up to 1080p60
• Ethernet: Ethernet supports 10/100/1000/10G BASE-T for SMPTE 2110 IP video in and out, configuration and software updates.
• Computer Interface: USB-C for webcam out, updates and configuration

Video Standards

• SD Video Standards: 525i59.94 NTSC, 625i50 PAL
• HD Video Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
• 2K Video Standards: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI, 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
• 4K Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
• SMPTE Compliance: SMPTE 259M, SMPTE 274M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2036-1, SMPTE 2048-1, SMPTE 2081-10, SMPTE 2081-11, SMPTE 2081-12, SMPTE 2082-10, SMPTE 2082-11, SMPTE 2082-12 and SMPTE ST2108-1
• SDI Metadata Support: RP 188/SMPTE 12M-2 and closed captioning.
• Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.
• Color Precision: 8, 10 RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes.
• Color Space: Rec. 601, Rec. 709, Rec. 2020
• HDMI HD Video Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
• HDMI Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
• HDMI 4K Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI
• HDMI Color Precision: 4:2:2
• HDMI Color Space: YUV

Audio

• Local Audio Monitoring: Front panel audio monitor speaker with speaker control button, plus 6.35 mm headphone socket.

IP Video Compliance

• SMPTE 2110-20 (Uncompressed Video): IGMP v3
• SMPTE 2110-21 (Traffic Shaping): Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous
• SMPTE 2110-30 (PCM): Audio Conformance level: Level C
• SMPTE 2110-40 (Ancillary Data): Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
• Codec: Blackmagic IP10 codec used when converting 2160p59.94 and 2160p60 to 10G 2110 IP video.
• Precision Time Protocol: IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2
• NMOS IS-04 Discovery and Registration: v1.3.2 Peer-to-peer via mDNS/DNS-SD
• NMOS IS-05 Connection Management: v1.1.2
• NMOS BCP-002-01: Natural Grouping
• NMOS BCP-004-01: Receiver capabilities

Control

• Built in Control Panel: Built in control panel including 4 buttons, spin knob control and 2.2 inch color display.
• External Control: RJ-45 10Gb/s Ethernet and USB-C. REST API over Ethernet for external control via HTTP when used with REST client applications.

Power Requirements

• Power Supply: 1 x Internal 100 - 240V AC 50/60Hz.
• Power Supply: 1 x IEC C14 socket for AC power. 1 x Locking 5.5mm barrel +12V DC input for external power supply or battery use.
• Power Usage: TBC

Environmental Specifications

• Operating Temperature: 0° C to 40° C (32° - 104°F)
• Storage Temperature: -20° to 45° C (-4° to 113° F)
• Relative Humidity: 0% to 90% non-condensing

Physical

• Weight: 2.56 lb
