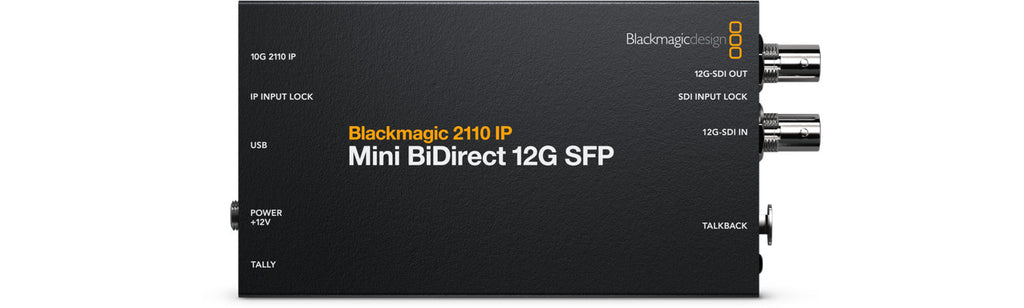

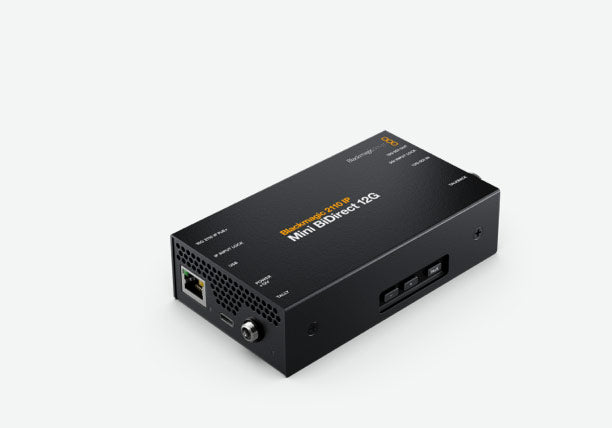

Blackmagic 2110 IP Mini BiDirect 12G, Convert broadcast cameras with SDI connections to 2110 IP video systems

Convert broadcast cameras with SDI connections to 2110 IP video systems. Connects and powers from 10G Ethernet and supports all HD and Ultra HD standards to 2160p60. Includes 5 pin XLR talkback.

Blackmagic Design has a wide range of SMPTE-2110 IP video products, including standards converters, video monitors, audio monitors and even cameras! Plus they support Ultra HD using low cost 10G Ethernet! Most converter models are bidirectional, so they're fantastic to use on cameras when you need an extra program return! The rack mount models have an elegant design with a color LCD for monitoring, menus and diagnostics. All models conform to the SMPTE-2110 standard for IP video, including PTP clocks and even NMOS support so you can make connections using a video router panel. The Blackmagic 2110 IP Converter 3x3G model even includes a reference video output, timed to the 2110 PTP clock!

Blackmagic Design has a wide range of SMPTE-2110 equipment for building anything from small mobile racks to broadcast trucks and entire stations. There are cameras, live production switchers, Ethernet switches, standards converters, monitors and audio monitors. Compact mini-converter models work with cameras and monitors, while rack-mount equipment suits larger installations. With such a wide range, you can build a fully native SMPTE-2110 system. Plus, most 10G Ethernet models can be remotely powered! Adding converters is also a low-cost way to bring your existing gear into SMPTE-2110, including switchers, disk recorders, streaming encoders, graphics systems, cameras and televisions.

Blackmagic 2110 IP products conform to the SMPTE-2110 standard, which specifies the transport, synchronization and description of 10-bit video, audio and ancillary data over managed IP broadcast networks. They can re-sync SDI inputs to a common PTP clock, or external gear can lock to the reference output generated from the PTP clock. Supported standards include SMPTE-2110-20 for uncompressed video, SMPTE-2110-21 for traffic shaping, SMPTE-2110-30 for audio, SMPTE-2110-40 for ancillary data and many models support SMPTE-2022-7 for seamless redundancy. Plus, multicast support efficiently distributes video, audio and data from a single source to multiple destinations simultaneously.

SMPTE-2110 via 10G Ethernet

10G Ethernet is very low-cost, perfect for affordable SMPTE-2110 IP video! Add Blackmagic 2110 IP Mini models to 10G Ethernet systems for an affordable and compact solution. Plus, most models have PoE, so one cable handles both video and power!

SMPTE-2110 via Redundant 10G

Specifications

Connections

• SDI Video Inputs: 1
• SDI Video Outputs: 1
• SMPTE ST-2110 IP Video Inputs/Outputs: 1 x 10G Ethernet
• Analog Audio Inputs: 1 x 5 pin XLR Talkback.
• Analog Audio Outputs: 1 x 5 pin XLR Talkback.
• SDI Audio Inputs: 16 Ch embedded audio on SDI input.
• SDI Audio Outputs: 16 Ch embedded audio on SDI output.
• SMPTE ST 2110 IP Audio Inputs: 16 Ch embedded audio on ST-2110 IP video via 10G Ethernet.
• SMPTE ST 2110 IP Audio Outputs: 16 Ch embedded audio on ST-2110 IP video via 10G Ethernet.
• Multi Rate Support: Auto detection of HD, Ultra HD and 4K.
• Reclocking: Yes
• Ethernet: 1 x 10Gb/s RJ-45 connector for SMPTE-2110 IP video in and out.
• Computer Interface: 1 x USB-C for configuration and firmware updates.

SDI Video Standards

• HD Video Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF25, 1080PsF29.97, 1080PsF30
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
• 4K Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.
• SDI Compliance: SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE ST2110-20, SMPTE ST2110-21, SMPTE ST2110-30, SMPTE ST2110-40.
• SDI Color Precision: 4:2:2
• SDI Color Space: YUV
• SDI Auto Switching: SDI video connections are switchable between 720p, 1080i, 1080p, Ultra HD and 4K DCI.

IP Video Compliance

• SMPTE 2110-20 (Uncompressed Video): IGMP v3
• SMPTE 2110-21 (Traffic Shaping): Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous
• SMPTE 2110-30 (PCM): Audio Conformance level: Level C
• SMPTE 2110-40 (Ancillary Data): Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
• Codec: Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video.
• Precision Time Protocol: IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2
• NMOS IS-04 Discovery and Registration: v1.3.2 Peer-to-peer via mDNS/DNS-SD
• NMOS IS-05 Connection Management: v1.1.2
• NMOS BCP-002-01: Natural Grouping
• NMOS BCP-004-01: Receiver capabilities

Talkback and Tally

• Talkback: 5-pin XLR talkback headset connection for talkback on channels 15/16 in the SDI and 2110 IP video.
• Live Tally Indicator: Tally LED indicator light

Power Requirements

• Power Supply: 1 x +12V DC external universal power supply with locking 5.5mm barrel Jack plus international socket adapters for most countries. 1 x RJ45 Ethernet connector for power from PoE++ power supplies.
• Operational Voltage Range: 12 - 16 V
• Power Usage: 18W

Environmental Specifications

• Operating Temperature: 5° to 40° C (41° to 104° F)
• Storage Temperature: -20° to 45° C (-4° to 113° F)
• Relative Humidity: 0% to 90% non-condensing

Physical

• Weight: 1.54 lb
• Dimensions: 10 1/2"x5 1/4"x2"
