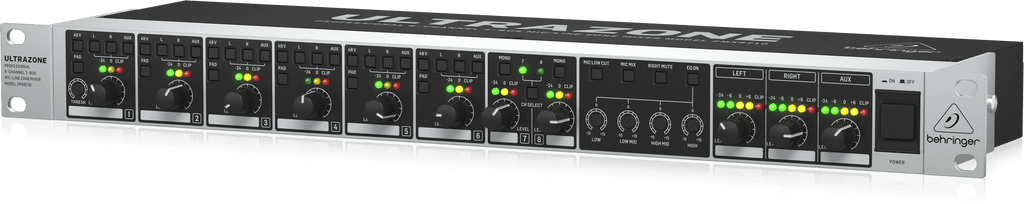

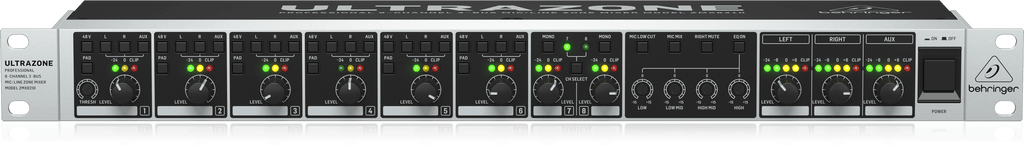

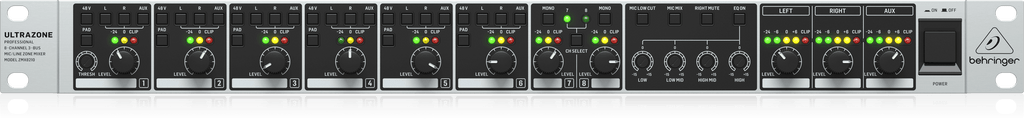

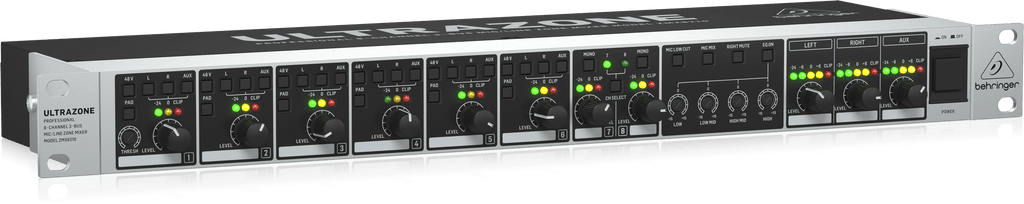

The Behringer Ultrazone ZMX8210 V2 is an 8-channel, 3-bus rackmount zone mixer for commercial sound and fixed installs, routing up to eight sources to three separate zones such as a lobby, dining room and back office. It has six ultra-low-noise mic/line inputs with phantom power and two selectable stereo inputs, plus a ducking control on channel 1 that lowers background music for announcements. Three assignable outputs, a 4-band master EQ, bus links for chaining units and remote-control ports make it flexible for restaurants, gyms, offices and houses of worship.
Features
- 8-channel, 3-bus zone mixer for fixed installations
- Routes up to 8 sources to 3 separate zones
- 6 ultra-low-noise mic/line inputs with -20 dB pad and +48 V phantom power
- 2 selectable stereo inputs with mono/stereo switch
- Channel 1 ducking/variable threshold for announcements
- 3 assignable outputs (Left, Right, Aux) with 5-segment LED meters
- 4-band master EQ, global mic low-cut, bus links and remote-control ports
Specifications
| Type |
Rackmount zone mixer |
| Channels |
8 (3-bus) |
| Mic/Line Inputs |
6 (with +48 V phantom, -20 dB pad) |
| Stereo Inputs |
2 selectable |
| Outputs |
3 assignable (L / R / Aux) |
| EQ |
4-band master + global low-cut |
| Connectors |
Euroblock and RCA |
| Format |
19" rack |
| Dimensions (W x D x H) |
19.02 x 6.02 x 1.73 in (483 x 153 x 44 mm) |
| Weight |
3.74 lb (1.7 kg) |
| UPC |
4033653071284 |
