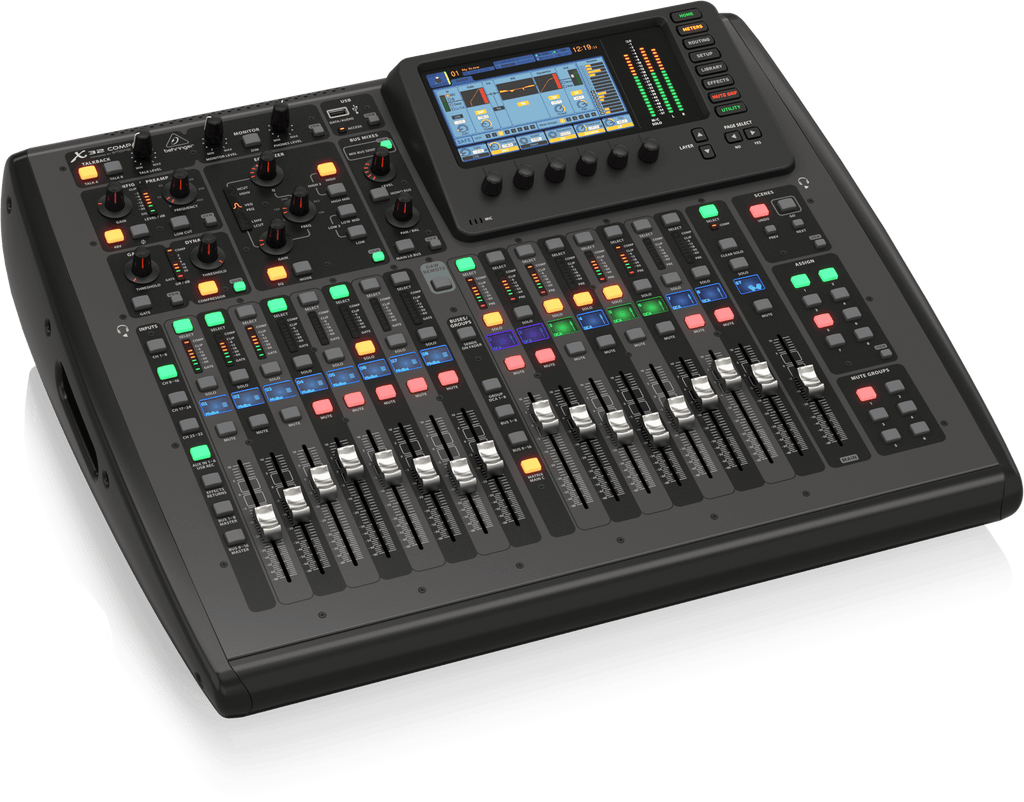

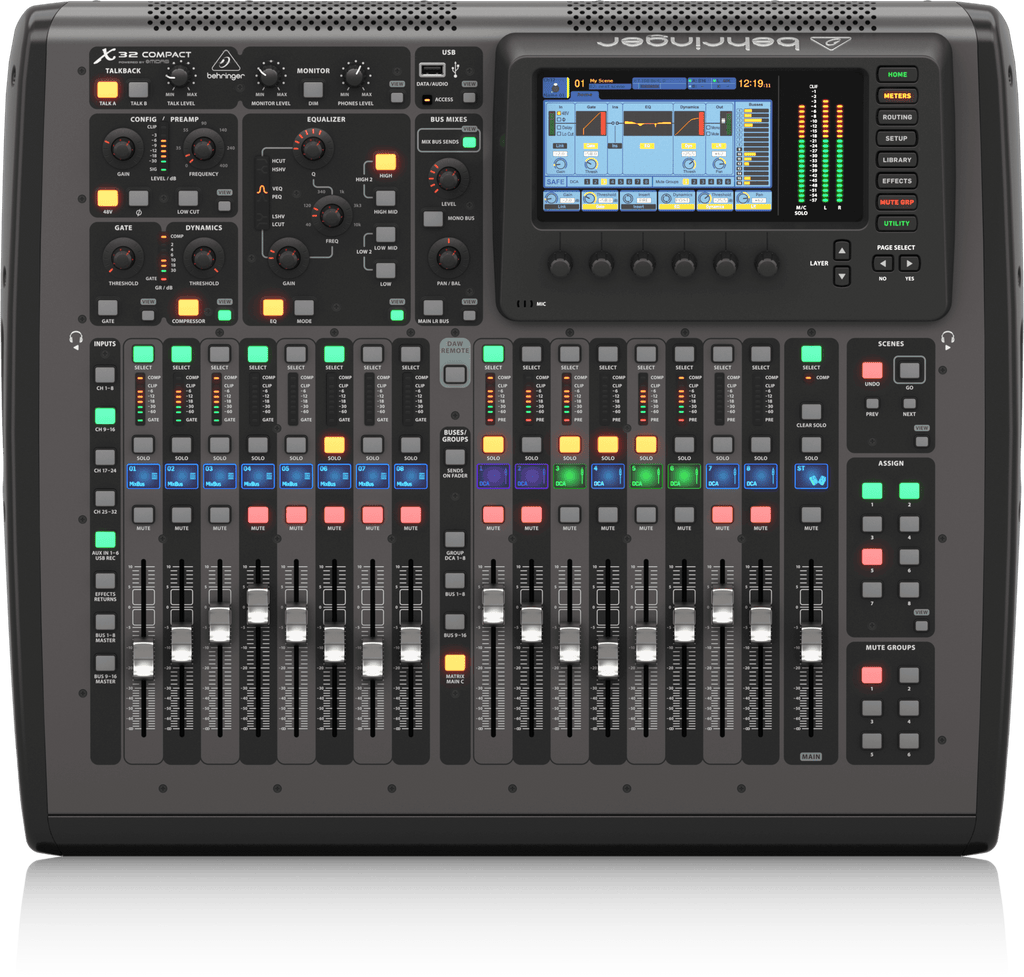

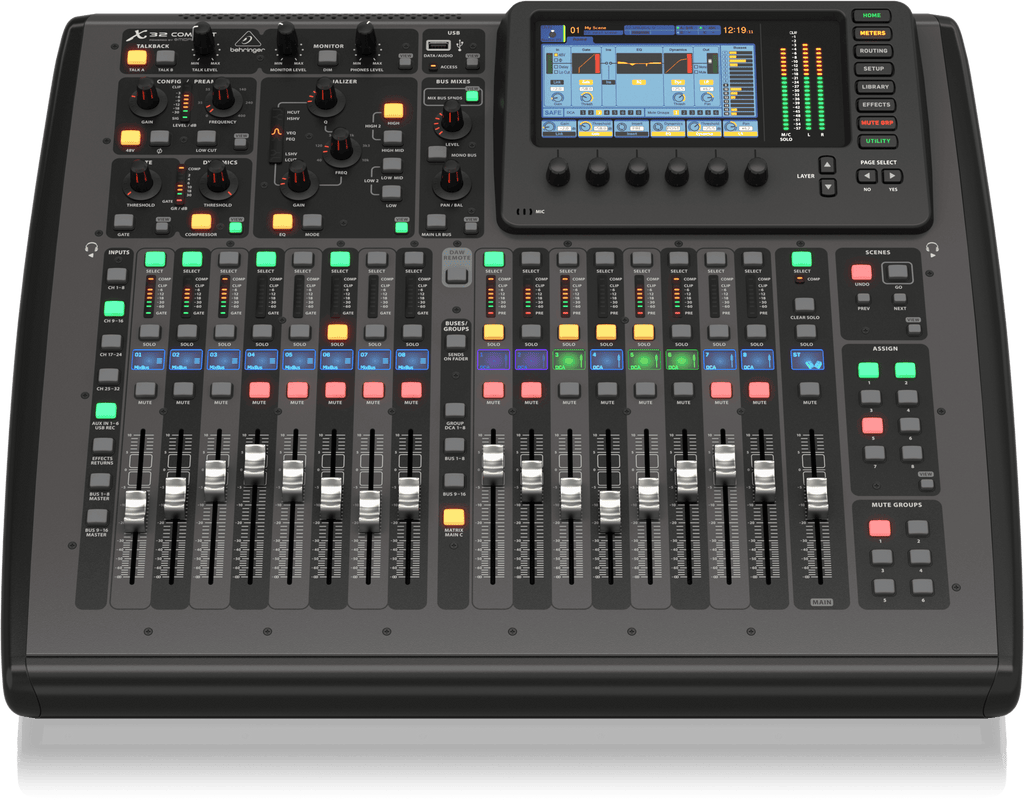

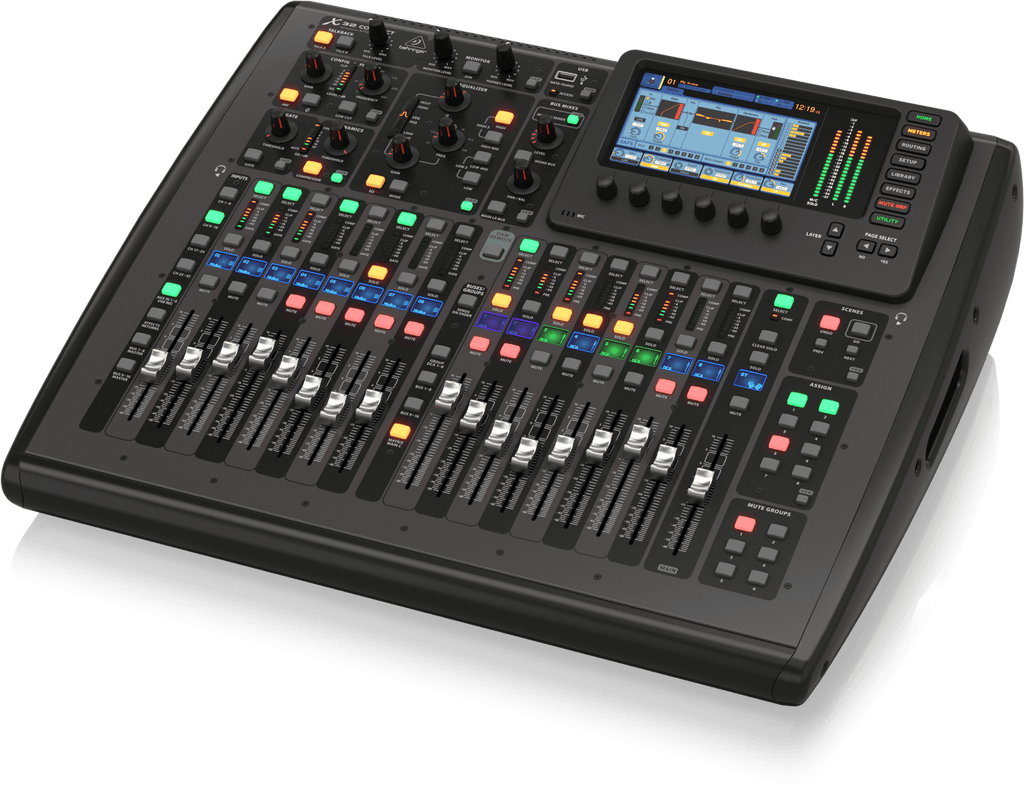

The Behringer X32 Compact is a 40-input, 25-bus digital mixing console in a smaller footprint, with 16 programmable Midas-designed mic preamps, 17 motorized faders and channel LCDs. It shares the full X32 mix engine with 6-band parametric EQ and dynamics on every channel, dual AES50 networking that supports up to six S16 stage boxes, ULTRANET for P16 monitors, and a 32x32 USB interface for recording.
Features
- 16 programmable Midas-designed mic preamps
- 17 motorized faders with channel LCDs
- Full X32 mix engine with 6-band parametric EQ and dynamics

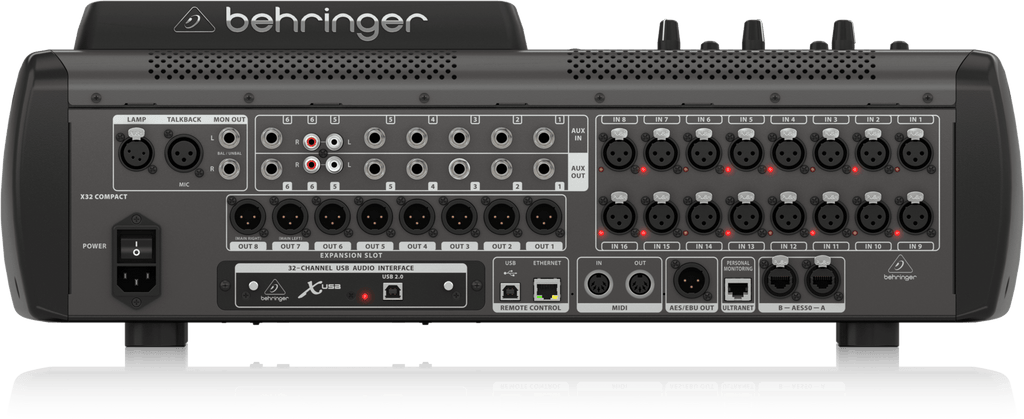

- 16 XLR inputs and 8 XLR outputs
- Dual AES50 networking (supports up to six S16 stage boxes)
- ULTRANET for P16 personal monitors
- 32 x 32 USB audio interface and tablet/phone remote control
Specifications
| Type |
Digital mixing console |
| Mic Preamps |
16 Midas-designed |
| Faders |
17 motorized |
| Channels |
40 input |
| Buses |
25 |
| Mix Engine |
X32 |
| Networking |
Dual AES50 (SuperMAC), ULTRANET |
| USB Interface |
32 x 32 |
| Converters |
24-bit, 114 dB dynamic range |
| Dimensions (W x D x H) |
24.61 x 20.08 x 8.46 in (625 x 510 x 215 mm) |
| Weight |
33.88 lb (15.37 kg) |
| UPC |
4033653013802 |
