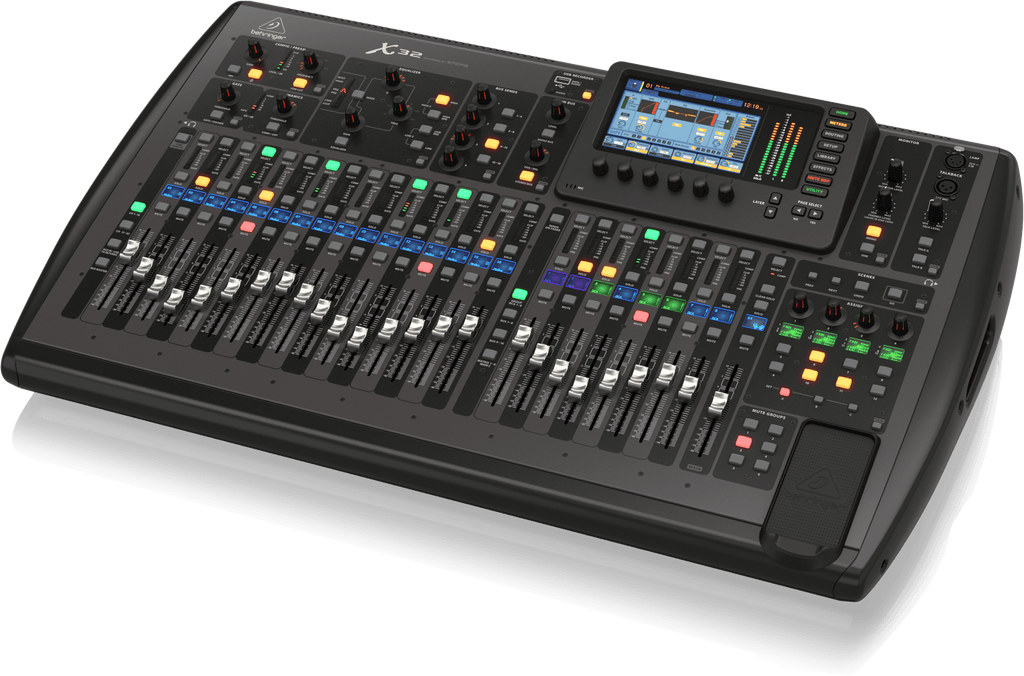

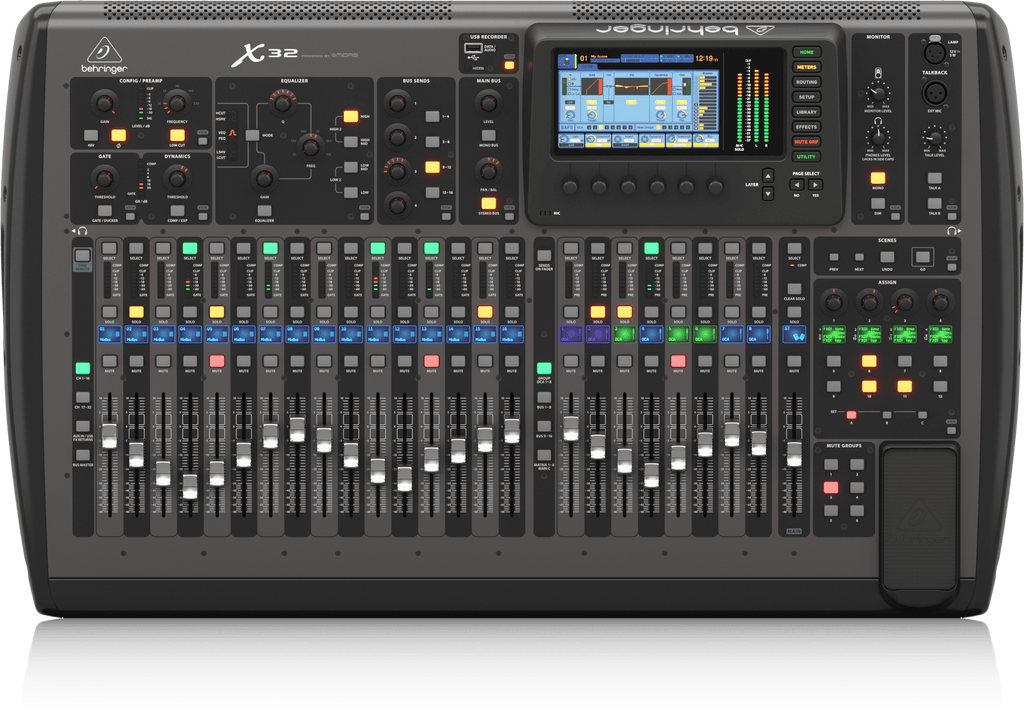

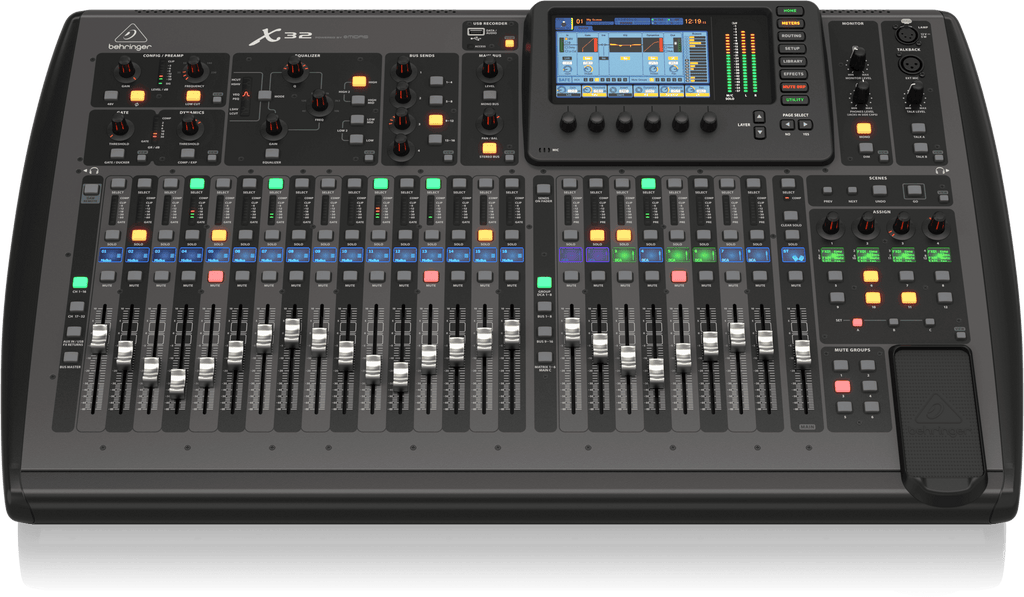

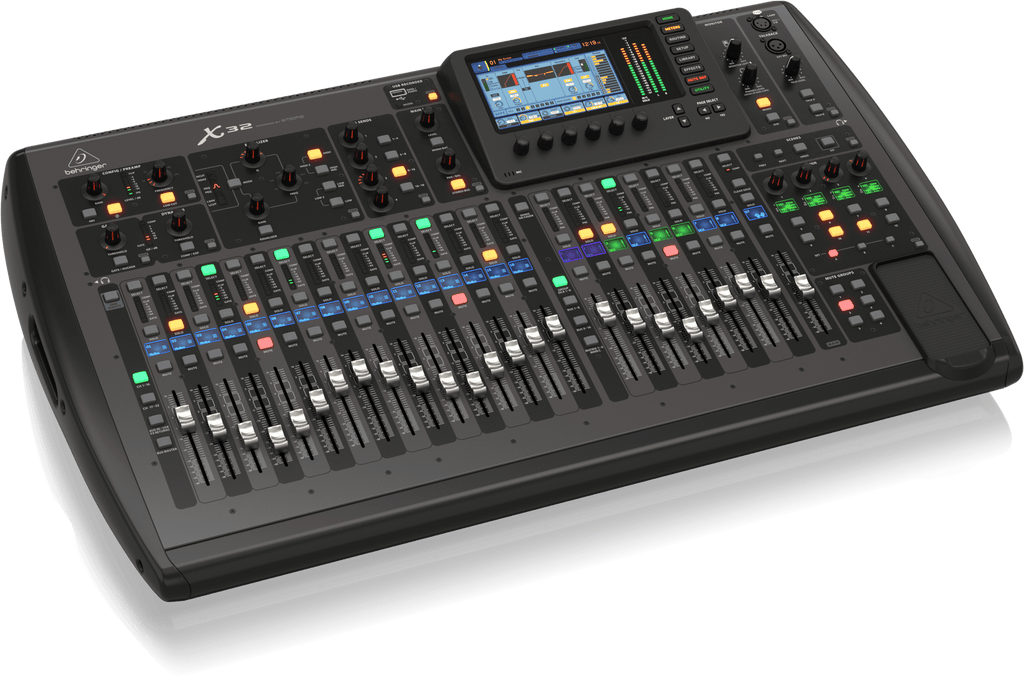

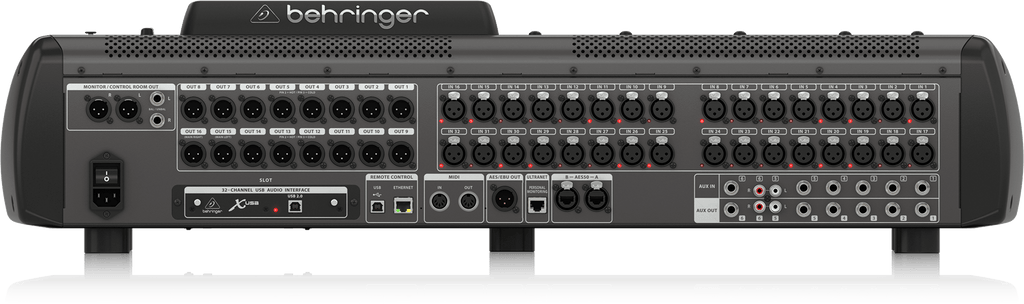

The Behringer X32 is a 40-input, 25-bus digital mixing console with 32 programmable Midas-designed mic preamps, 25 motorized 100 mm faders and a 7" color TFT display. It packs 16 mix buses, 8 DCA groups, 8 true-stereo FX engines with 50+ effects, and 6 matrix mixes, all with 6-band parametric EQ and dynamics. Dual AES50 ports carry up to 96 channels to remote stage boxes, ULTRANET feeds P16 personal monitors, and a 32x32 USB interface records straight to a DAW.
Features
- 32 programmable Midas-designed mic preamps
- 25 motorized 100 mm faders with LCD scribble strips
- 7" day-viewable color TFT display
- 16 mix buses, 6 matrix mixes and 8 DCA groups
- 8 true-stereo FX engines with 50+ effects
- Dual AES50 networking (up to 96 channels) plus ULTRANET for P16 monitors
- 32 x 32 USB audio interface and remote control via iPad, iPhone and computer
Specifications
| Type |
Digital mixing console |
| Mic Preamps |
32 Midas-designed |
| Faders |
25 motorized 100 mm |
| Display |
7" color TFT |
| Channels |
40 input |
| Buses |
25 |
| Mix Engine |
X32 |
| Networking |
Dual AES50 (SuperMAC), ULTRANET |
| USB Interface |
32 x 32 |
| Converters |
24-bit, 114 dB dynamic range |
| Dimensions (W x D x H) |
35.43 x 20.79 x 7.87 in (900 x 528 x 200 mm) |
| Weight |
45.32 lb (20.56 kg) |
| UPC |
4033653012683 |
