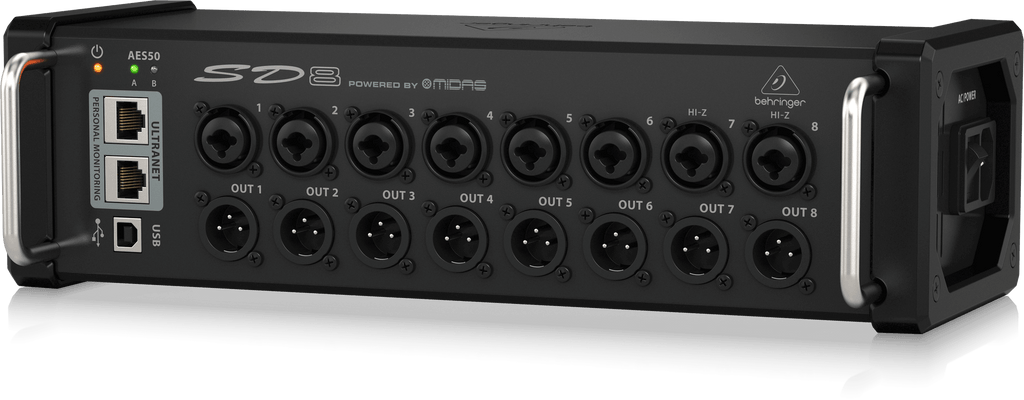

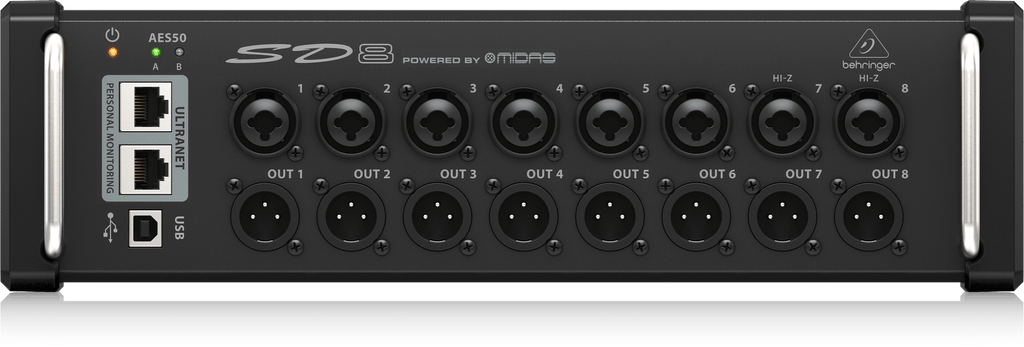

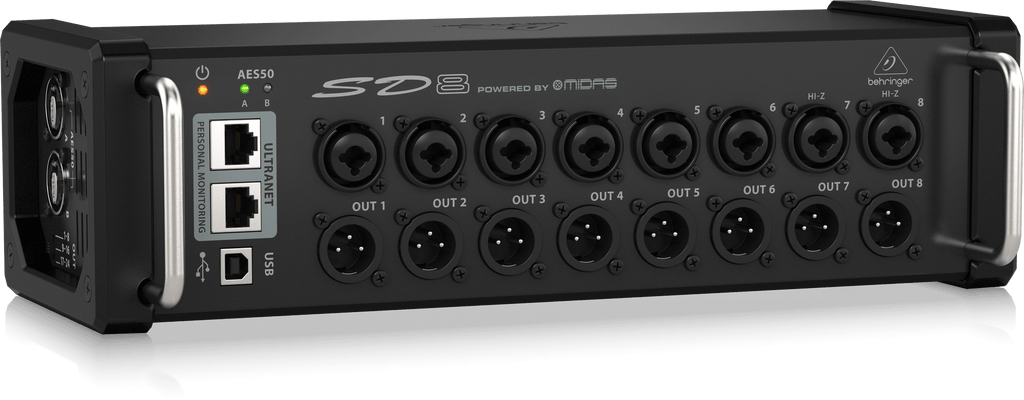

The Behringer SD8 is a compact 8-channel digital stage box with 8 remote-controllable Midas-designed mic preamps and analog XLR outputs, connecting to an X32 or Wing console over AES50 with Klark Teknik SuperMAC. It adds streamlined stage I/O and Powerplay P16 integration over a single Cat 5 cable, ideal for smaller stages and submixes.
Features
- 8 remote-controllable Midas-designed mic preamps
- Analog XLR outputs
- AES50 networking with Klark Teknik SuperMAC
- Ultranet integration with Powerplay P16 systems
- Single Cat 5 cable connection to console
- Compact stage-box design
Specifications
| Type |
Digital stage box |
| Inputs |
8 Midas mic preamps |
| Networking |
AES50 (SuperMAC) |
| Monitoring |
Ultranet / P16 |
| Dimensions (W x D x H) |
13.11 x 5.87 x 3.74 in (333 x 149 x 95 mm) |
| Weight |
5.5 lb (2.49 kg) |
| UPC |
4033653070478 |
