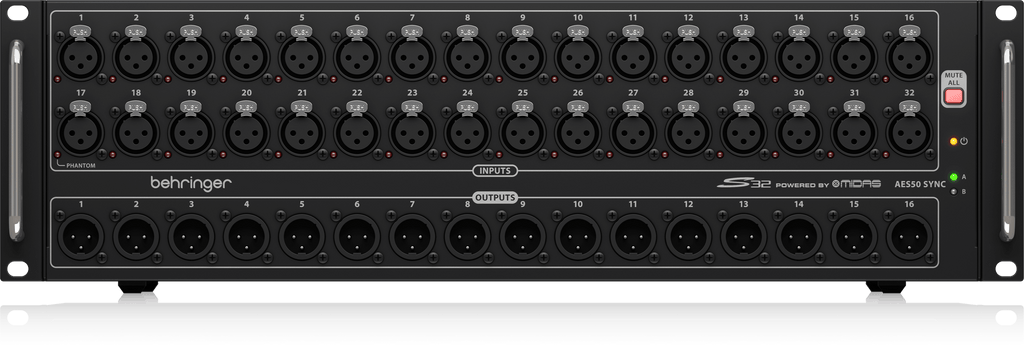

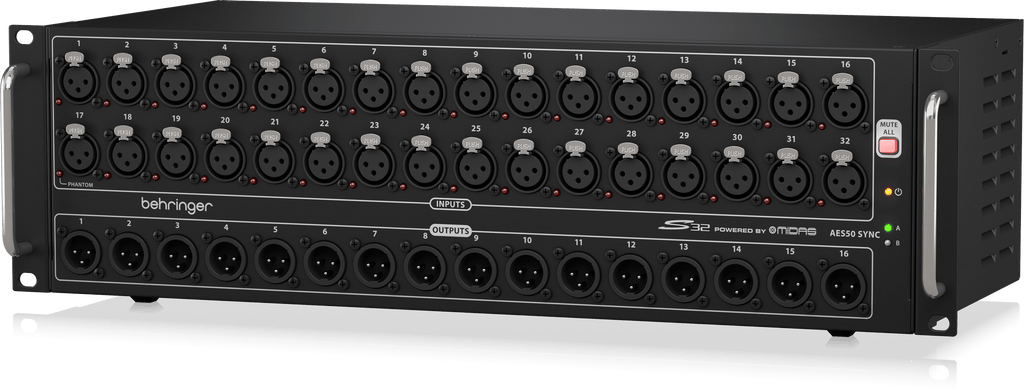

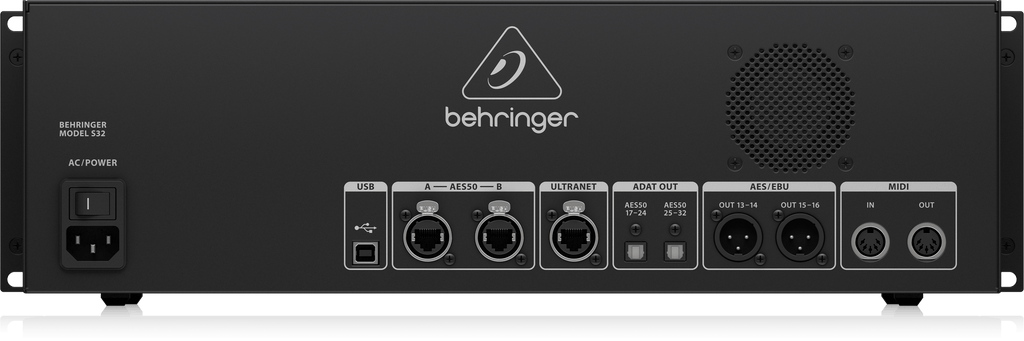

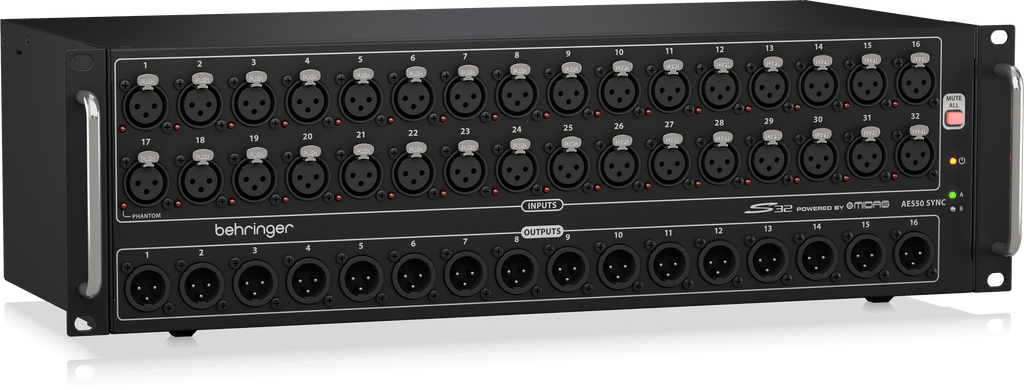

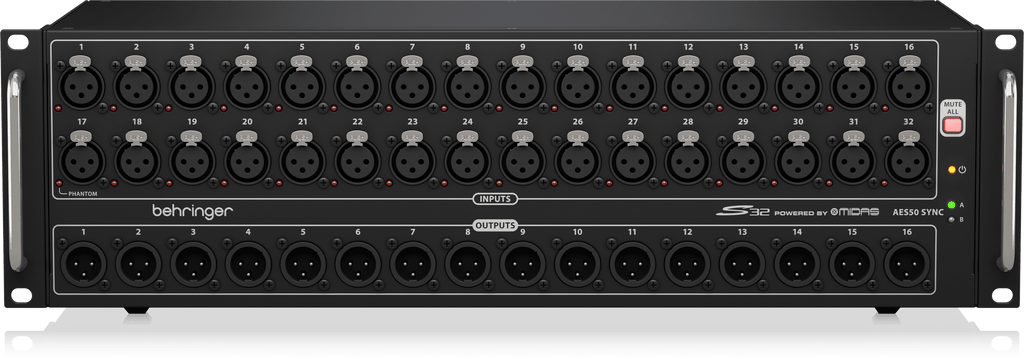

The Behringer S32 is a 32-input, 16-output digital stage box with 32 remote-controllable Midas-designed mic preamps and 16 analog outputs. It offers dual AES50 ports for cascading and an Ultranet output for P16 personal monitoring, connecting to X32 and Wing consoles over Cat 5 for high channel counts on larger stages.
Features
- 32 remote-controllable Midas-designed mic preamps
- 16 analog XLR outputs
- Dual AES50 ports for cascading stage boxes
- Ultranet output for Powerplay P16 monitoring
- Single Cat 5 cable connection to console
- High channel count for large stages
Specifications
| Type |
Digital stage box |
| Inputs |
32 Midas mic preamps |
| Outputs |
16 XLR |
| Networking |
Dual AES50 (SuperMAC) |
| Monitoring |
Ultranet / P16 |
| Dimensions (W x D x H) |
19.02 x 9.53 x 5.43 in (483 x 242 x 138 mm) |
| Weight |
12.39 lb (5.62 kg) |
| UPC |
4033653070546 |
