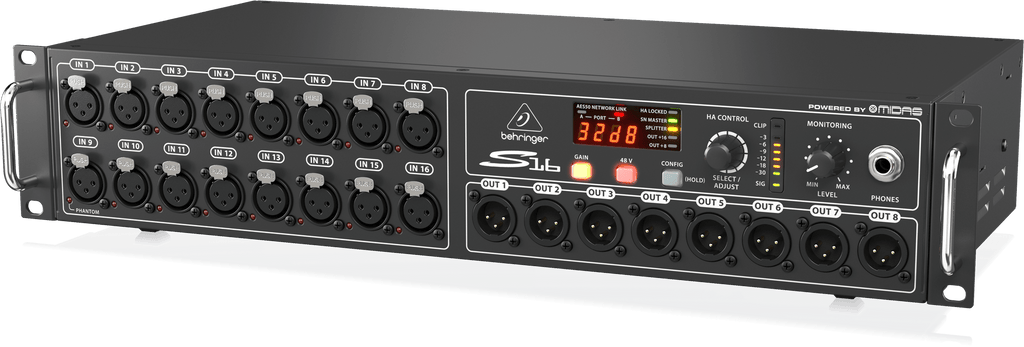

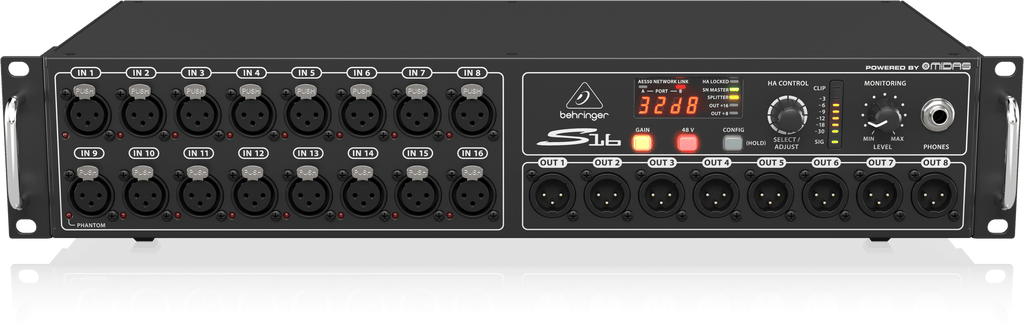

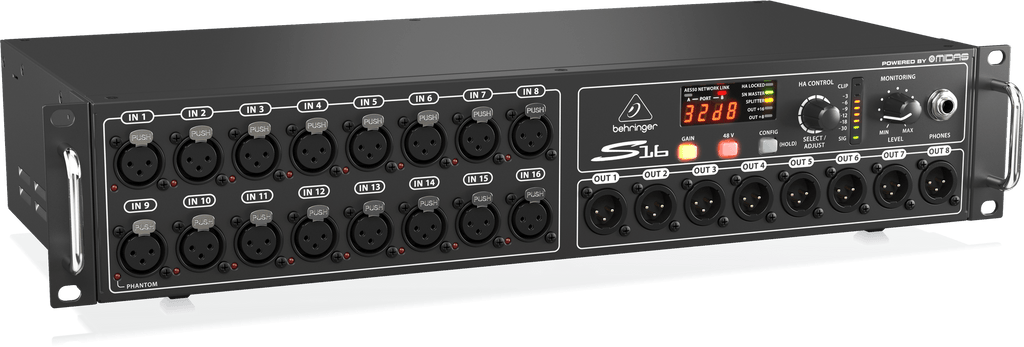

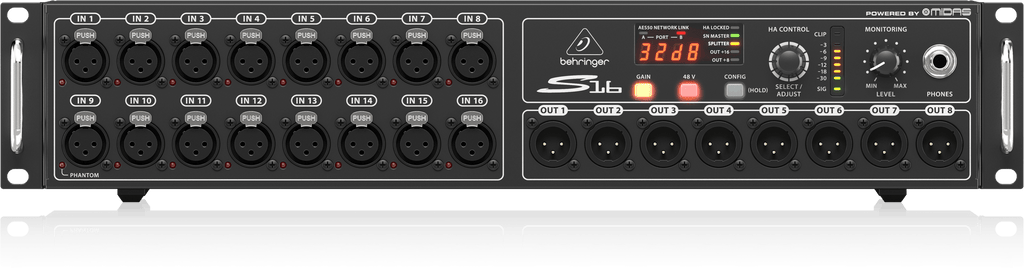

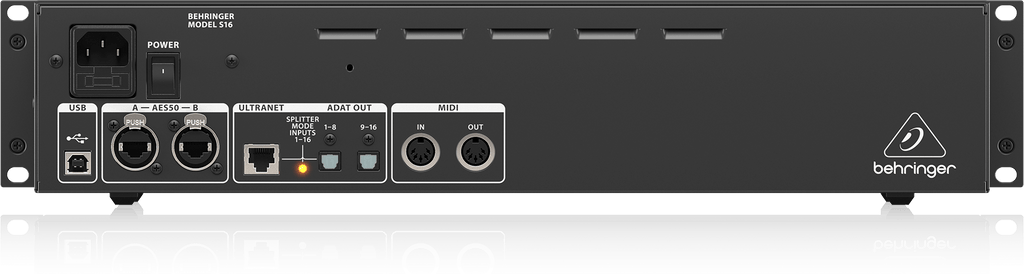

The Behringer S16 is a 16-input, 8-output digital stage box that places 16 remote-controllable Midas-designed mic preamps and 8 servo-balanced XLR outputs at the stage end, connected to an X32 or Wing console over a single Cat 5 cable. It uses AES50 with Klark Teknik SuperMAC for ultra-low latency and integrates with Powerplay P16 personal monitoring.
Features
- 16 remote-controllable Midas-designed mic preamps
- 8 servo-balanced XLR outputs
- AES50 networking with Klark Teknik SuperMAC
- Single Cat 5 cable connection to console
- Ultranet integration with Powerplay P16 systems
- Dual ADAT outputs and MIDI I/O
Specifications
| Type |
Digital stage box |
| Inputs |
16 Midas mic preamps |
| Outputs |
8 XLR |
| Networking |
AES50 (SuperMAC) |
| Monitoring |
Ultranet / P16 |
| Dimensions (W x D x H) |
18.98 x 8.86 x 3.5 in (482 x 225 x 89 mm) |
| Weight |
10.34 lb (4.69 kg) |
| UPC |
4033653012805 |
