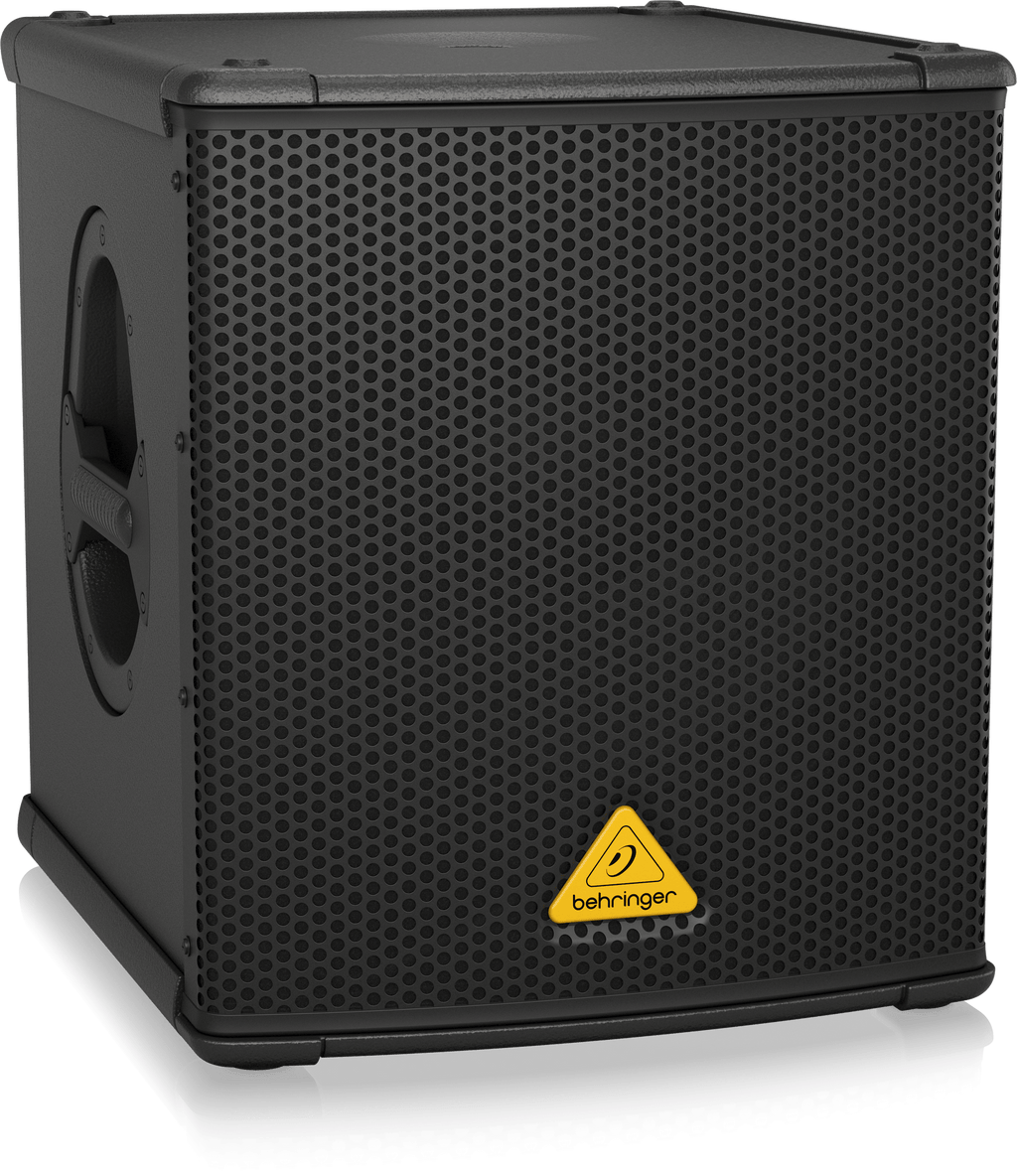

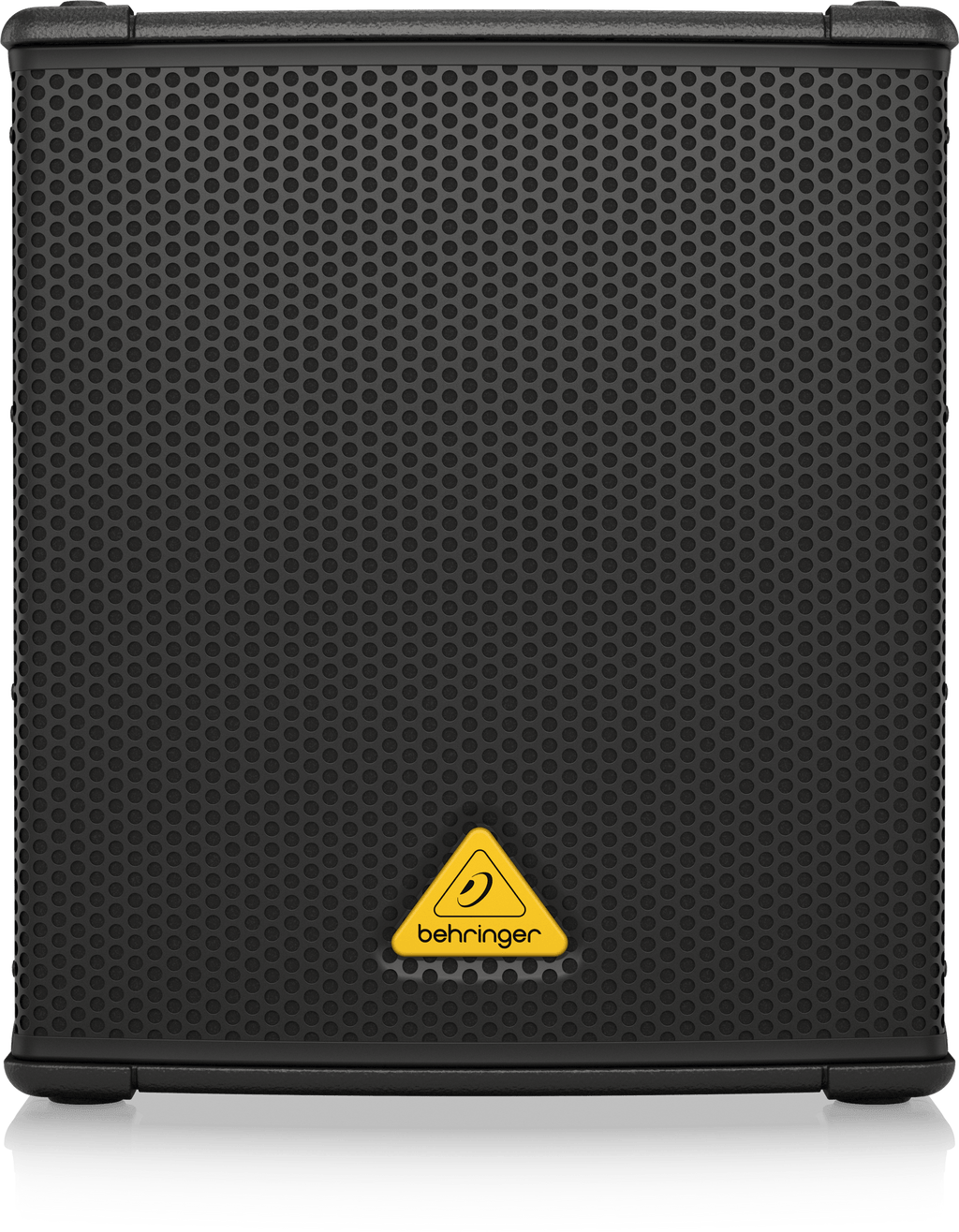

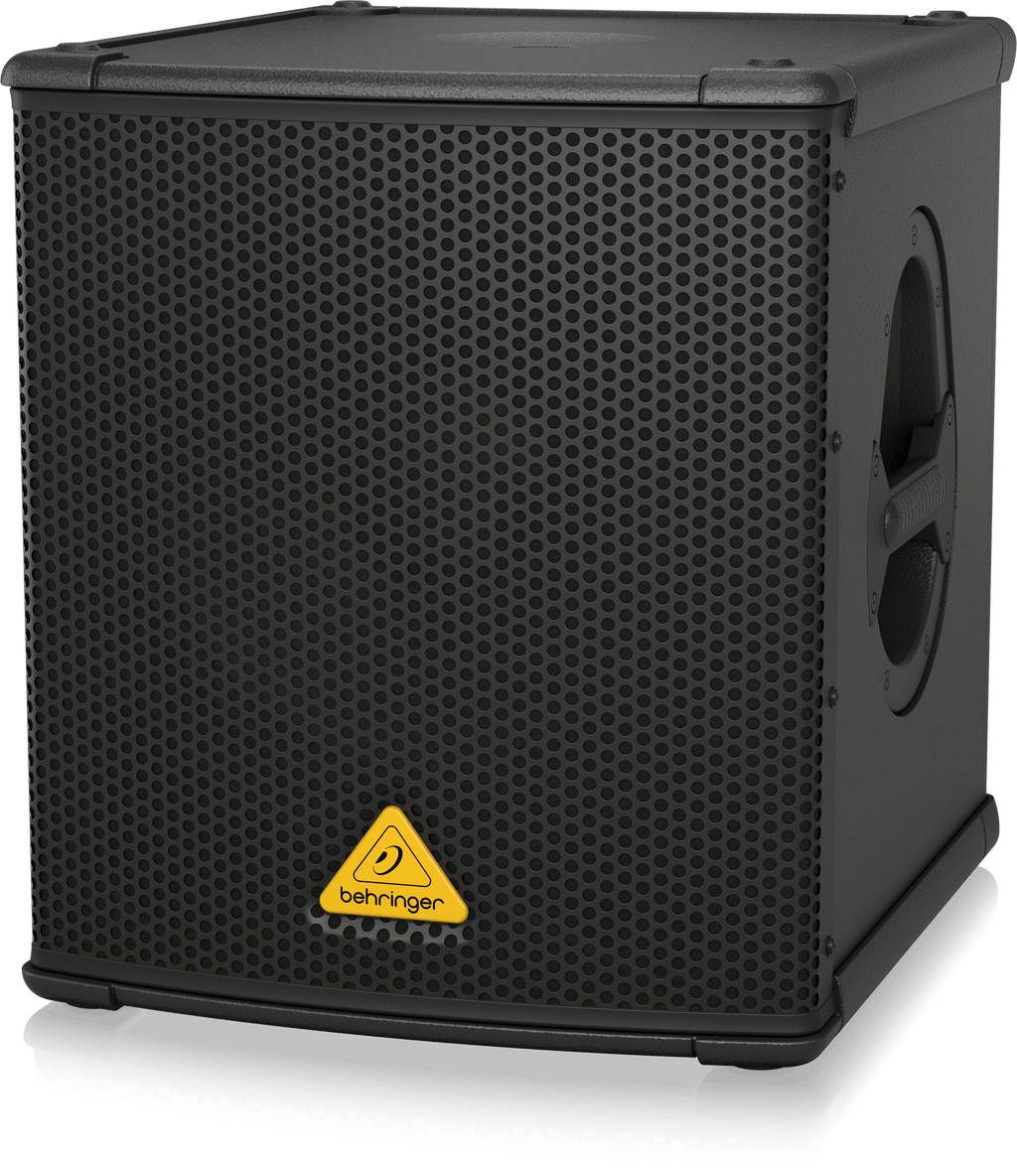

The Behringer B1200D-PRO is an active 12" PA subwoofer built to add low-end to portable and small-venue systems. A 500 W Class-D amplifier drives a custom long-excursion 12" woofer, and a built-in active stereo crossover lets you feed a pair of full-range tops from the high-pass outputs for a complete subwoofer-supported rig.
Features
- 500 W Class-D amplifier driving a custom 12" long-excursion woofer
- Built-in active stereo crossover with high-pass filtered outputs for satellite tops
- High-cut filter (70 to 150 Hz) for upper-corner control
- Boost frequency control (45 to 90 Hz) plus +10 dB boost switch
- Phase reverse switch for tight integration with tops

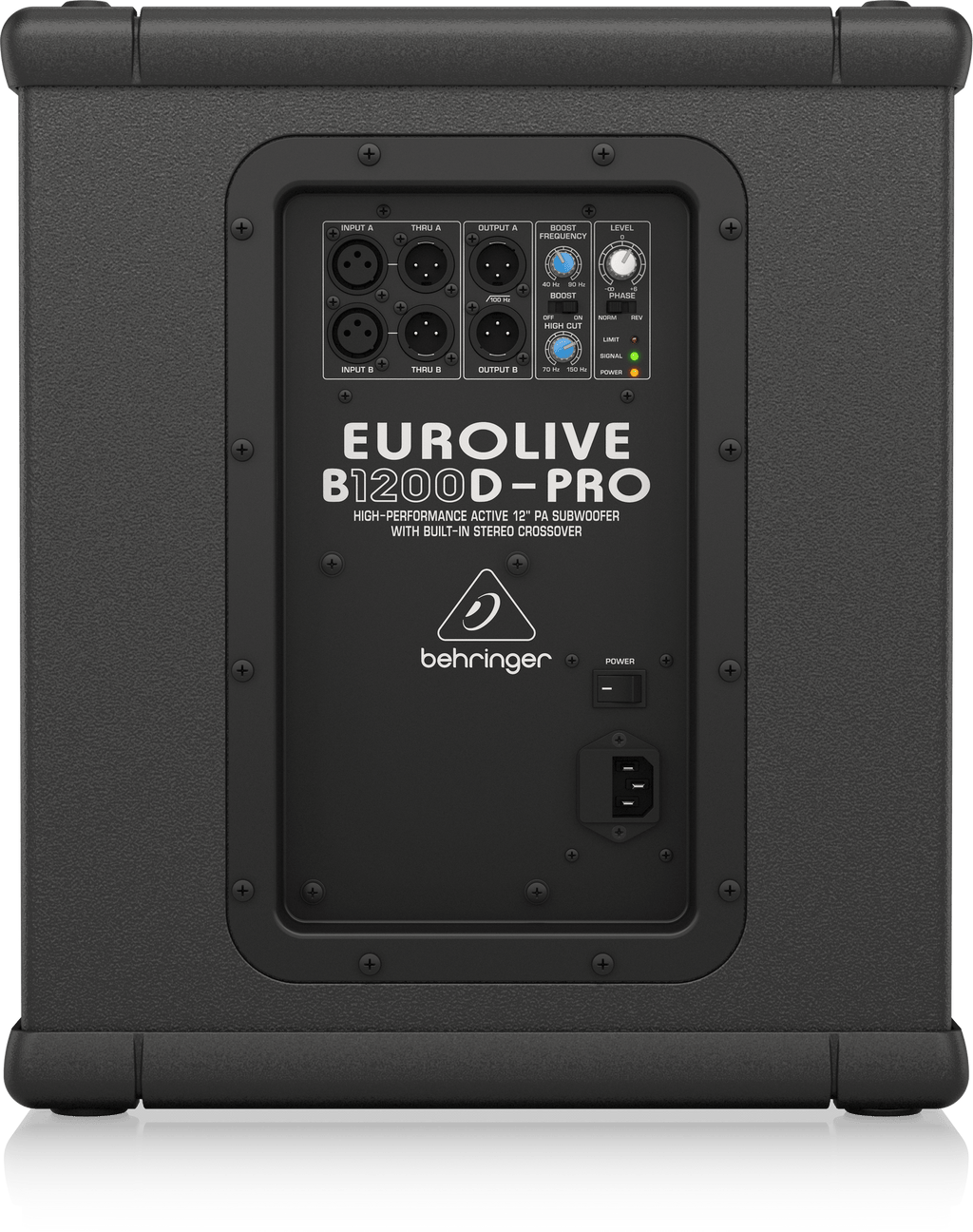

- Balanced XLR inputs, outputs and thru jacks
- Status LEDs for power, signal and input overload
Specifications
| Type |
Active PA subwoofer |
| Woofer |
12" long-excursion |
| Amplifier Power |
500 W Class-D |
| Frequency Range |
45 - 180 Hz |
| Max SPL |
122 dB (1 W @ 1 m, full space) |
| High-Cut Filter |
70 - 150 Hz |
| Boost Frequency |
45 - 90 Hz, +10 dB switch |
| Crossover |
Built-in active stereo |
| Connections |
Balanced XLR in / out / thru |
| Dimensions (W x D x H) |
14.76 x 16.65 x 17.01 in (375 x 423 x 432 mm) |
| Weight |
43.01 lb (19.51 kg) |
| UPC |
4033653022156 |
