Description
The Behringer ADA8200 Ultragain is an 8-channel preamp and AD/DA converter that adds eight analog inputs and outputs to any ADAT-equipped interface or digital mixer. It runs eight Midas-designed mic preamps with up to 60 dB of gain and reference-class Cirrus Logic 24-bit converters, so you get clean, detailed recordings at a budget-friendly price.

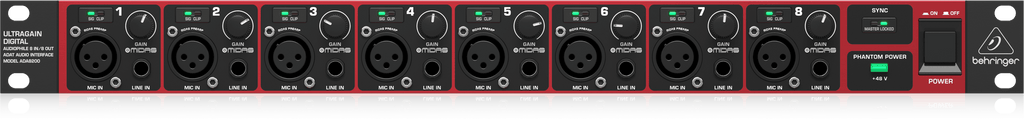

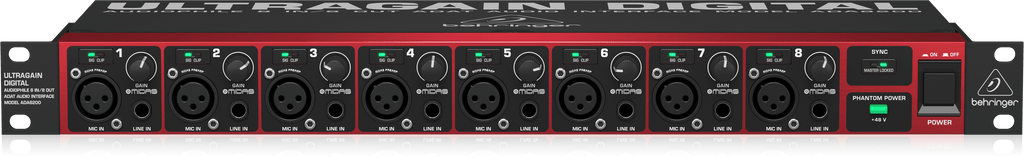

The front panel carries XLR mic inputs and 1/4" line inputs with a master +48V phantom switch for condenser mics. Eight line outputs on the rear expand your monitoring or feed outboard gear, and ADAT TOSLINK optical I/O passes up to 8 channels of digital audio. Everything fits in a single 19" rack space, making it a clean way to grow a studio or mobile rig.
Features
- 8 Midas-designed mic preamps with up to 60 dB of gain
- Reference-class Cirrus Logic 24-bit A/D - D/A converters
- 8 channels of ADAT TOSLINK optical I/O
- Front-panel XLR mic inputs and 1/4" line inputs

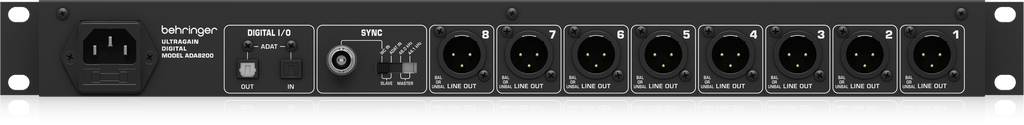

- 8 rear XLR line outputs for monitoring or outboard gear
- Switchable +48V phantom power via master switch
- 44.1 / 48 kHz sample rates, 10 Hz - 24 kHz range
- 1U 19" rackmount format
Specifications
| Mic preamps | 8 x Midas-designed, up to 60 dB gain |
| Converters | Cirrus Logic, 24-bit |
| Sample rates | 44.1 / 48 kHz |
| Frequency range | 10 Hz - 24 kHz (at 48 kHz) |
| Analog inputs | 8 x XLR mic, 8 x 1/4" TRS line (front) |
| Analog outputs | 8 x XLR line (rear) |
| Digital I/O | ADAT TOSLINK optical in/out (8 channels) |
| Phantom power | +48V, master switch |
| Format | 1U rackmount |
| Dimensions (W x D x H) | 19.0 x 8.46 x 1.75 in (483 x 215 x 44 mm) |
| Weight | 4.62 lb (2.1 kg) |
| UPC | 4033653054638 |
