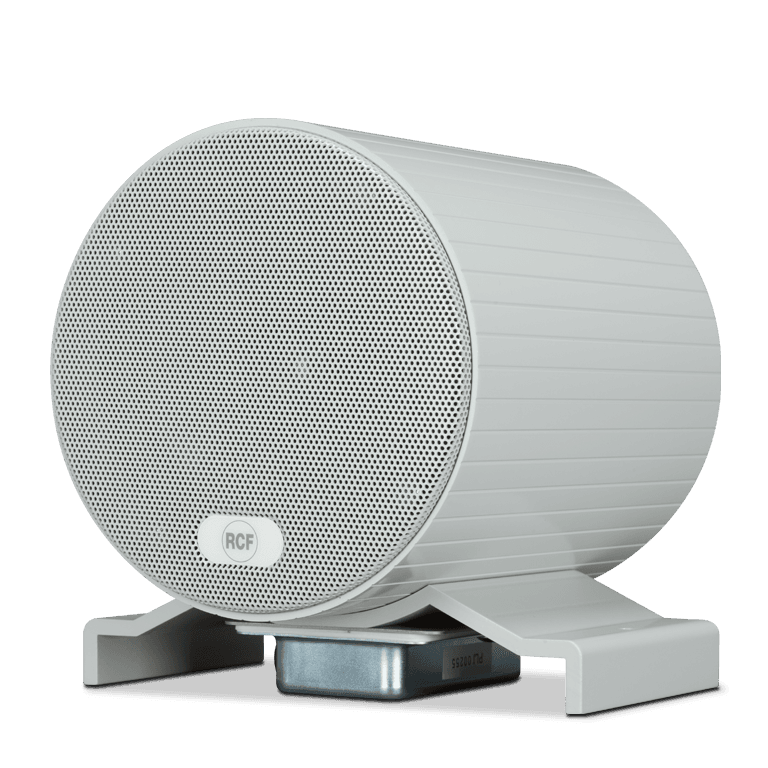

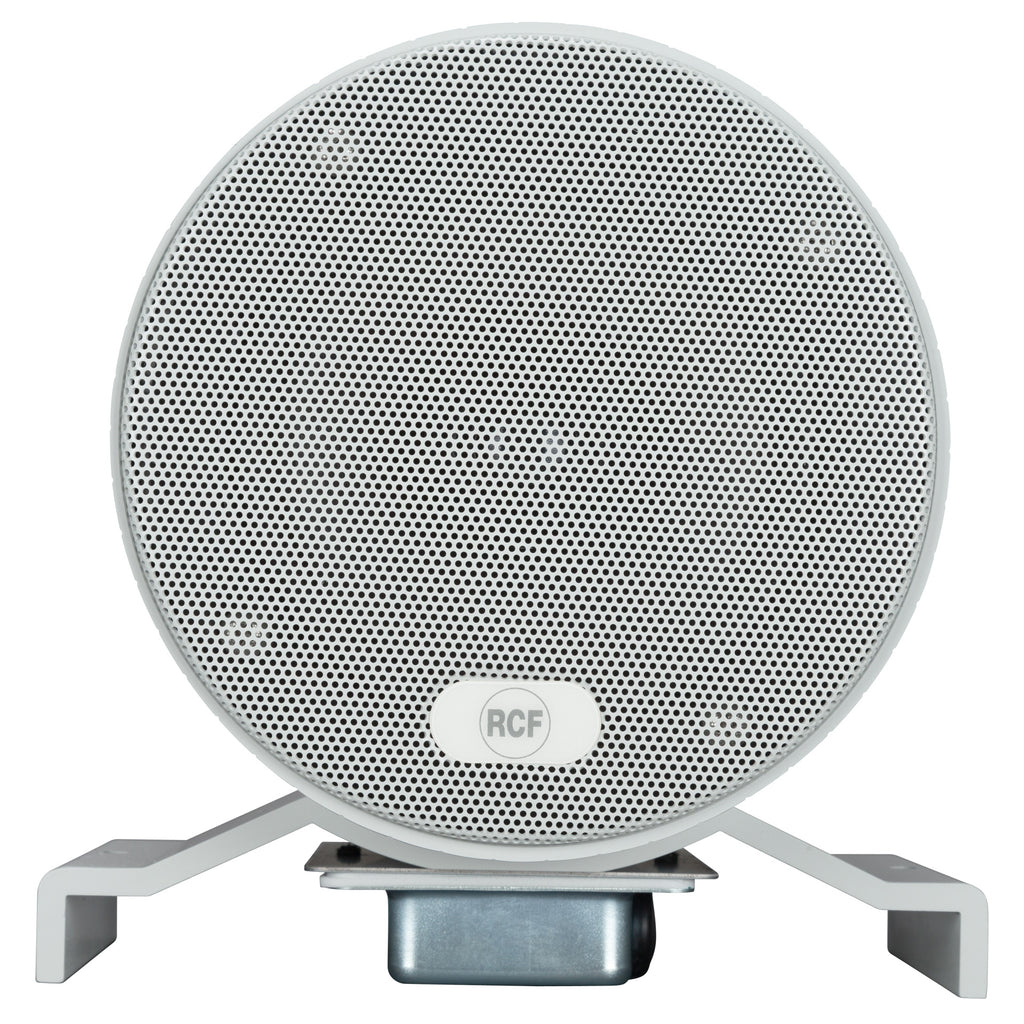

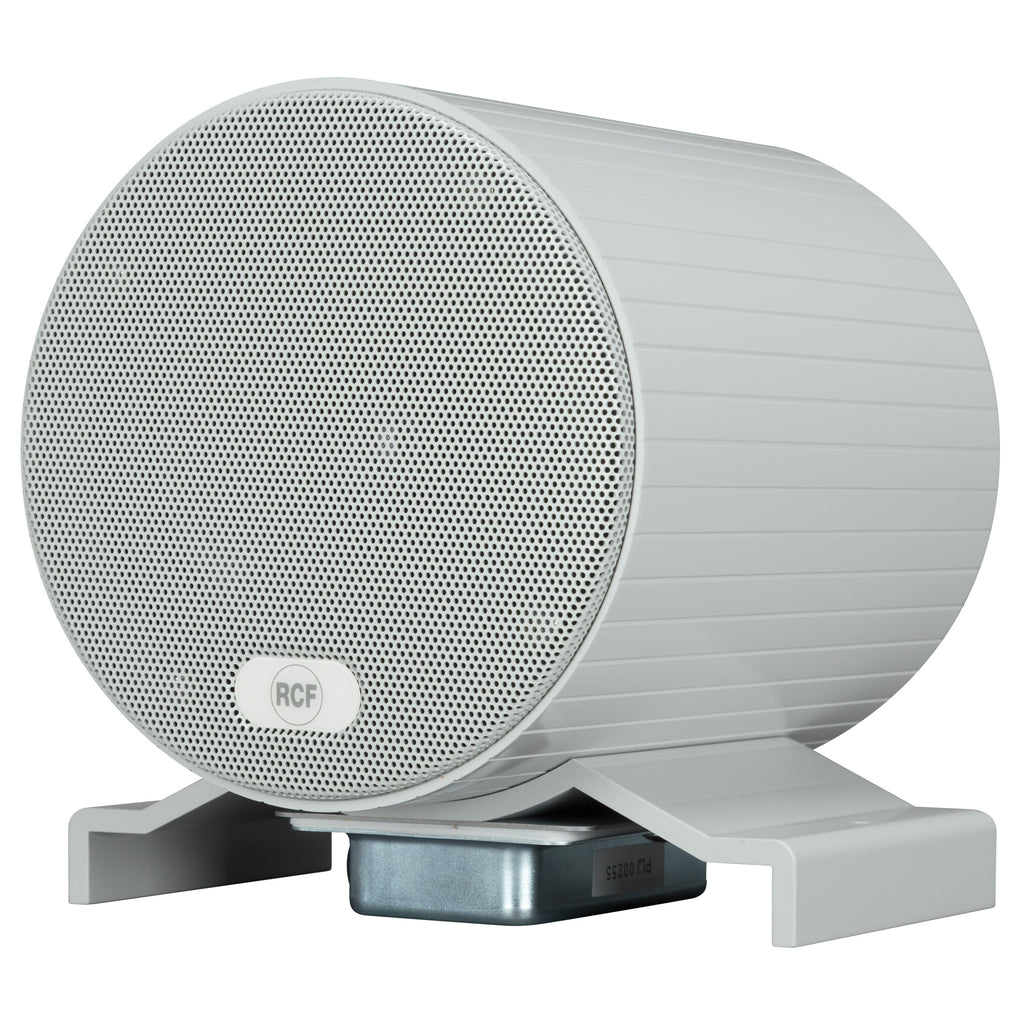

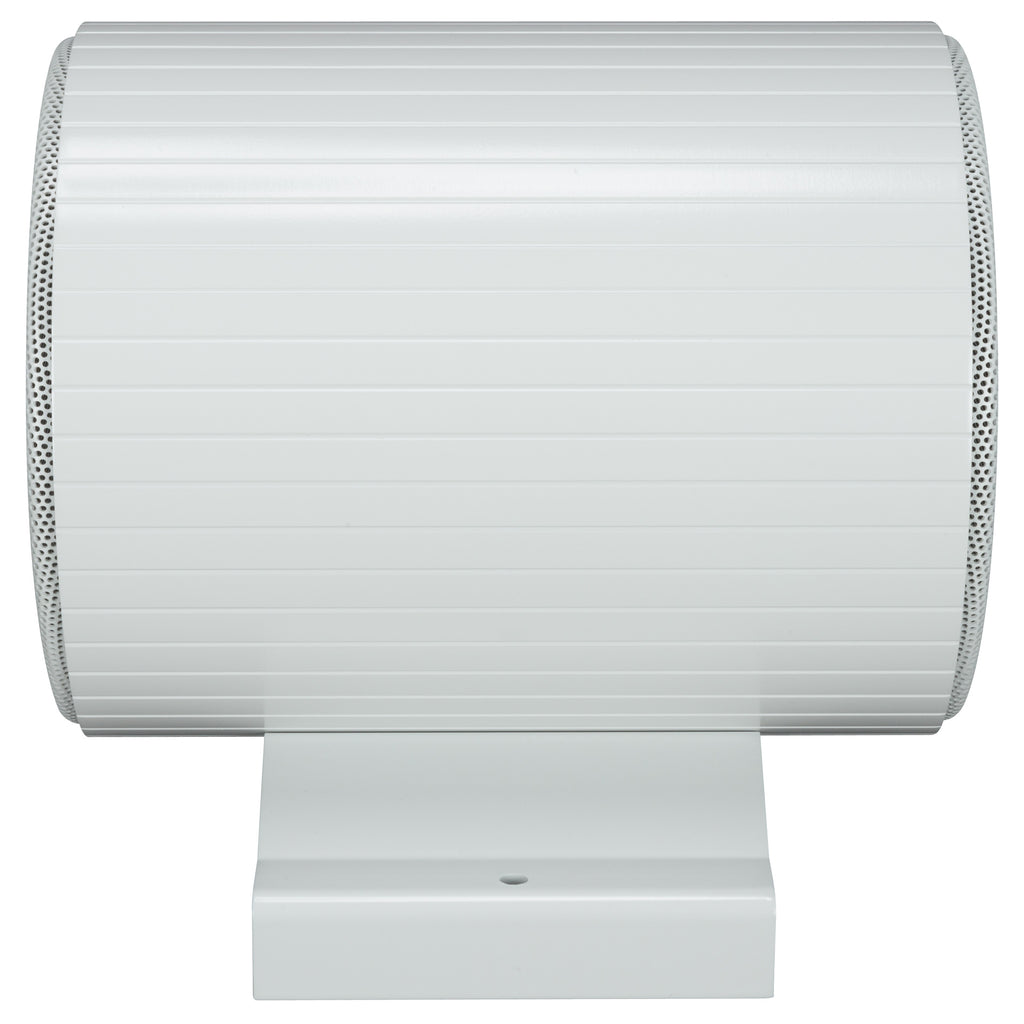

VOICE ALARM EN54 | COMMERCIAL | INSTALLED | BD 2412EN | BIDIRECTIONAL ALUMINIUM SOUND PROJECTOR | Technical Specifications
Technical Specifications
| Acoustical specifications |
| Frequency Response (-10dB) |
130 Hz - 20000 Hz |
| Max SPL @ 1m |
101 dB |
| Max SPL @ 4m |
89 dB |
| Coverage angle |
130° |
| System Sensitivity |
88 dB |
| System Sensitivity 1W @ 4m |
76 dB |
| Power section |
| Power Handling |
20 W |
| Peak Power Handling |
80 W PEAK |
| Protections |
Thermal fuse |
| Recommended Amplifiers |
DXT 3000, DXT 4000, DXT 7000 |
| Transducers |
| Fullrange |
2 x 5.0'' |
| Input/Output section |
| Input connectors |
Ceramic screw terminals |
| Output connectors |

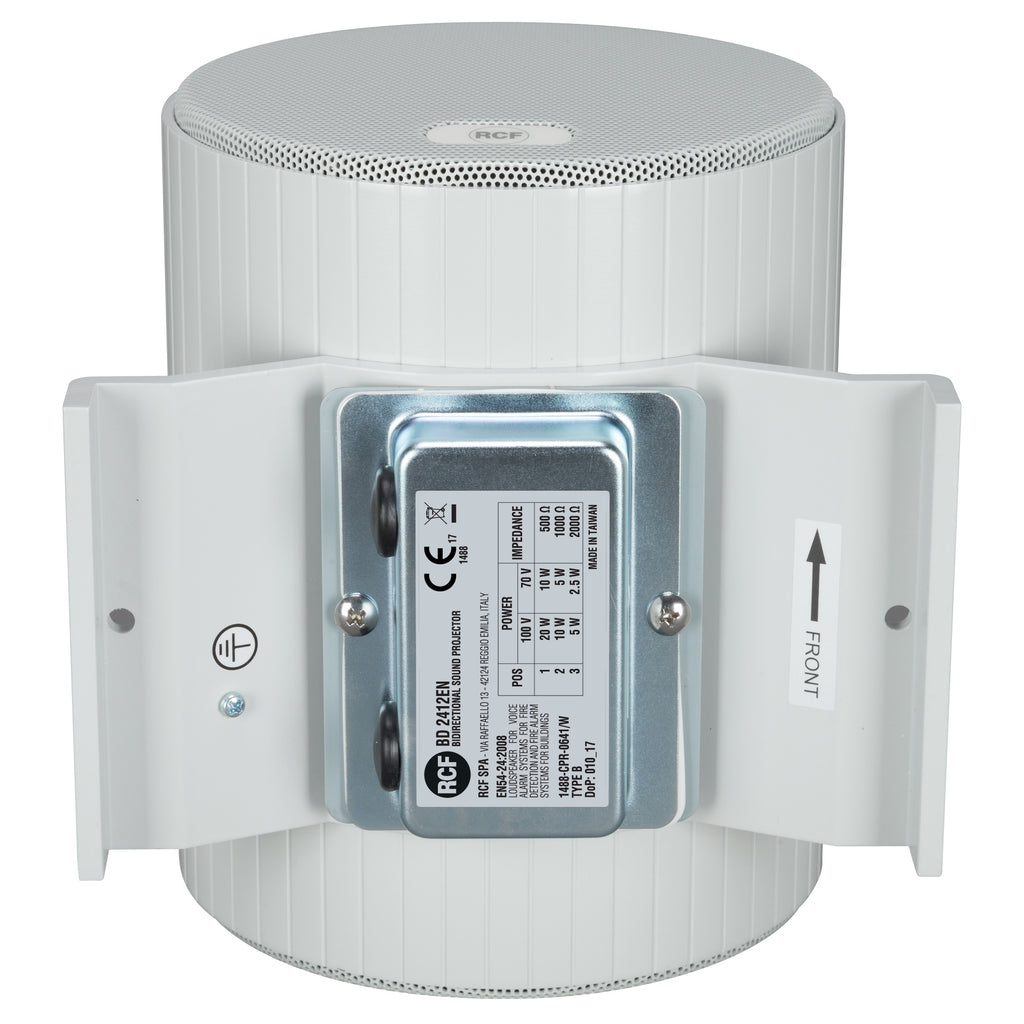

Constant Voltage Transformer |
| 100 V |
Power selection 1 |
| 20 W - 500 ohm |
Power selection 2 |
| 10 W - 1000 ohm |
Power selection 3 |
| 5 W - 2000 ohm |
| Standard compliance |
| IP protection grade |
IP 66 |
| Safety agency |
CE compliant |
| EN54-24 certified |
Yes |
| CPR number |
1488-CPR-0641/W |
| Physical specifications |
| Cabinet/Case Material |
Aluminum |
| Hardware |
Aluminium bracket |
| Grille |
Aluminium |
| Color |
Grey - RAL 7035 |
| Size / Weight |
| Depth |
184 mm / 7.24 inches |
| Diameter |
146 mm / 5.75 inches |
| Weight |
3.25 kg / 7.17 lbs |
| Shipping information |
| Package Height |
185 mm / 7.28 inches |
| Package Width |
240 mm / 9.45 inches |
| Package Depth |
Package Weight |
