Description
Designed in the USA, the Milan™ certified Avante Audio AKRO ATS218 is a high-output dual 18-inch active subwoofer engineered for medium to the largest events and pairs nicely with the Avante Audio AKRO ATL328 line array. This subwoofer can be setup to form small to large sub arrays depending on venue or application. This subwoofer is composed of dual high-output 18-inch low-frequency woofers tuned with a very large port. The high-efficiency Class-D +switching power amplifier boasts 4800-watts of total peak power and has a PFC power supply. This ensures that you have great headroom with very minimal distortion. Delivers an exceptional low frequency response of 32 Hz to 120Hz (-6dB).
The AKRO ATS218 is equipped with a comprehensive, German made DSP, featuring full system networking, remote monitoring/control including input level, equalization, delay, LF and HF compensation presets. It can be controlled via the new Akro-Command system control software (Windows/Mac), or locally via three rotary switches.
This DSP also enables networked audio using the Milan™ standard. This allows for easy setup via TCP/IP. Analog audio connections are available as well.
With a precision CNC machined Baltic birch plywood enclosure, made to withstand the rigors of touring in very demanding environments, making it the perfect choice for professional sound applications including live-sound production, touring and permanent installation including night club applications. The EZ-Link cabinet interlock hardware makes it easy to connect cabinets together to form solid arrays. Protective rain cover for the amplifier connections and IP-rated locking power connectors comes standard. Heavy duty interlocking nylon-skid feet make it easy for cardioid configurations.
Finished in a durable black polyurea coating and featuring a black powder-coated steel grill, this line array system is sure to look great with any performance. Individually, it outputs an impressive maximum SPL of 142 dB.
The new AKRO ATS218 dual 18-inch subwoofer is the perfect choice for any audio professional looking to create a big impact and bringing your event to the next level!
***Power and Speaker Cables Sold Separately***
Specifications
TECHNICAL DATA
Speaker Type: 1-Way Active Dual 18-inch Subwoofer, Milan™ certified
ACOUSTICAL DATA
Frequency Response: 35 -200 Hz
Peak SPL: 142 dB
LF: 2 x 18" (4" voice coil)
AMPLIFIER
Amplifier: Class-D 2400-Watts RMS / 4800-Watts Peak
Cooling: Internal fan
Power Supply: Auto switching (PFC)100V-240V, 50-60Hz
Protection: Thermal, DC Offset, Output Short
PROCESSOR
German made Proprietary DSP, Milan™ Certified
Sample Rate: 96 kHz
Limiter: Multiband compressor, Peak Limiter
Processing (filters): Linear Minimum-Phase FIR
INPUT
Signal In/Out (analog): 3-pin XLR, (digital) locking RJ-45
Power Socket: IP65 Locking Power In/Out
Network: Locking RJ45 In/Out for control and Milan™ network
Controls: Input Attenuation (-15dB - +6dB); System presets (8 selectable), System Test/Reset Button
Special Features: Front LED wink-ID
Remote Control
Full system control and monitoring with AKRO-Command system software. MAC and Windows PC compatible.
CONSTRUCTION
Cabinet: Baltic birch premium plywood
Finish: Durable black Polyurea coating, powder coated galvanized grille, Nylon-skid interlocking feet.
Handles: 4 integral handles (2 on each side)

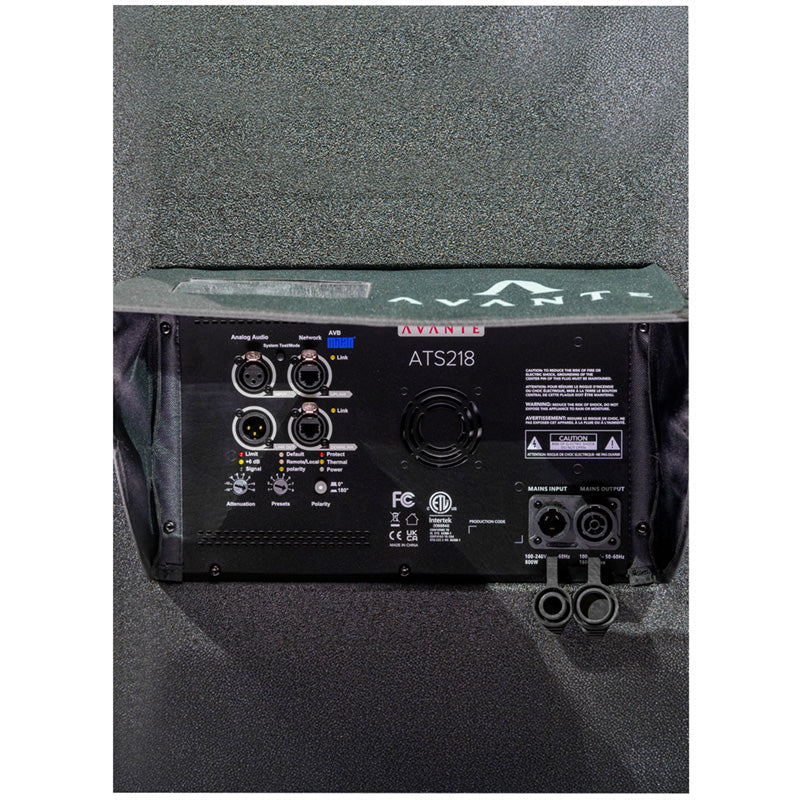

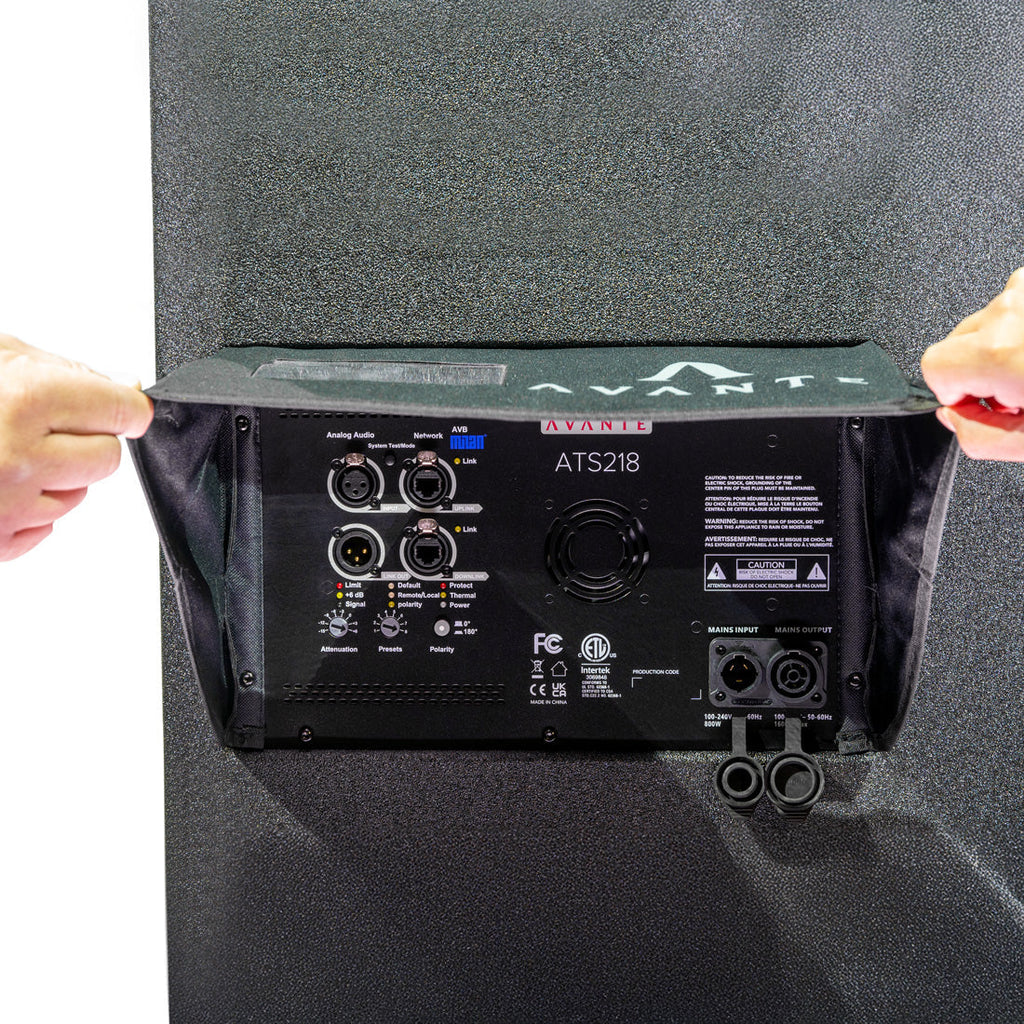

Amplifier Protection- Rain resistant cover included
Rigging:(24) M10 points, (4) EZ-Link cabinet interlock hardware
Dimensions (LxWxH): 47.4"x23.4"x22.8" / 1205x594x579mm
Weight: 185 lbs. / 84 kg.
POWER DRAW (at 1/8 Power)
3.7A / 428W
ACCESSORIES
CVR218 Protective cover for one ATS218
ADB218 Transport 2-way Dolly Board for up to two ATS218
ASB218 Stabilizer Bars for ATS218 (2-piece set)
SIP650: Moulded Locking IP65 fixture side connector to 120V, IP20 male Edison plug.
