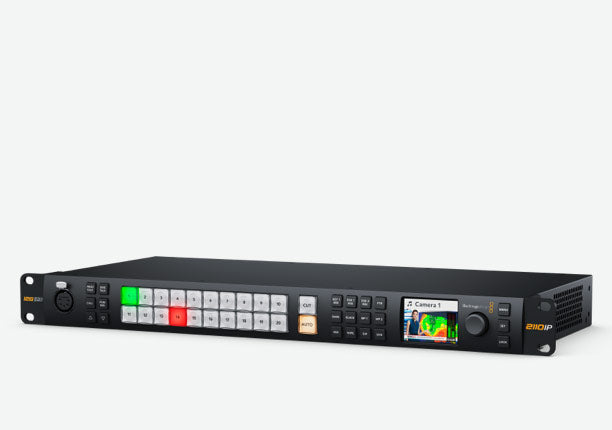

Blackmagic ATEM Monitoring Rack Panel 20, Rack mount 1 RU ATEM switcher control panel with built in monitoring converter

Rack mount 1 RU ATEM switcher control panel with built in monitoring converter. Includes 20 input buttons, talkback connections and redundant 10G Ethernet SMPTE-2110 to 12G-SDI and HDMI converter.

ATEM Constellation IP is a new family of live production switchers with familiar ATEM Constellation features and a more powerful design that's fully SMPTE-2110 native! This means you have the option of adding any mix of traditional 12G-SDI or modern SMPTE-2110 IP video. Plus all IP video connections are fully redundant and SMPTE-2022-7 compliant. ATEM Constellation IP is designed for the chaos of live production, as it will convert non-standard video sources and fix PTP clock problems because each input has a dedicated standards converter and re-synchronizer! You also get powerful ATEM Constellation features like DVEs, advanced chroma keyers, media players, multi-views and SuperSource!

The ATEM 4 M/E Constellation IP has a dramatically different design to other models because it is designed for high end broadcasters. The new design features front to back cooling with 4 fans that are extremely quiet. All connections feature full redundancy with SMPTE-2022-7 on all video ports, plus additional redundancy on the control and PTP Ethernet ports. A built in LCD displays all standard ATEM Constellation status information and provides access to settings menus. The front panel even includes a headphone connection and built-in speaker for local program monitoring! A USB-C connection on the front panel lets you update software or even connect the ATEM Software Control app!

Front Back ATEM 4 M/E Constellation IP Front ATEM 4 M/E Constellation IP Rear ATEM 4 M/E Constellation IP The standard 4 M/E model has 32 standards converted SMPTE-2022-7 inputs using 4 sets of dual redundant 100G Ethernet connections. You also get 32 SMPTE-2110 outputs, 16 ATEM Advanced Keys, 4 multi-views and 2 SuperSource for a total of 12 DVEs.

ATEM 4 M/E Constellation IP Plus

The massive 4 M/E Plus model has 64 standards converted SMPTE-2022-7 inputs using 8 sets of dual redundant 100G Ethernet connections. You also get 64 SMPTE-2110 outputs, 16 ATEM Advanced Keys, 4 multi-views and 2 SuperSource for a total of 12 DVEs.

To connect to SDI equipment, simply add a Blackmagic SDI Expander 8x12G. It's bi-directional, with 8 x 12G-SDI inputs and 8 x 12G-SDI outputs, for both capture and playback. With multiple Ethernet ports, you can connect a mix of IP and SDI video!

Specifications

Connections

• 10G 2110 IP Networks: 2 x 10G RJ45 connections. Supports ST 2022-7 redundant delivery of IP streams over two 2110 networks.
• 1G Control Network: 1 x 1G RJ45 for connection to switcher and NMOS control.
• Total Video Inputs: 1
• Total Video Outputs: 3
• SDI Video Outputs: 2
• SDI Rates: 1.5G, 3G, 6G, 12G.
• HDMI 2.0 Video Inputs: 1
• SMPTE ST 2110 IP Audio Inputs: 16 Ch embedded audio on each 2110 IP video stream over 10G Ethernet.
• SDI Audio Outputs: 16 Ch embedded audio on all SDI outputs.
• HDMI Audio Outputs: 8 Ch embedded audio on HDMI output.
• Talkback: 1 x 5-pin XLR Talkback.
• Computer Interface: 1 x USB-C for setup utility and software updates.
• Power: 2 x IEC C14 power inputs.

Standards

• HD Video Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60.
• SMPTE Compliance: SMPTE 2110-20, SMPTE 2110-21, SMPTE 2110-30, SMPTE 2110-40, SMPTE 2022-7
• Video Sampling: 4:2:2
• Color Precision: 10-bit.
• SDI Color Space: Rec. 709, Rec. 2020

IP Video Compliance

• SMPTE 2110-20 (Uncompressed Video): IGMP v3
• SMPTE 2110-21 (Traffic Shaping): Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous
• SMPTE 2110-30 (PCM): Audio Conformance level: Level C
• SMPTE 2110-40 (Ancillary Data): Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
• Codec: Blackmagic IP10 codec optional for 2160p59.94 and 2160p60 as 2110 IP video.
• Precision Time Protocol: IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2
• NMOS IS-04 Discovery and Registration: v1.3.2 Peer-to-peer via mDNS/DNS-SD
• NMOS IS-05 Connection Management: v1.1.2
• NMOS BCP-002-01: Natural Grouping
• NMOS BCP-004-01: Receiver capabilities

Product Specifics

• Talkback Support: Yes
• Control: Front panel emergency switching, software or optional hardware panel.

Display

• Front panel: Built in HD LCD monitor for video, 22 LED buttons for setup and emergency switching, 8 source buttons, 4 transition buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button.

Software

• Control Panel Included: ATEM Software Control Panel included free for macOS 14.0 Sonoma, macOS 15.0 Sequoia or later and Windows 10 and 11.
• Software Updates: Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility.
• Configuration: Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB-C to chassis.

Power Requirements

• Power Supply: 2 x 100 - 240V AC 50/60Hz internal power supplies.
• Power Supply: 2 x IEC C14 sockets.
• Power Usage: TBC

Physical Installation

• Physical Installation: 1 rack unit.

Environmental Specifications

• Operating Temperature: 0° to 40° C (32° to 104° F)
• Storage Temperature: -20° to 60° C (-4° to 140° F)
• Relative Humidity: 0% to 90% non-condensing
