Description
Introducing ATEM Constellation
Introducing ATEM Constellation, the world's most powerful HD and 4K live production switchers! These powerful switchers are available in 1 M/E models with 10 inputs, 2 M/E models with 20 inputs, 4 M/E models with 40 inputs, and a 4 M/E 4K Plus model with a massive 80 inputs! Plus each SDI input has a dedicated standards converter! ATEM Constellation includes advanced features such as DVEs, ATEM advanced chroma key, media players, multi-views, and SuperSource processors! Plus the built in Fairlight audio mixer includes a compressor, limiter, 6 band parametric EQ and expander on each input. The free ATEM Software Control is included, or you can add a 1 M/E, 2 M/E or 4 M/E ATEM Advanced Panel!
ATEM Constellation switchers boast a compact rack mount design, complete with a built-in control panel. So you can operate the switcher from the front panel during setup or for emergency use. Also included is a large LCD so you can see the program output and change switcher settings. The compact design is perfect for portable live production, with the rear of the switcher including connections for 3G-SDI or 12G-SDI inputs, aux outputs, balanced audio and Ethernet for control. The top 4 M/E models even include RS-422 for serial control and MADI digital audio connections. Even with all this power, ATEM Constellation is extremely quiet with its innovative high efficiency thermal system.
Powerful 1 M/E live production switcher includes 10 standards converted 3G-SDI inputs, 6 x 3G-SDI outputs, DVE, 4 chroma keyers, a 16 way multi-view, media players, talkback and USB webcam output.
The 2 M/E model doubles the features of the 1 M/E model with 20 x 3G-SDI inputs, 12 x 3G-SDI outputs, 2 DVEs, 8 ATEM Advanced Keyers, 2 multi-views and a SuperSource for a total of 6 DVEs.
The massive 4 M/E model doubles the features of the 2 M/E model with 40 x 3G-SDI inputs, 24 x 3G-SDI outputs, 4 DVEs, 16 ATEM Advanced Keyers, 4 multi-views and 2 SuperSource for 12 x DVEs in total.
Specifications
Connections
- Ethernet: 4 x 10/100/1000 BaseT with loop output for additional control panels or computers.
- Software Updates: 1 x USB-C for firmware updates.

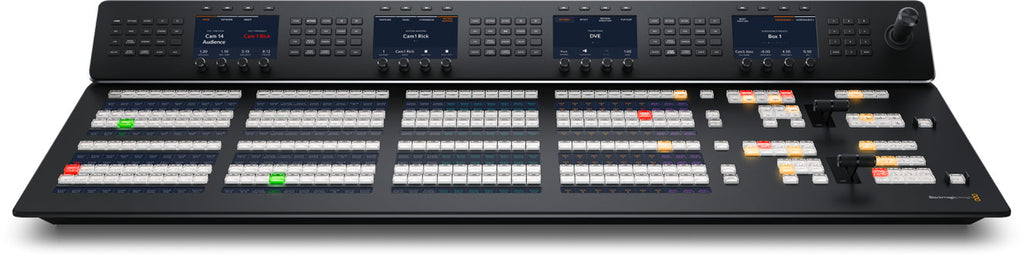

Product Specifics
- Number of Mix Effects Rows: 4
- Direct Cross Points: 40
- Shifted Cross Points: 80
- Crosspoint Button Type: Tri-Color LED
- Crosspoint Label: 10 rows 24 character LCD
- On-Air indicator: 20
- Power Status Indicators: None
- DSK Transition Selectors: 4 x Auto, Cut, Tie/Preview
- Preview Transition: 4
- Transition Rate Displays: Via main menu
- LCD Menu Displays: 4
- Menu Control: 4 x 20 buttons
- Dedicated Macro Buttons: 4 x 40
- Transport Control Buttons: 24
- Destination Bus: 4
- Source Select Bus: 4
- Fader Bar: 4
- 3 Axis Joystick: 1
- Numeric Keypad: 1
Software
- Software Applications: ATEM Software Control Panel.
Power Requirements
- Input Voltage: 2 x Internal 100 - 240V AC.
- Redundant Power: Yes
- Power Usage: 250W
Environmental Specifications
- Operating Temperature: 0° to 40° C (32° to 104° F)
- Storage Temperature: -20° to 60° C (-4° to 140° F)
- Relative Humidity: Up to 95%
Physical
- Weight: 57.87 lb
