Description
Now Shipping!

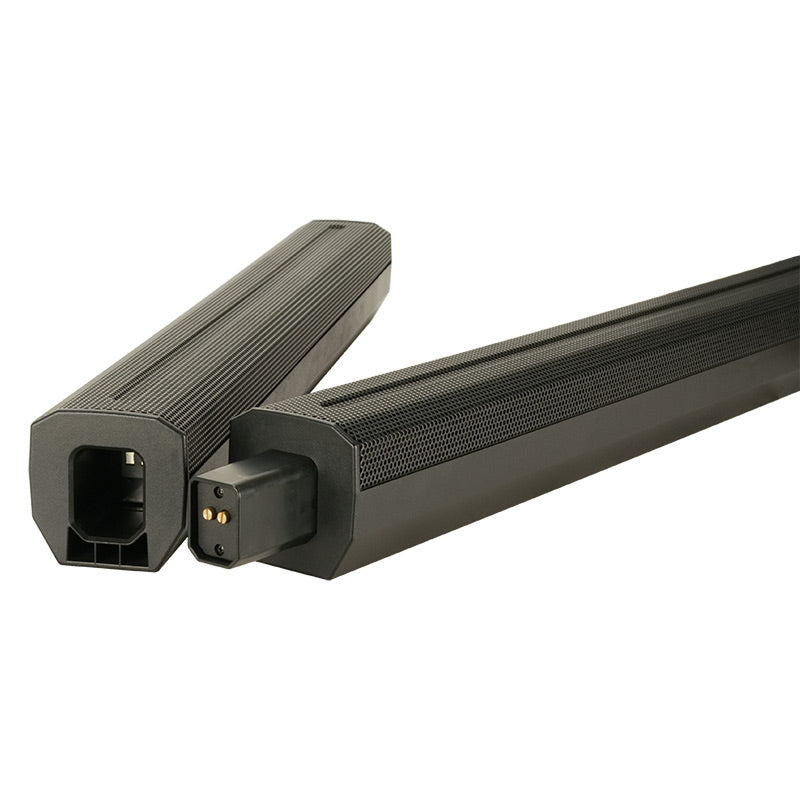

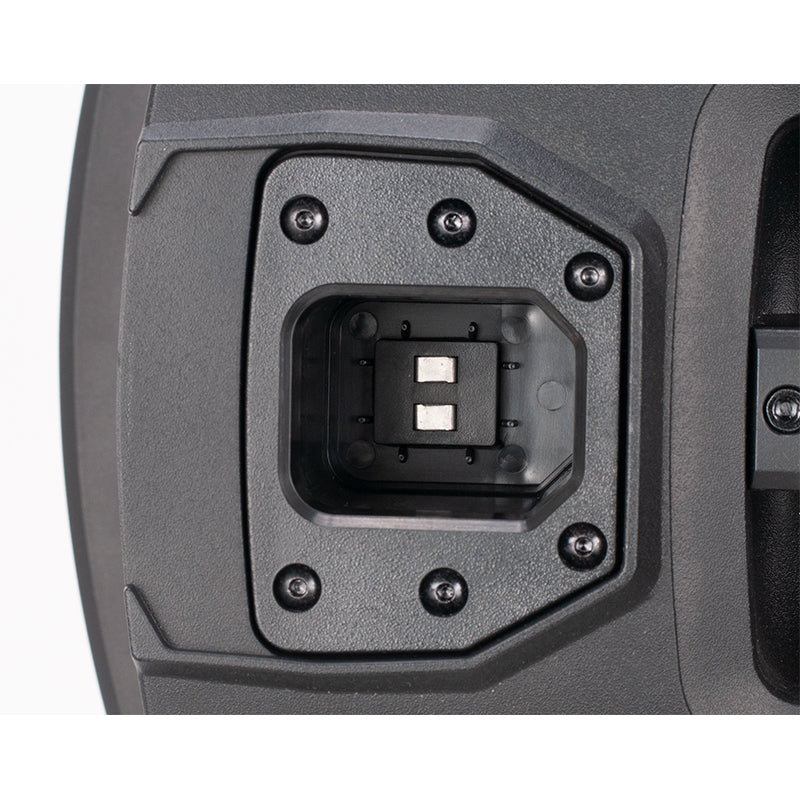

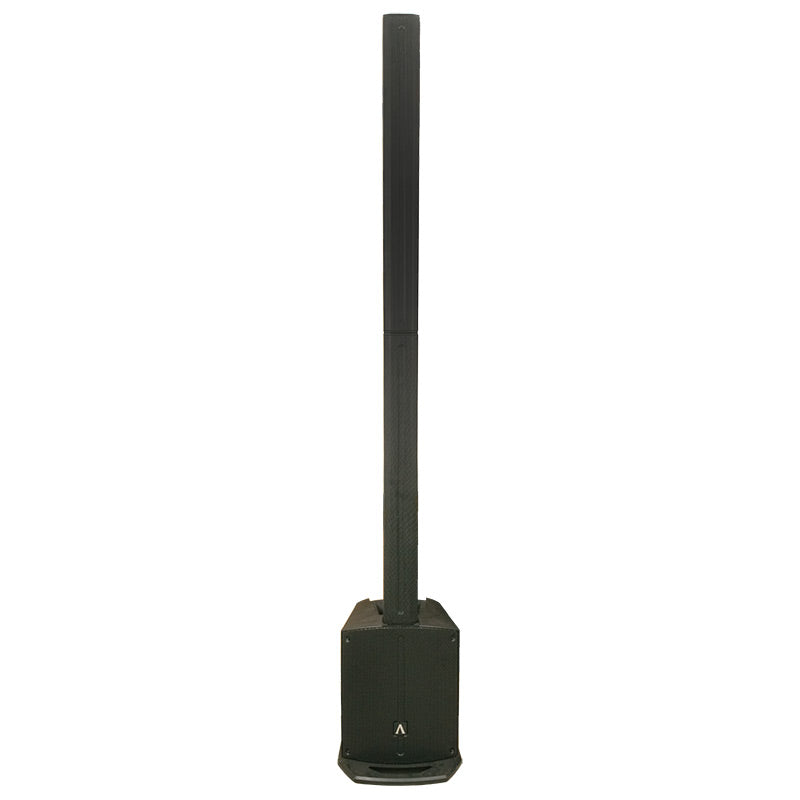

The fully-featured and easy to setup AS8 active column system comprises an active 8-inch neodymium subwoofer enclosure alongside two column units. One is loaded with six precision-aligned 2.75" neodymiumdrivers while the other serves as a spacer to lift the speaker column up to optimal height. Both feature Avante's new SAM (Secure Array Mount) system which allows the columns to lock securely to the sub and to one another without risk of being toppled over. The SAM connection also passes the audio signal from the sub up to the columns, removing the need for speaker cables.
Featuring a Class D power amplifier with built-in limiter that delivers 1000W of power, the sub unit also integrates a flexible 4-input mixer with 2-band EQ. This allows direct connection of line-level audio sources as well as microphones and even a guitar, making the system ideal for acoustic solo performers, duos and even small bands. The unit is also equipped with a BLUETOOTH® audio connection that allows wireless streaming of music from a smartphone, tablet or laptop.

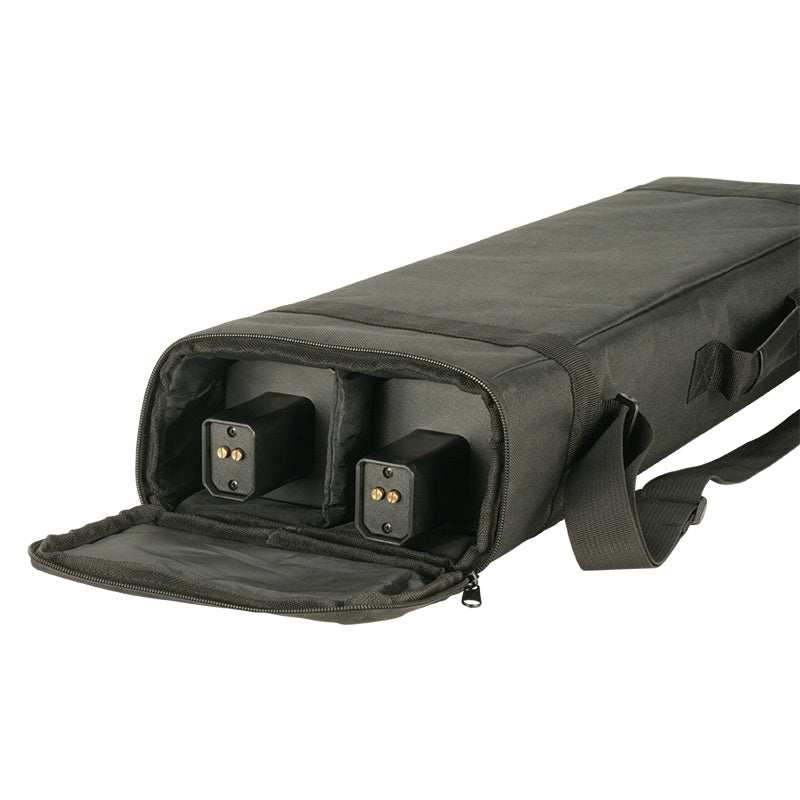

The lightweight system can be easily transported in a small car and is supplied with a padded bag for carrying and protecting the column units. This makes it the perfect system for DJs as well as live musicians playing in small venues such as coffee houses and lounges.
Specifications
SYSTEM INCLUDES
(1) 8-inch neodymium Subwoofer
(1) Column with six 2.75-inch neodymium Speakers
(1) Spacer

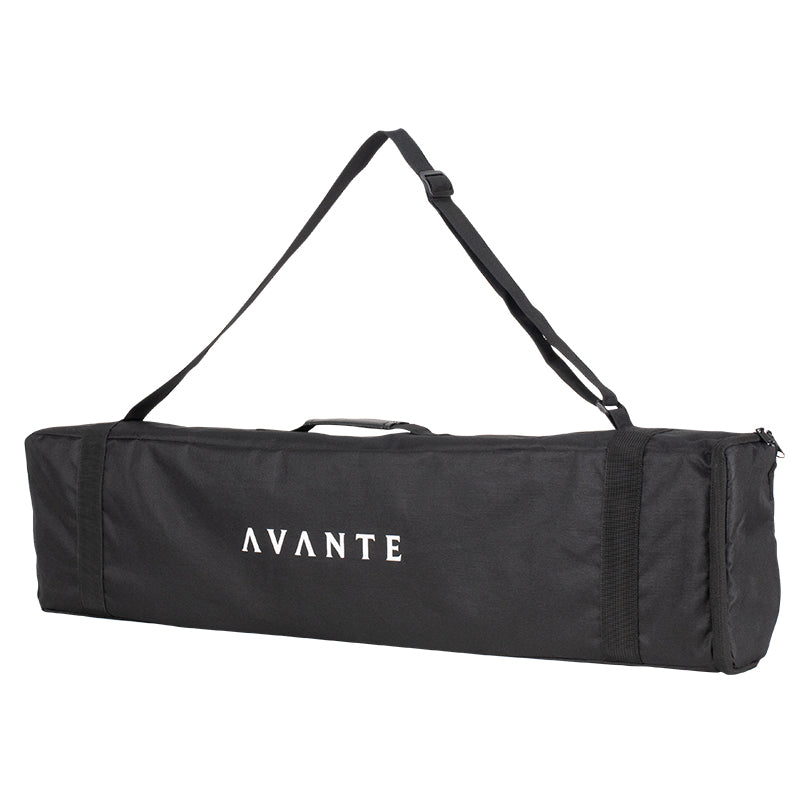

(1) Carry bag for columns
AMPLIFIER
Inputs: Two XLR/TRS combo jacks, Stereo 1/4" inputs, Stereo 1/8" input, Bluetooth®
Outputs: XLR balanced line output
Power output: RMS 250W (SUB) RMS, 1000W peak
Volume: Input Gain control per channel
EQ: Main out 2 band EQ
LEDs: Power/Clip indicator
Power Input: 100-240V~50/60Hz switchable 250W
Amplifier: Class D amplifier with switching power design

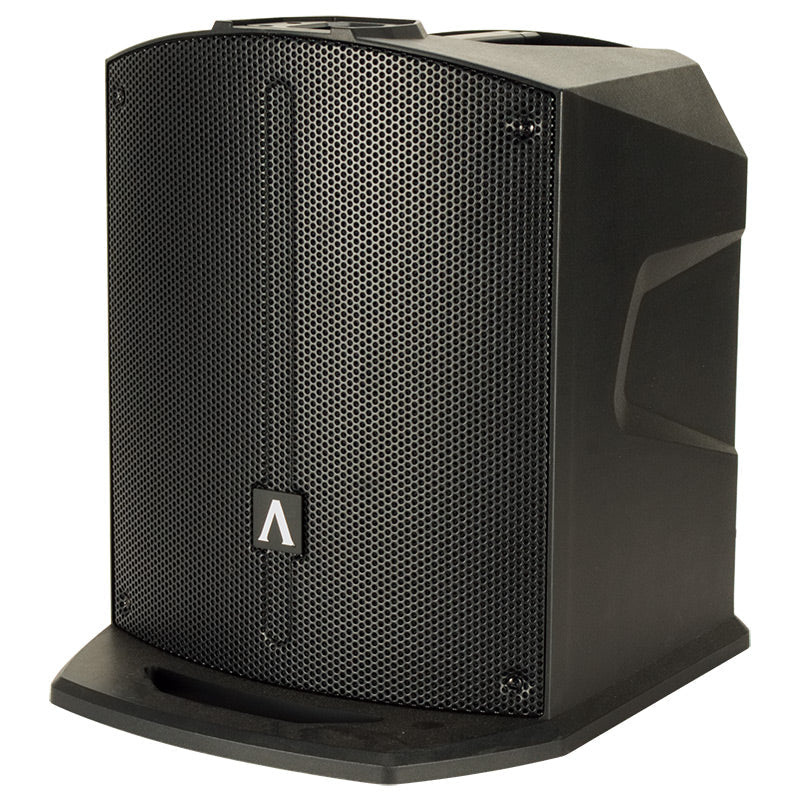

ACTIVE VENTED SUBWOOFER
Frequency Response: 55-200Hz
Max Output SPL: 116dB (at max. amp output)
Impedance: 4 Ohm
Driver: 8-inch neodymium subwoofer, 1.5" voice coil, 28 oz. magnet
Cabinet: PP plastic
Grill: 1.0mm steel
Dimensions: 13.8"x16.9"x79.1" / 350x430x2010mm
Weight: 35 lbs. / 15.8 kg.
PASSIVE FULL-RANGE SPEAKER COLUMN
Frequency Response: 180-20kHz
Max. output SPL: 110dB
Impedance: 4 Ohm
Driver: 6x 2.75-inch neodymium drivers
Cabinet: PP plastic
Grill: 1.0mm steel
Dimensions: 3.8"x3.8"x34.3" / 96x96x870mm (each column)
Weight: 11 lbs. / 5 kg. (each column)

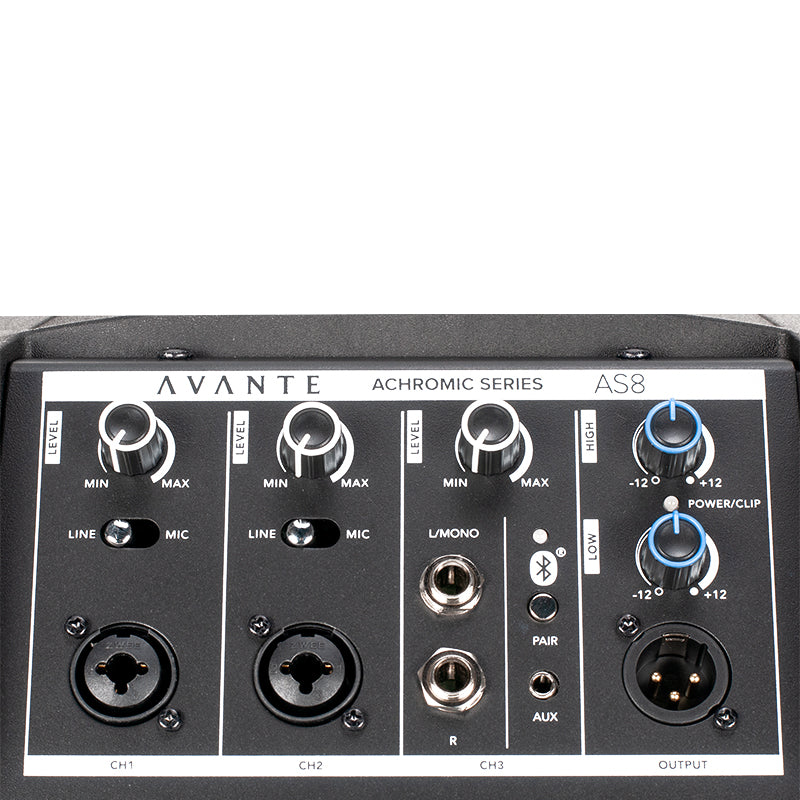

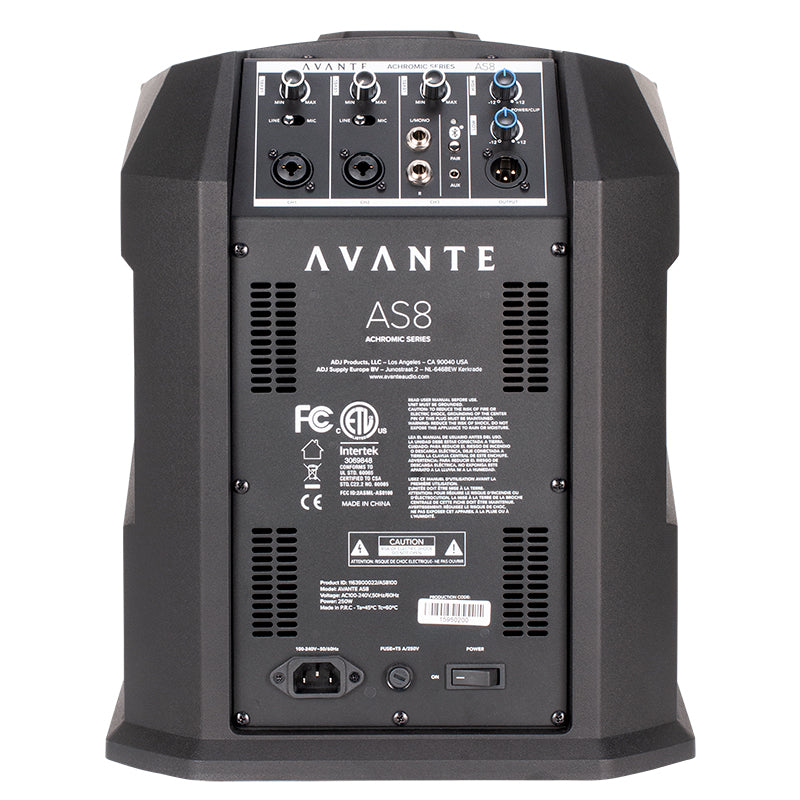

REAR PANEL
4 input mixer with line out
Two (2) Mic/Line Input (XLR/TRS Combo)
Two (2) Guitar/Line Input (1/4" Stereo)
1/8" stereo Aux Input
Line Output (XLR)
Dual Band EQ
BLUETOOTH® Connection
EXTENDED POSITION
Dimensions: 13.8"x16.9"x79.1" / 350x430x2010mm
Weight: 35 lbs. / 15.8 kg.
COMPACT POSITION
Dimensions: 13.8"x16.9"x47.6" / 350x430x1210mm
Weight: 30 lbs. / 13.6 kg.
