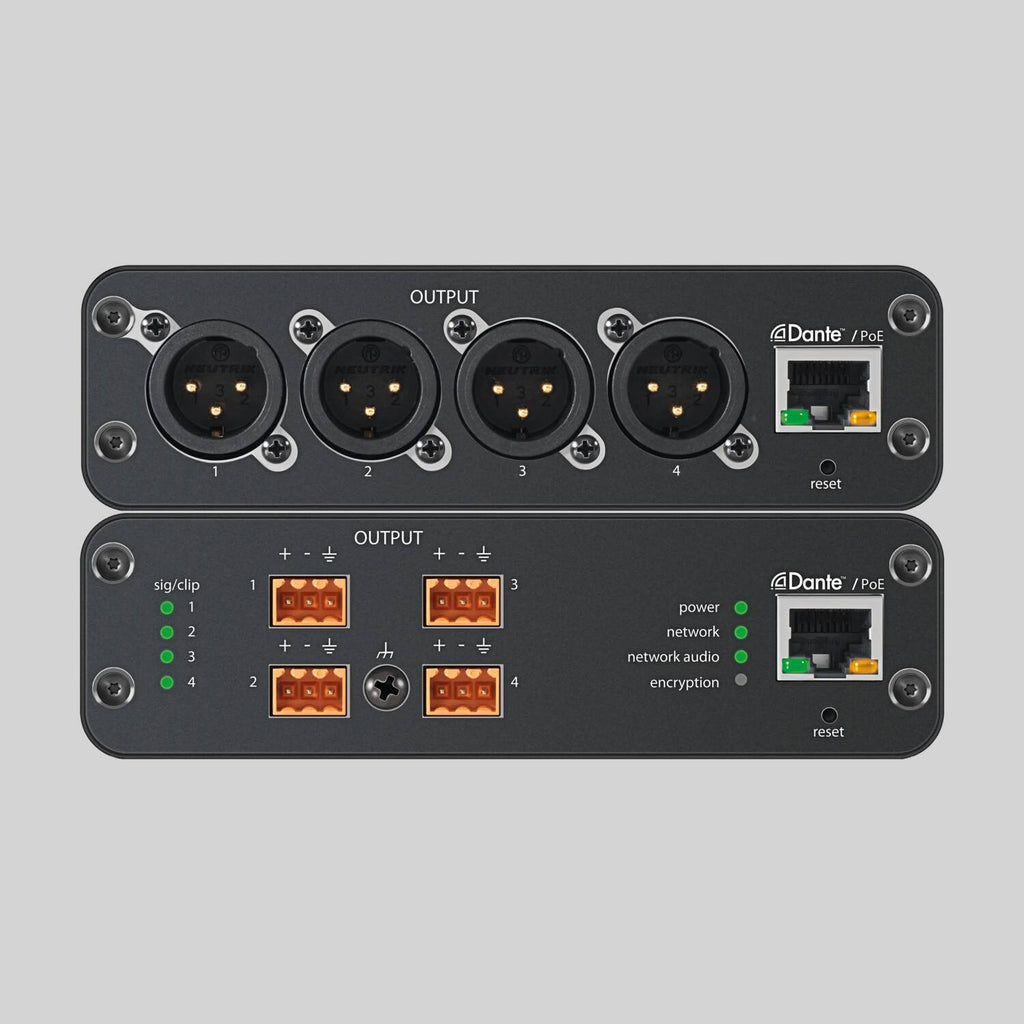

Shure ANI4OUT-XLR, Audio Network Interface, 4-Output, XLR connectors, Mic/Line Dante Audio Network Interface with Peq and Audio Summing

Converts Dante™ digital audio signal to four discrete line / mic analog signals.

View the ANI4OUT Software GUI Demo

• Single Ethernet port carries Dante audio, power (PoE, class 0)
• LEDs indicate device status and audio signal
• Control strings for third-party preset controllers including Crestron® and AMX®
• 4 Band C/S PEQ on every channel
• Provides channel summing to combine Dante™ signals from the network and send them over a single analog output
• Browser-based software control for all device parameters, per output channel:
  • Mute control
  • Digital gain
  • Polarity control
• 1/3 Rack unit wide
• Chassis ground screw (BLOCK version only) provides common chassis ground for multiple inputs
• Available in block connector and standard XLR variations

Specifications

• Analog Inputs: n/a
• Analog Outputs: 4 Mic/Line/Aux with PEQ
• Dante Inputs: 4
• Dante Outputs: n/a
• USB Audio: no
• Acoustic Echo Canellation: no
• Noise Reduction: no
• Automatic Mixing: No (Summing available)
• Matrix Mixing: no
• Stereo Mono: Mono

Dimensions and Weight

• Width: 5.512 in (140.0 mm)
• Height: 1.575 in (40.0 mm)
• Depth: 5.039 in (128.0 mm)
• Weight: 1.462 lb (663 g)
