Shure ANI4IN-XLR, Audio Network Interface, 4-Input, XLR connectors, Mic/Line Dante Audio Network Interface with Peq and Audio Summing

Converts up to four line / mic analog signals onto a Dante network for easy audio routing and browser-based control.

View the ANI4IN-XLR and ANI4IN-BLOCK Software GUI Demos.

• Single Ethernet port carries Dante audio, power (PoE, class 0)
• LEDs indicate device status and audio signal
• Control strings for third-party preset controllers including Crestron® and AMX®
• 4 Band C/S PEQ on every channel
• Provides channel summing to combine input signals and send them over a single Dante™ channel
• Browser-based software control for all device parameters, per input channel:
  • Preamp gain
  • Mute control
  • Digital gain
  • Polarity control
  • Phantom power
• 1/3 Rack unit wide
• Chassis ground screw (BLOCK version only) provides common chassis ground for multiple inputs

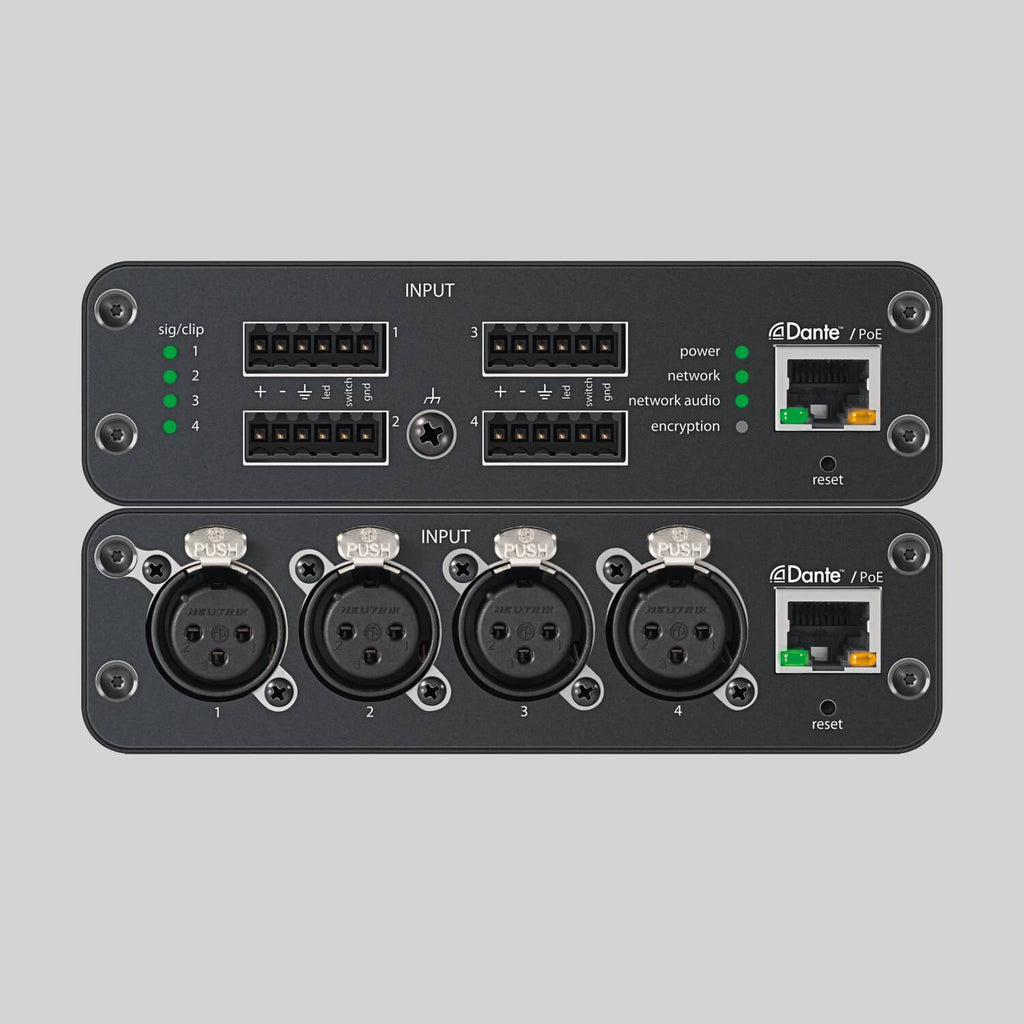

• Available in block connector (audio + logic) and standard XLR variations

Specifications

• Analog Inputs: 4 Mic/Line w/ Analog Logic with PEQ
• Analog Outputs: n/a
• Dante Inputs: n/a
• Dante Outputs: 4
• USB Audio: no
• Acoustic Echo Canellation: no
• Noise Reduction: no
• Automatic Mixing: No (Summing available)
• Matrix Mixing: no
• Stereo Mono: Mono

Dimensions and Weight

• Width: 5.512 in (140.0 mm)
• Height: 1.575 in (40.0 mm)
• Depth: 5.039 in (128.0 mm)
• Weight: 1.482 lb (672 g)
