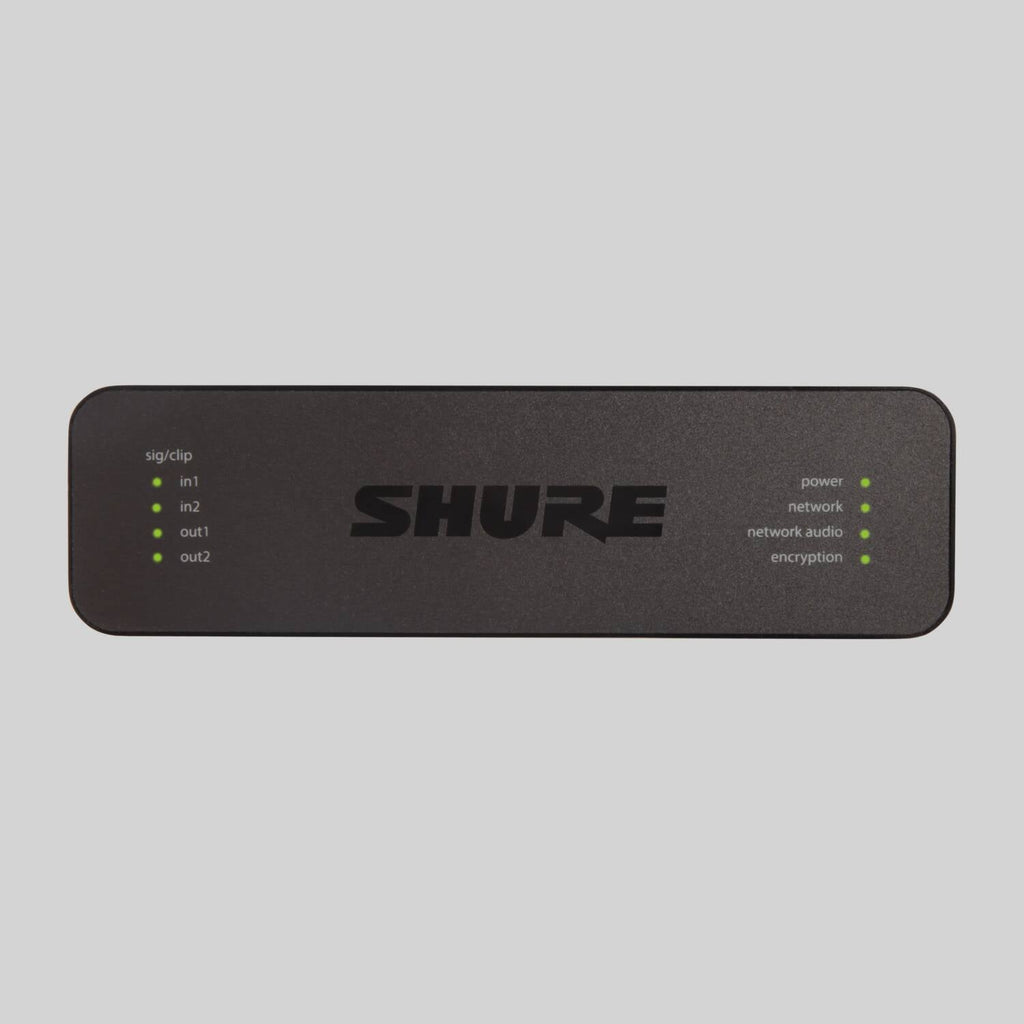

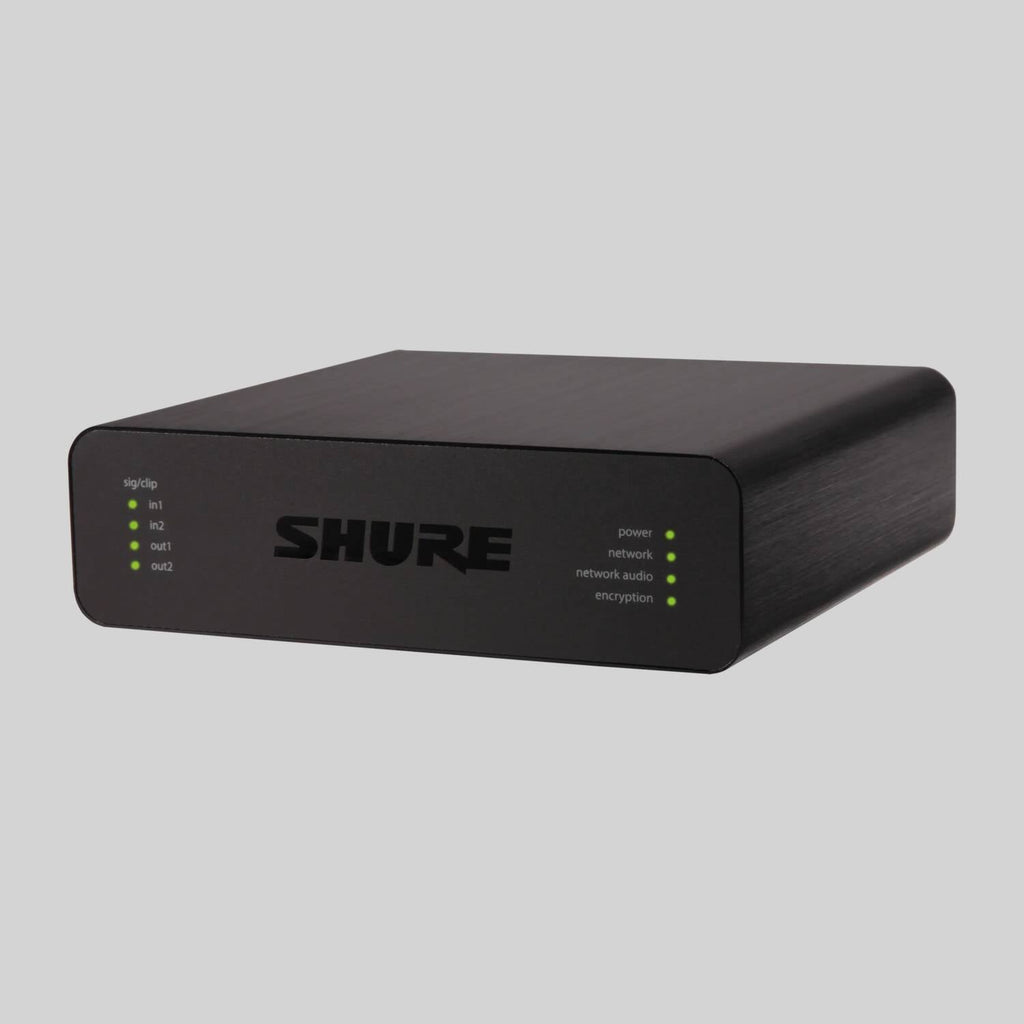

Shure ANI22-BLOCK, ANI22 Audio Network Interface, 2 CH IN/2 CH Out, Dante, 1/3 RU, Block

More flexibility for every kind of application where it is required to get analog audio onto and from a Dante network: The ANI22 Audio Network Interface complements the existing ANI4IN and ANI4OUT products, and is available with XLR and block connectors. It brings up to two line / mic signals onto or from a Dante network for easy audio routing and convenient browser-based remote control.

• Converts up to 2 mic/line analog signals onto a Dante Network
• Converts up to 2 Dante digital audio signals to line/mic analog signals, ANI22BLOCK: Analog audio block connectors (2 in, 2 out); ANI22XLR: Analog audio XLR connectors (2 in, 2 out)
• Power-over-Ethernet (PoE) eliminates need for outboard power supply
• Compact form factor is easy to mount without equipment rack

Specifications

• Analog Inputs: 2 Mic/Line, +48v
• Analog Outputs: 2 Mic/Line/Aux
• Dante Inputs: 2 with PEQ
• Dante Outputs: 2 with PEQ
• USB Audio: no
• Acoustic Echo Canellation: no
• Noise Reduction: no
• Automatic Mixing: No (Summing available)
• Matrix Mixing: no
• Stereo Mono: Mono

Dimensions and Weight

• Width: 5.512 in (140.0 mm)
• Height: 1.575 in (40.0 mm)
• Depth: 5.039 in (128.0 mm)
• Weight: 1.482 lb (672 g)
