Anchor Audio AN-30BT System ECO 1, AN-30BT Powered Speaker Monitor with Bluetooth, and one wired handheld microphone

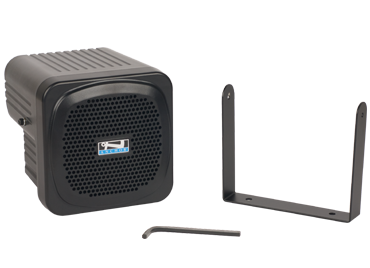

AN-30BT Powered Speaker Monitor

The AN-30 is a compact powered speaker monitor built for classrooms, small meeting spaces, and anywhere clear, intelligible speech matters. Long-range Bluetooth, an optional AnchorLink wireless mic receiver, and standard line ports make it a versatile everyday amplification tool.

• 100 dB
• One 4.5" woofer
• 11+ hours playtime
• 100+ people
• 20' x 30' area
• Class 1 Bluetooth
• Up to 2 wireless mics
• Up to 1 wired mic
• 6" tall
• 2.5 pounds

Included with All AN-30 Systems

• Long-range Bluetooth so you can stream directly to your speaker
• Optional AnchorLink wireless mic receiver
• One universal wired mic input
• Standard Line In and Line Out ports
• Anchor Audio 6-4-2 Warranty

Dimensions and Weight

• Weight: 4.5 lbs
• Dimensions (Height x Width x Depth): 7" x 6" x 3.5"
• Coverage area: approximately 20' x 30'
• Crowd size: approximately 100

Technical Specifications

• Speaker components: one 4.5" woofer
• Rated Power Output: 30 watts
• Max SPL @ Rated Power: 100 dB @ 1 meter
• Frequency Response: 100 Hz ~ 15 kHz ± 3 dB
• AC Power Requirements: 100~240 VAC, 50/60 Hz, 2A
• Charger/Power Inlet: PC-2
• AnchorLink Wireless Frequency: 1920~1930 MHz USA/CAN, 1880~1900 MHz Europe
• AnchorLink Wireless Range: 300'+ line of sight
• Microphone Inputs: Lo-Z balanced XLR and 1/4", Hi-Z (10 kΩ) unbalanced 1/4" phone
• Line Input: one unbalanced 1/4"
• Line Output (post fader): isolated, 600Ω, one 1/4" phone
• Speaker Out: 4-pole Neutrik Speakon jack

Anchor Audio 6-4-2 Warranty

• All speaker systems for 6 years
• Lithium-ion batteries for 4 years
• Microphones and peripheral products for 2 years

Product Details

AN-30BT Powered Speaker Monitor with Bluetooth, and one wired handheld microphone

Models Included: AN-30BT, MIC-50
