Description

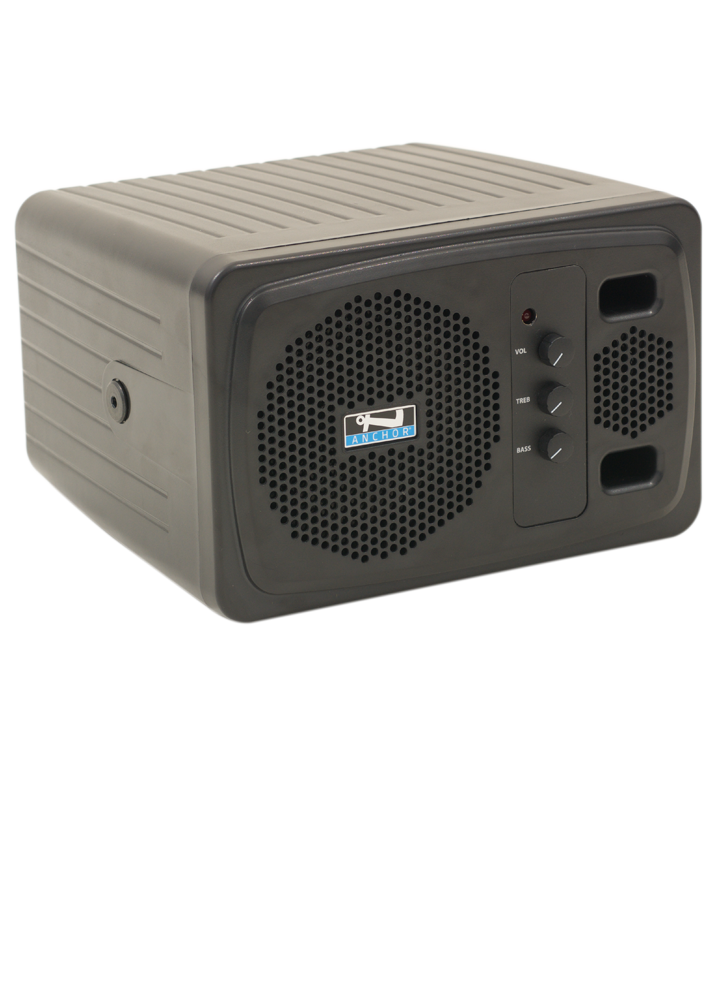

AN-1000X+ Powered Speaker Monitor
The AN-1000X+ is a compact AC powered speaker monitor designed for near-field monitoring, stage wedge use, center fill, and PA for small gatherings. Its compact size and wide frequency response make it a flexible fit for classrooms, boardrooms, and production work.
- 107 dB
- 4.5" woofer, 10 mm dome tweeter
- 250+ people
- 90' x 175' area
- Up to 2 wireless mics
- Up to 1 wired mic
- 3" tall
Included with All AN-1000X Systems
- AC power
- One universal wired mic input
- Standard Line In and Line Out ports
- Sturdy, lightweight casing can be mounted on a wall with optional bracket mount or on an optional speaker stand
- Built-in speaker stand socket
- Anchor Audio 6-4-2 Warranty
Dimensions and Weight
- Weight: 2.6 lbs
- Dimensions (Height x Width x Depth): 9" x 8" x 3"
- Coverage area: approximately 90' x 175'
- Crowd size: approximately 250
Technical Specifications
- Speaker components: one woofer, one 10 mm dome tweeter
- Rated Power Output: 50 watts
- Max SPL @ Rated Power: 107 dB @ 1 meter
- Frequency Response: 20 Hz ~ 20 kHz ± 3 dB
- AC Power Requirements: 100~240 VAC, 50/60 Hz, 2A
- Charger/Power Inlet: PC-2
- AnchorLink Wireless Frequency: 1920~1930 MHz USA/CAN, 1880~1900 MHz Europe
- AnchorLink Wireless Range: 300'+ line of sight

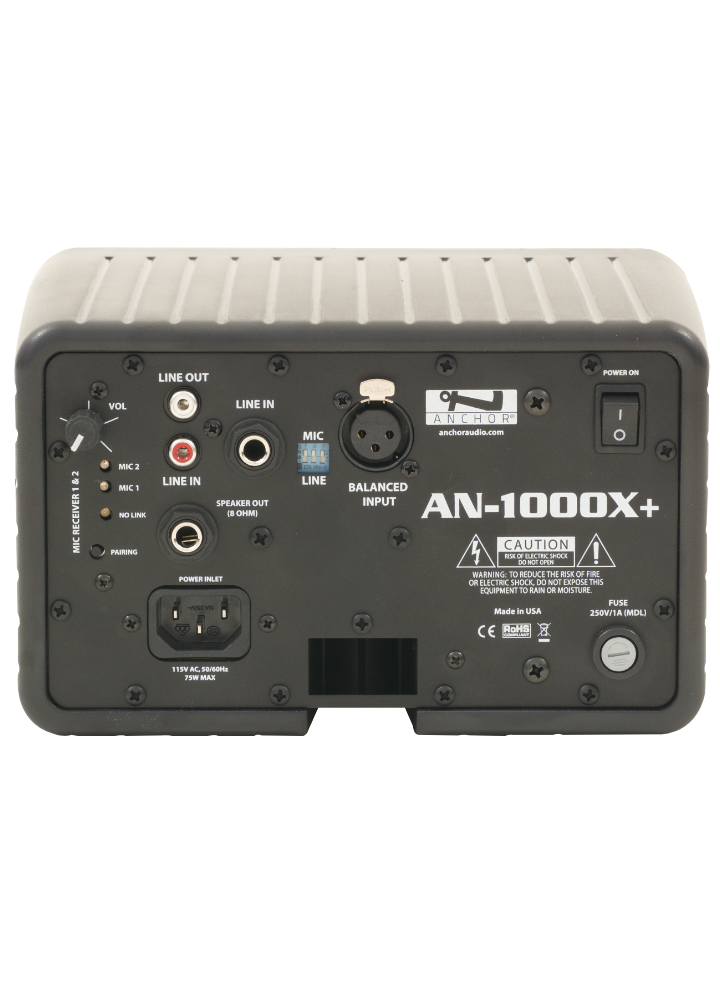

- Microphone Inputs: Lo-Z balanced XLR and 1/4"
- Line Inputs: one unbalanced 1/4", one 3.5 mm stereo
- Line Output (post fader): isolated, 600Ω, one 1/4" phone
- Speaker Out: 4-pole Neutrik Speakon jack
Anchor Audio 6-4-2 Warranty
- All speaker systems for 6 years
- Lithium-ion batteries for 4 years
- Microphones and peripheral products for 2 years
Product Details
AN-1000X Powered Speaker Monitor, and one wired handheld microphone
Models Included: AN-1000XU2+, MIC-90P
