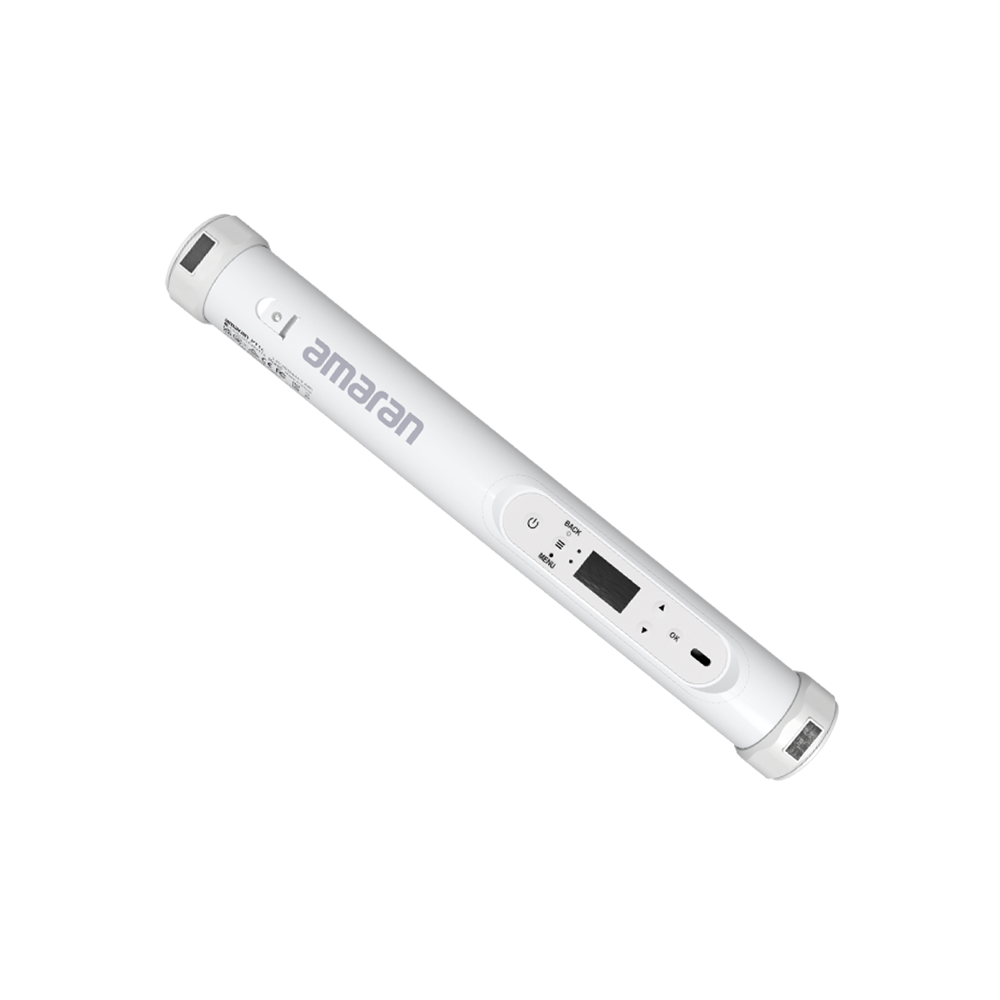

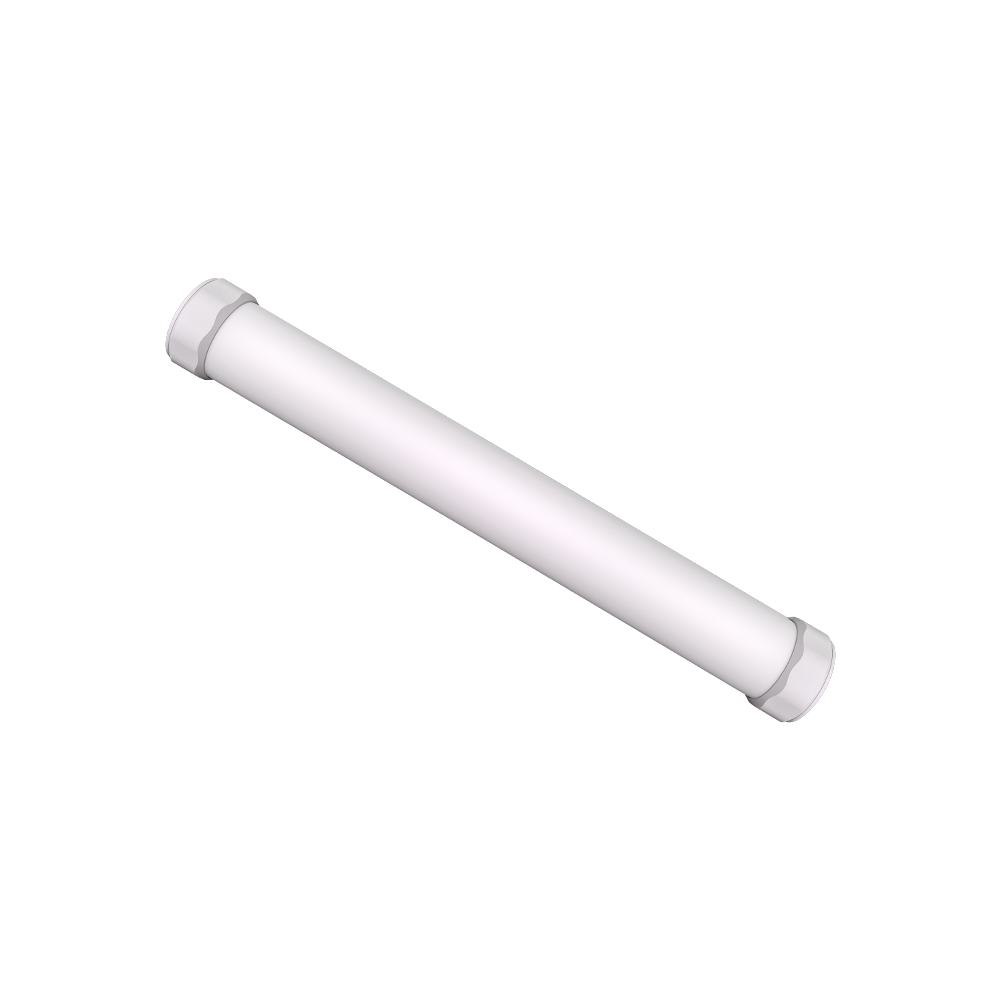

The amaran PT1c is an ultra-portable 1-foot battery-powered pixel tube that is part of amaran’s first-ever full-color LED pixel tube series. The Pixel Tube series is comprised of a family of 1-foot, 2-foot, and 4-foot lengths - all featuring multiple Pixel FX, RGBWW color quality, Sidus Link app & DMX1 control, and USBC rechargeable batteries packed into their sleek & slender form factor. The amaran PT1c is a compact and versatile tube light that will unleash creativity and unlock an infinite range of possibilities.
Main Feature:
-

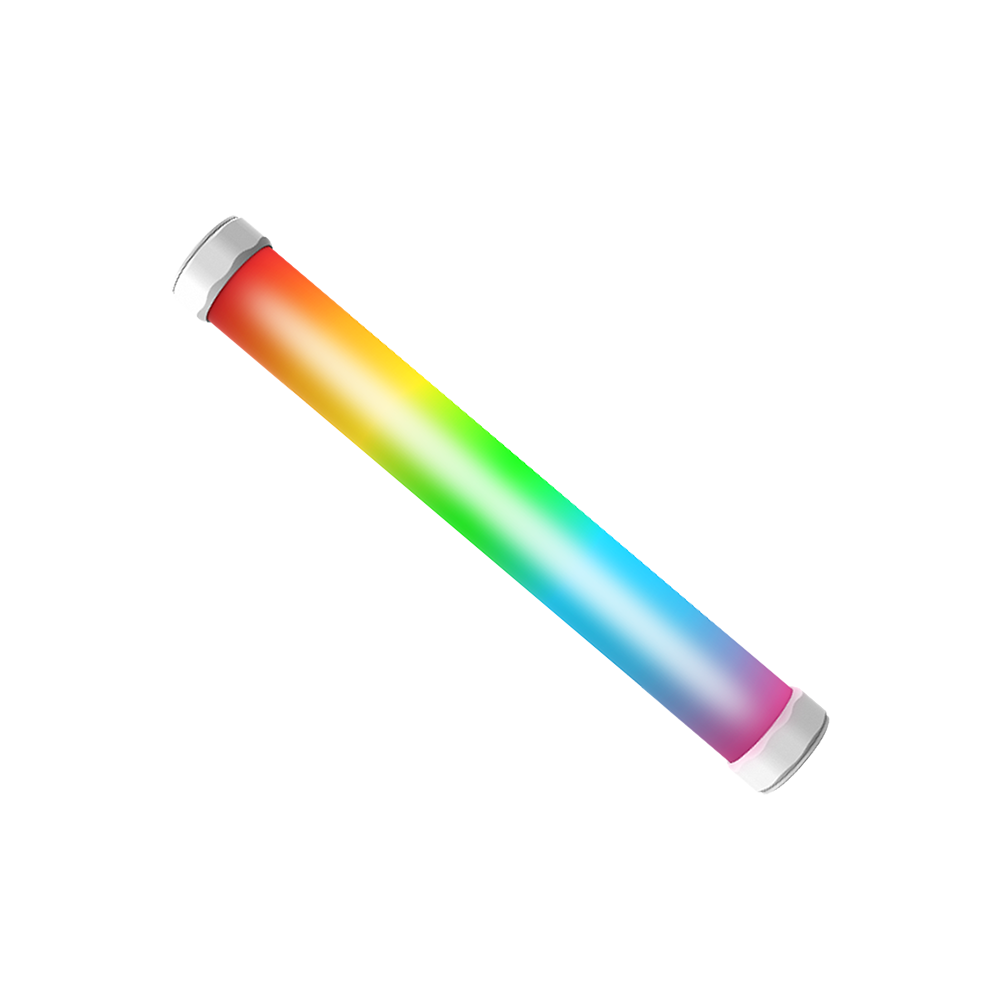

1-Foot (30cm) Portable, Battery Powered RGBWW Color LED Pixel Tube
-
4 Independently Controllable Pixels (LED Engines)
-
Built-In Removeable 9.6Wh 18650 Lithium-Ion Battery (Approx. 70 min. Runtime @ Max Power)
-
180º Rotatable Plastic End Caps with Built-In Magnets for adjustable positioning
-

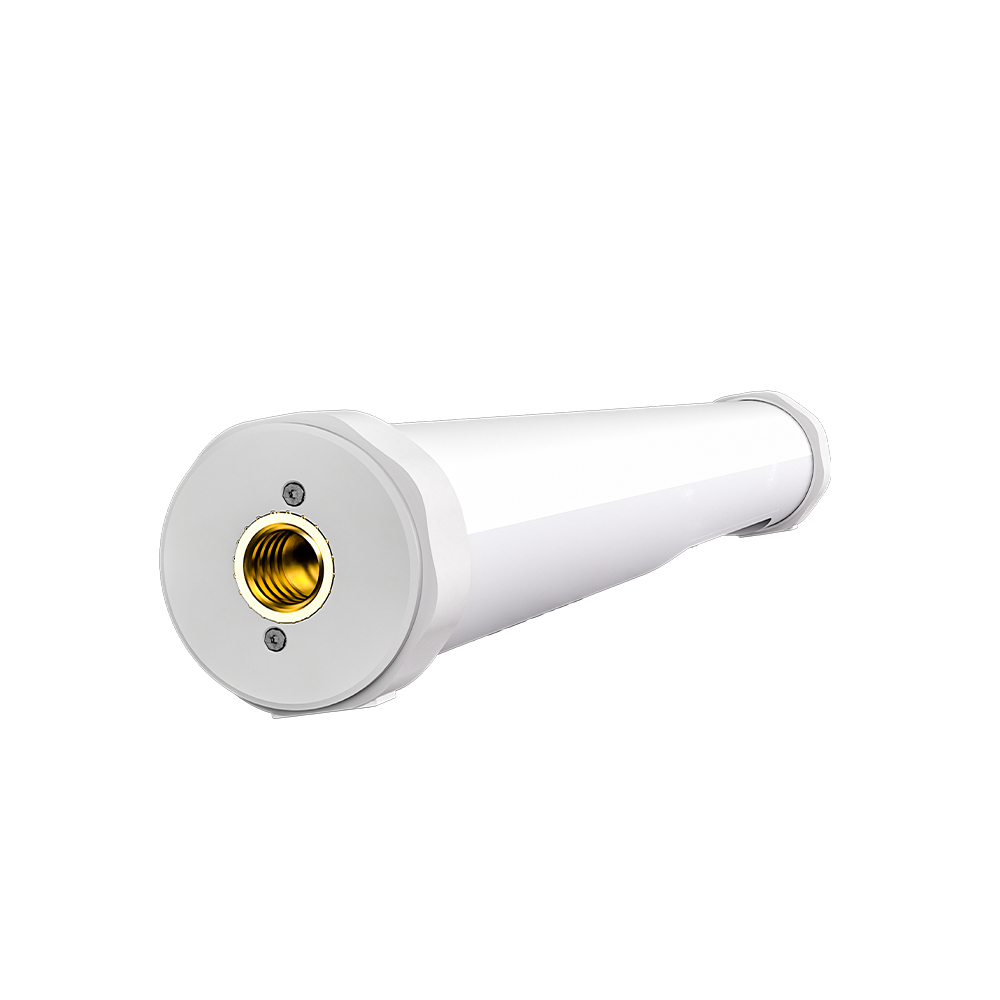

3/8-16in Mounting Points on Each End Cap for Additional Rigging Options
- Fully Tunable CCT from 2,700K to 10,000K
- CRI: 95, TLCI: 98, TM-30 Rf (ave.): 92, TM-30 Rg (ave.): 100, SSI (D56): 75, SSI (Tungsten): 85
-
Fully Tunable Green-Magenta Adjustment (Full Plus/Minus Green)
-
Advanced HSI with White Point CCT Control
-
Sidus Link Bluetooth App Control
-
DMX Control via USB-C with 10 Built-In DMX Profiles & DMX Loss Behaviors1
-
9 System FX: Fireworks, Fire, Paparazzi, Faulty Bulb, TV, Pulsing, Cop Car, Lightning, Party Lights
-
7 Pixel FX: Color Fade, Color Cycle, One Pixel Chase, Two Pixel Chase, Three Pixel Chase, Rainbow, Pixel Fire
-
Smooth Diffusion for High-Output Blended Color
- Included Carrying Pouch
1 amaran USB-C to DMX Adapter with USB-C Input Sold Separately

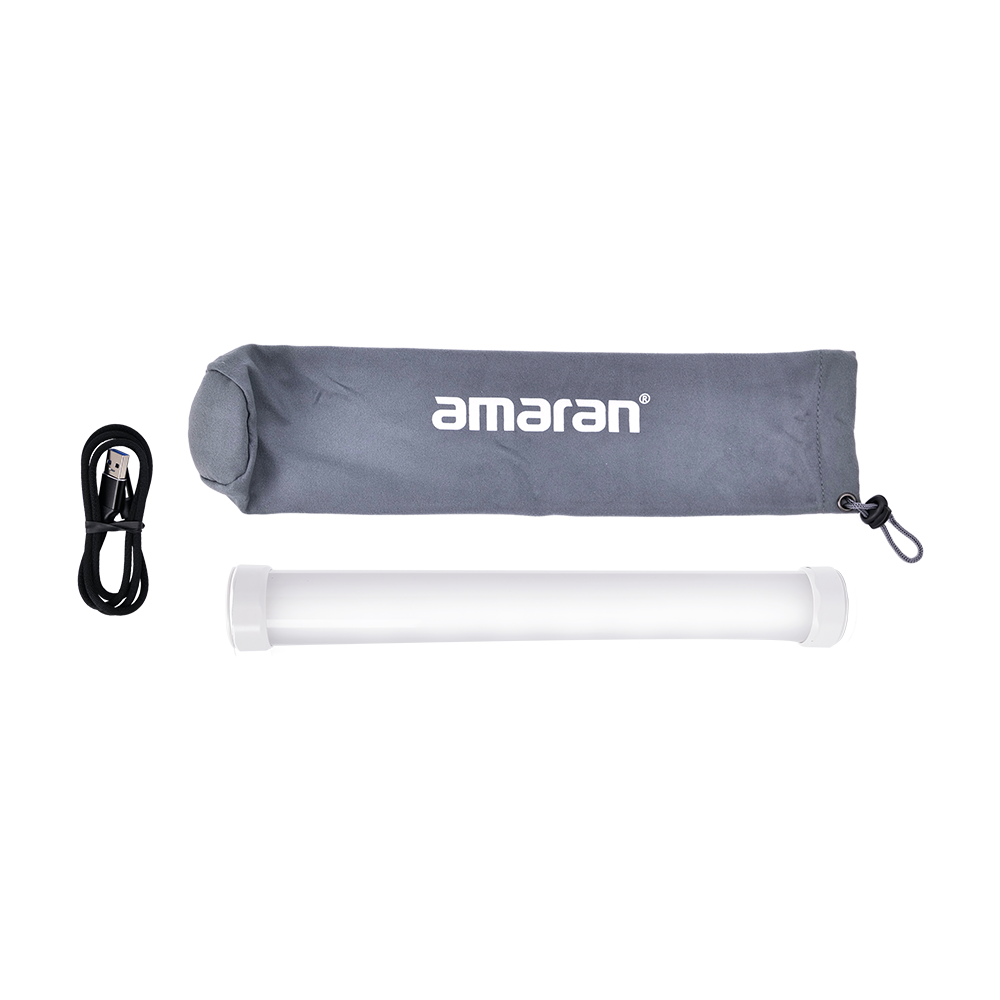

What's in the Box
- 1*amaran PT1c 1
- 1*USB Type-C Charging Cable (1.1m) 1
- 1*Carrying Pouch
Specifications
| CCT |
2,700K - 10,000K |
| CRI (@5,600K) |
95 |
| TLCI (@5,600K) |
98 |
| CQS (@5,600K) |
96 |
| SSI (D56) |
75 |
| SSI (Tungsten) |
85 |
| TM-30 RF (@5,600K) |
92 |
| TM-30 RG (@5,600K) |
100 |
| Max Power Output |
6W |
| Max Power Draw |
8W |
| Pixel Mapping |
4 Pixels |
| Lumens |
370lm |
| Beam Angle |
180º |
| Charging Input |
USB Type-C |
| Battery Voltage |
3.7V |
| Battery Capacity |
2600mAh, 9.6Wh |
| Battery Runtime |
Approx. 70 Mins @ 100% Output |
| Charge Time |
Approx. 110 Mins (5V/2A) |
|
Approx. 369 Mins @ 10% Output |
| Operating Temperature |
-10ºC - 40ºC / 14ºF - 104ºF |
| Firmware Upgradeable |
Sidus Link |
| Wireless Operating Range (Bluetooth) |
≤80m / ≤262.5ft |
| Screen Type |
TFT |
| IP Rating |
IP20 |
| Cooling Method |
Passive Cooling |
