Description
The amaran F22c is an high-output, full-color, 2’x2’ flexible LED mat designed for a variety of users - from filmmakers to videographers, content creators, and even photographers. As an ultra-light, ultra-thin fabric light, the F22c is compatible with a wide variety of use cases and excels in on-the-go travel and tight spaces. And as a large, soft light that can fold compactly, it is the perfect close-up key light.
Full color control. The F22c features RGBWW LEDs for complete color control, as well as tunable CCT from 2,500K to 7,500K, providing endless possibilities for creative lighting decisions through 360° HSI control, 46 color gel presets, or even up to 15 unique lighting effects.
Ultimate flexibility. Install the included foldable softbox, one of two strengths of diffusion, or the fabric light control grid to instantly turn this flexible mat into an ultra-thin soft light that will make any subject shine.
Main Features
- 200W Output 2’x2’ RGBWW Flexible LED Mat
- 240W Max Power Draw
- 6,420+ lux @ 1 meter (5600K)
- HSI Full Color Control with Tunable Green-Magenta Adjustment (Plus/Minus Green)
- Tunable CCT from 2,500K to 7,500K
- CRI: 95+, TLCI: 97+, CQS: 96+, SSI (Tungsten): 83+, SSI (D56): 74+
- Stepless Dimming from 0 to 100%
- Sidus Link App Control
- DMX Control via USB-C to 5-Pin DMX512 In & Out Adapter (Sold Separately)
- 4 User-Configurable Preset Buttons
- 15 Built-in Lighting FX: Paparazzi, Lightning, TV, Candle, Fire, Strobe, Explosion, Faulty Bulb, Pulsing, Welding, Cop Car, Color Chase, etc.
- Frequency Selection: Tune Out Flicker, Up to +2000Hz Adjustment
- Multiple DC Power Solutions: 14.4V/26/28.8V/48V (3-Pin XLR)

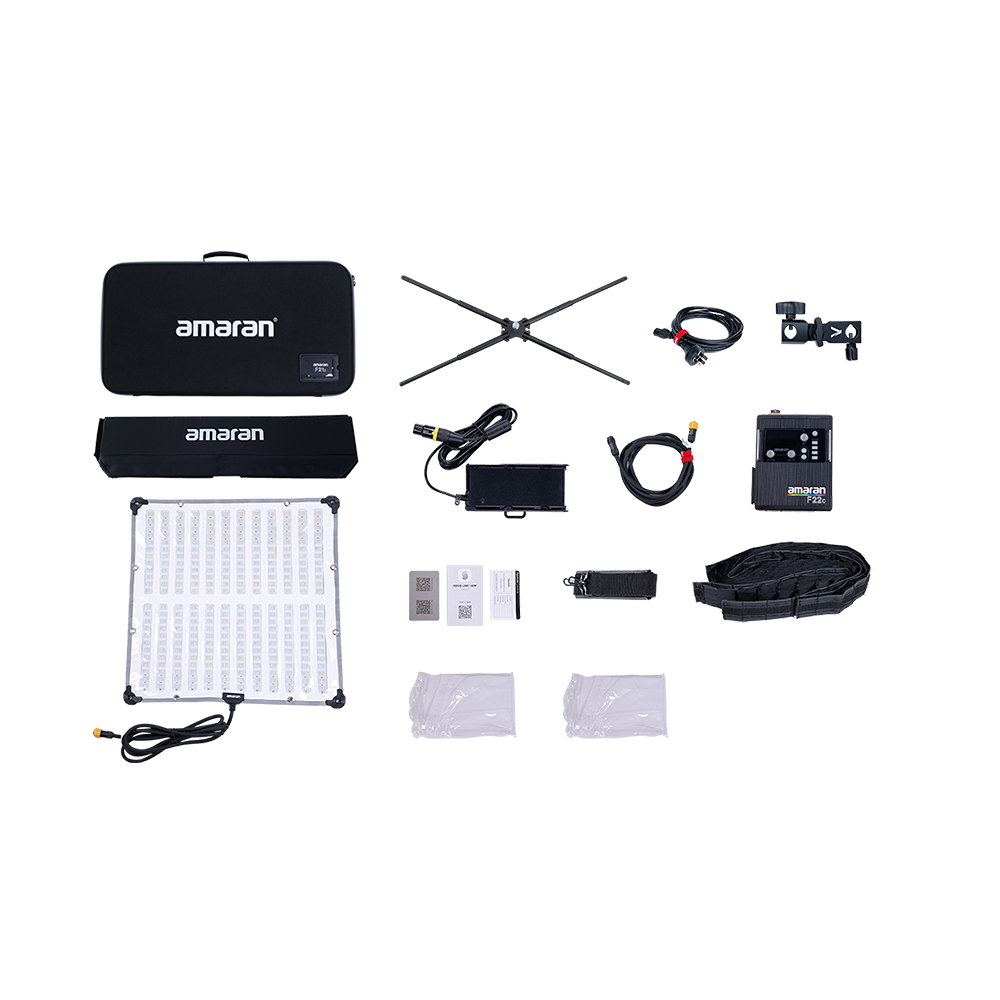

What’s in the Box

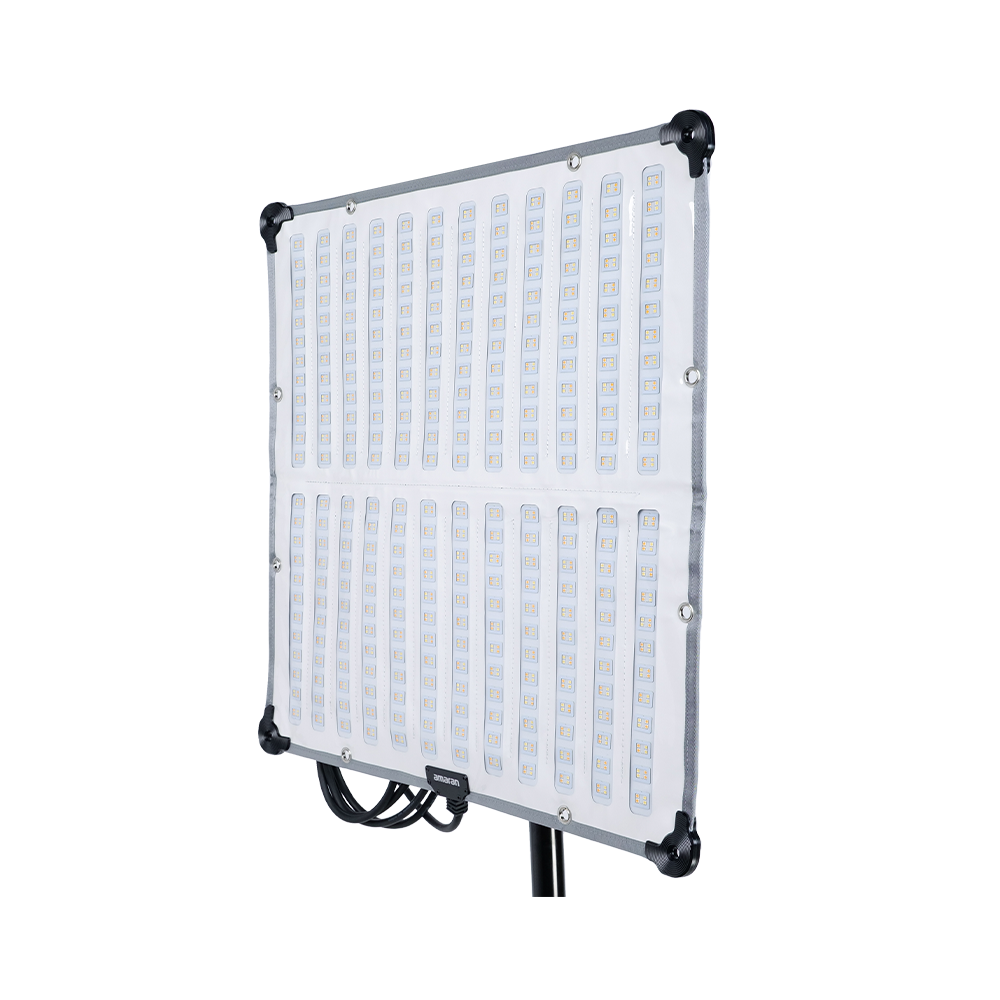

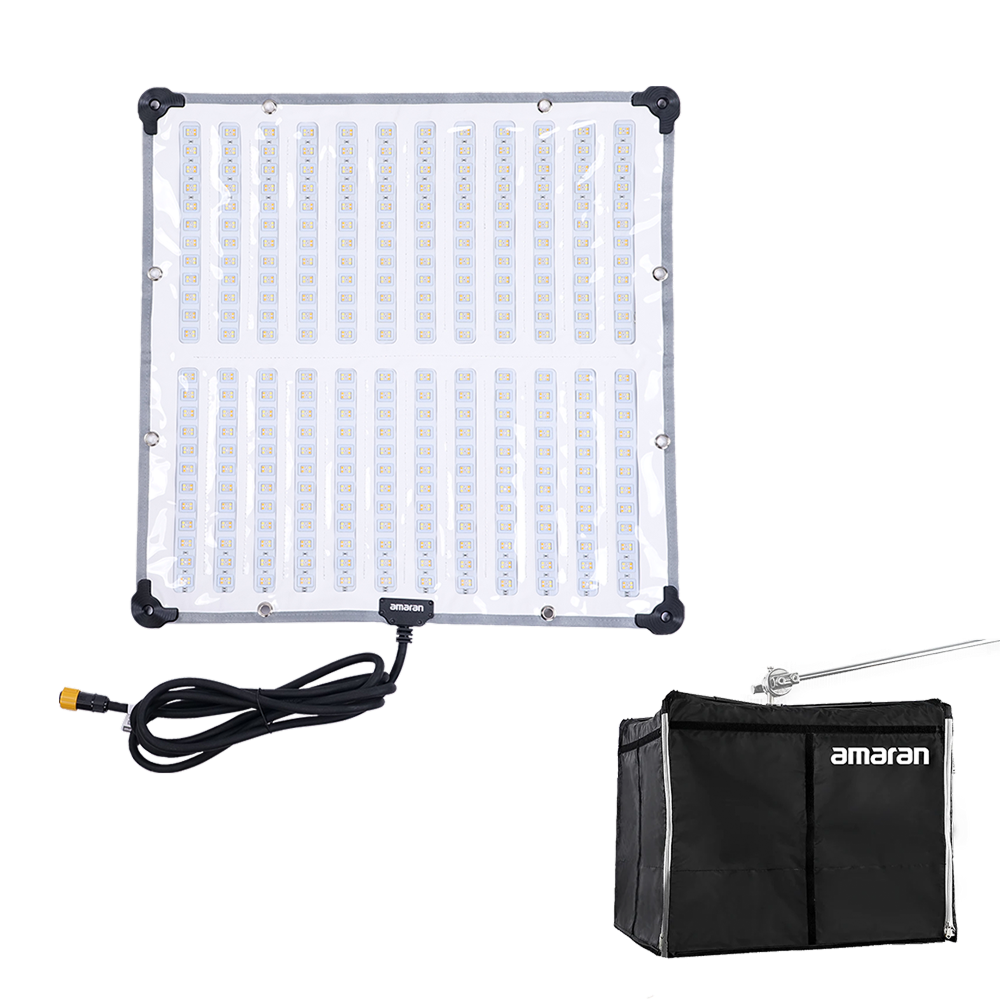

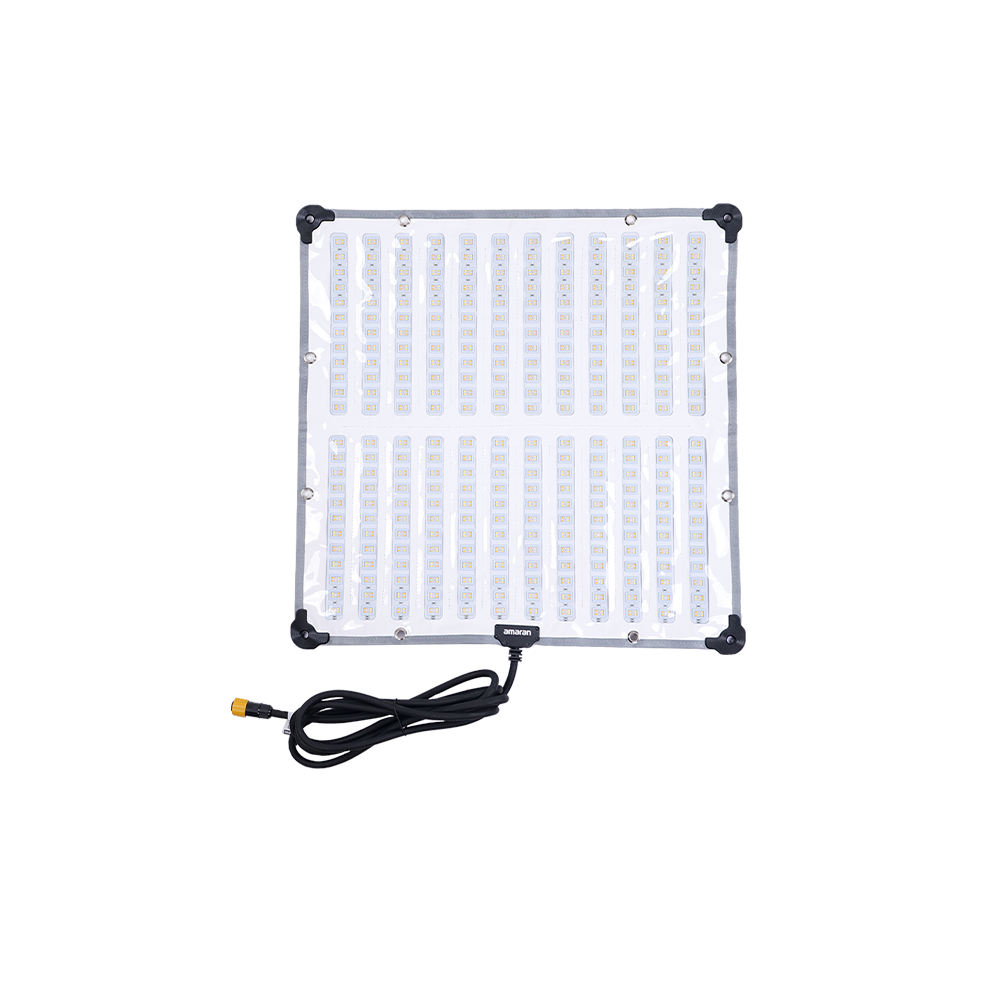

- 1x amaran F22c RGBWW 2x2 LED Flexible Light Mat

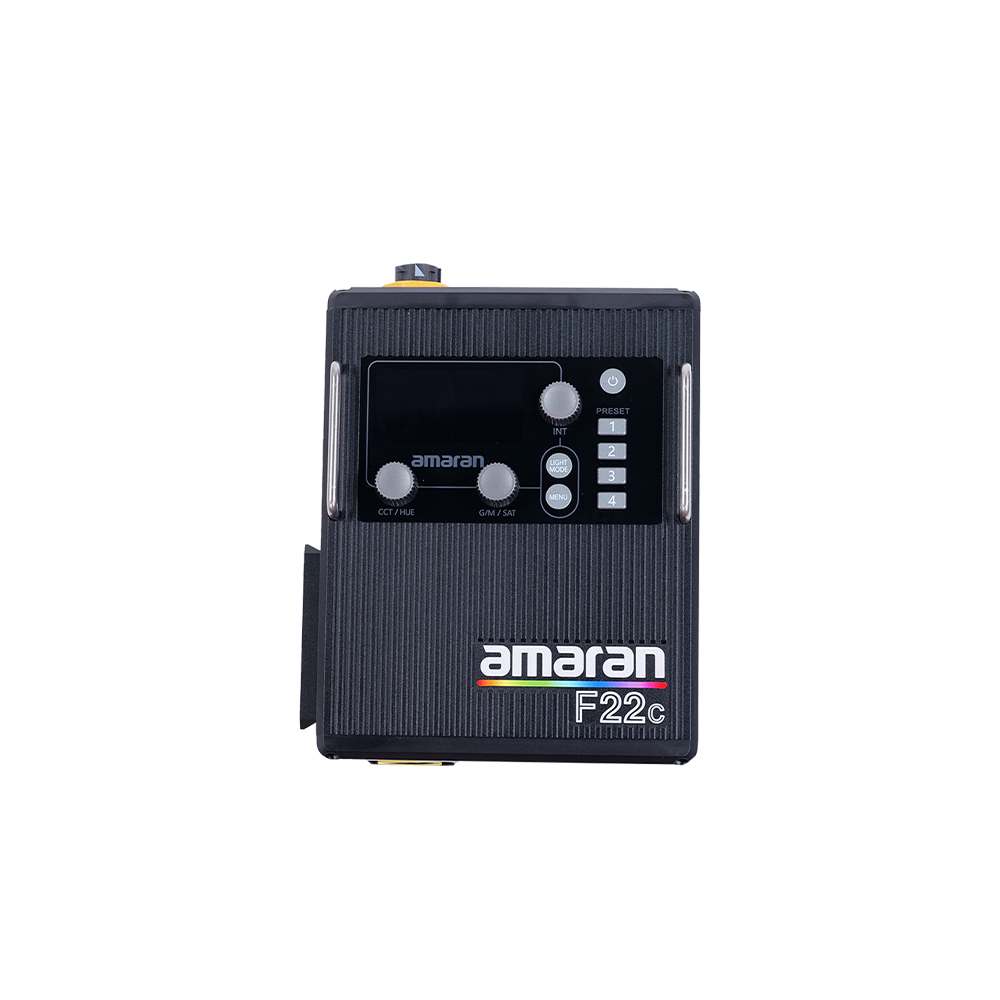

- 1x amaran F22c Control Box
- 1x amaran F22c Head Cable Extension (3m)

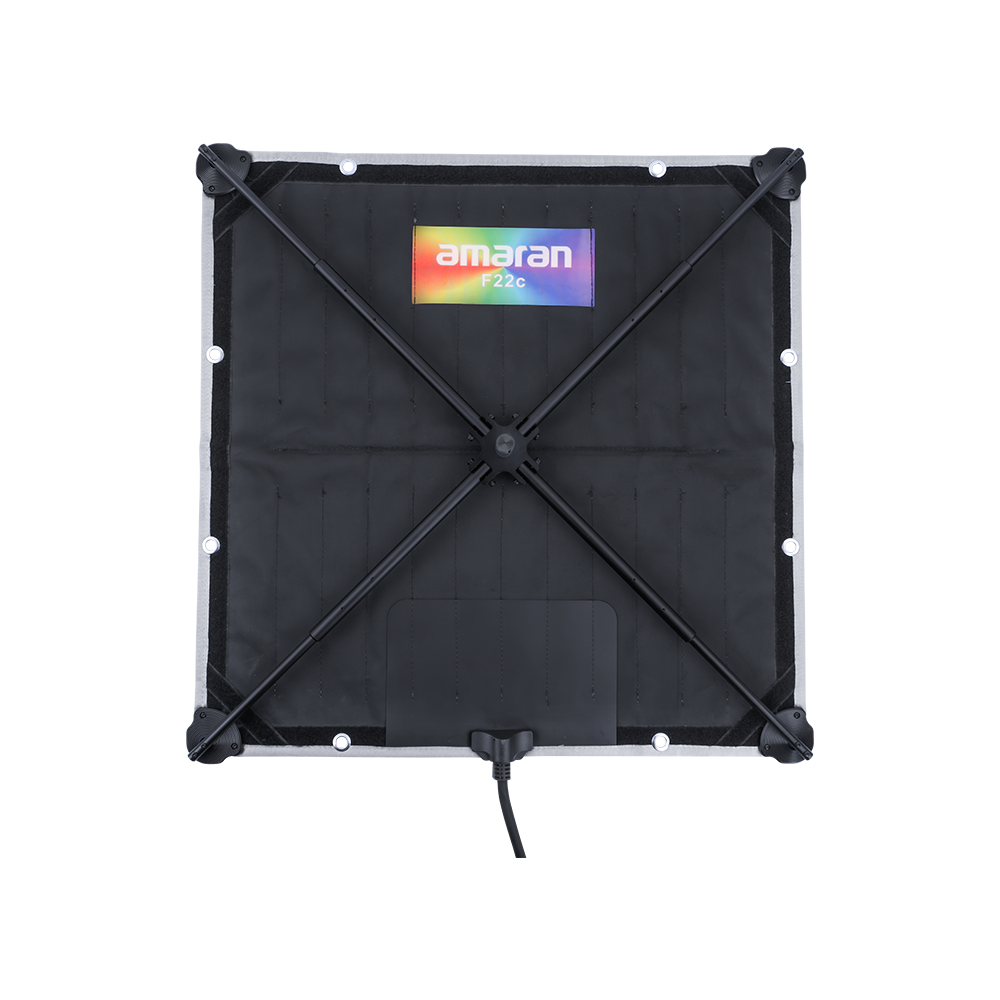

- 1x amaran F22 Support Bracket
- 1x amaran F-Series Right Angle Baby Pin Adapter
- 1x amaran F-Series Straight Baby Pin Adapter
- 1x Tilting Stand Mount
- 1x amaran F22 Softbox Frame
- 1x amaran F22 Diffusion Cloth 1 (1/2 Grid Cloth)
- 1x amaran F22 Diffusion Cloth 2 (2.5 Stop)

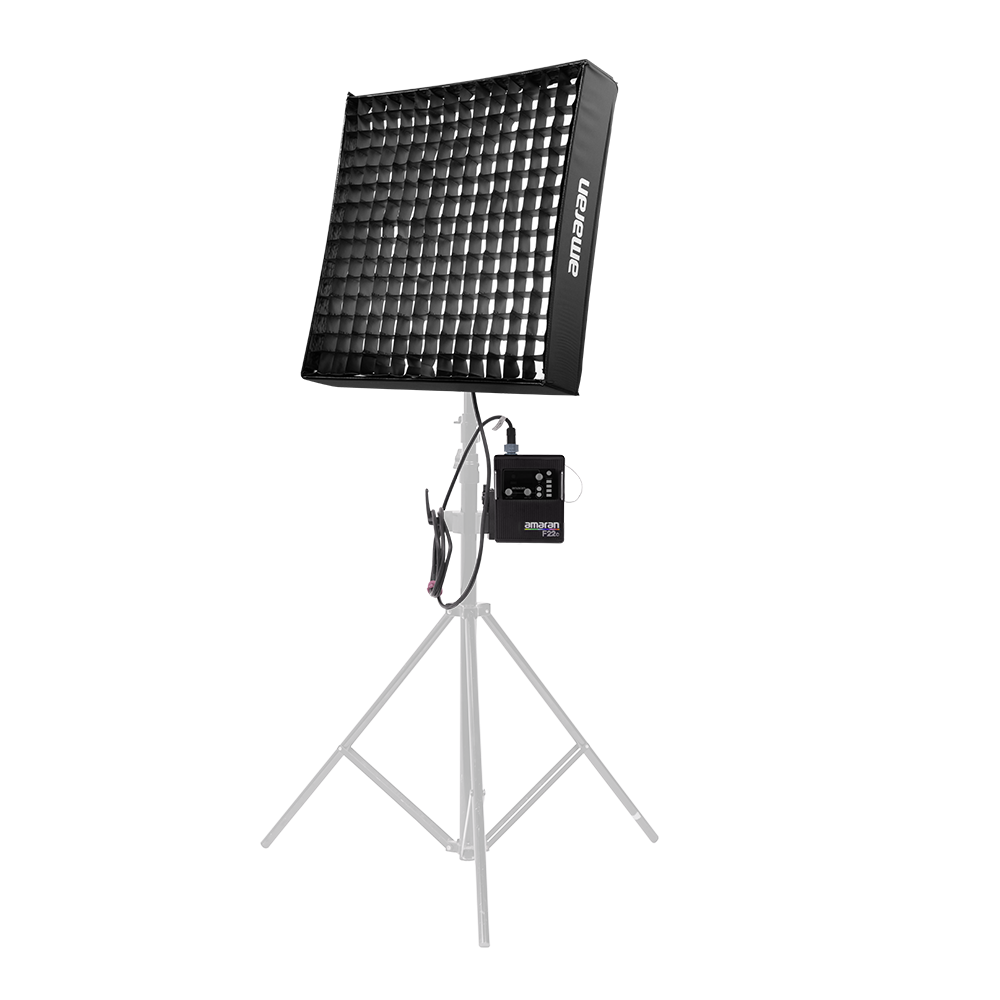

- 1x amaran F22 Light Control Grid
- 1x AC Power Supply
- 1x AC Power Cable
- 1x amaran F-Series Light Carrying Case
Specifications
| CCT | 2500K - 7500K |
| CRI | ≥95 |
| TLCI | ≥97 |
| CQS | ≥96 |
| TM-30 RF (Average) | 94 |
| TM-30 RG (Average) | 102 |
| SSI (Tungsten) | ≥83 |
| SSI (D56) | ≥74 |
| Color Chipset | Red, Green, Blue, Warm White, Cool White |
| Beam Angle (Control Grid) | 45° |
| Max Power Output | ≤200W |
| Max Power Consumption | ≤240W |
| Operating Current | 5A |
| AC Power Supply | 48V DC |
| D-Tap Battery | 12-28.8V DC |
| Battery Compatibility | 16.8V, 26V, 28.8V full power output |
| DC Input | (3m) DC Self-locking |
| AC Power Cable | Self-locking IEC C13 AC Power Cable (4m) |
| Operating Temperature | -10°C - 40°C / -4°F - 113°F |
| Control Methods | On-board, Sidus Link App, DMX |
| Connectivity | Bluetooth 5.0 (Sidus Mesh) |
| Bluetooth Operating Range | ≥80m / 262.5ft |
| Firmware Upgradeable | Sidus Link OTA |
| Display Type | OLED |
| Fixture Cooling Method | Natural Dissipation |
| Control Box Cooling Method | Natural Dissipation |
| Umbrella Holder | Yes |
| Soft Box | Yes |
| Mounting | 1/4-20in * 3, Tilting Support Column |
| Estimated LED Lifetime (L70) | 50,000 Hours |
| Estimated Color Shift Over Lifetime (CCT) | 2% over 6,000 Hours |
| Certifications | CE, FCC, cTUVus, KC, NCC, ROHS |
