Description

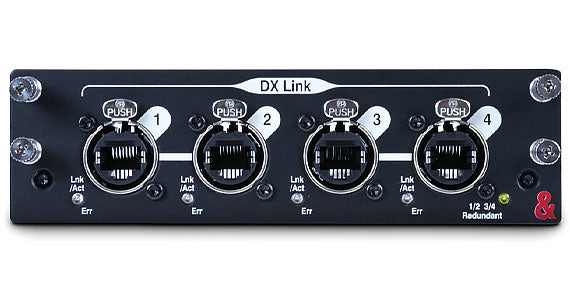

DX Network Interface Card
Allen & Heath M-DL-DXLINK-A dLive DX Expander Card for I/O Distribution — DX Link provides 4 DX ports that can be used to connect to dLive DX expander units to dLive and Avantis systems.
Add up to 128 remote inputs and 64 remote outputs per DX Link module.
No configuration required, just install the card, connect your choice of DX Expander(s) and patch your audio.
In Parallel mode, 1 DX32 or up to 2 DX168/DX012/DX164-W expanders can be connected to each DX Link port.
In Redundant mode, 1 DX expander of any kind can be connected to each pair of DX Link ports using 2 cables for redundant connection.
DX Link

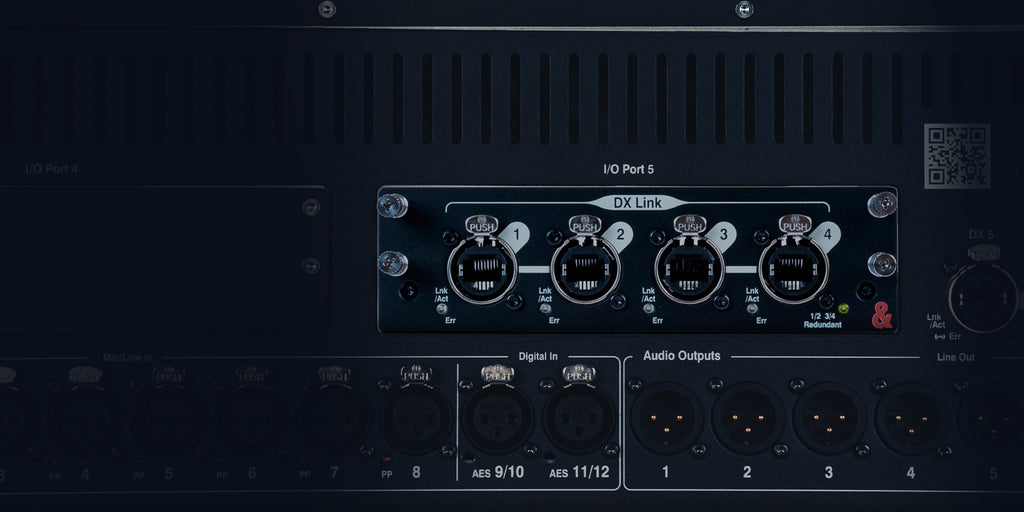

Multiple DX Link cards can be fitted to an Avantis or dLive system to scale up system I/O to meet your requirements. The card provides 4 DX Link ports, each carrying 32×32 channels of 96kHz audio, that can be used to connect to DX expander units in either Parallel or Redundant mode.
DX Expanders
DX Link supports our entire range of DX remote expanders.
Genuine Allen & Heath product. Authorized dealer. Full manufacturer warranty.
