Description

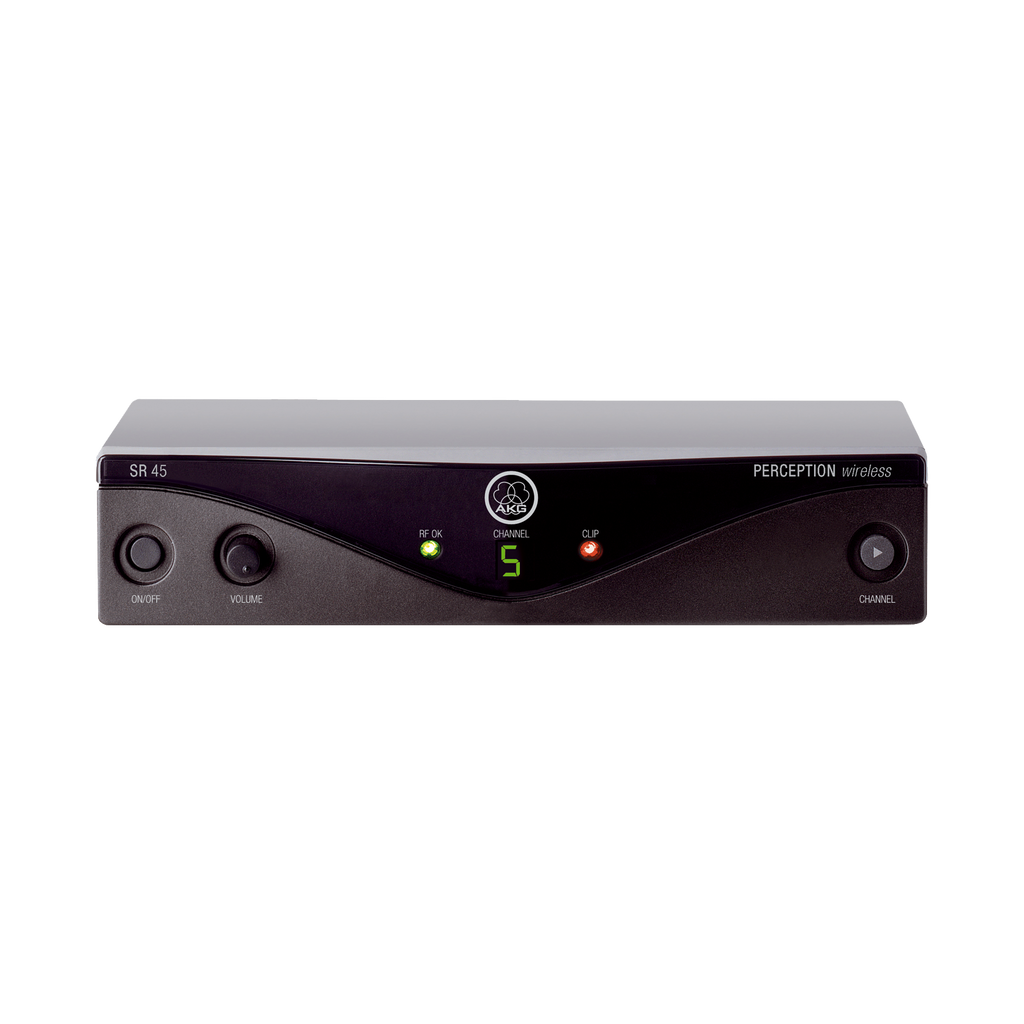

The SR45 analog high-performance space diversity wireless receiver provides maximum ease of use with different channel presets up to eight channels. It is perfect for instrumental and vocal performances in small clubs as well as for use in houses of worship and in conference rooms. The SR45 provides an audio clipping and RF signal LED for easy monitoring of systems status. Best audio signal output is provided via both a professional XLR and a 1/4" jack connector. For worldwide use, the receiver comes with a universal, switched mode power supply kit.
Features
- 30MHz selection bandwidth
- Simultaneous use of up to 6 channels
- Professional balanced XLR and ¼" jack output
- For best audio signal
- Audio clip and RF control LED on receiver
- For easy monitoring of your performance
- Switched mode power supply
- Universal connector kit for worldwide use
- Adjustable squelch level
- For secure audio transmission in all environments
Specifications
- Carrier frequency range: 500 - 865 MHz
- Modulation: FM (Frequency Modulation)
- Audio bandwidth: 40 - 20,000 Hz (+/- 3dB)
- T.H.D. at 1 kHz: typ. 0.8%
- Signal/noise ratio: typ. 105 dB(A)
- Squelch threshold: -100 to -70 dBm adjustable
- Audio outputs: Balanced XLR and unbalanced 1/4" (6.3 mm) jack - adjustable from mic to line level. Output level at rated deviation = 500 mV rms
