Description

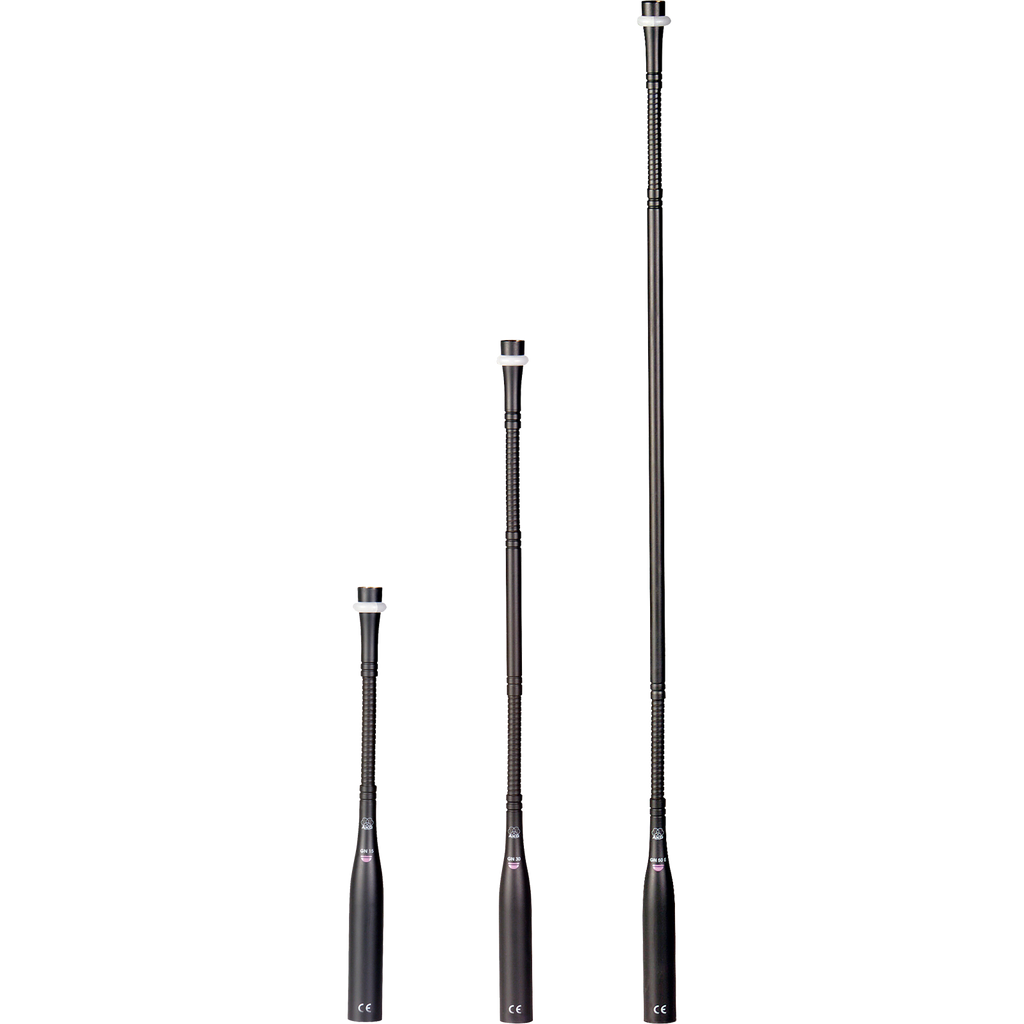

The GN E 5Pin high-performance gooseneck modules for fixed and mobile installation provide a five-pin XLR connector that allows the audio signal and the control voltage for the LED ring to be fed separately. Thus, the LED ring can be activated remotely by, for example, a logic output from any automatic mixer. The LED ring is extra-large for enhanced visibility. The DAM Series GN E five-pin gooseneck modules are available in three different lengths: 15cm (6in), 30cm (12in) and 50cm (20in). The gooseneck module fits all DAM Series capsules, CK31, CK32, CK33, CK47 and CK80, via highly reliable contacts.
Features
- 30cm (12in) High-performance modular gooseneck module - DAM Series
- For remote control of integrated LED ring
- Extra-large LED ring indicator
- Provides enhanced visible MIC ON
- Switchable bass rolloff
- Extremely rugged gooseneck construction
- Highly reliable contacts for capsule modules
Specifications
- Audio frequency bandwidth: 20 - 20000 Hz
- Recommended load impedance: 6000 Ohms
- Height: 1490 mm
- Diameter: 20 mm
- Finish: matte dark gray
- Type: Balanced XLR
- Gender: Male
- Contacts: 3-pin
- Powering Interface: Voltage
- 9 to 52 V: Current
