Description
Main Features:
Comfortability with Conformability

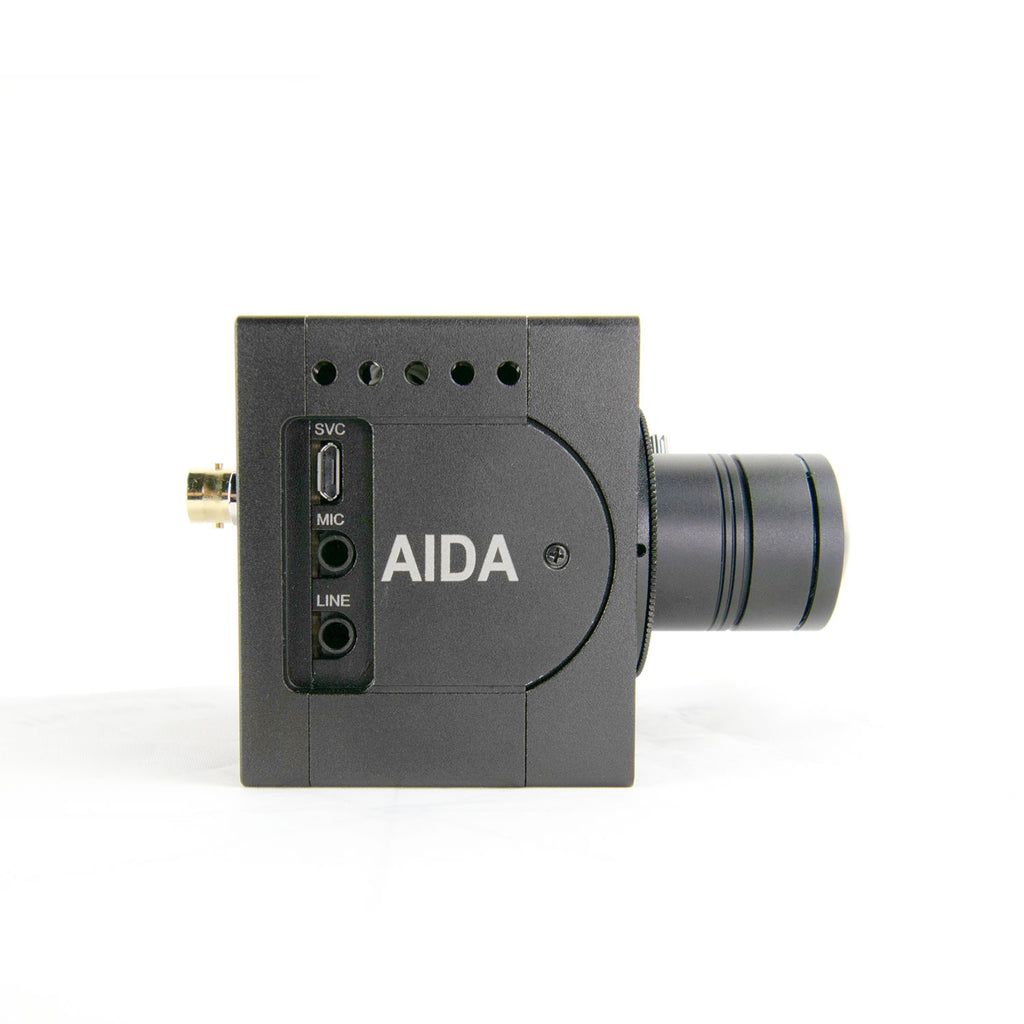

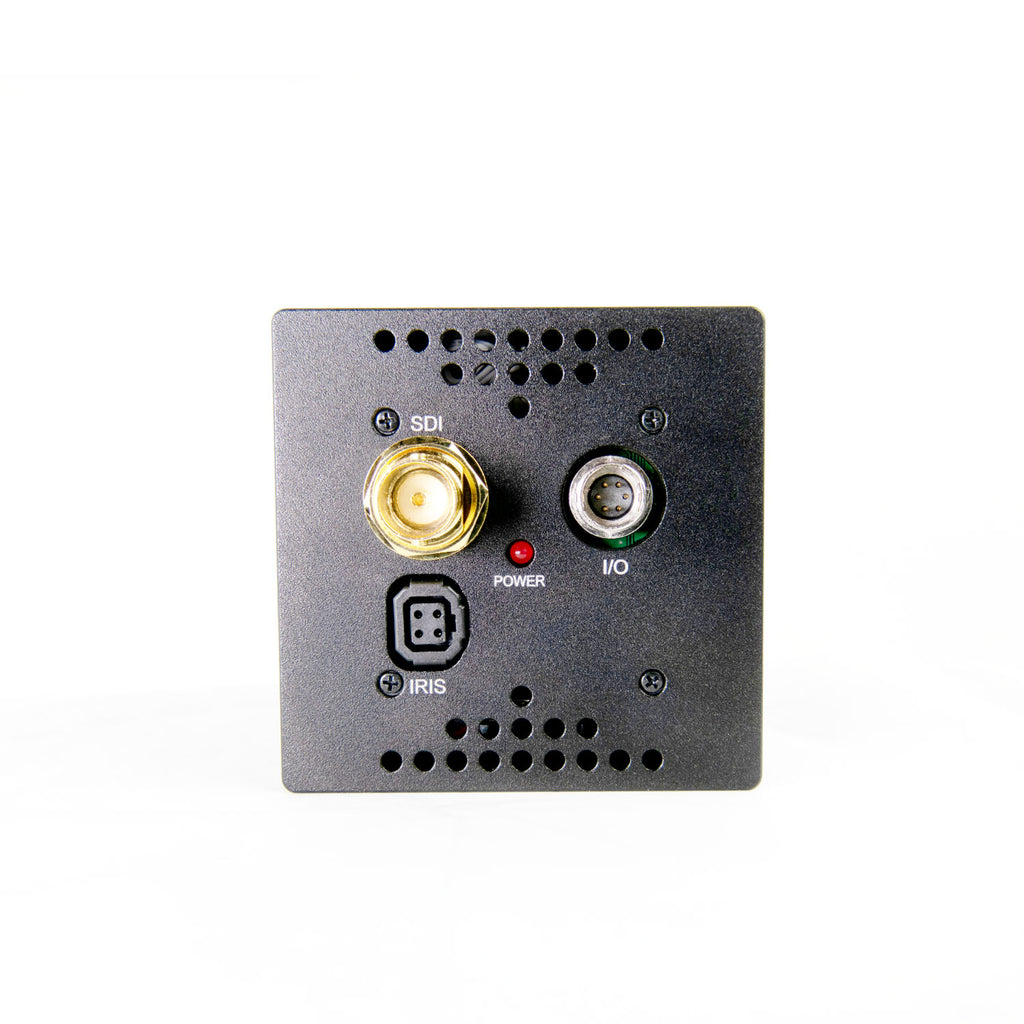

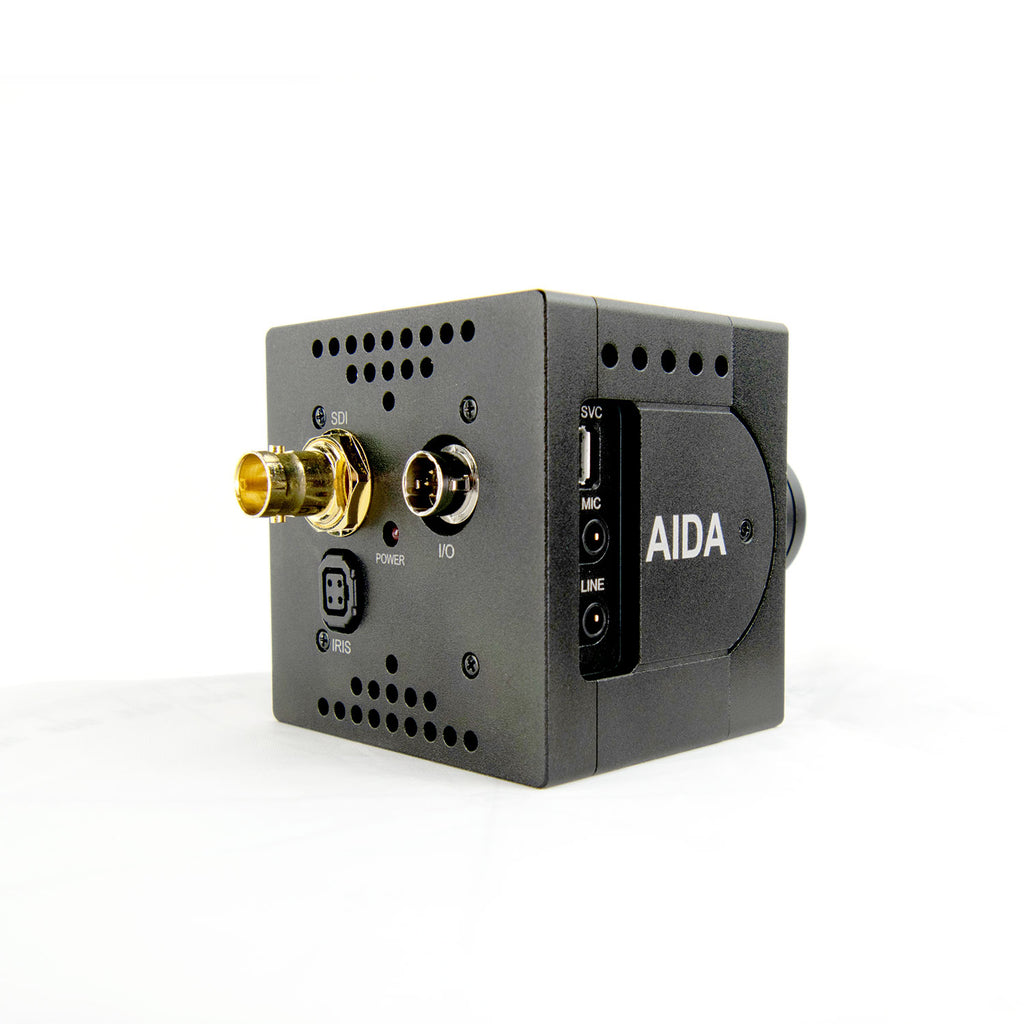

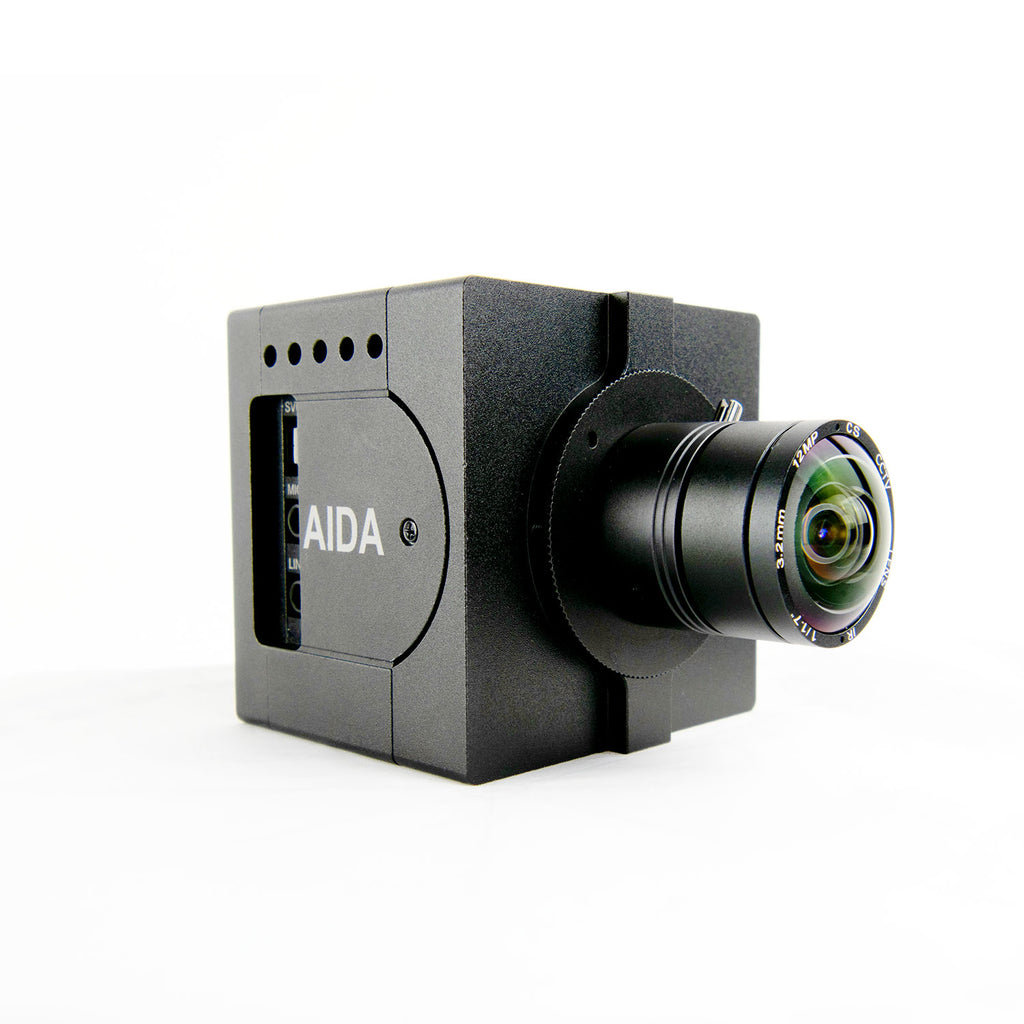

The UHD6G-200 breathes life to any new, or existing SDI infrastructure with versatility, and uniqueness. With its rugged design, you may just forget it’s even there in the studio.
Specification
Video
Image Sensor
1/2.5″ Progressive CMOS
Sensor Size
8.365mm X 6.615mm (16:9)
Effective Pixels
Horizontal: 3840, Vertical: 2160
Pixel Size
1.62 μm (H) x 1.62 μm (V)
Resolution
3840 x 2160, 1920 x 1080, 1280 x 720
Resolution | Rate
2160p 30/29.97/25/24
1080p 60/59.94/50/30/
29.97/25/24
1080i 60/59.94/50
720p 60/59.94/50/30/25
Output
HD/3G/6G-SDI (BNC)
Color Space
4:2:2 (YCbCr) 10bit
Function
White Balance
AWB / AE / AF
Exposure
Full Auto, Bright, Shutter Priority, Iris Priority, Manual
Other
WDR, DIS (Digital Image Stabilization), 2D/3D Noise Reduction,
Digital Slow Shutter, Black Level Compensation, Flicker Detection
Lens
C/CS Mount (Default UHD 3.2mm Lens)
Audio
Input
3.5mm TRS Stereo Mic-in & Line in over I/O Cable
Sample Rate
16/24/32 Bits
Standard
SMPTE
SMPTE 292M, SMPTE 424M, SMPTE 2081-10
Physical
Camera Control
RS-485 VISCA, OSD Button
Operation Temp
15°F - 120°F
Dimension
56m x 56mm x 71.90mm / 2.20″ x 2.20″ x 2.83″
Weight
170g / 0.37lbs
Power
12 VDC (+9 - +15VDC)
Downloads
Operation Manual
Firmware
Diagram
[metaslider id=”9241″]
You May also find these Product useful.

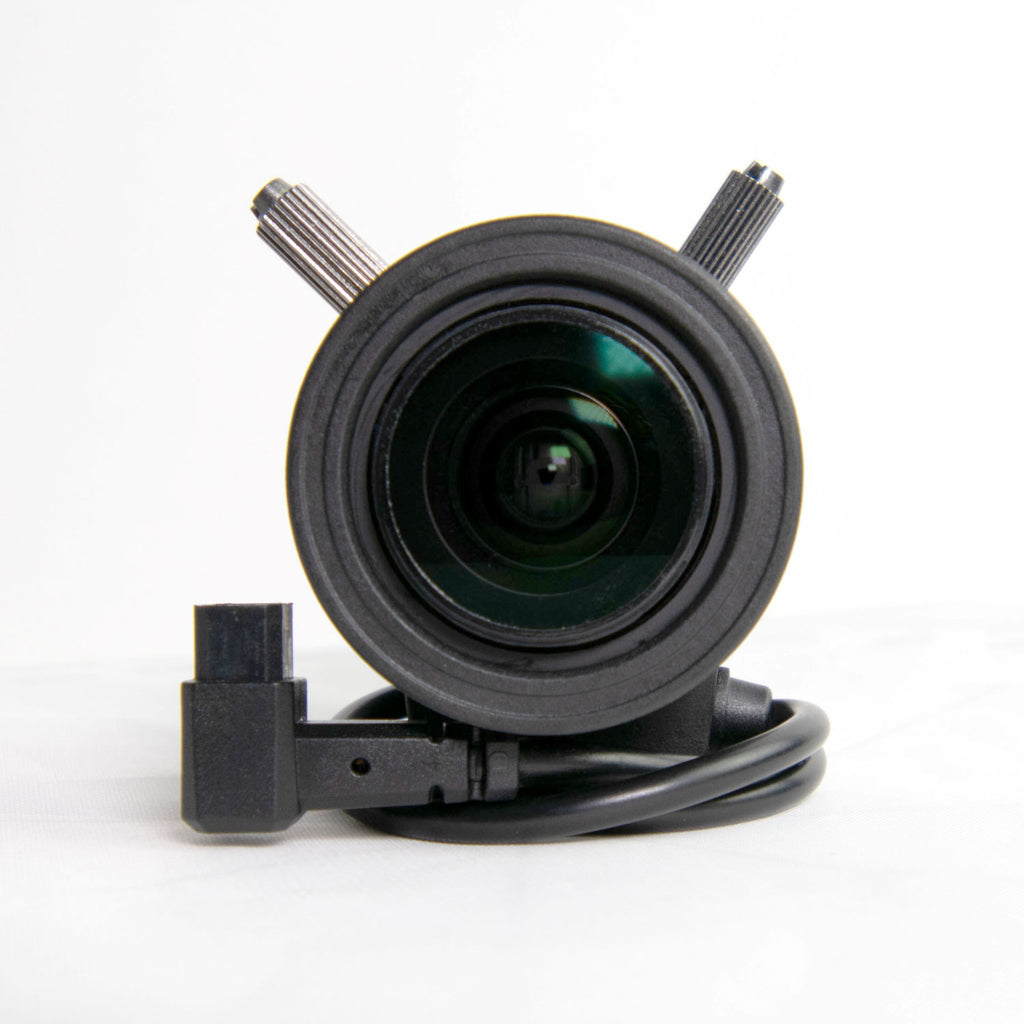

CS 4K-3611V

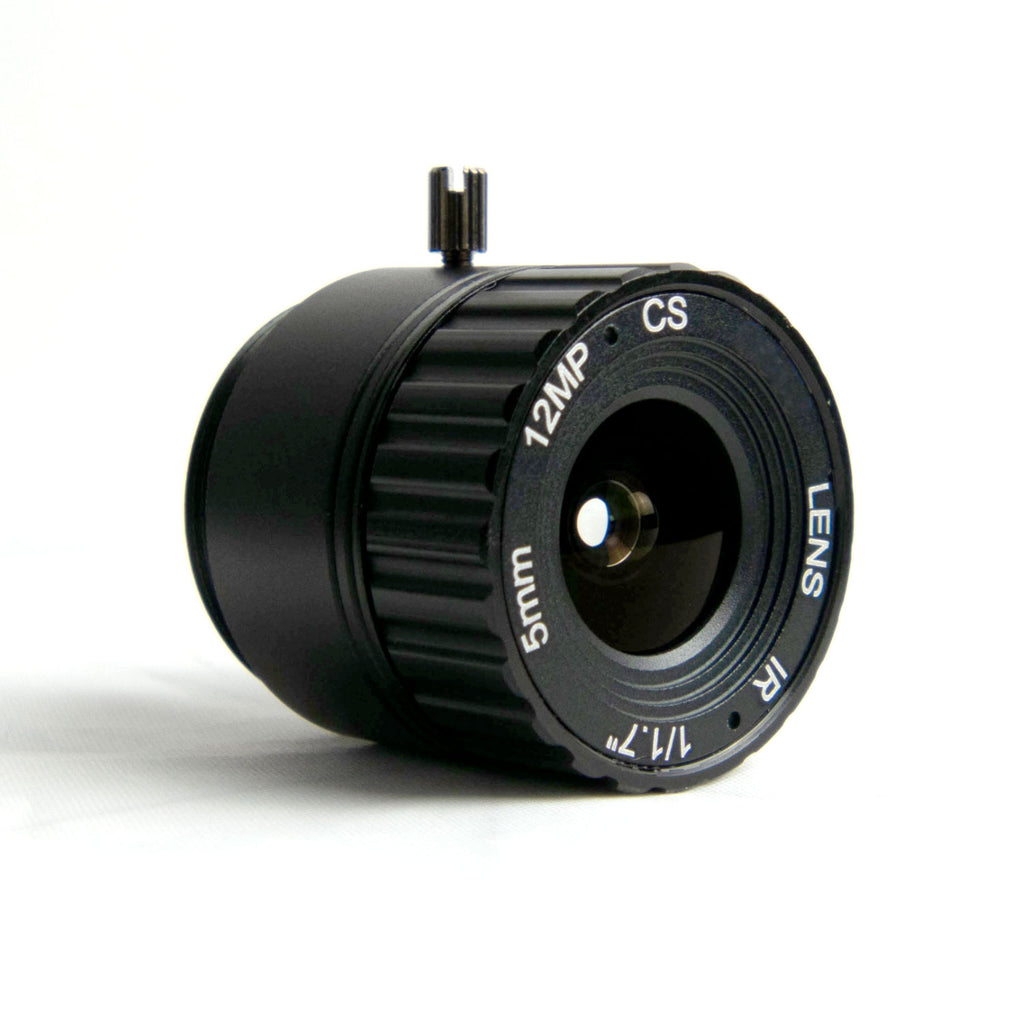

CS 4K-5.0F
CCS-USB
See what others are saying!
“I must say for the price point I’m blown away at the image quality. Overall I was impressed with the unit and am looking forward to implementing it on some upcoming projects”
Gain Stage Productions
“It was obvious to everyone there that the AIDA image looked better than the other cameras”
Audio Visual Specialists
“We’ve been running the AIDA demo camera through its paces and are impressed with it for the cost”
Stevens Audio Visual
Additional Details
- Weight: 2.0 lb
- Shipping Dimensions (L x W x D): 10x5x4 in
- Country of Origin: KR
- UPC: 720260897577
