Main Features:
Launch your video creations in Ultra-HD

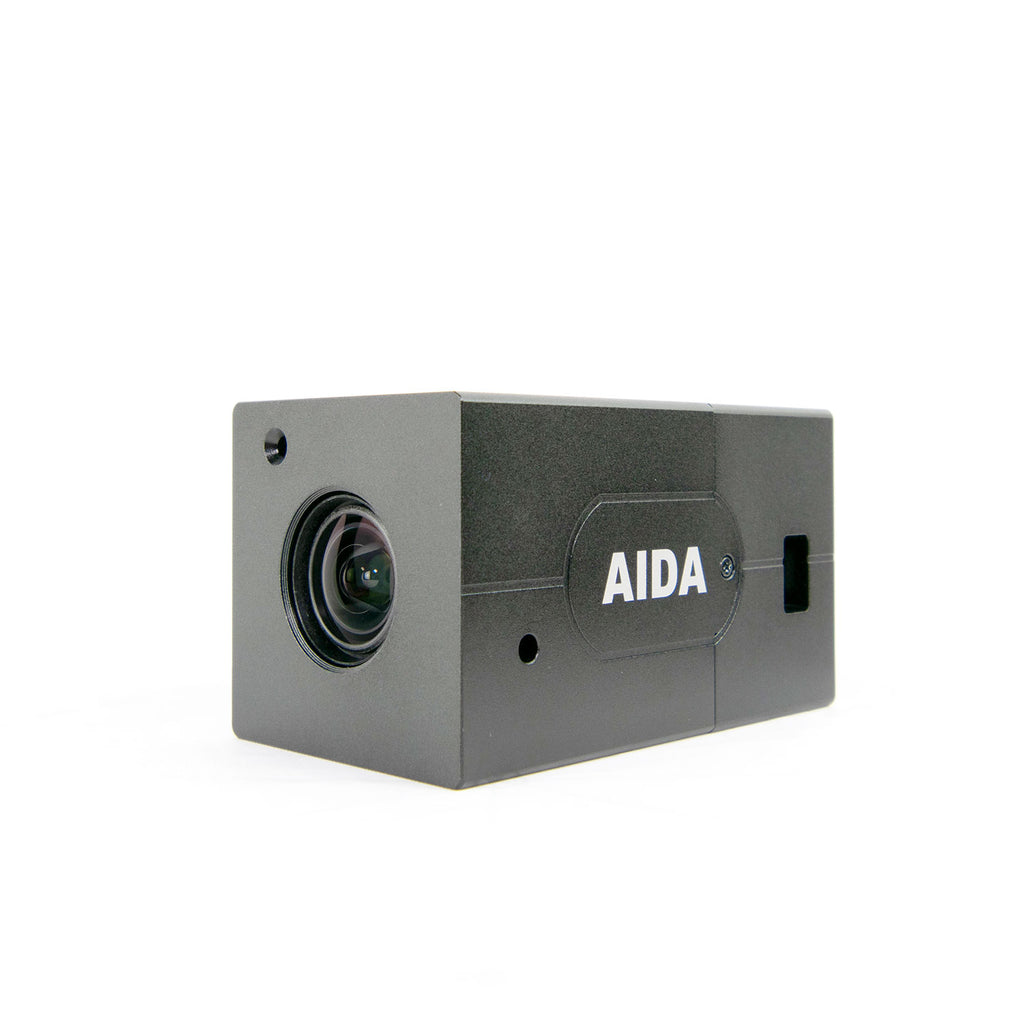

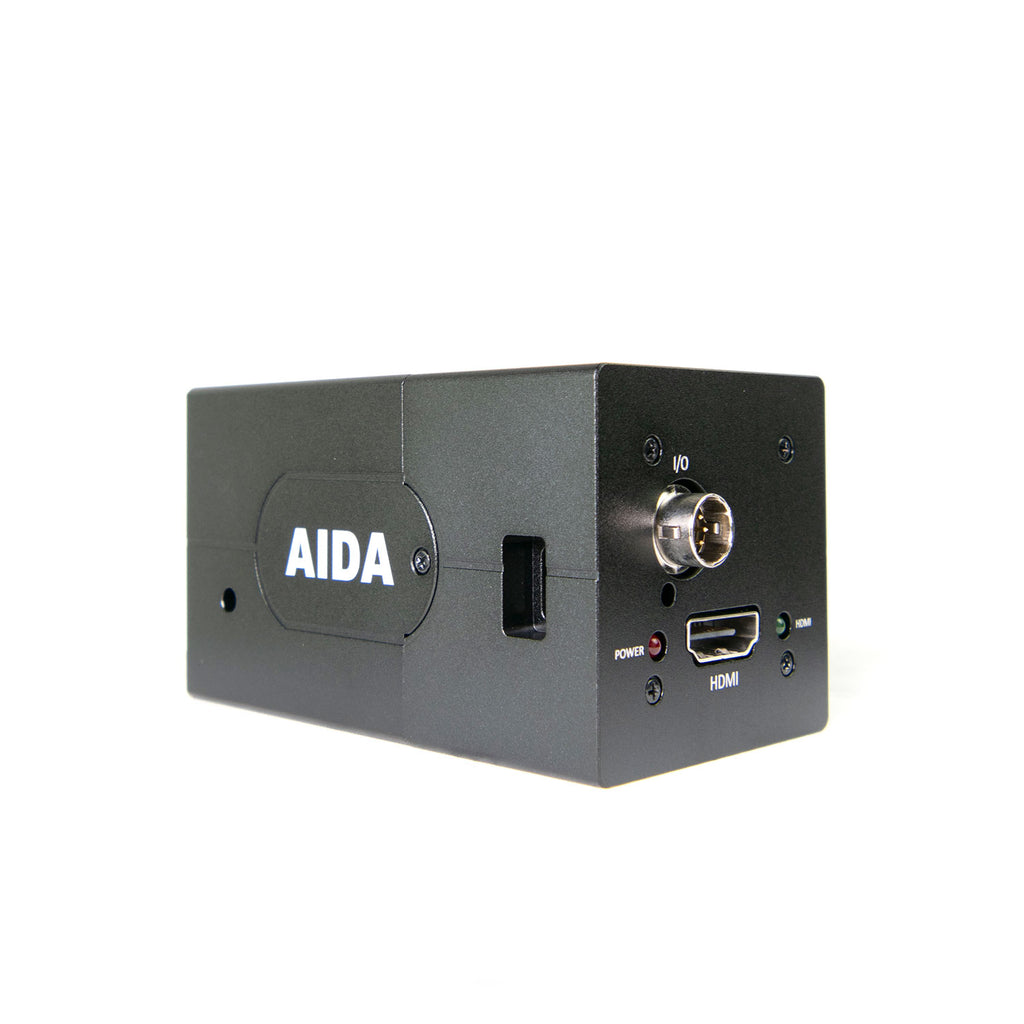

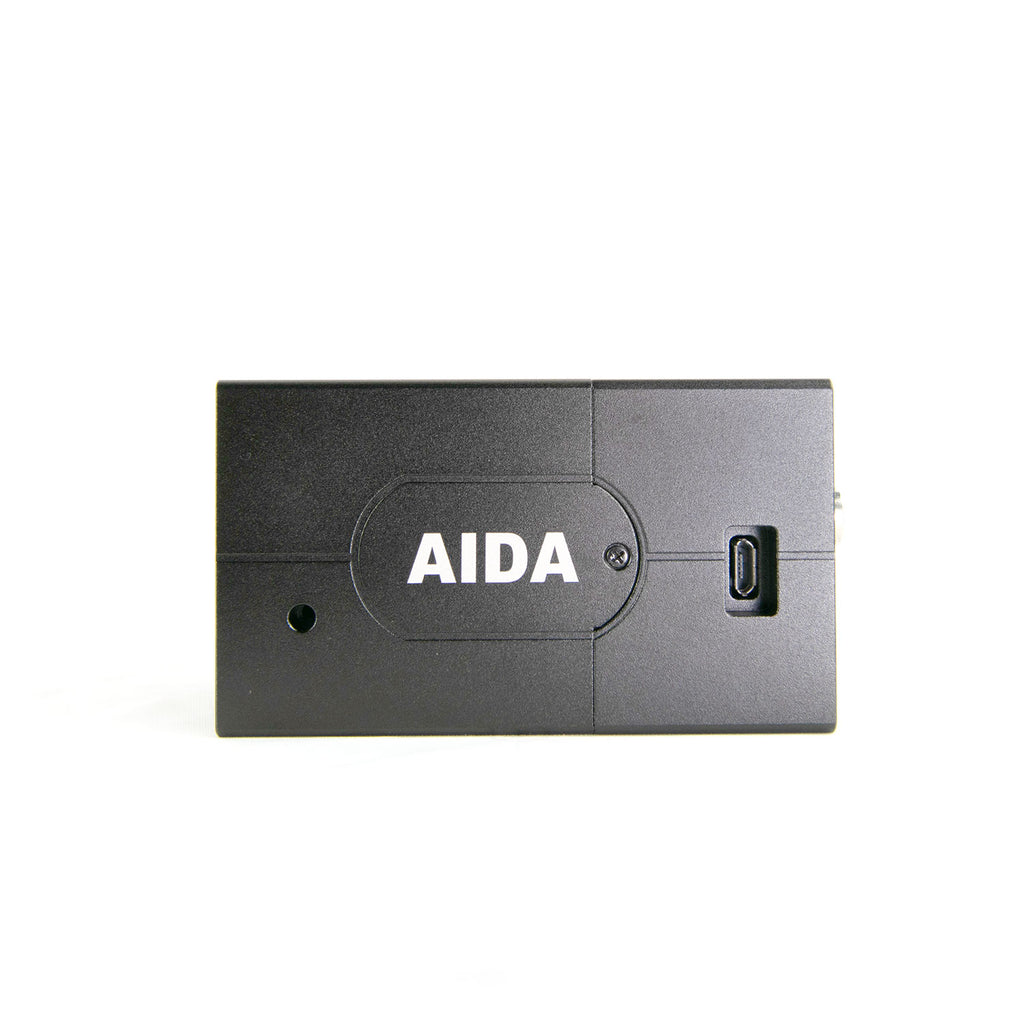

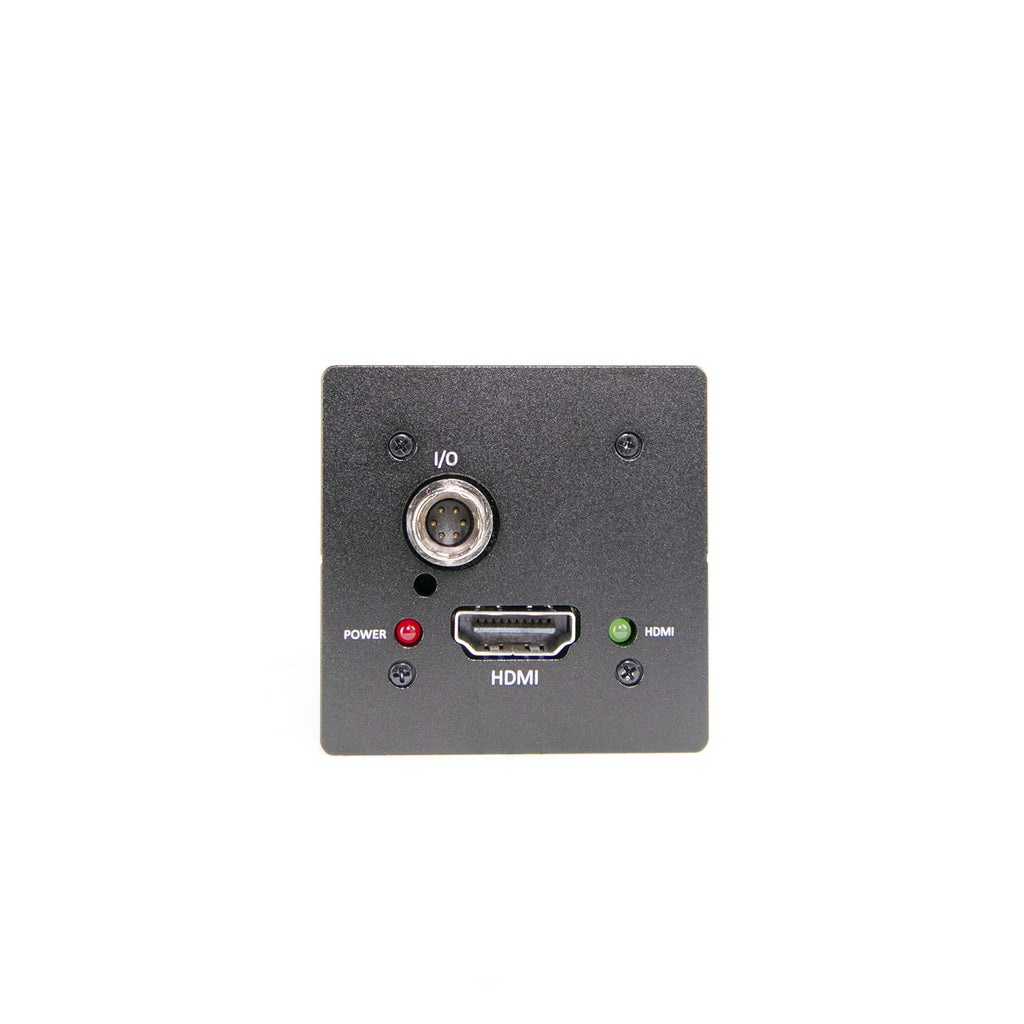

Drive your visual inspirations with clarity. The UHD-X3L with its built-in 4K 3X optical zoom lens simplifies the creation of video content that requires Ultra-HD quality and remote versatility. Application ranging from sports to telemedicine.
Video
Image Sensor
1/2.5″ Progressive CMOS
Sensor Size
Diagonal 7.20mm
Effective Pixels
Horizontal: 3840, Vertical: 2202
Pixel Size
1.62 μm (H) x 1.62 μm (V)
Resolution
2160p: 3840 x 2160 1080p / 1080i : 1920 x 1080 720p : 1280 x 720
Resolution | Rate
4K2160p : 30 / 29.97 / 25 / 24
1080p : 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24
1080i : 60 / 59.94 / 50 720p : 60 / 59.94 / 50
Output
HDMI 1.4
Color Space
4:2:2 (YCbCr) 10bit
Function
White Balance
AWB / AE / AF
Exposure
Full Auto, Bright, Shutter Priority, Iris Priority, Manual
Other
WDR, DIS (Digital Image Stabilization), 2D/3D Noise Reduction,
Digital Slow Shutter, Black Level Compensation, Flicker Detection
Lens
3X Optical Zoom Lens, 3.85mm/78° (Wide) ~ 13.4mm/25° (Tele)
Physical
Camera Control
RS-485 VISCA, OSD Button
Operation Temp
32° F - 104° F
Dimension
48mm x 48mm x 83.09mm / 1.89″ x 1.89″ x 3.27″
Weight
140g / 0.30lbs
Power
12 VDC (+9 - +15VDC)
Downloads
Operation Manual
Firmware
Diagram
[metaslider id=”9211″]
You May also find these Product useful.
CCS-USB

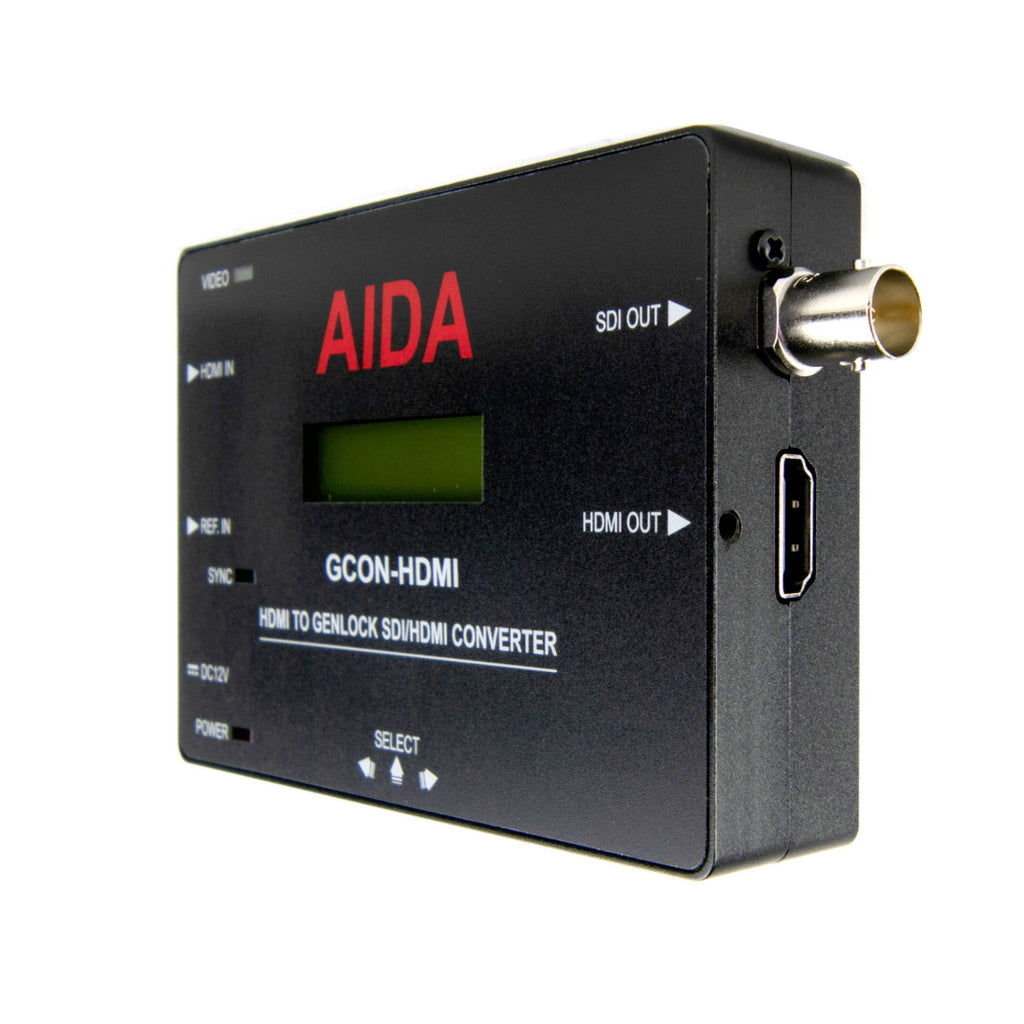

GCON-HDMI
