Description
Tri-level sync generator with precision.
The TGEN-6P Tri-level sync generator can synchronize your Genlock capable gear with precession and suitable for broadcast studio workflow.
Adjustable V and H sync generation- For accurate pulse timing.
Switchable Master and Slave mode for cascading.
Specification
Synchronization
Reference Out
Tri-Level HD
Format
1080p 60/59.94/50/30/29.97/25Hz/24Hz
1080i 60/59.94/50Hz
720p 60/59.94/50/30/25Hz/24Hz
Accuracy
H2ppm
Reference In
Tri-Level HD & Bi-Level SD
Standard
SMPTE
SMPTE 274M, SMPTE 296M
Physical
Camera Control
Dipswitches & Text LCD
Operation Temp
32° F - 104° F
Dimension
129mm x 86m x 29mm / 5.07″ x 3.38″ x 1.10″
Weight
278g / 0.61lbs
Power
12VDC (+9 - +15VDC)
Downloads
Operation Manual
Diagram
[metaslider id=”9475″]
You May also find these Product useful.
GEN3G-IPC-200

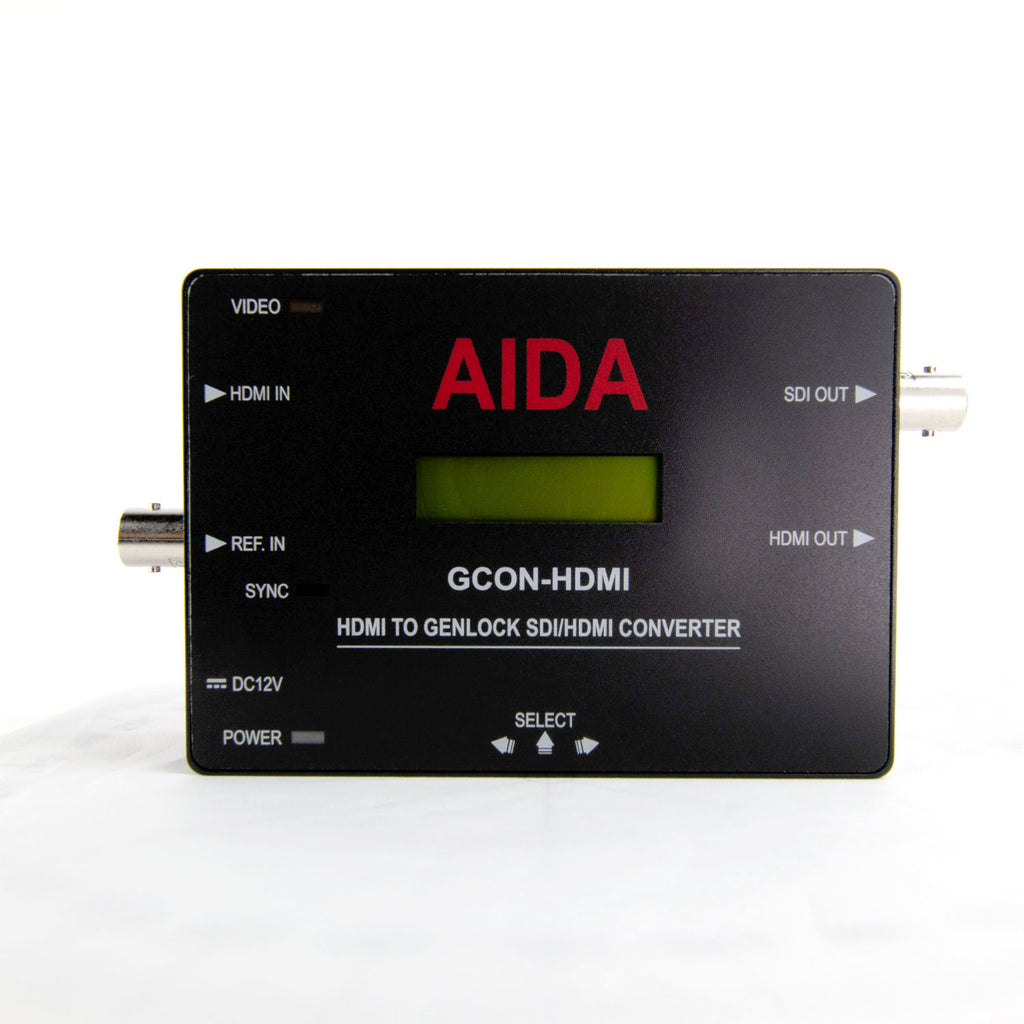

GCON-HDMI
