Description
|

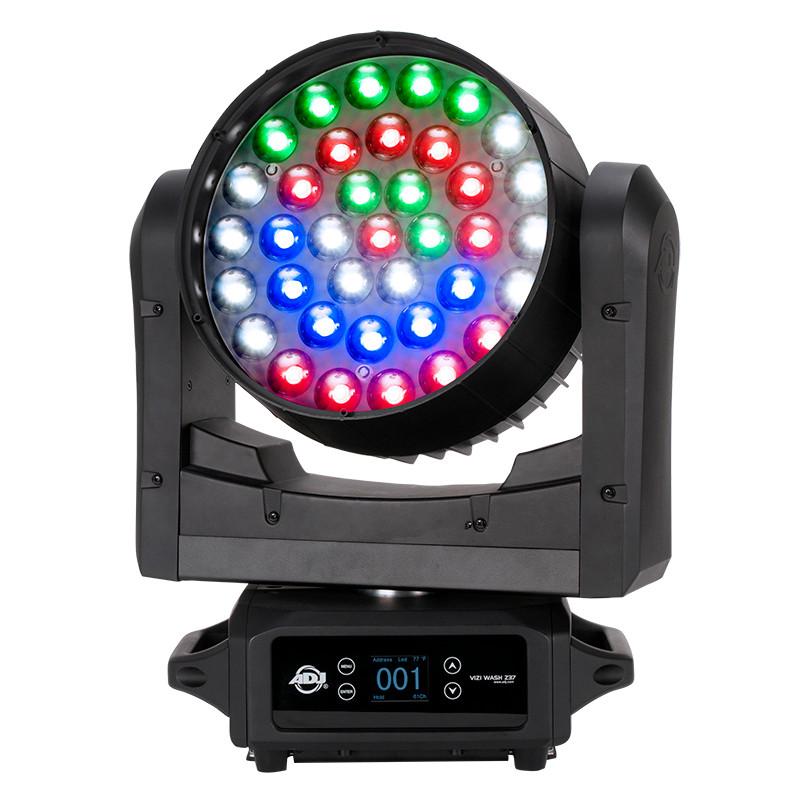

The Vizi Wash Z37 is a 670W professional moving head wash fixture with variable motorized zoom (10 ~ 60-degrees) and thirty-seven 20W Quad (RGBW / 4-IN-1) LEDs. The Vizi Wash Z37 is a 670W professional moving head wash fixture with variable motorized zoom (10 ~ 60-degrees) and thirty-seven 20W Quad (RGBW / 4-IN-1) LEDs. It features 9 zones of LED ring control, smooth dimming control from 0-100%, locking powerCON In/Out to daisy chain power, both 3 and 5-pin XLR for DMX In/Out and a built-in USB port for a convenient connection to update software if needed. This fixture is ideal for washing larger stages, theaters, churches, nightclubs, concert venues and event productions. Preliminary specifications subject to change.
|
|
Specifications • 20,000 Hour Average LED Life • LUX @ 5M: 15000 lux @ 10-degrees; 1100 lux @ 60-degrees
Effects: • 9-zone Ring Control with Color Macros • Variable Strobe & Pulse effects
Connections: • Seetronic locking power In/Out to daisy chain power • 3-pin and 5-pin DMX connections for data linking • RDM (Remote Device Management) • USB Input for Updating Fixture Firmware
Control: • Motorized Linear Zoom: 10 ~ 60-degrees? • Multiple DMX Channel Modes (14, 16, 17 & 71 channels) • Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2) • Dim Speed control (0.1~10 Seconds) • Dimming: 0 - 100% • Strobe & pulse control • Various Strobe speeds (1-40Hz) • Adjustable LED Refresh Rates (900~25k Hz) • Adjustable Gamma Settings (1.0-2.8) • Color display with touch button on two sides • With Wired Digital Communication Network
Electrical: • Input Voltage: 100-240V 50Hz/60Hz (Auto Sensing) • Power Draw: 525W, 4.375A @ 120V or 700W 3A @ 230V
Dimensions/Weight: • Dimensions (LxWxH): 16” x8.8” x 20.3” / 408x226x518mm • Weight: 41 lbs. / 18.6 kg.
Included in box: • Locking power cord • Two (2) Omega brackets for truss mounting |
