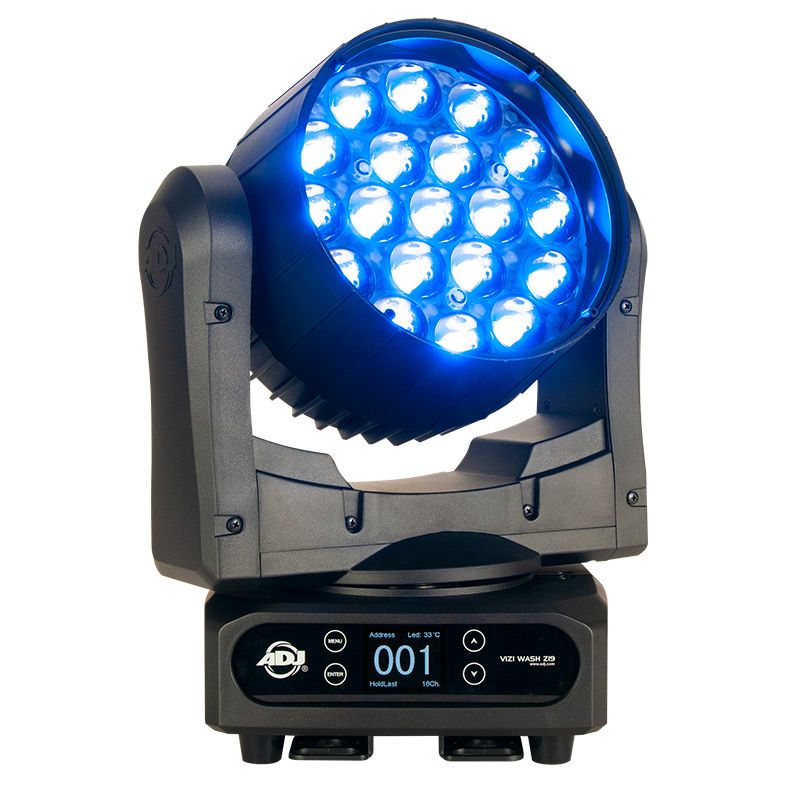

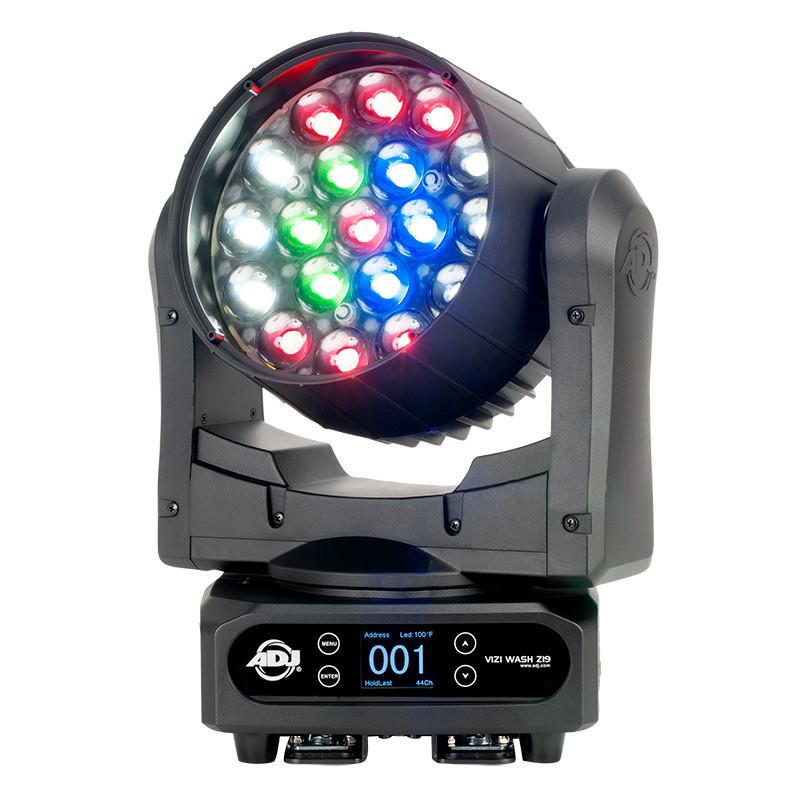

ADJ Vizi Wash Z19

Save $939.96
ADJ - American DJSKU: VIZ195

Price:
Sale price$2,199.99 Regular price$3,139.95

Description



380W professional moving head wash fixture with variable motorized zoom (10 ~ 60-degrees), 19x 20W Quad (RGBW / 4-IN-1) LEDs and 3 or 7 zones of LED ring control.

The Vizi Wash Z19 is a 380W professional moving head wash fixture with variable motorized zoom (10 ~ 60-degrees) and nineteen 20W Quad (RGBW / 4-IN-1) LEDs. It features 3 or 7 zones of LED ring control, smooth dimming control from 0-100% (plus 16-but fine dimming), twist lock power In/Out connections to daisy chain power, both 3-pin and 5-pin DMX In/Out and a built-in USB port for a convenient connection to update software if needed.

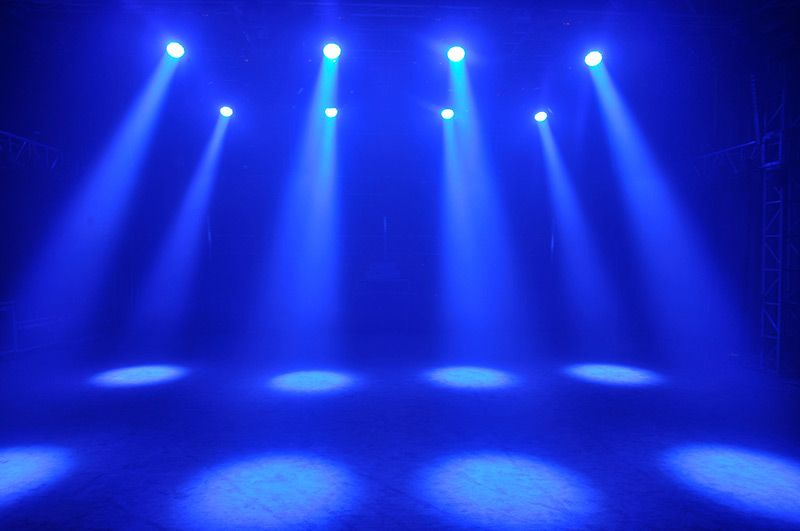

There are 64 built-in color macros, 16-bit fine zoom control, and 4 DMX control modes. This fixture is ideal for washing stages, theaters, churches, nightclubs, concert venues and event productions.



Specifications

Optical:

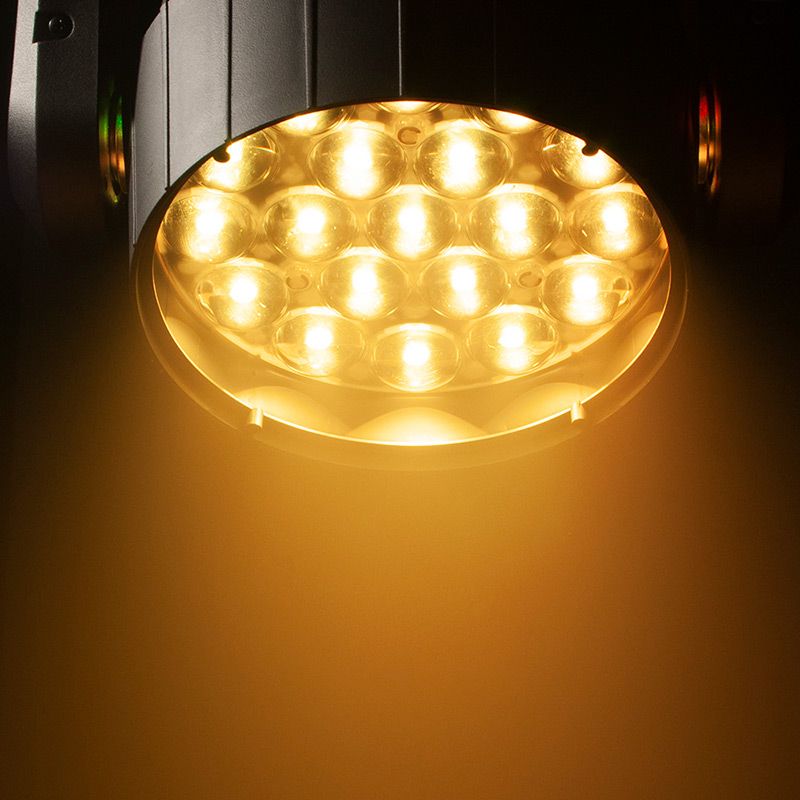

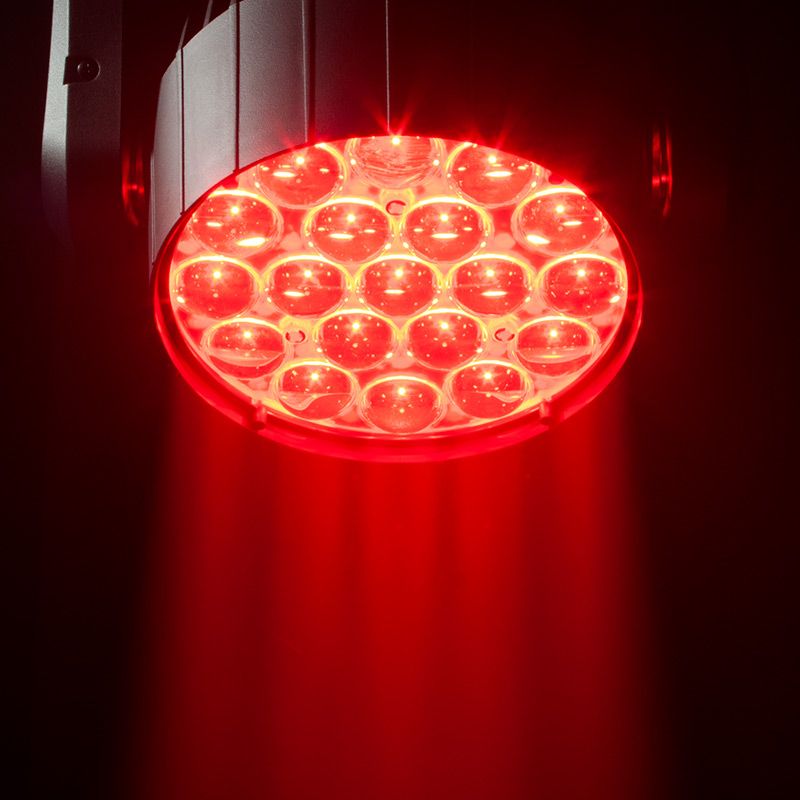

• 19x Osram 20W RGBW (4-IN-1) LEDs

• Motorized Zoom: 10 ~ 60-degrees

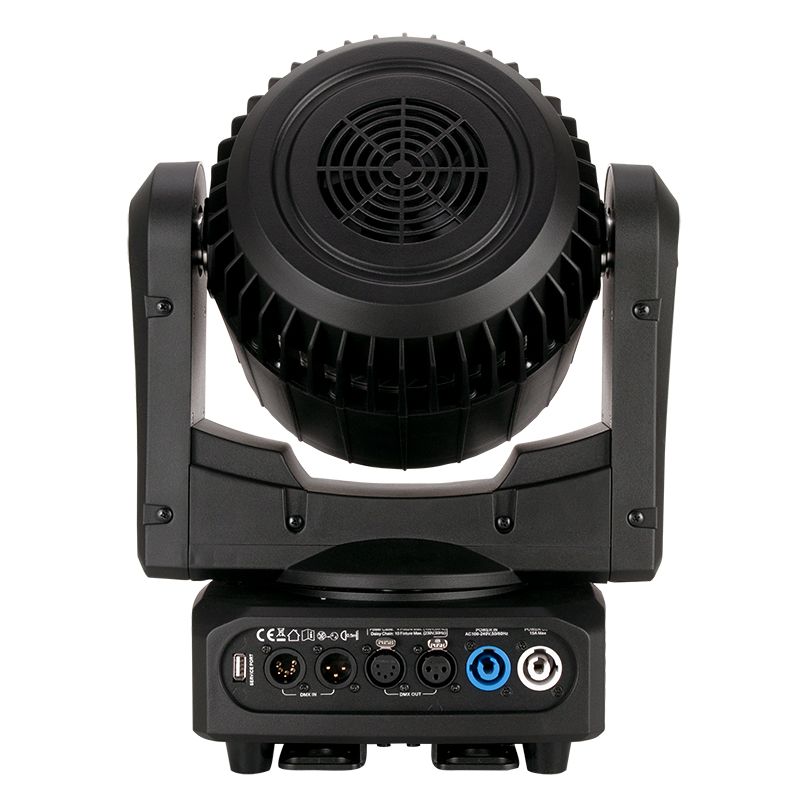

Connections:

• Seetronic locking power In/Out to daisy chain power

• Daisy chain up to 5 fixtures @ 120V, 11 fixtures @ 230V

• 3-pin & 5-pin In/Out DMX Connections

• With Wired Digital Communications Network


Control:

• Control: DMX-512 & RDM

• 4 DMX Channel Modes: 12 / 16 / 28 / 44

• 64 built-in Color Macros

• Color display with touch buttons

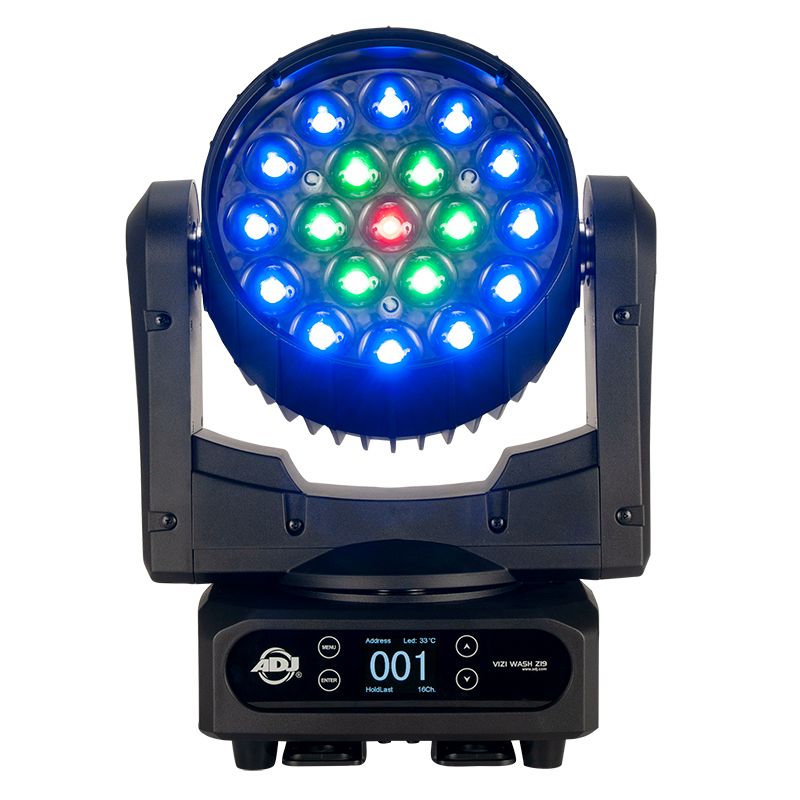

• 3 or 7 zones of LED ring control

• Smooth 0-100% Dimming

• Fine 16-bit Dimming

• 6 Dimmer Curve modes

• Fine 16-bit Zoom control

• Built-in USB software upgrade port

• Various Strobe speeds (1-40Hz)

• Gamma Brightness control

• Pan: 540-degree (plus fine 16-bit pan)

• Tilt: 270-degrees (plus fine 16-bit tilt)


Electrical:

• Multi-voltage operation: 110-240V, 50-60Hz

• Power Consumption: 285W Max


Dimensions / Weight:

• Dimensions (LxWxH): 12.1”x7.7”x15.5” / 306.6×195×393.3mm

• Weight: 20 lbs. / 9.4kg.

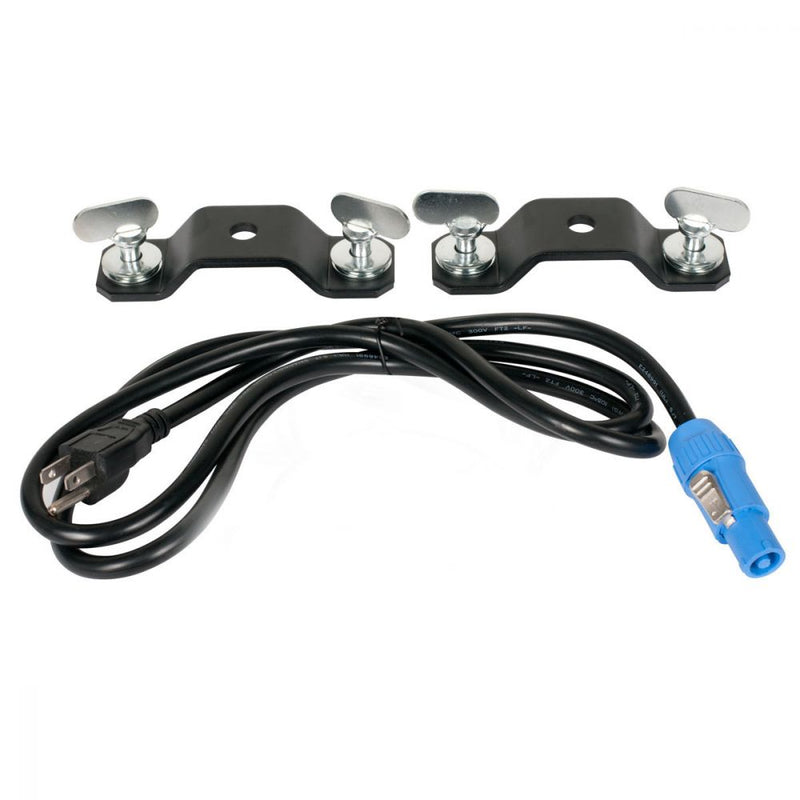

What’s In The Box:

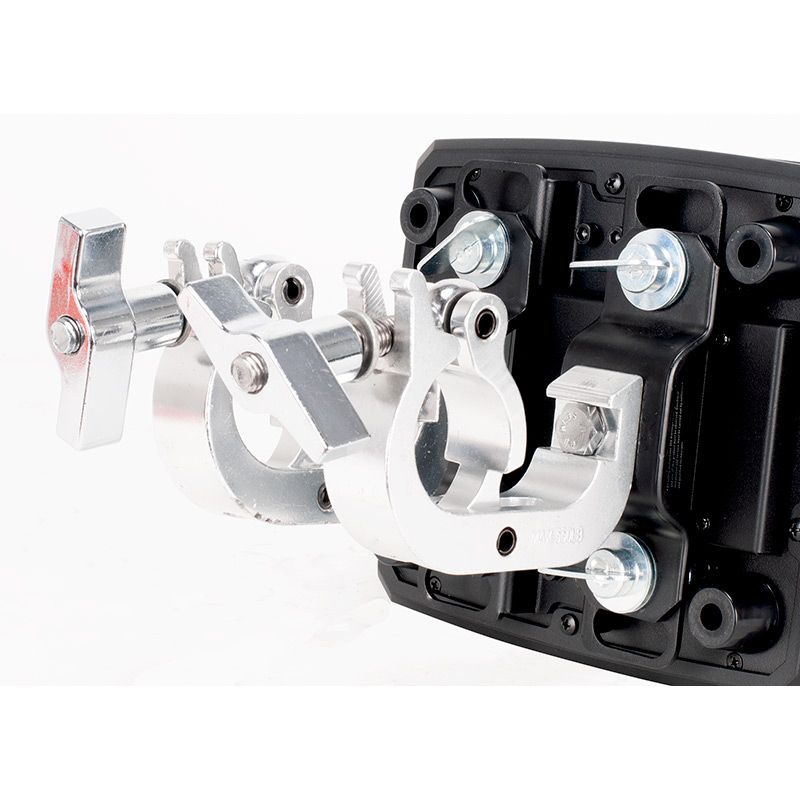

• Two Omega Brackets

• Twist lock power cable
