Description

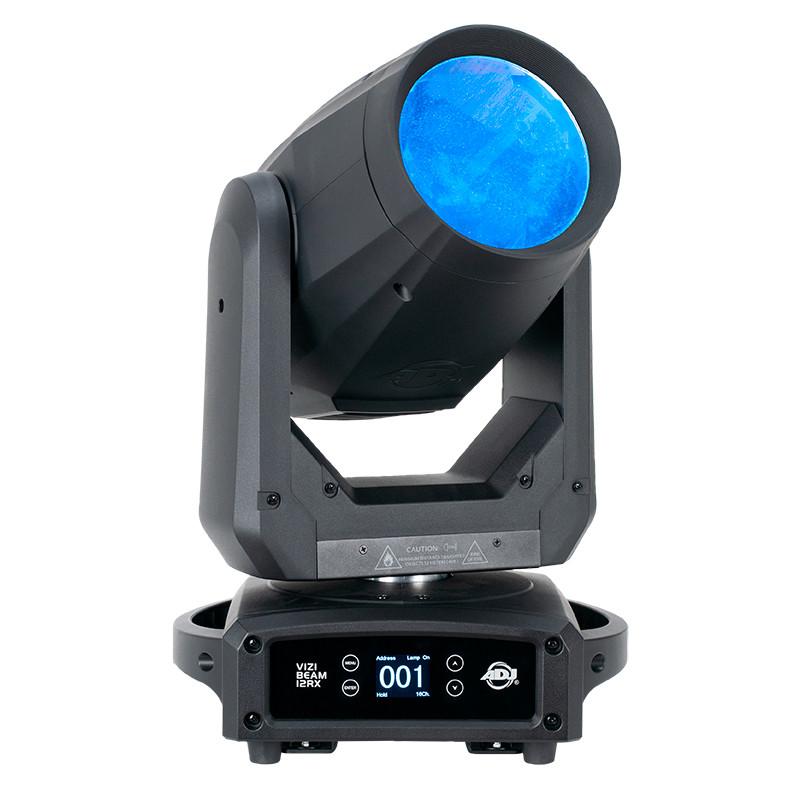

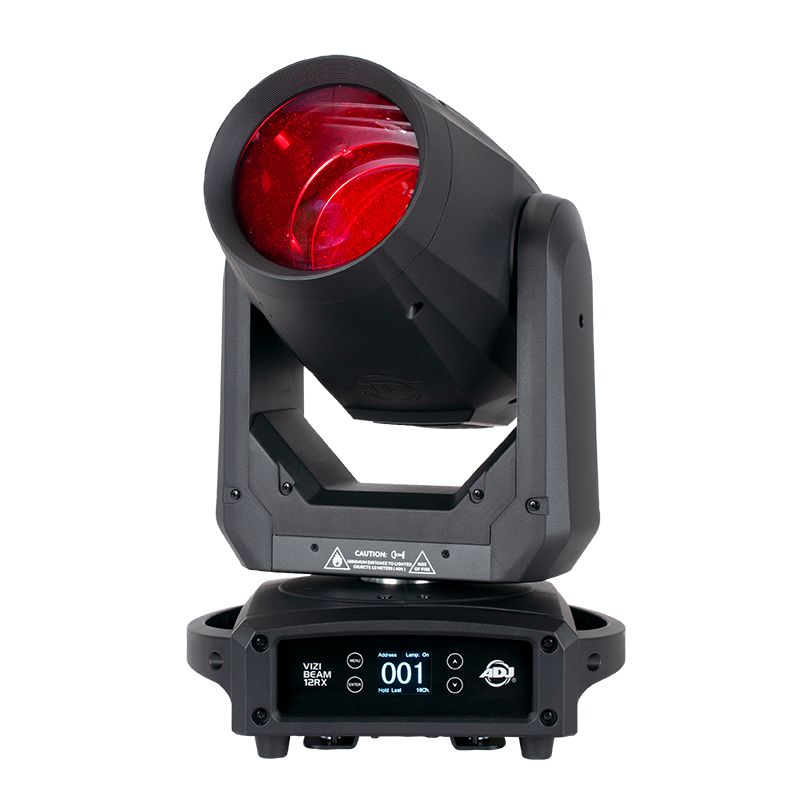

The Vizi Beam 12RX is high powered beam moving head powered by the brilliant 260W Philips® Platinum 12R LL MSD Discharge Lamp (6,000 hr.). It produces a razor sharp 2-degree beam of light. It comes with 14 colors + open (with color indexing), 16 GOBOs + open (with GOBO indexing), two rotating prisms and a frost filter for wash effects. The Vizi Beam 12RX offers 2 DMX modes (14 or 16 channels) and RDM control options. It has 3-pin and 5-pin DMX In/Out connections and PowerLock In/Out connection to daisy chain the power from one fixture to the next. It has a color display with 4-button internal menu system.
|

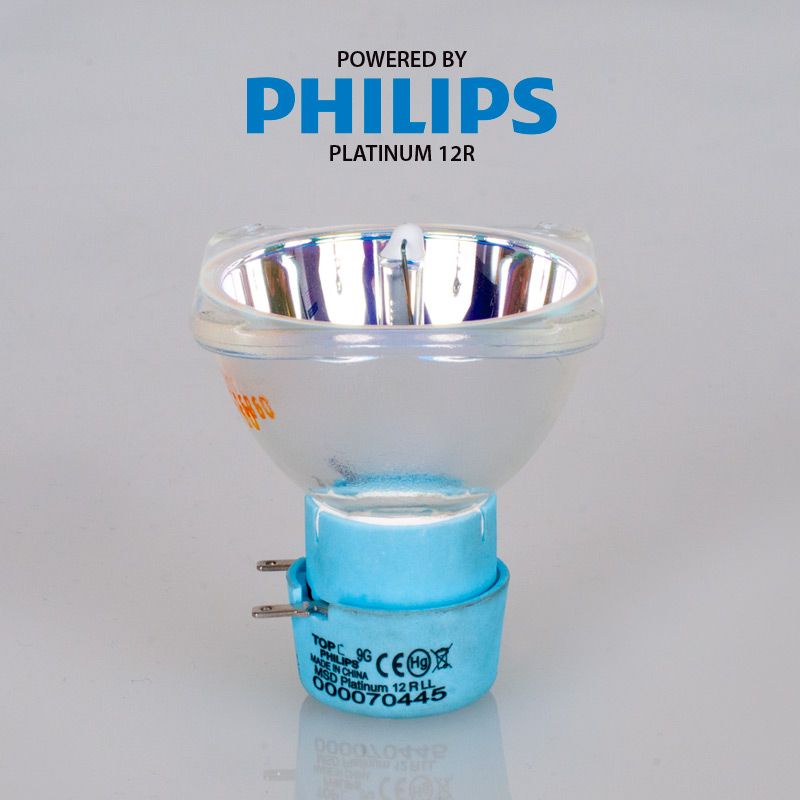

SpecificationsLight Source:• 260W Philips® Platinum 12R LL MSD Discharge Lamp (6,000 hr.)
• Color temperature: 7800K
Features:
• Motorized Focus + 16-bit fine focus
• 2-degree beam angle
• Frost Filter to create wash effect
• High quality glass lens
• 2 Rotating prisms: 6-facet Linear and 24-facet Circular
• 0-100% smooth dimming
• Various strobe speeds
• USB firmware update port
• Fan cooled

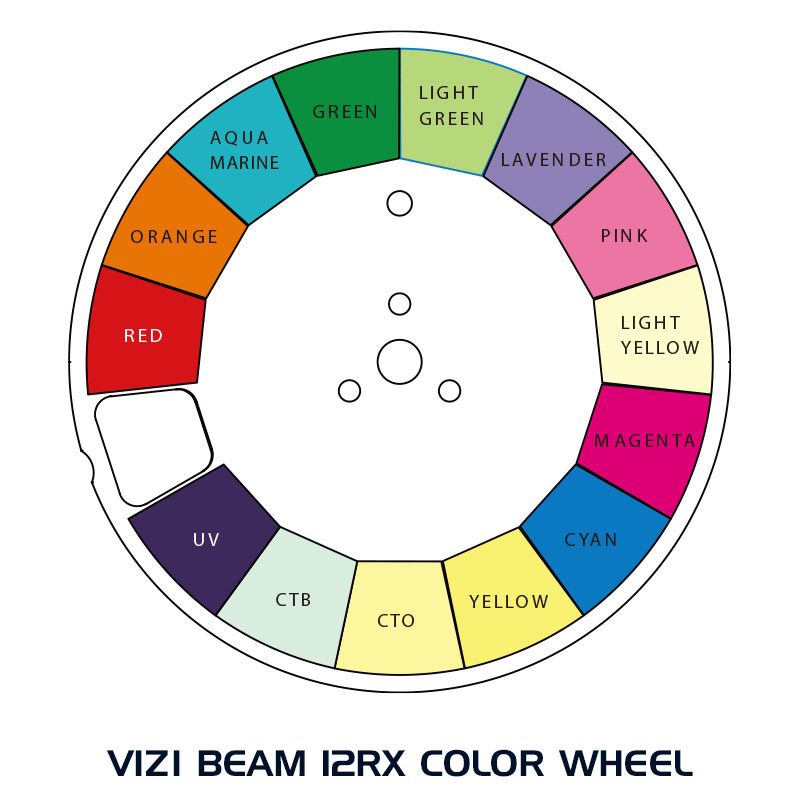

Color Wheel:
• 14 dichroic colors + white (Includes CTO, CTB & UV)
• Indexable color wheel for split colors

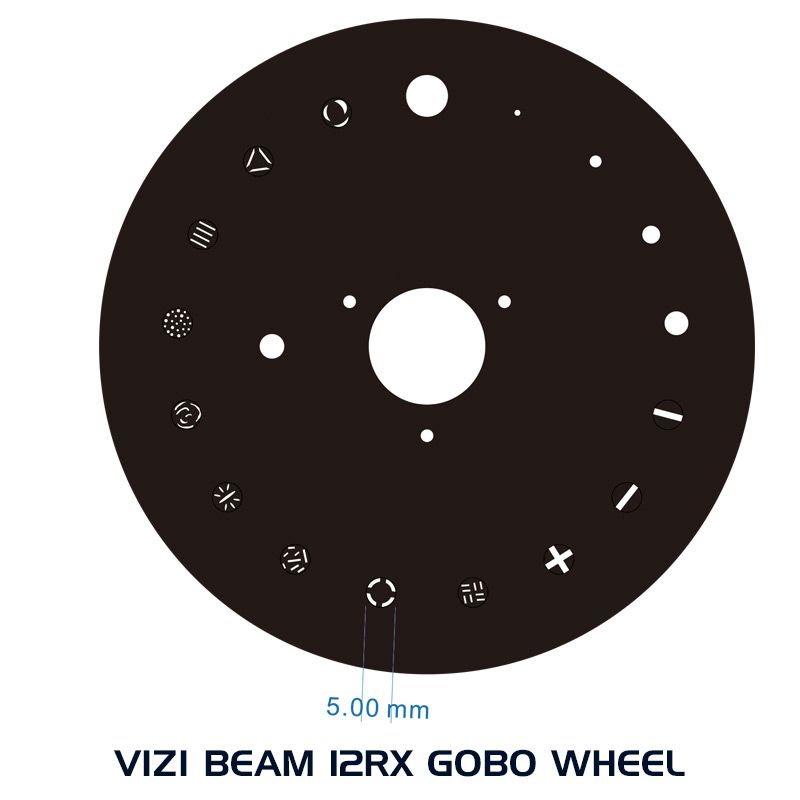

GOBO Wheel:
• 16 static GOBOs + open (4 GOBOs are beam reducers)
• GOBO Shake Effect
Prism Wheel:
• Rotating, 6-facet linear and 24-facet circular
Control:
• 2 DMX Channel Modes: 14/16 Channels
• Color LCD display with 4-button function menu
• Control Mode: DMX512, RDM or internal programs
• 0-100% smooth dimming
• Various strobe speeds
• USB firmware update port
• With Wired Digital Communication Network
Pan/Tilt:
• Pan: 540 degrees (plus 16-bit fine pan)
• Tilt: 270 degrees (plus 16-bit fine tilt)

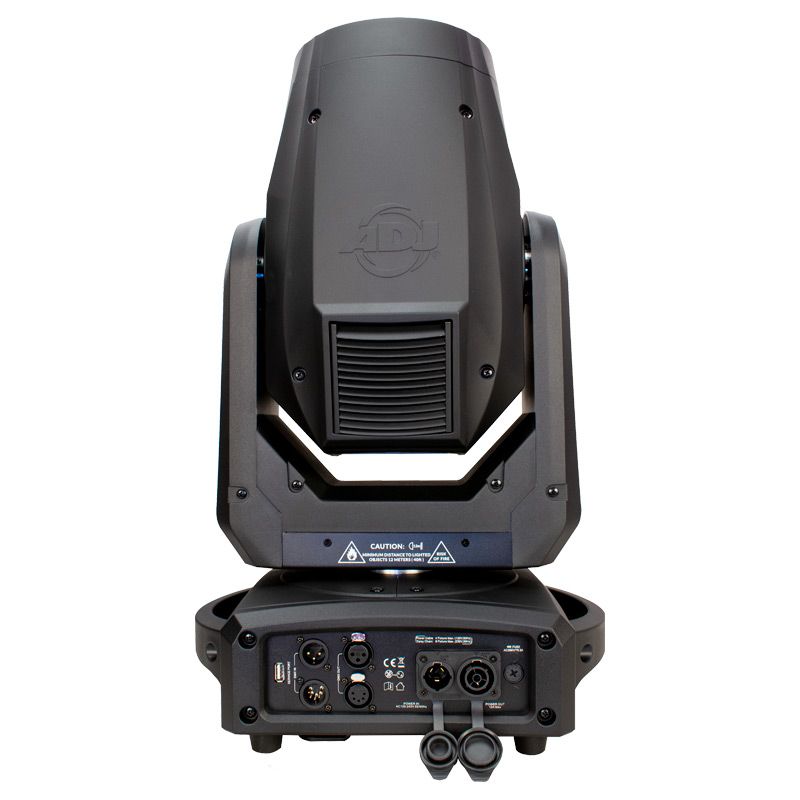

Connections:
• DMX Connections: 3-pin & 5-pin XLR In/Out (Data link max: 32 fixtures)
• Power Connections: PowerLock In/Out to daisy chain power
Electrical:
• Multi-voltage operation: 100-240V, 50/60Hz
• Max power consumption: 384W (@120V), 371W (@230V)
Dimensions & Weight:
• Dimension: 10” (L) x 13.75” (W) x 22.25” (H) / 253 x 350 x 566mm
• Weight: 39.7 lbs. / 18 kg.
What’s Included:
• Omega Brackets
• 1.83M locking power cable
|
