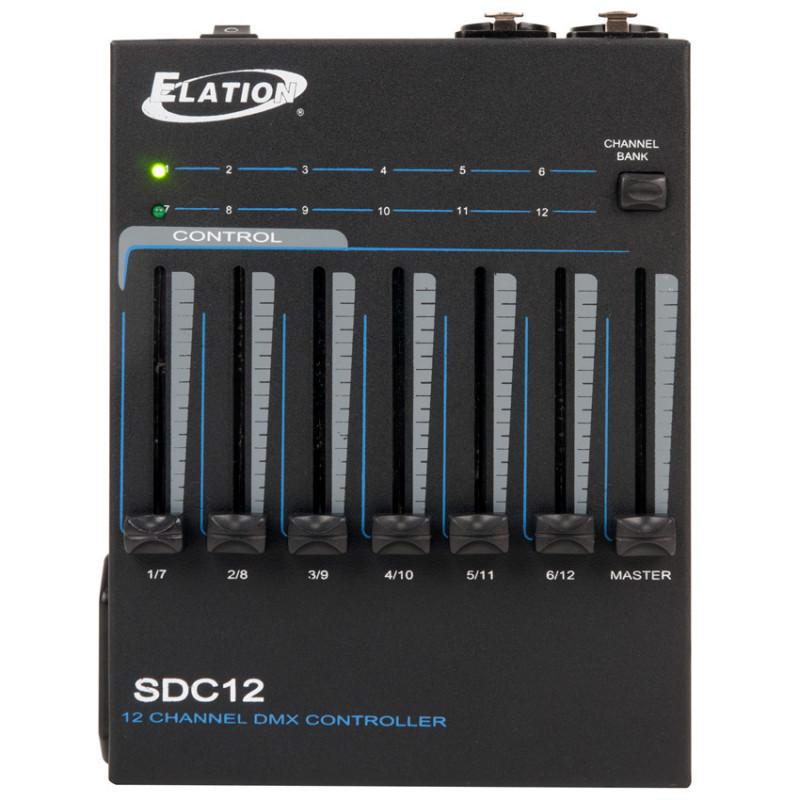

ADJ SDC12

The new SDC12 features 12 DMX channels, DIP switches to set a starting DMX channel, a master dimmer fader, on/off switch, 3pin and 5pin XLR output, and operates via an external 12VDC power supply (included) or a 9VDC battery (not included).

The new SDC12 features 12 DMX channels, DIP switches to set a starting DMX channel, a master dimmer fader, on/off switch, 3pin and 5pin XLR output, and operates via an external 12VDC power supply (included) or a 9VDC battery (not included).

The SDC12 is great handheld device for product demos or manual control of LED or conventional fixtures. It may also be wall mounted for permeant installations.

Specifications

FEATURES:

• 12 DMX Channels Faders

• Master Dimmer Fader

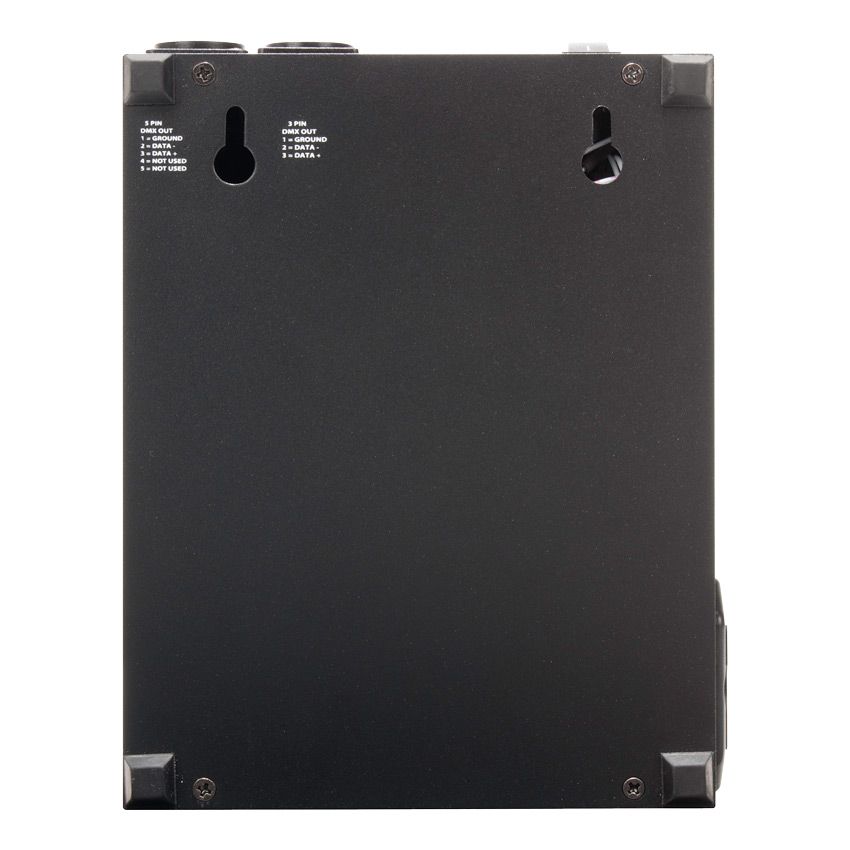

• Portable Handheld Or Wall Mountable

• Operates via 12VDC Power Supply (Included) Or

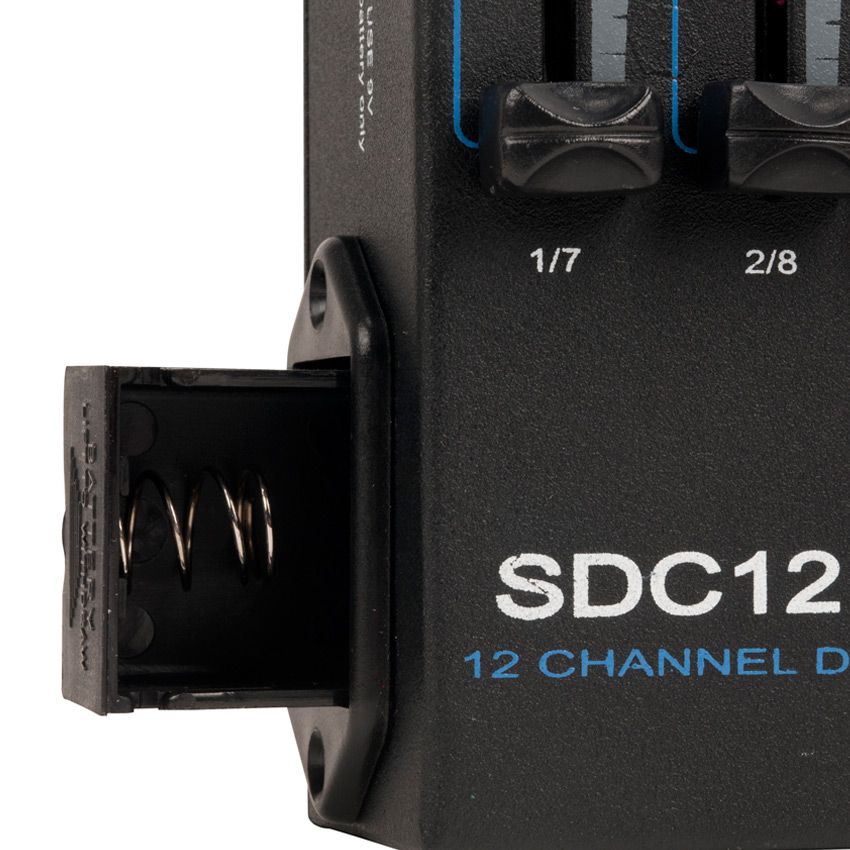

• 9VDC Battery (Not Included)

CONTROL / CONNECTIONS:

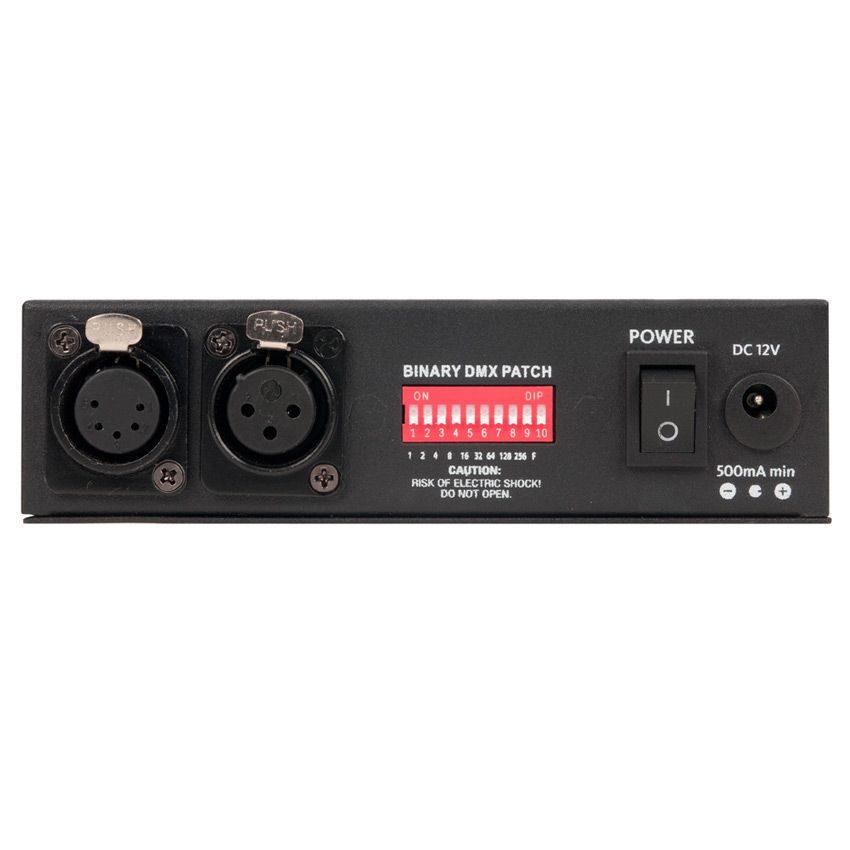

• DIP Switches To Set Starting DMX Channel

• 3pin & 5pin DMX Outputs

• On/Off Switch

• LED Channel Bank Indicator

• DC 12V Power Supply Input

SIZE / WEIGHT:

• Length: 7.5” (191mm)

• Width: 5.9” (149mm)

• Height: 1.6” (41mm)

• Weight: 2.0 lbs. (0.9kg)

ELECTRICAL:

• DC 12V 500mA min OR 9V Battery (Not Included)

APPROVALS / RATINGS:

• CE Approved

• RoHs Compliant

INCLUDED ACCESSORIES:

• 12V Power Supply
