Description
PRELIMINARY INFORMATION SUBJECT TO CHANGE
|
SpecificationsSOURCE260W Warm White LED Engine
50,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
>97CRI 10,000 Total Lumens* (*with 26° lens)
3200K Color Temperature
EFFECTS
Electronic Strobe and Dimming
Variable Dimming Curves and Dimming Modes
GOBOS
Supports “B” Size Metal, HT Transparency Gobos*
*Gobos and Holder not included.
CONTROL / CONNECTIONS
(3) DMX Channel Modes (1 / 3 / 4)
Adjustable Refresh Rates (900-1500, 25,000 Hz)

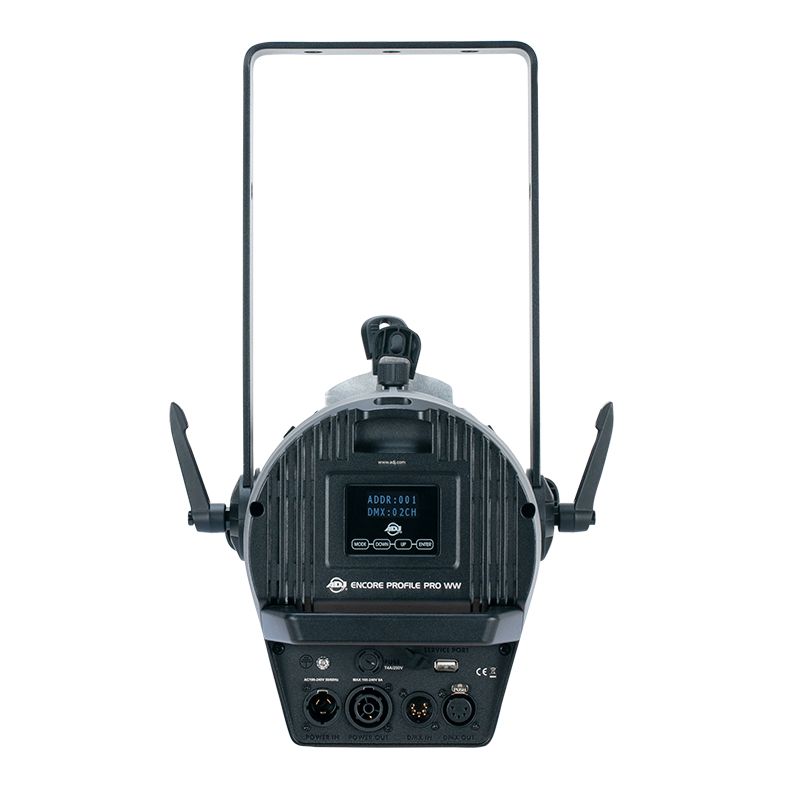

4 Button Control Panel
LED Menu Display

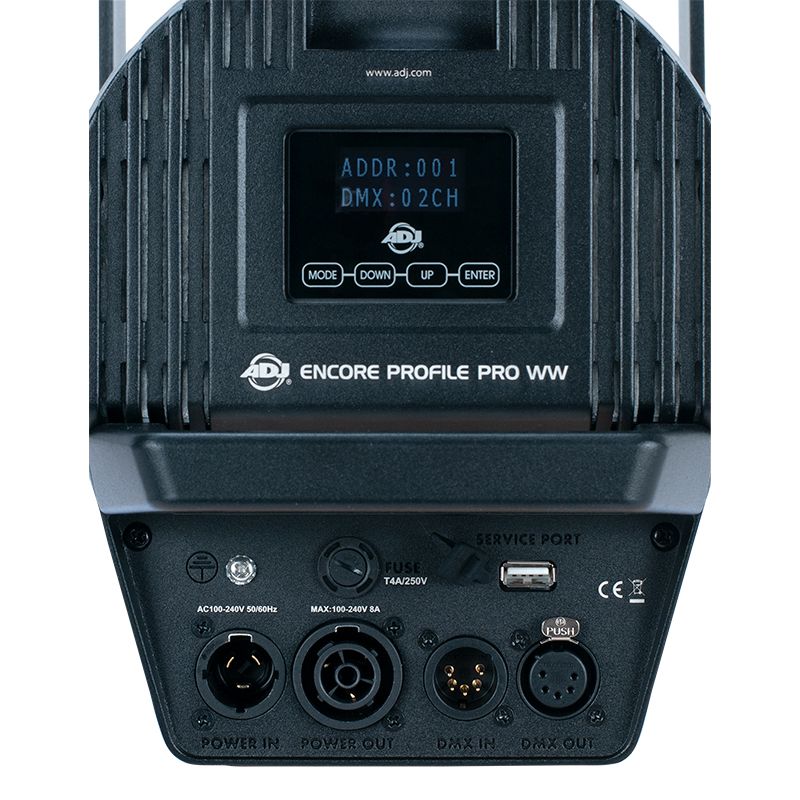

Locking 5pin XLR Connector In/Out
Locking Power Connector In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 27.1” (688mm) (Lens In)
Width: 111.3” (287mm)
Vertical Height: 17.7” (450mm)
Weight: 20.0 lbs. (9.1 kg)
ELECTRICAL / THERMAL
Quiet Fan Cooling
AC 100-240V - 47/63Hz
260W Max Power Consumption
Power Linking: 3pcs Max @120V / 8pcs Max @240V
14° to 113°F (-10° to 45°C)
APPROVALS / RATINGS
CE | cETLus (Pending) | IP30
INCLUDED ITEMS
(1) Locking Power Cable
OPTIONAL ACCESSORIES:
EP Lens 5 (5° Lens)
EP Lens 10 (10° Lens)
EP Lens 14 (14° Lens)
EP Lens 19 (19° Lens)
EP Lens 26 (26° Lens)

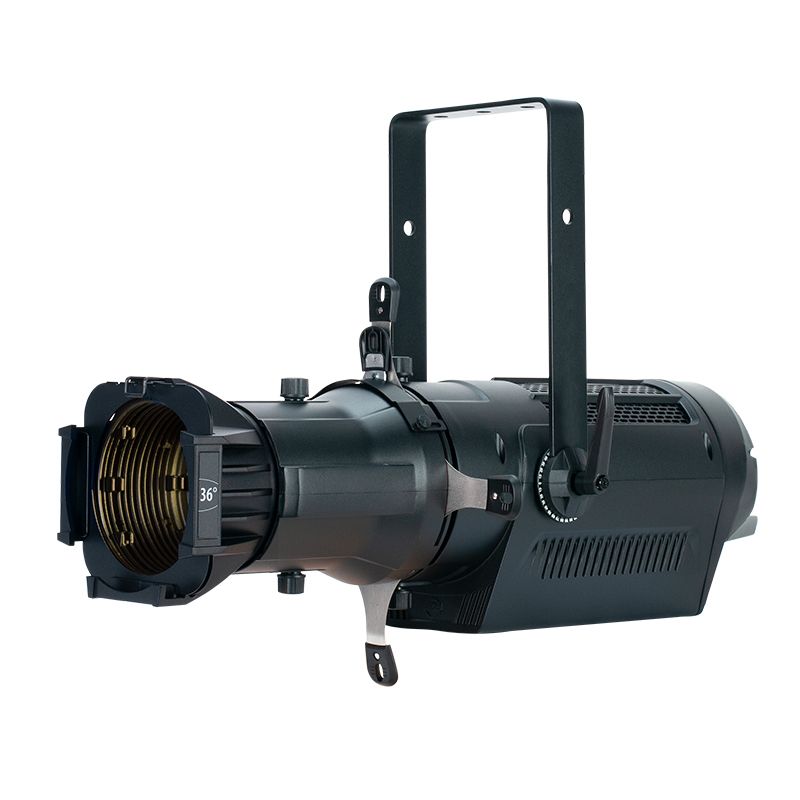

EP Lens 36 (36° Lens)
EP Lens 50 (50° Lens)
EP Lens 15-30 (Adjustable 15° to 30° Lens Assembly)
EP Lens 25-50 (Adjustable 25° to 50° Lens Assembly)
Specifications and documentation subject to change without notice.
|
