ADJ Dotz Panel 2.4

Utilizing Chip On Board technology the Dotz Panel 2.4 light fixture creates smooth and rich RGB color mixing and can be used as a Wash/Bar or Pixel Mapped for stunning visual effects. Also features 0-100% dimming, color macros and built-in shows. Great for stage lighting, bands, or night clubs.

Get ready to create the a rich display of RGB mixed color at your next event. With advanced Chip On Board technology the Dotz Panel 2.4 from ADJ allows for a stunning display of Pixel Mapping or Wash effect from 9 powerful LEDs in a 4 x 4 arrangement. With all it's great features like auto run, sound active mode, and built-in programs this DMX compatible LED fixture is easy to use and integrate into any entertainment production. This unit includes individual pixel control in DMX mode allowing you to fine tune your light display to suit any specific needs. Made from high quality materials the Dotz Panel 2.4 is built to last. Despite being high output and durable, this LED fixture is lightweight and will be easy to transport to wherever your next event may be. While portable, the Dotz Panel 2.4 has a high quality and powerful output making it ideal for theaters, venues, and night clubs. Get quality lighting you can trust with the Dotz Panel 2.4 LED Fixture from ADJ.

Specifications

•  2 x 4 COB TRI LED high output Wash/Blinder
•  COB Technology (Chip On Board) produces powerful, smooth RGB color mixing with rich palettes of color
•  Use as Wash/Blinder or Pixel Mapped matrix for a stunning visual effect
•  Great for Stage Lighting, Bands or Night Clubs
•  5 DMX channel modes: 3, 6, 8, 24 or 29 channel
•  Individual Pixel controllable in 24 or 29 channel DMX mode
•  4x Pixel Flip options changes pixel orientation
•  4x Operational modes: Auto Run, Sound Active, Built-In Programs, and DMX Controlled Mode
•  RDM Compliant (Remote Device Management)
•  Built-In preset colors and programs
•  Flicker Free operation (No flickering on camera)
•  LED pulse and strobe effect
•  Electronic Dimming: 0 - 100%
•  5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
•  25-degree beam angle

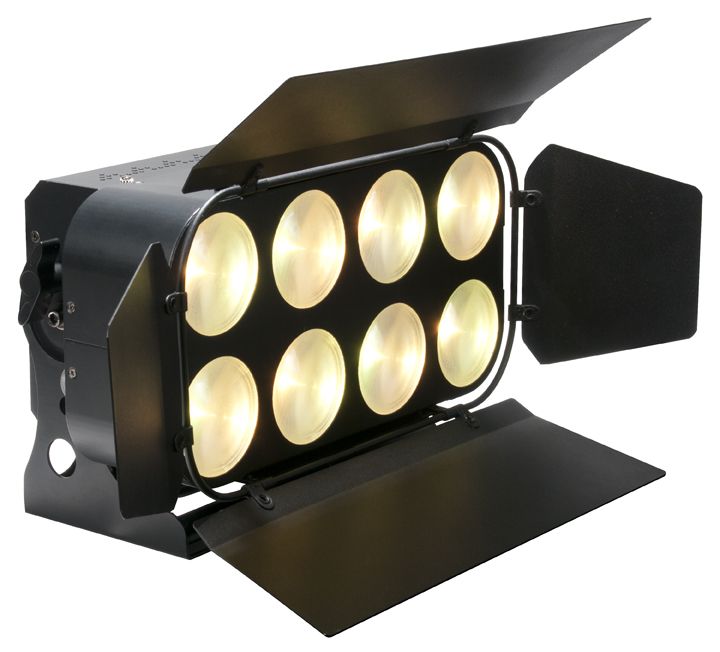

•  Includes barn doors

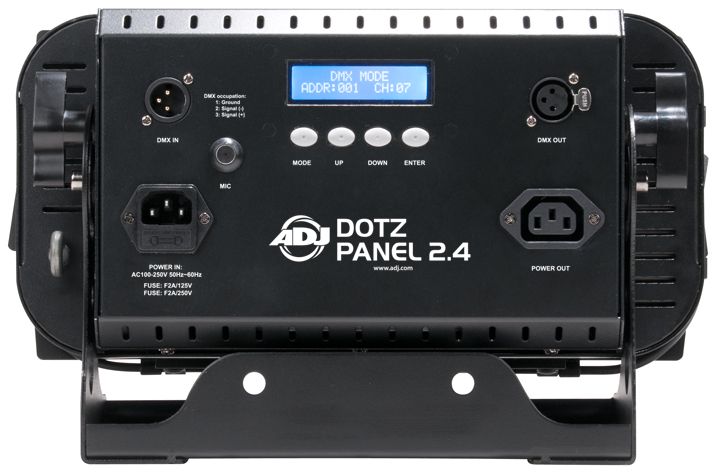

•  3-pin XLR chassis mount connectors for DMX linking
•  With Wired Digital Communication Network
•  IEC AC IN/OUT to daisy chain power (up to 8 Dotz Panel 2.4’s @ 120V and 17 Dotz Panel 2.4’s @ 230V)
•  Power Draw: 106W total (All LED's @ Full)
•  4-button DMX LCD display
•  Dual yoke allows fixture to be hung or set on the ground
•  Fan Cooled
•  Light Source: 2 x 4 9-Watt COB TRI LEDs (RGB: 3 in 1)
• 1005 LUX @2M; 270 LUX @4M (25-degree beam)
• Refresh Rate: 3.6KHz
•  Auto sensing power supply: AC 100V/60Hz - 240V/50Hz
•  Dimensions (LxWxH): 13.5” x 6.5” x 9”/ 345 x164 x 227mm
•  Weight: 14 lbs. / 6.4 kgs.
• ETL Approved
