ADJ COB Cannon Wash ST

Save $183.96
ADJ - American DJSKU: COB101

Price:
Sale price$489.99 Regular price$673.95

Description



Short length version of the Popular COB Cannon Wash DW with a 150W RGBA COB LED.

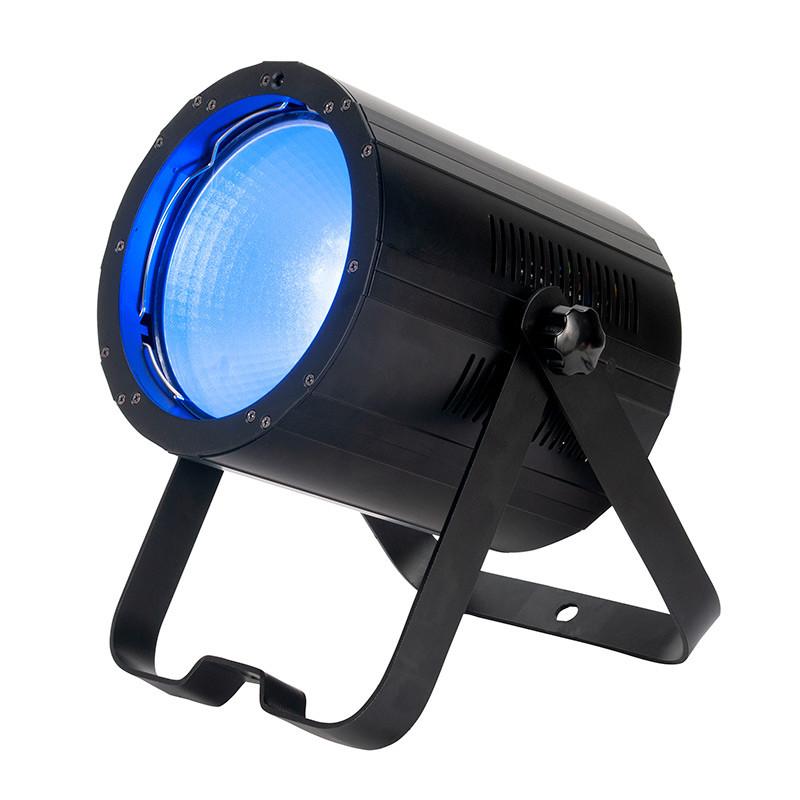

The ADJ COB Cannon Wash ST is a shorter version of the popular COB Cannon Wash fixture. It uses advanced RGBA COB (Chip On Board) technology allowing for a powerful LED engine to be placed in a small amount of space. The result is a high output, smooth color mixing LED Par with no RGBA shadows. Designed for mobile or permanent wash lighting of stages, clubs, dance floors and churches. The COB LED engine on the COB Cannon Wash ST is a QUAD RGBA 4-In-1). It also doubles as an uplight with its scissor yoke that act as legs to set the fixture upright to wash walls and ceilings.

The COB Cannon Wash ST comes in a black casing and has massive 80-degree beam angle. Easily replaceable 40-degree and 50-degree lens are included so that the beam angle may be changed.

It has 7 DMX Channel modes for programming flexibility, built-in color macros and 5 selectable Dim Curves. The fixture has many pro features such as: 0-100% electronic dimming, strobe/pulse effect, Flicker Free operation, 3-pin & 5-pin DMX and powerCON power daisy-chaining, and a 4-button DMX display. COB Cannon Wash ST may run in its stand-alone mode from built-in programs, sound actively or from a DMX controller



Specifications

  OPTICAL:

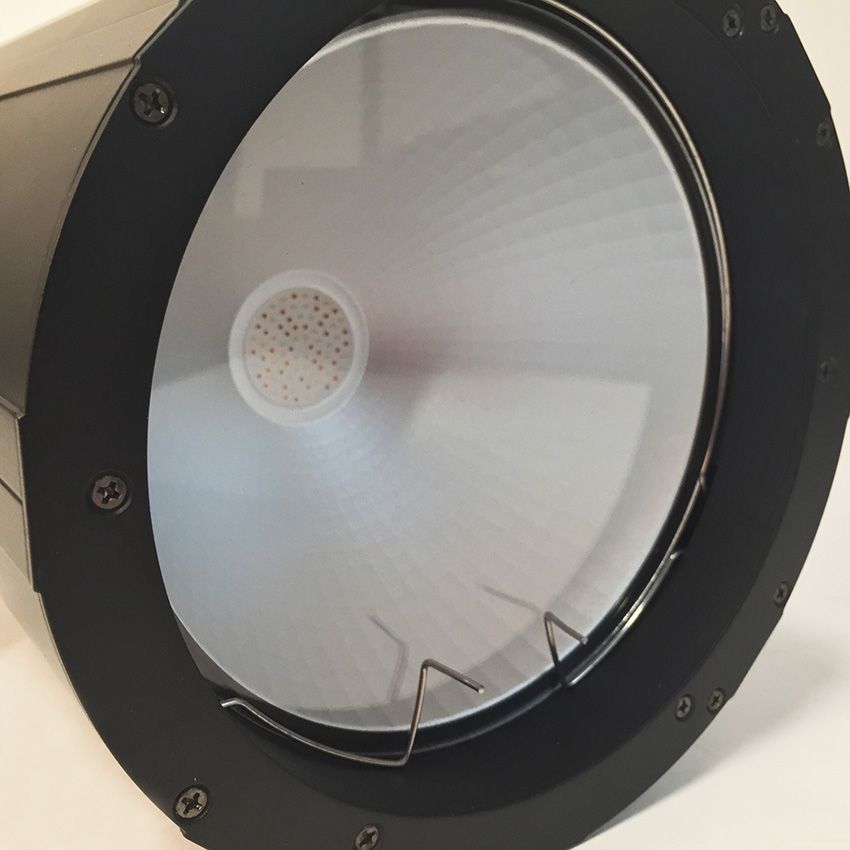

• Light Source: 1x 150-Watt COB (Chip on Board) Quad LED (RGBA: 4-IN-1, rated at approximately 50,000 hrs)

• Light Output: 1970 LUX @2M; 474 LUX @4M (40-degree beam), 1472 LUX @2M; 373 LUX @ 4M (50-degree beam), 996 LUX @2M; 238 LUX @4M (80-degree beam)

• 80-degree beam angle

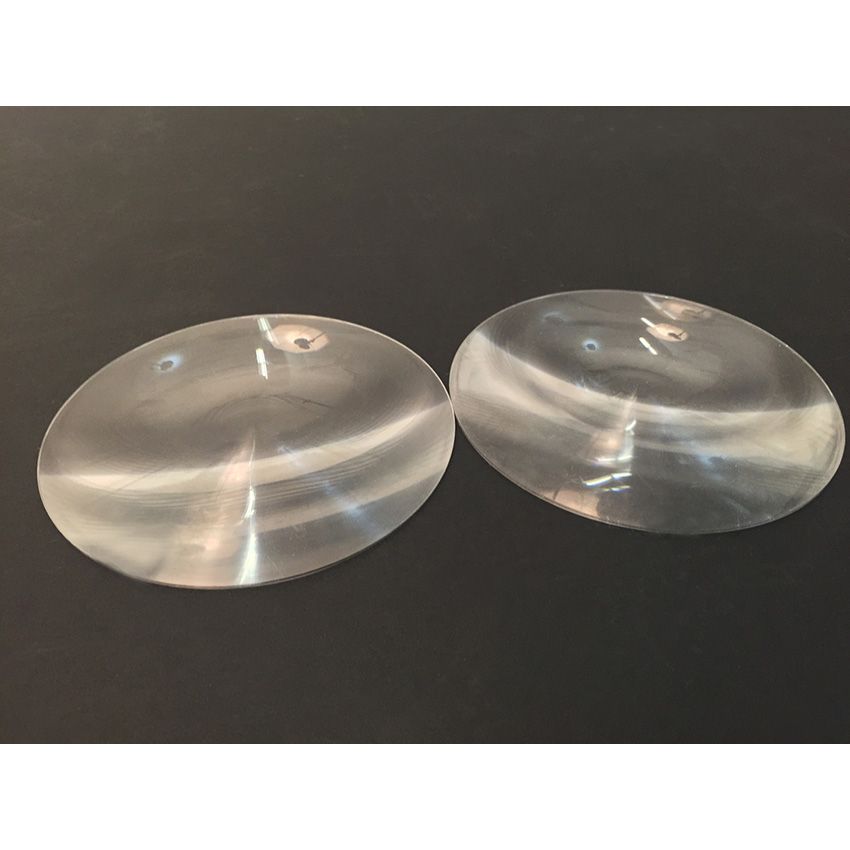

• Includes lens kit to change to 40-degrees or 50-degrees beam angle

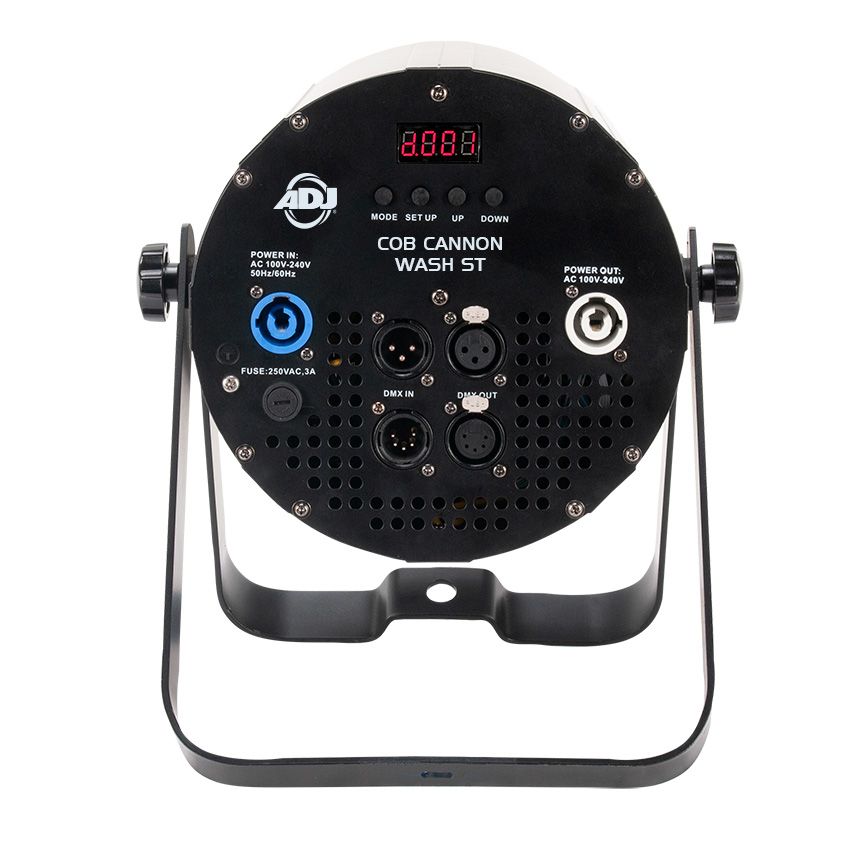

CONNECTIONS:

• 3-pin & 5-pin connectors for DMX linking

• powerCon AC IN/OUT to daisy chain power (up to 3 fixtures)



CONTROL:

• 7 DMX Channel modes (3,4,5,6,7,9,10 Ch.)

• 64 built-in color macros

• 4-button digital DMX display on rear panel

• Compatible with the ADJ UC IR remote control (sold separately)

• LED pulse and strobe effect

• Electronic Dimming: 0 - 100%

• 6 selectable Dim Curves (Standard, Stage, TV,

   Architectural & Theatre)

• Refresh Rate:1KHz



FEATURES:

• Flicker Free operation (No flickering on camera)

• Produces powerful, smooth RGBA color mixing with

   rich palettes of color

• Use as Wash/par or Pixel Mapped for a stunning

   visual effect

• Scissor yoke allows fixture to be mounted on truss or

   set on the ground

• Optional Barn Doors (BAR001) sold separately

• Run all night – No duty cycle



ELECTRICAL:

• Auto sensing power supply: AC 100V/60Hz - 240V/50Hz

• Power Draw: 132W max

• Daisy chain up to 5 fixtures maximum



DIMENSIONS / WEIGHT:

• Dimensions (LxWxH): 13” x 10” x 7.5” / 330x256x190mm

   (with bracket); 8.75” x 7.5” x 7.5” / 218.5x190x190mm

   (without bracket)

• Weight: 9 lbs. / 4.1 kg.


ACCESSORIES:

• BAR001 - COB Cannon Wash Bar Doors
