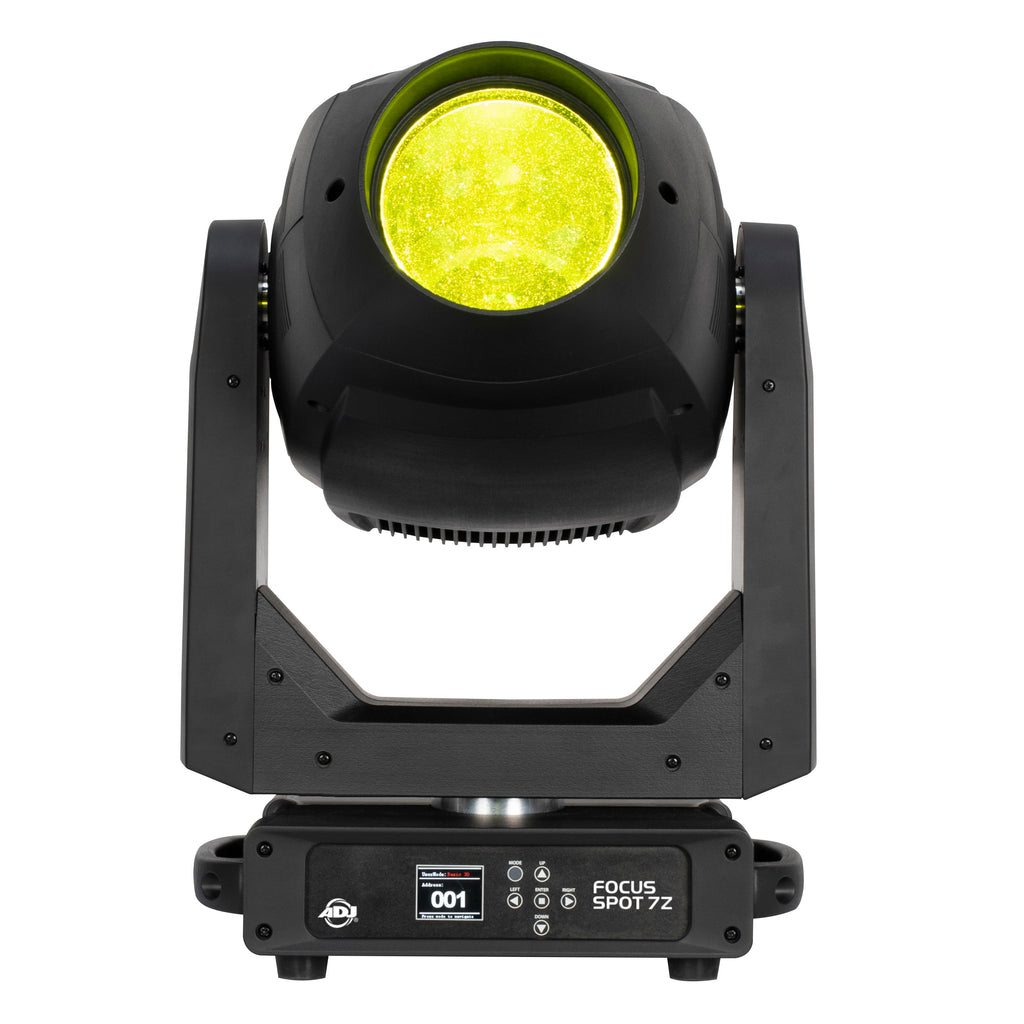

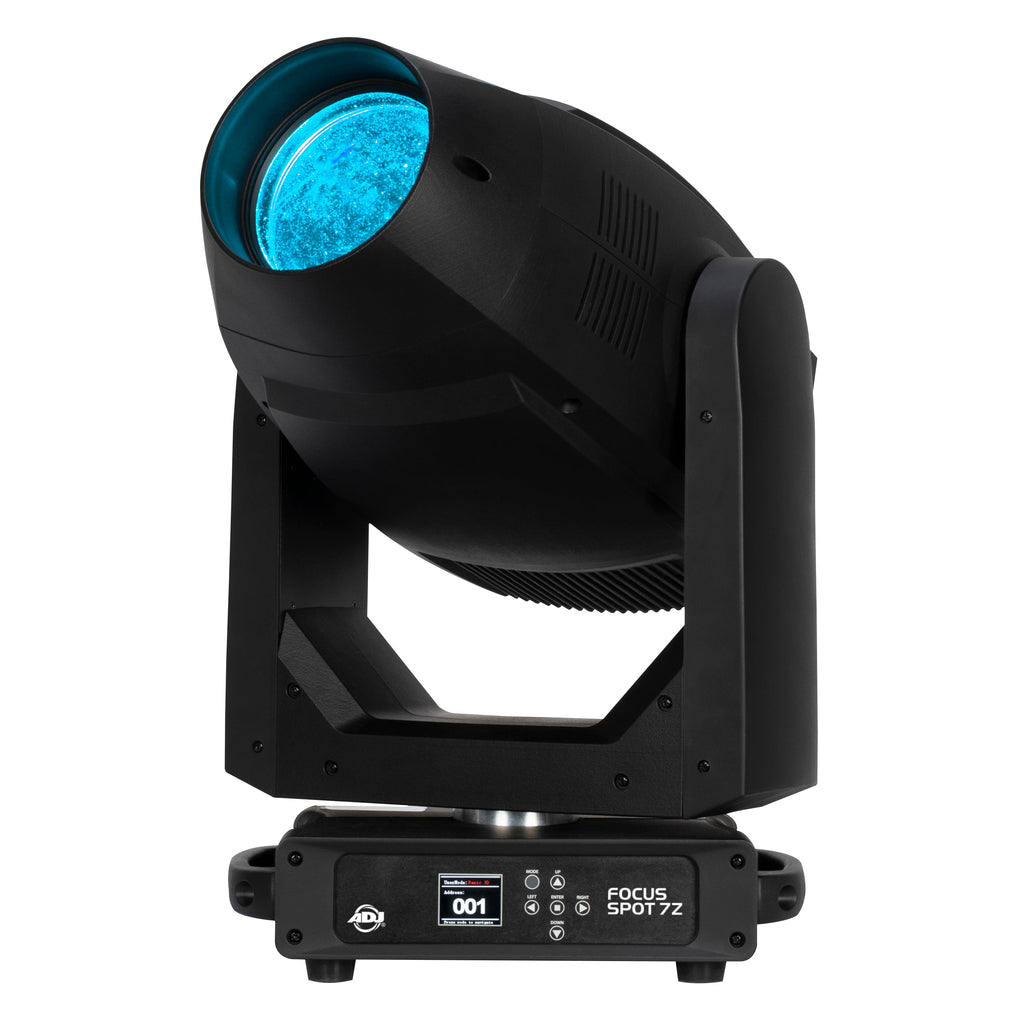

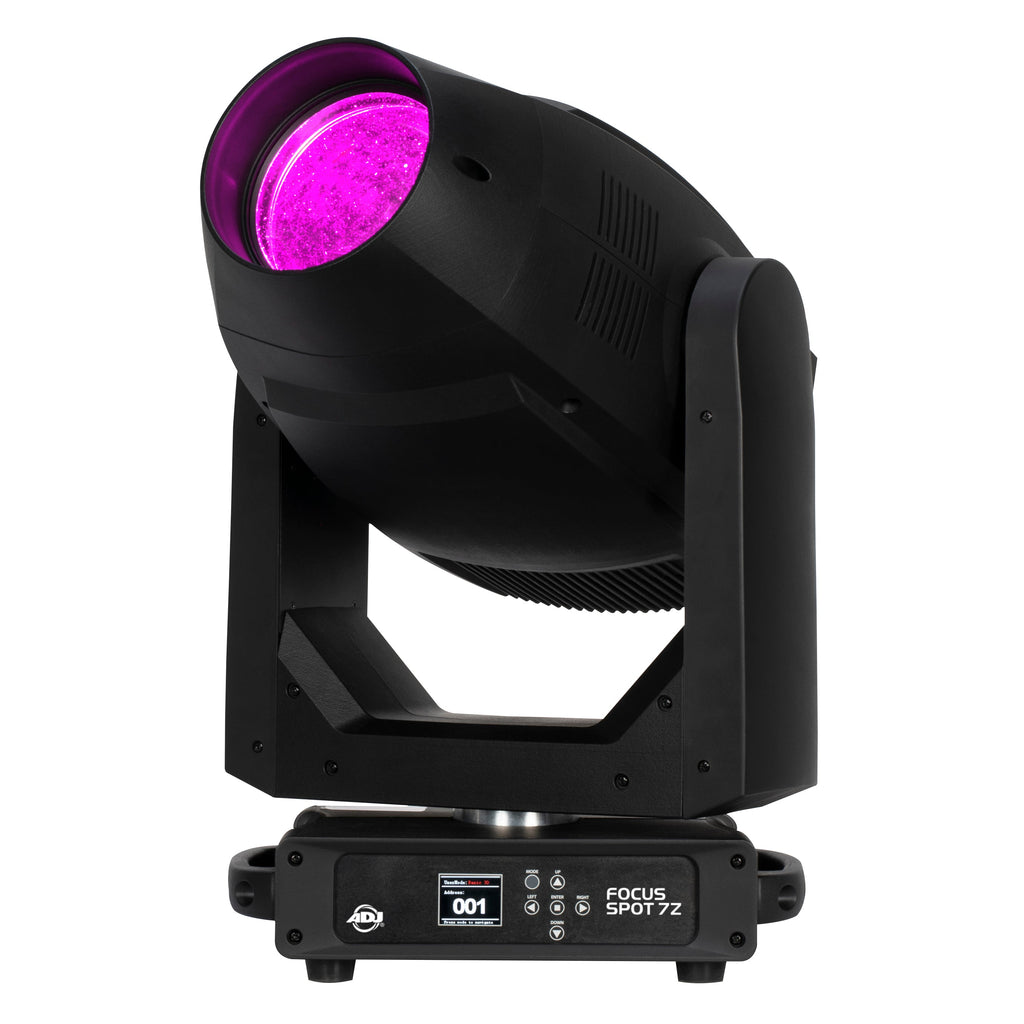

ADJ FOCUS SPOT 7Z

Arriving JUNE 2023

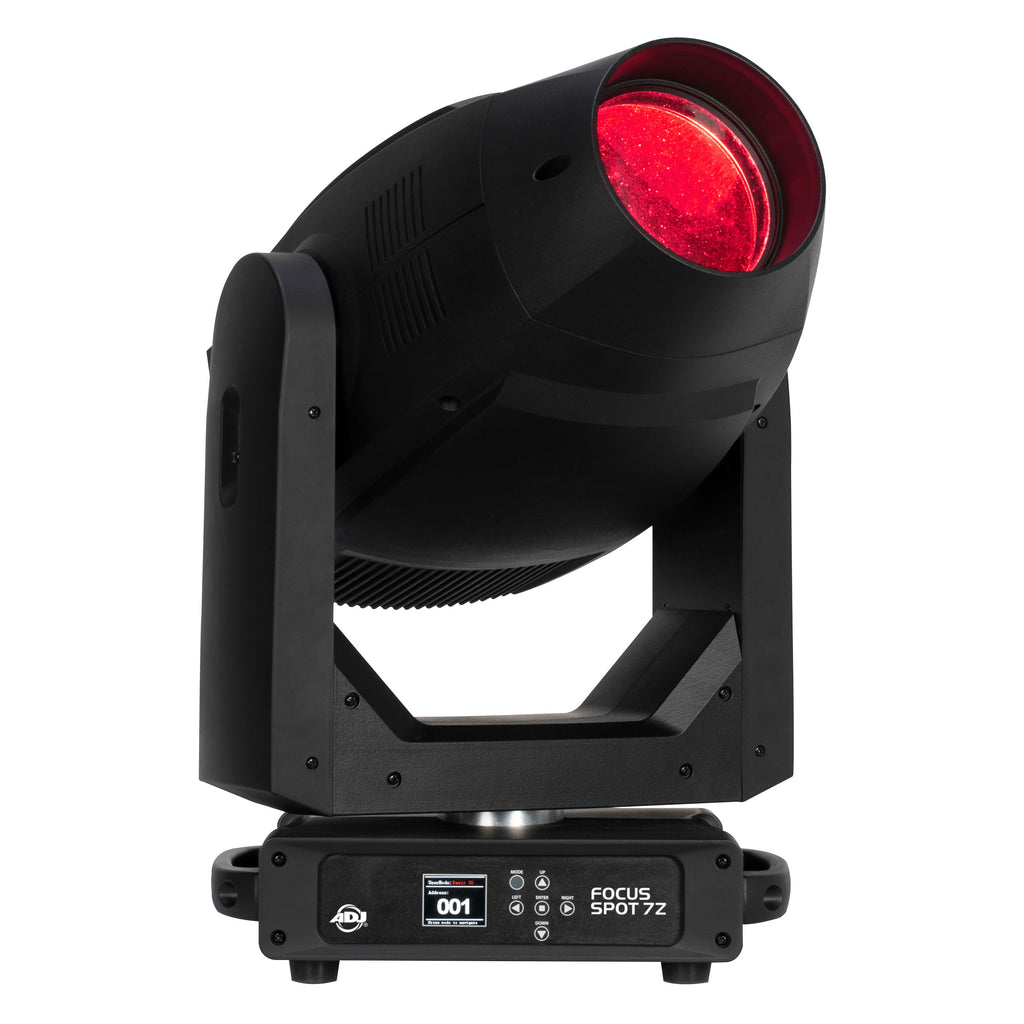

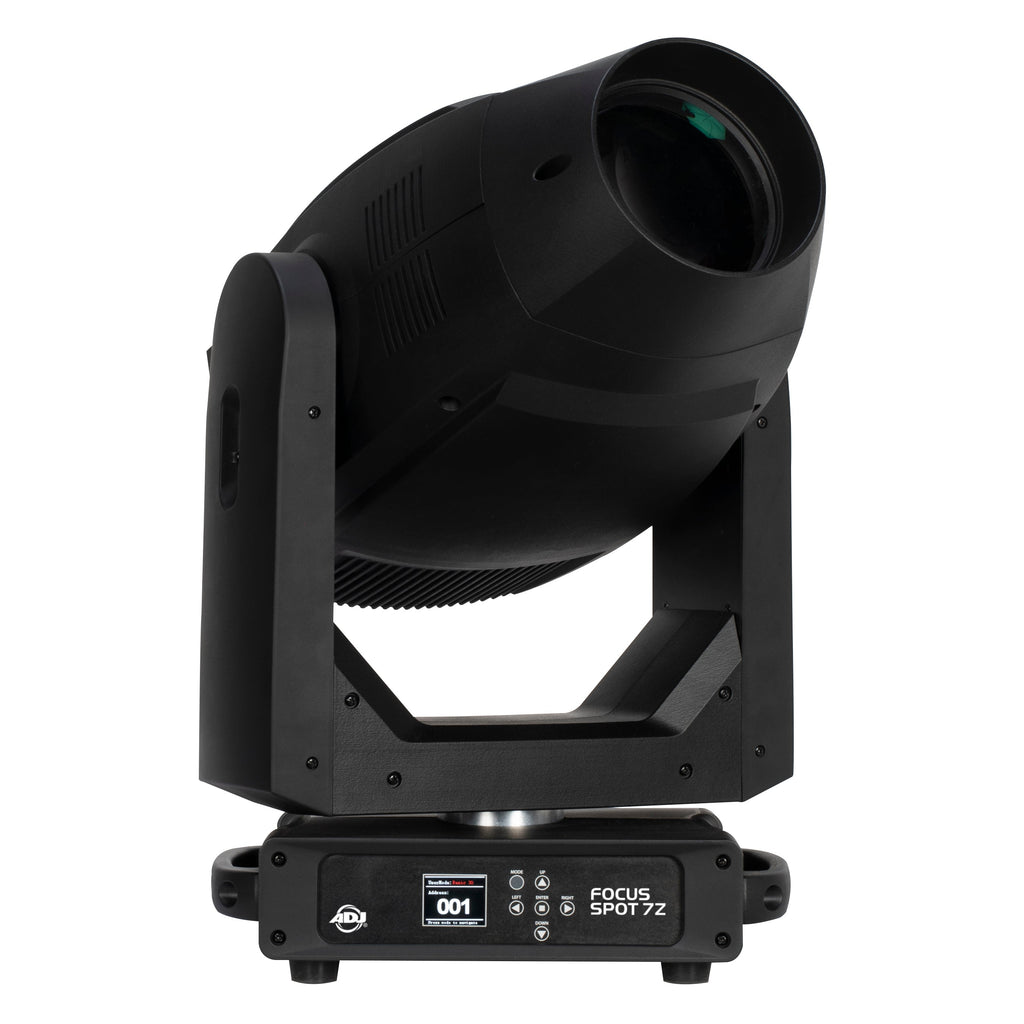

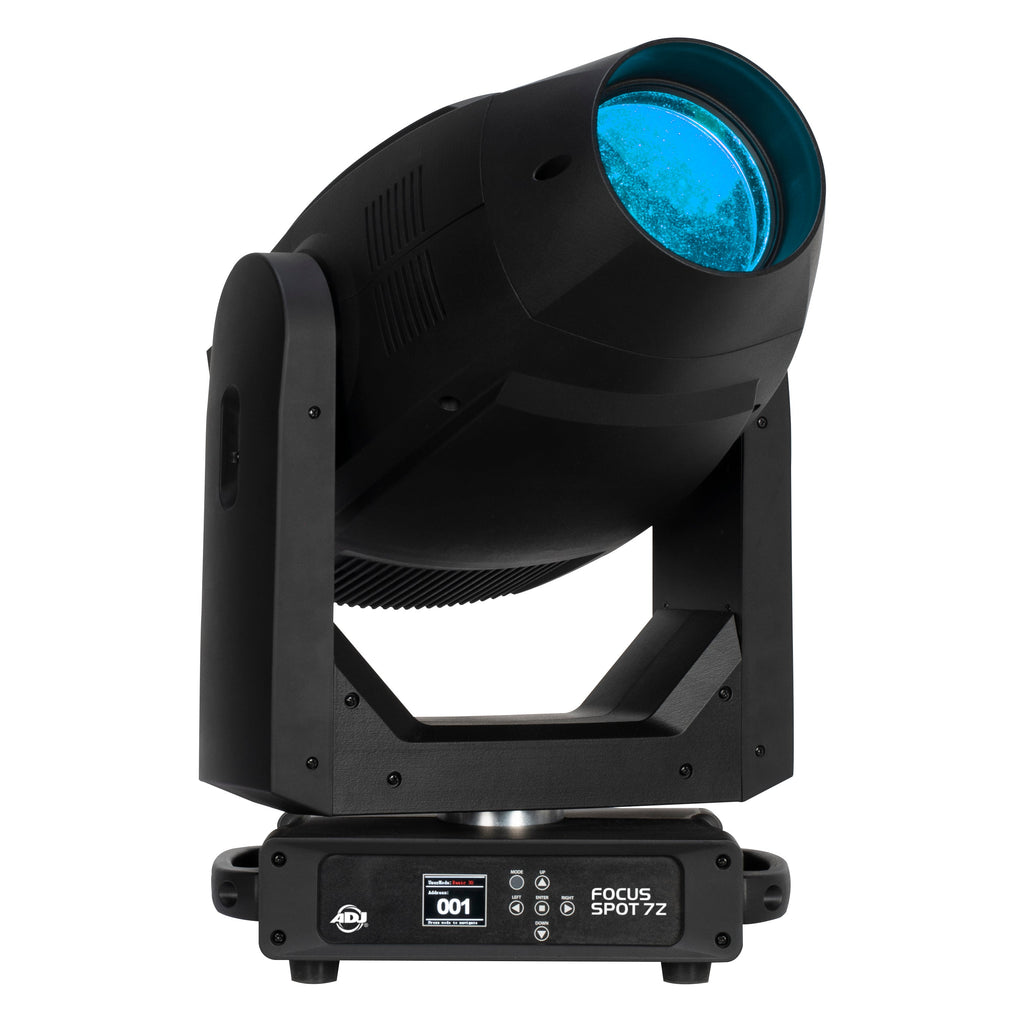

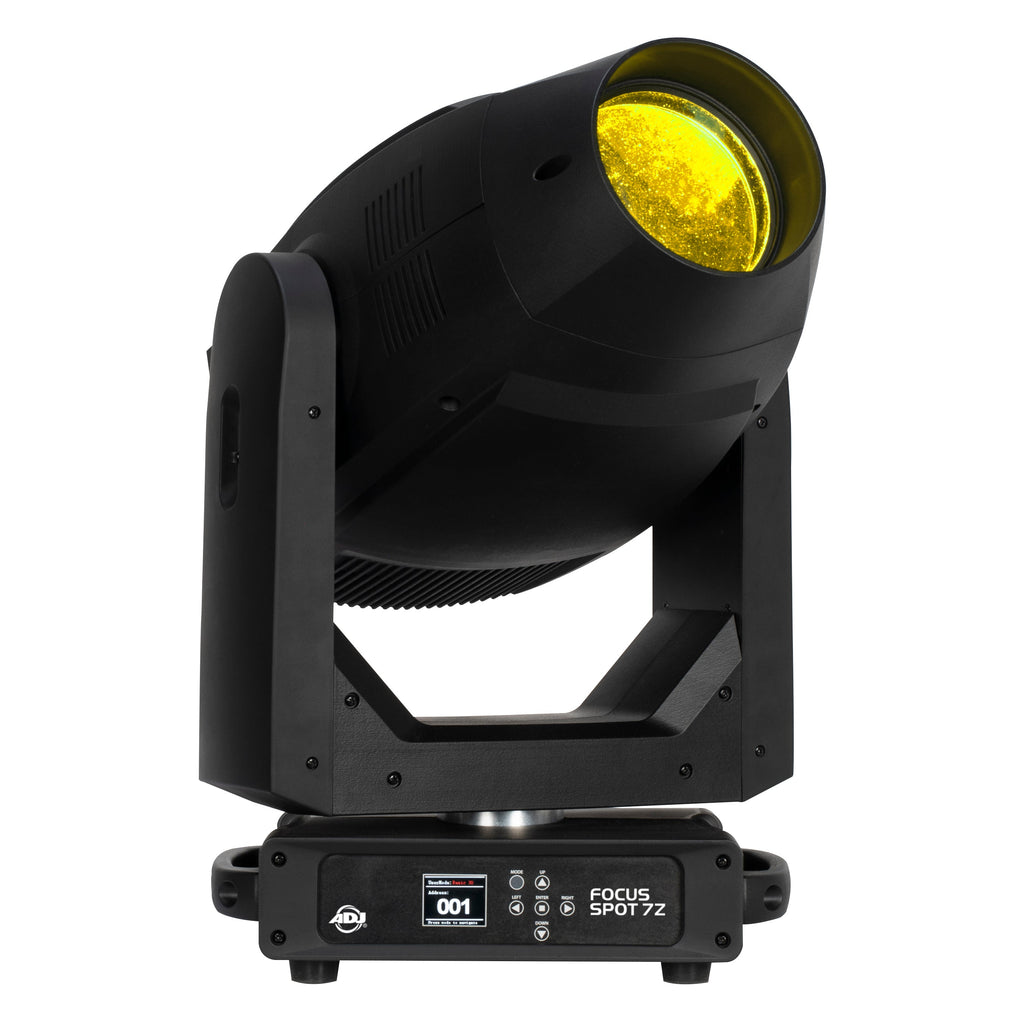

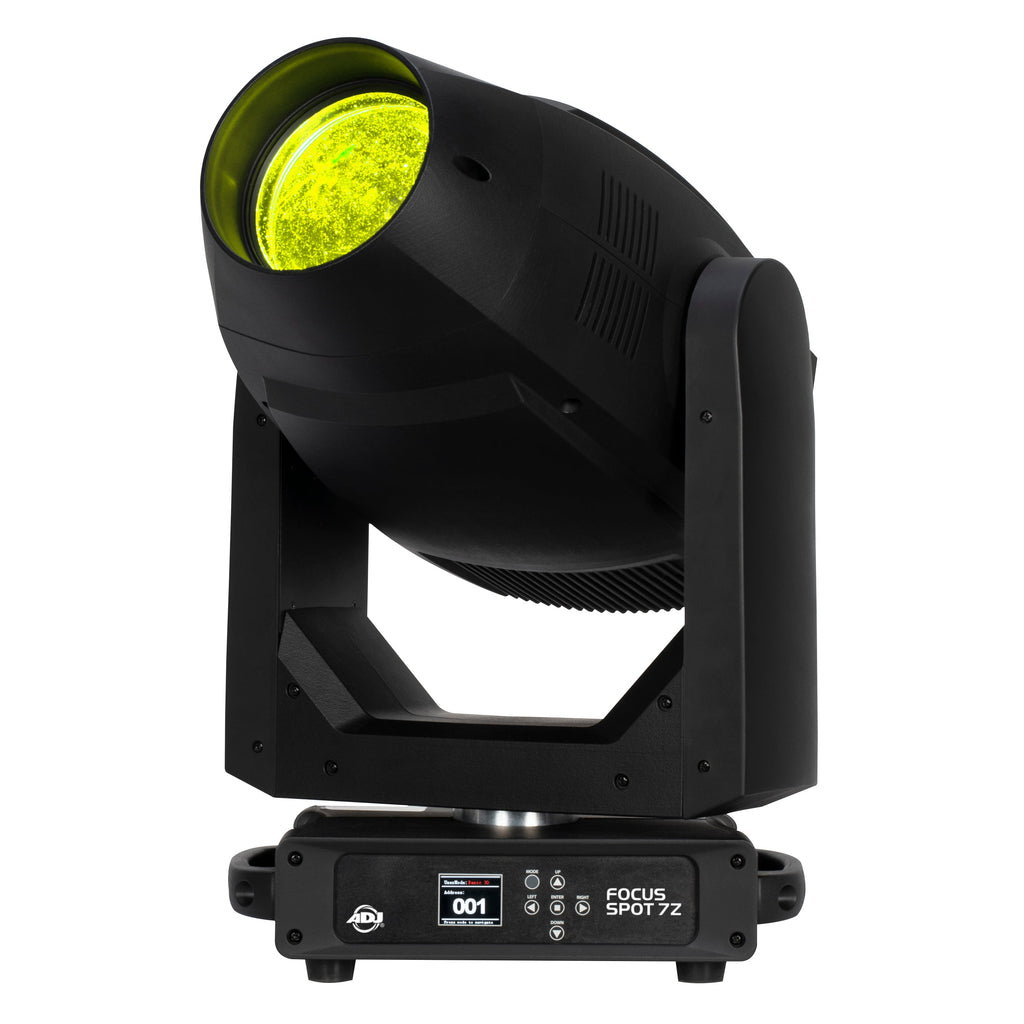

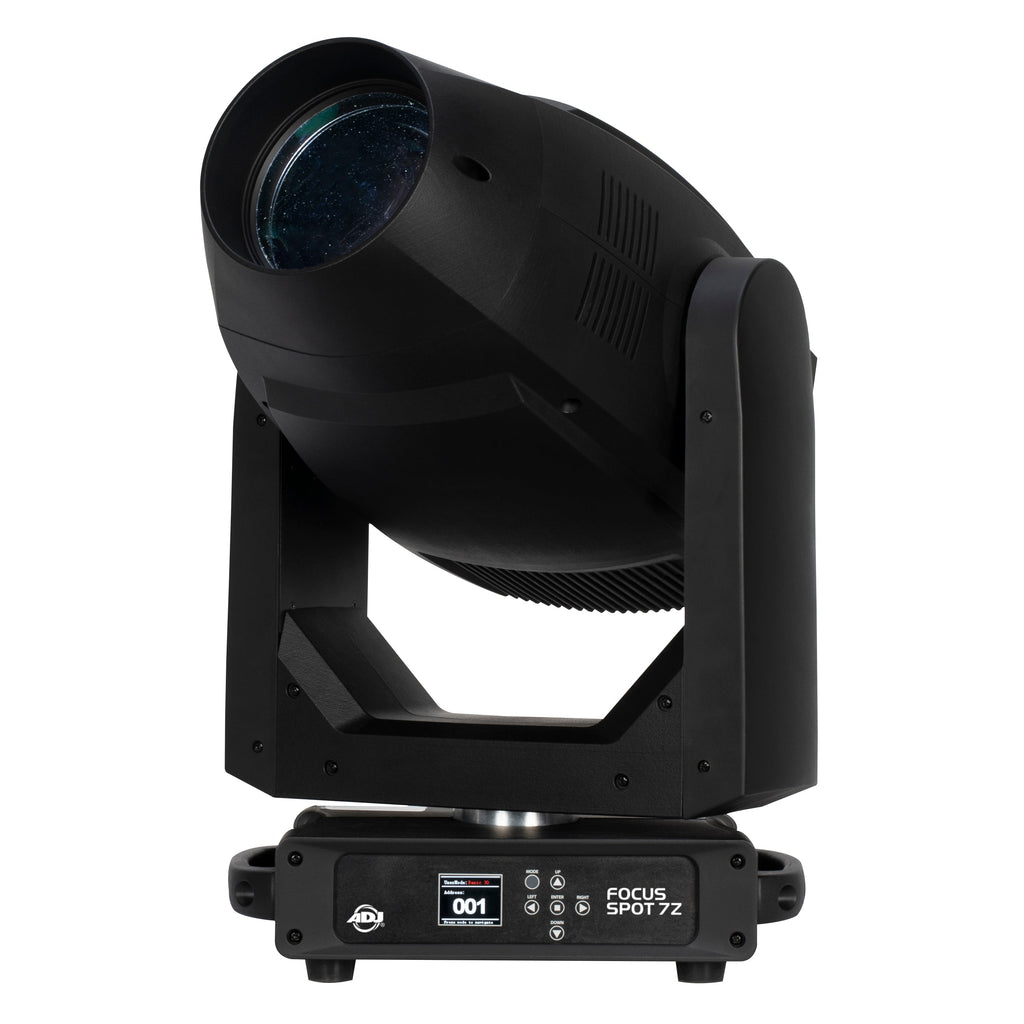

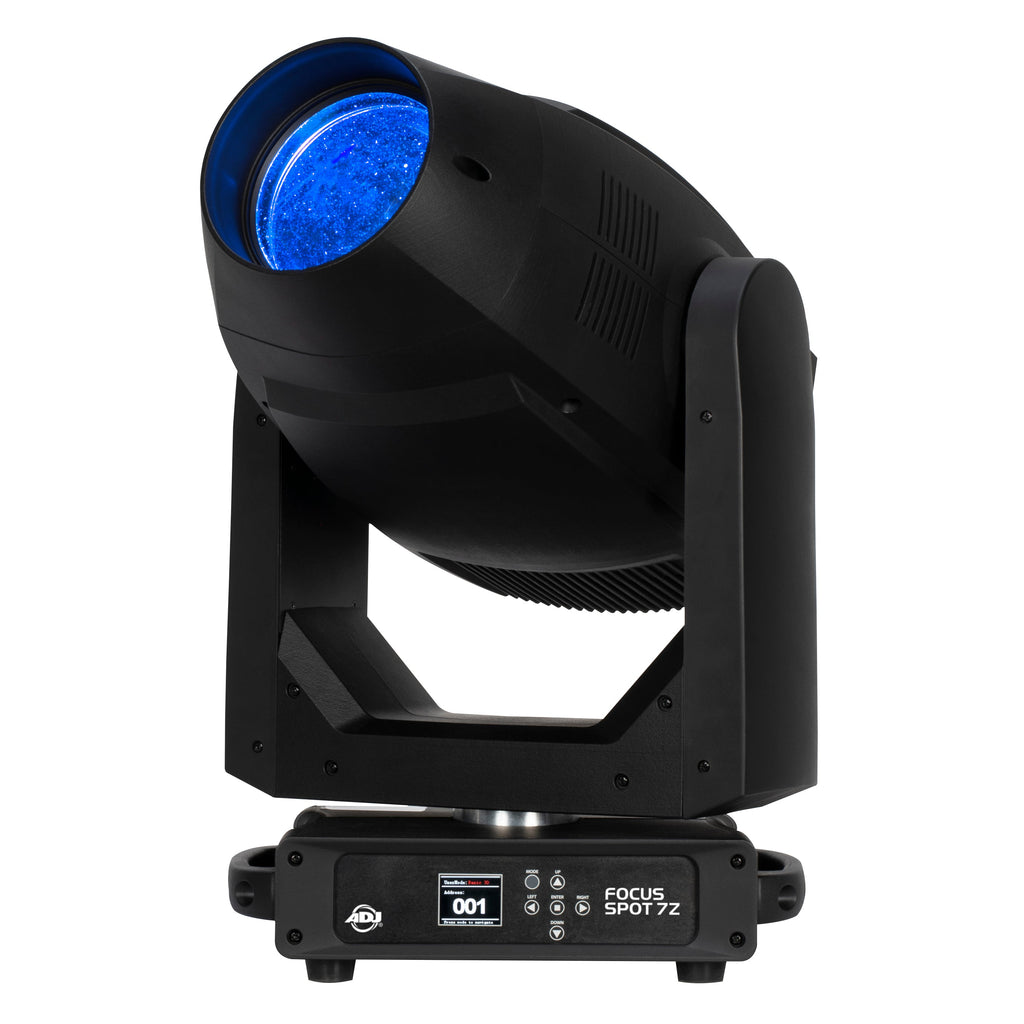

Part of ADJ’s popular Focus Series of LED-powered moving head luminaires, the Focus Spot 7Z is a potent and feature-rich spot fixture. Its light source is an efficient 420W white (8,000K) LED engine, which has an average operational life of 20,000 hours. Focused through precision-engineered optics, it allows the fixture to generate a bright, punchy and even output of 20,000 Lumens.

An exhaustive collection of beam-shaping tools is packed into the Focus Spot 7Z, equipping lighting designers to fully unleash their creative potential. This begins with an advanced color selection system which combines a variable CMY and CTO (2,700K to 8,000K) color mixing system with a color wheel that features seven dichroic slots (including High CRI and CRB filters).

The fixture features two independent GOBO wheels, each of which incorporate seven slots for interchangeable, indexed-rotating patterns. In addition, it also incorporates an animation wheel with indexed rotation as well as two separate rotating prisms (4-facet circular and 6-facet linear). Motorized zoom (6° ~ 48°), focus and iris are integrated into the optical system as are two separate frost filters (Light to blur GOBO patterns and Heavy to generate a wash output).

Weighting in at only 51.7 lbs. (23.45kg), the Focus Spot 7Z is lighter and has a smaller footprint than other leading hybrid fixtures in its class.

Light Source:

• 420W White LED Engine
• 20,000 Hour Average LED Life

Photometic Data:

• 20,000 Total Lumens
• 8,000K, >73CRI (without CRI Filter)
• 7,700K >85CRI (with CRI Filter)
• 56,513 LUX @16.4’ (5m) (6° Beam)
• 1,585 LUX @16.4’ (5m) (48° Beam)

Effects:

• 4-Facet Circular & 6-Facet Linear Rotating Prisms
• 2 Frost Filters (Light & Heavy)

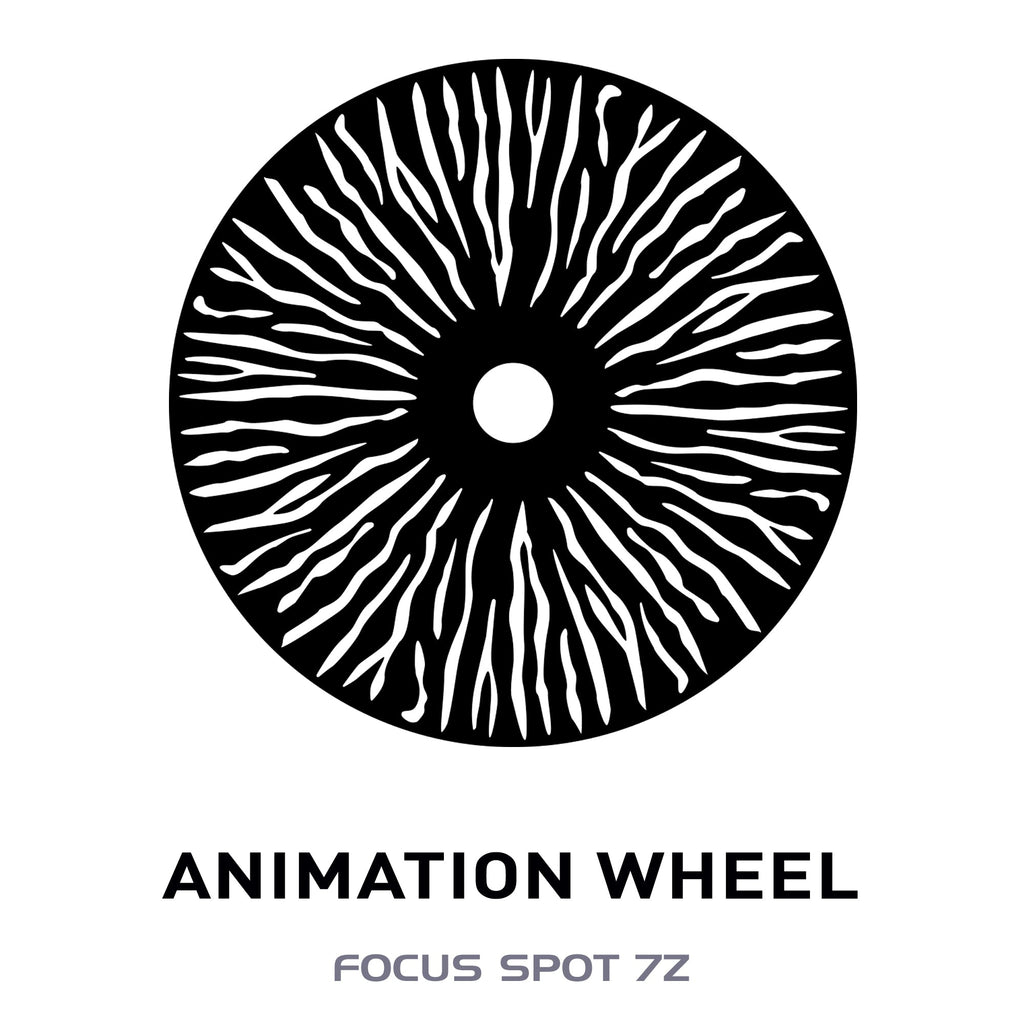

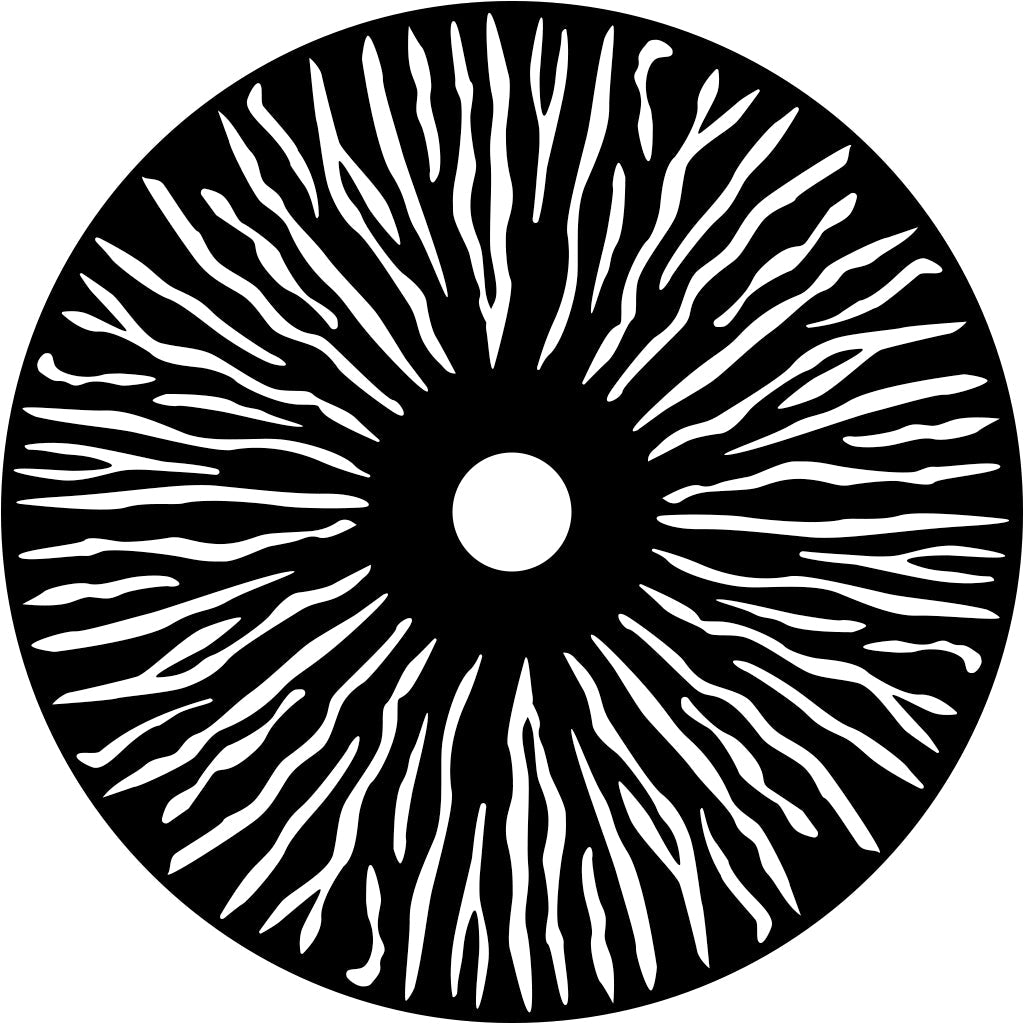

• Animation Wheel (Rotatable and Indexable)
• Motorized Zoom (6° ~ 48°)
• Motorized Focus
• Motorized Iris
• Electronic Dimming & Strobe (1-20Hz)

Colors:

• Full CMY color mixing
• Variable CTO (2,700K to 8,000K)

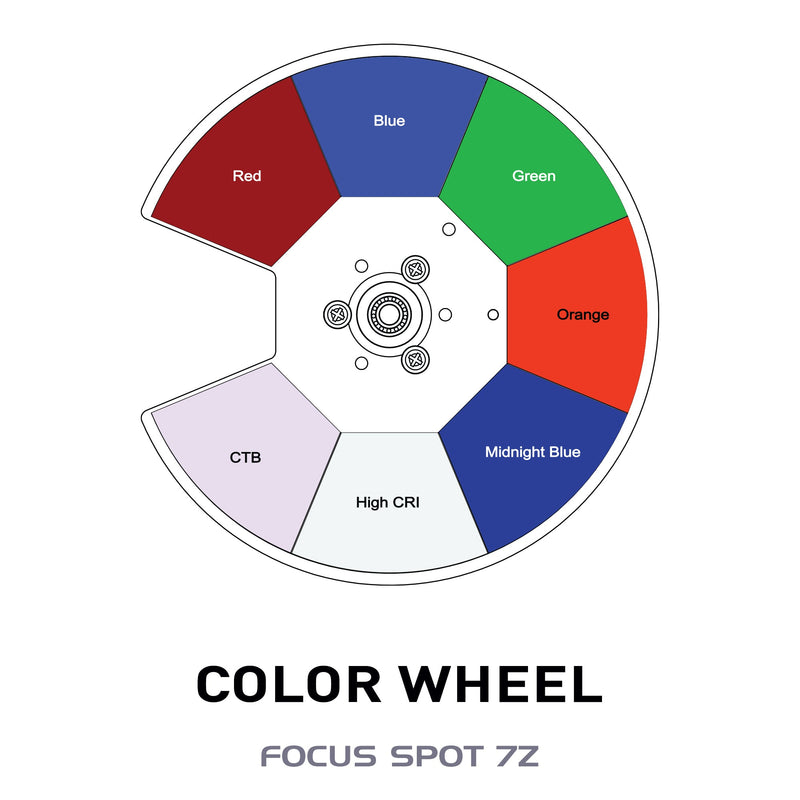

• Colors Wheel with 7 dichroic slots (Includes High CRI and CTB Filters)
• CMY and Color Wheel preset macros

GOBOs:

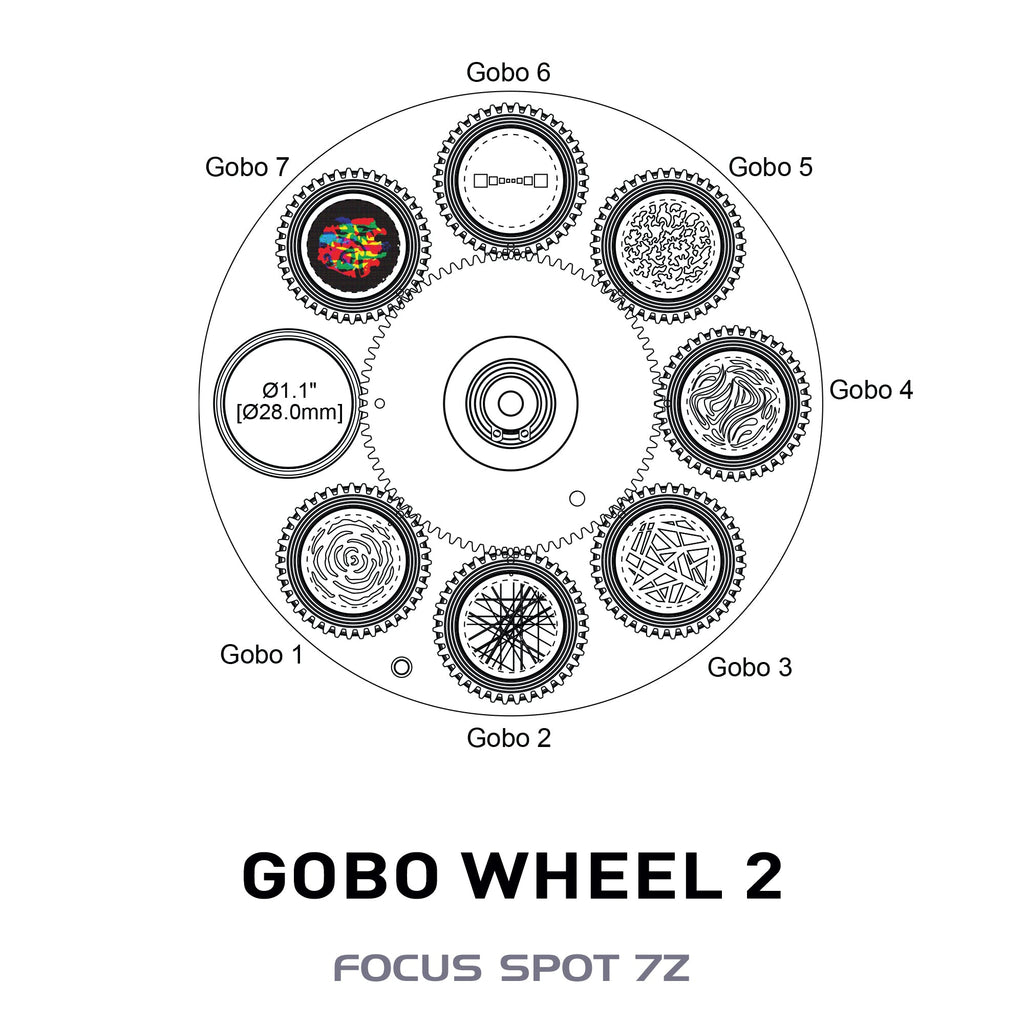

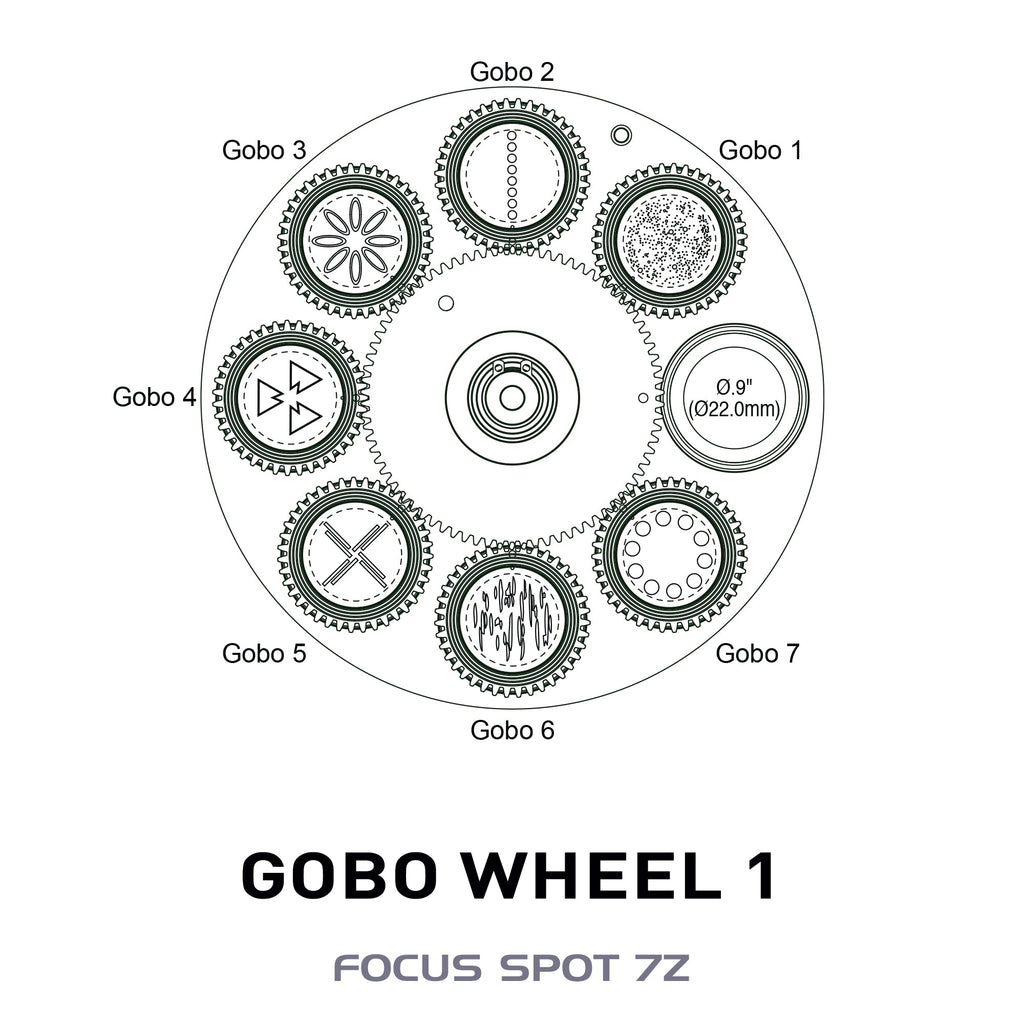

• 2 Gobo Wheels
• #1 - (7) Interchangeable Rotating-Indexing Gobos
• #2 - (7) Interchangeable Rotating-Indexing Gobos

Control / Connections:

• (3) DMX Channel Modes (30 / 34 / 45)
• DMX512, ArtNet and sACN protocols
• WiFLY EXR Wireless DMX
• RDM (Remote Device Management) compliant
• 6-Button Touch Control Panel
• Full Color 180° Reversible LCD Menu Display
• 8 / 16 Bit Resolution Adjustable Movement

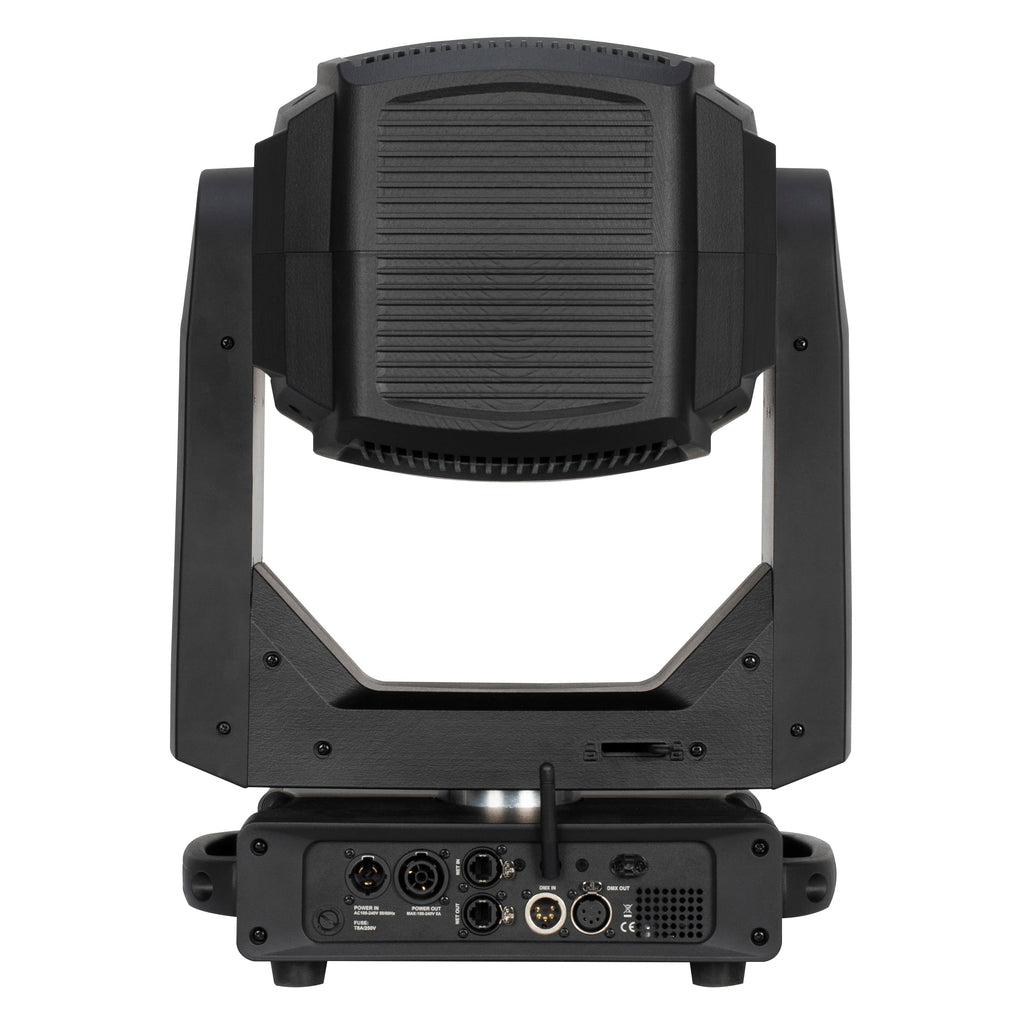

• 5-pin DMX Data In/Out
• RJ45 In/Out
• Locking In/Out power connections
• Safety eye
• With Wired Digital Communication Network

Pan/Tilt:

• Pan: 540-degrees
• Tilt: 270-degrees
• Pan & Tilt Locks

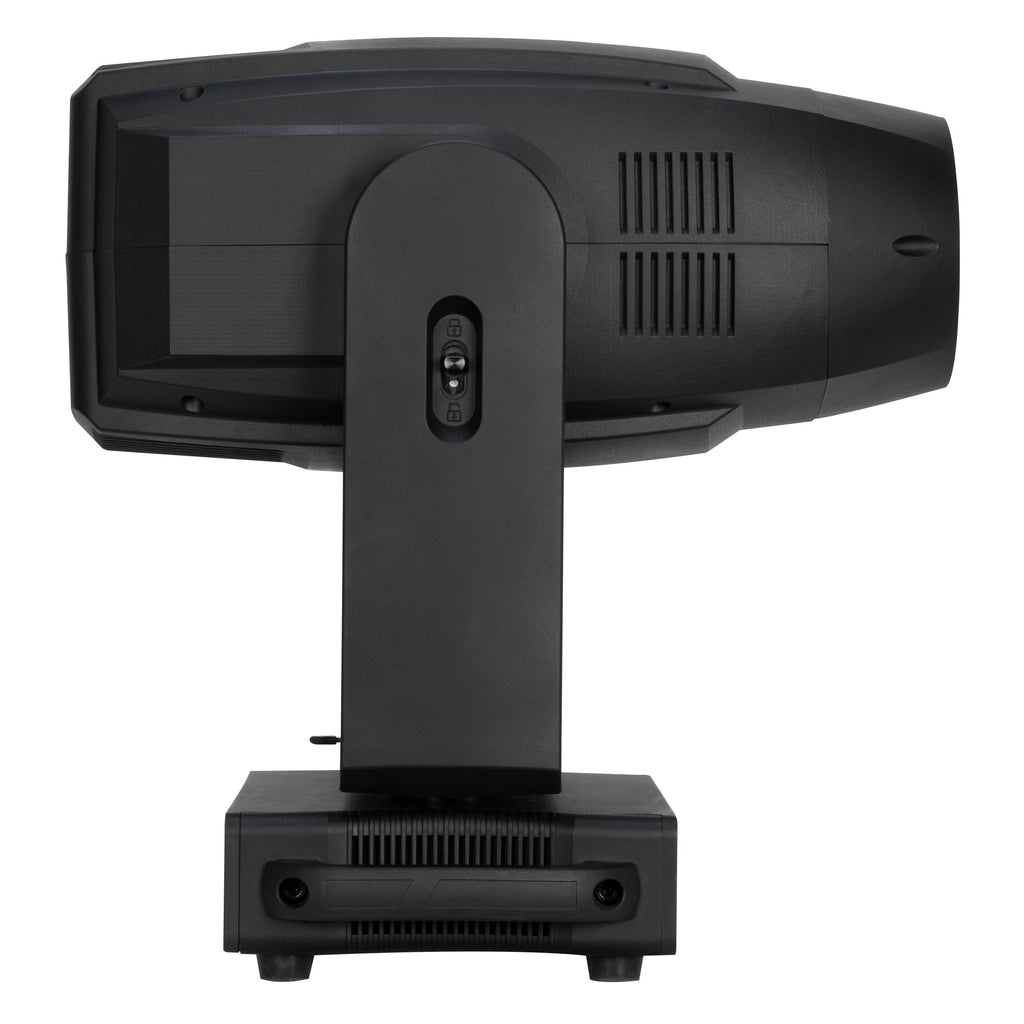

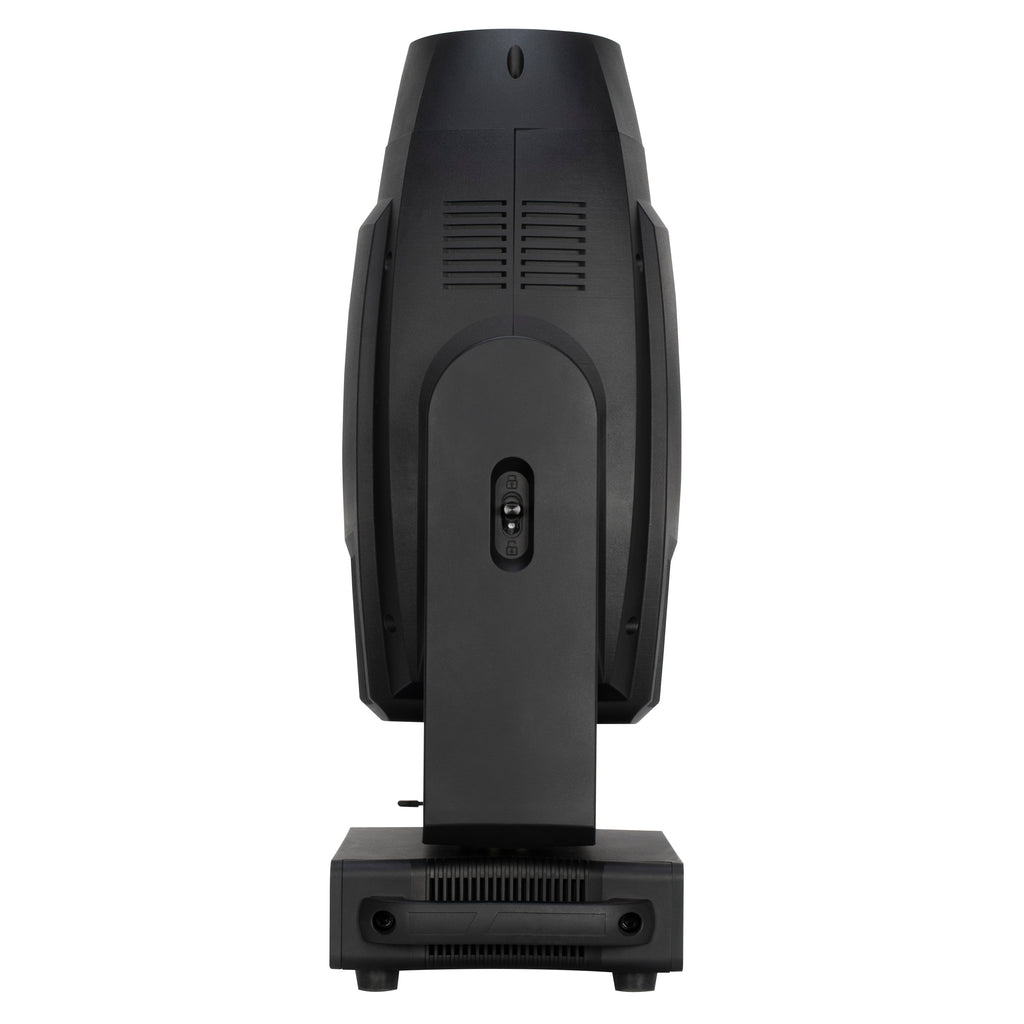

Dimensions & Weight:

• Length: 14.73” (374mm)
• Width: 9.22” (234mm)
• Vertical Height: 24.81” (630mm)
• Weight: 51.7 lbs. (23.45kg)

Electrical / Thermal:

• Multi-voltage: AC 100-240V - 50/60Hz
• Max Power Consumption: 524W
• Max ambient temperature: 14°F to 113°F (-10°C to 45°C)
• Max housing temperature: 136°F (58°C)

Technical Data:

• DB Rating @ 3ft.: 49dB
• BTU: 0.53
• BTU/H: 1,909.60

Approvals:

• CE | ETL (Pending)
• IP20

What’s in the box:

• Locking Power cable

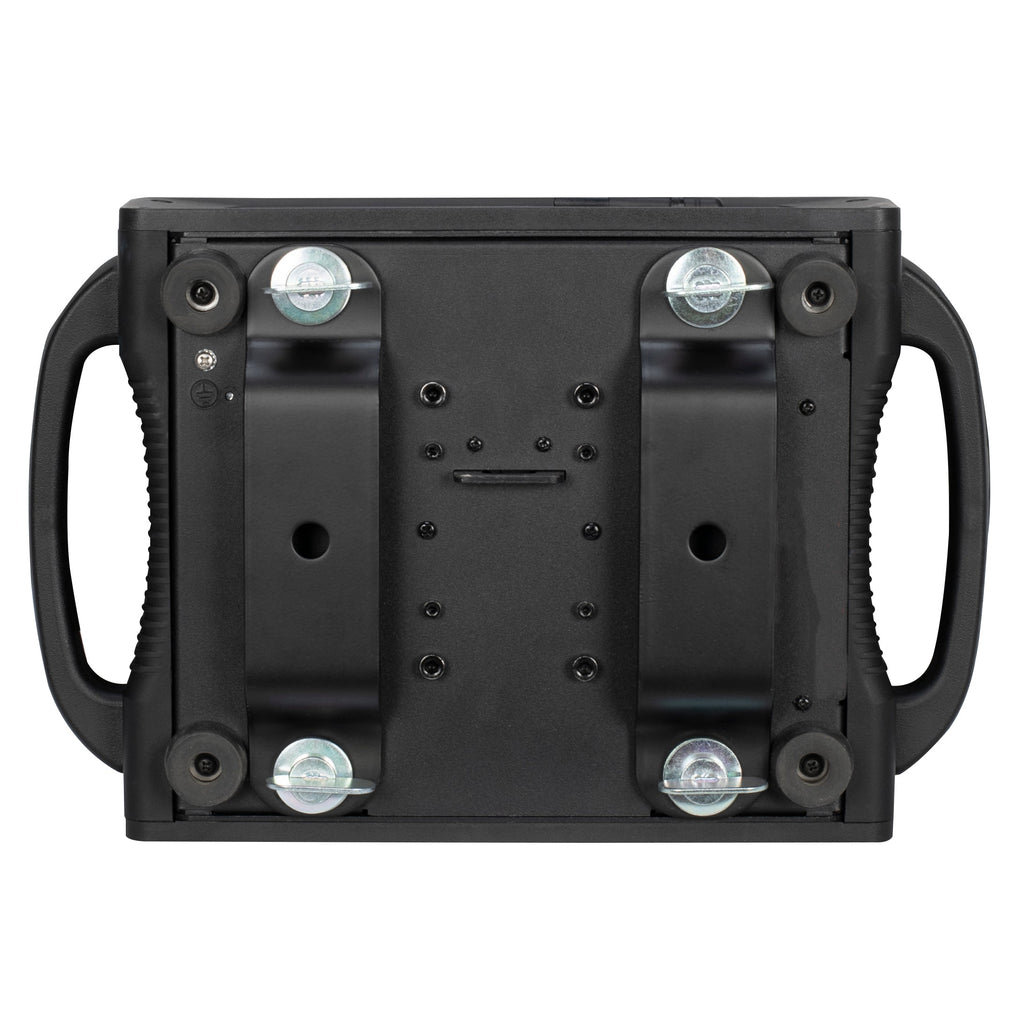

• 180mm Omega brackets (x2)
