ADJ 40 HEX Panel IP

 40 HEX Panel IP;40x 20W RGBAL+UV LED With Wired Digital communication Network

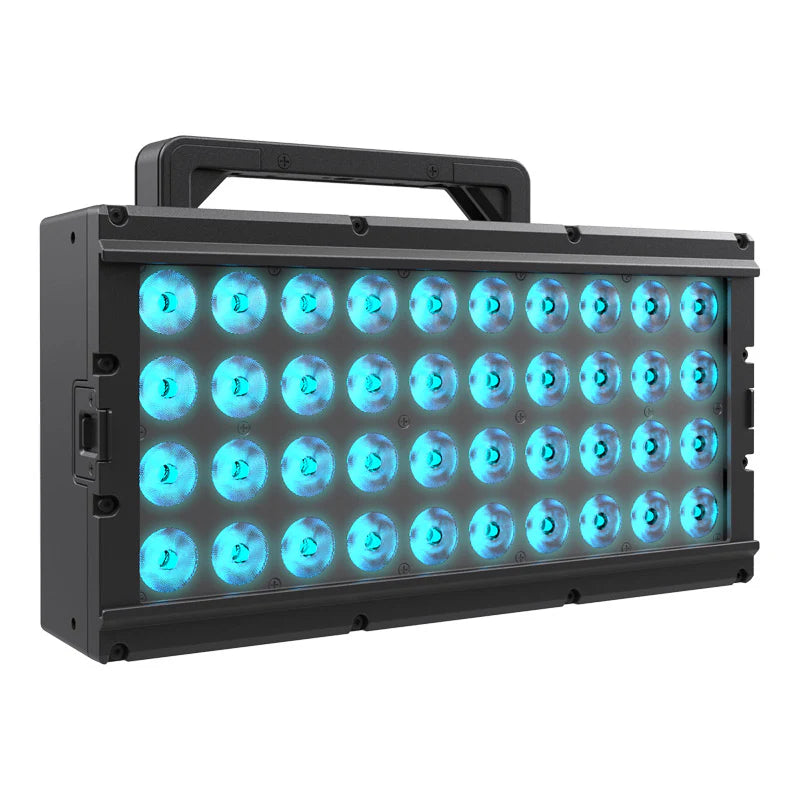

40 HEX Panel IP is a versatile IP65-rated fixture designed for indoor and outdoor use, functioning as a wash, blinder, or color strobe. It features 40 high-performance 20W HEX LEDs (6-in-1: RGBAL+UV), 10 pixel-controlled sections, and a durable all-metal black housing for reliable operation in any setting.

Specifications

Light Source:

• LED: 40x 20W HEX (6-In-1) RGBAL+UV LEDs (50,000 hr.)

• Beam Angle: X = 28.61°, Y = 23.72°

• Field Angle: X = 50.82°, Y = 44.95°

• Lumens: 19,590

Features:

• IP65 rated – protects from dust, sand, moister, water

• Aria X2 Management System

• All metal construction with black housing

• Includes heavy duty bracket

• Flicker free for film and broadcast

• Linear variable white temperature control

Construction:

• Display: OLED display with function buttons

• All Metal Heavy-Duty Housing: Built To Last In Outdoor or Touring Applications

Control:

• 24 DMX control modes; 6ch 1G / 12Ch 1G / 15Ch 1G / 16Ch 1G / 20Ch 1G / 24Ch 1G / 12Ch 2G / 20Ch 2G 24Ch 2G / 27Ch 2G / 29Ch 2G / 36Ch 2G / 30Ch 5G / 40Ch 5 G / 60Ch 5G / 63Ch 5G / 68Ch 5G / 72Ch 5G / 60Ch 10G / 70Ch 10G / 120Ch 10G / 123Ch 10G / 128Ch 10G & 132Ch 10G modes

• 4 Control Groups: 1 / 2 / 5 & 10 Groups

• 0-100% Dimming + smooth 16-bit Dimming

• 5 Dimming Curve Modes

• Control Mode: DMX512, RDM (Remote Device Management)

• LED Refresh Rate: Multiple settings

• With Wired Digital Communication Network

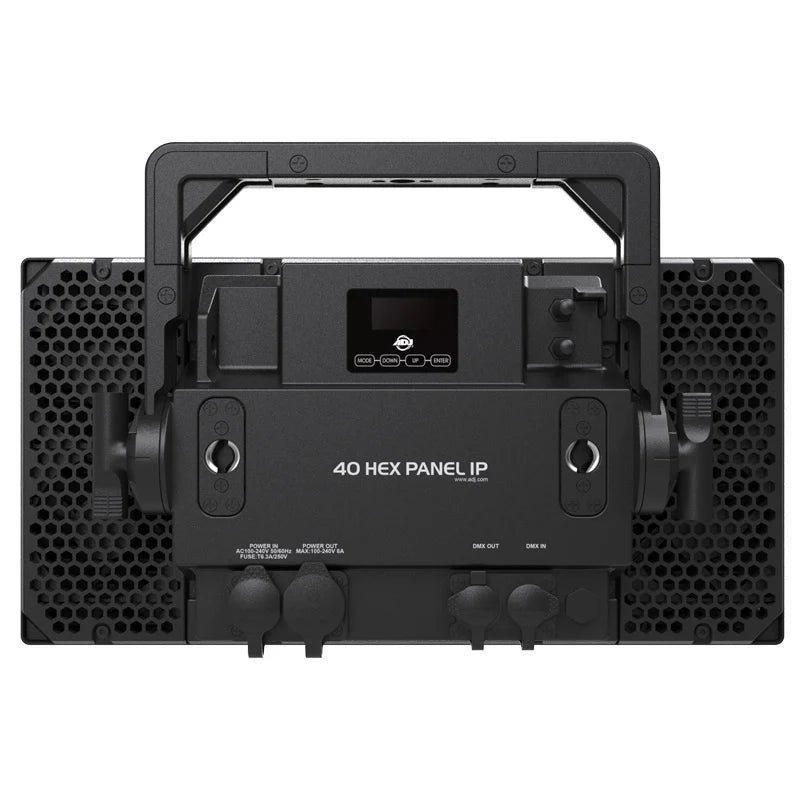

Connections:

• Data: IP65 Locking 5-pin DMX In/Out

• Power: IP65 Locking Power In/Out

Electrical:

• 100-240V 50Hz/60Hz (Auto Sensing)

• Max Power Consumption: 513W @120V; 492W @220V

• Max Power Link: 1pcs @120V; 4pcs @230V

• Fuse Protected: T4A/250V Glass Fuse (5*20MM)

Dimensions & Weight:

• Length: 16.42" (417mm)

• Width: 11.7" (296.8mm)

• Height: 8.35” (212mm)

• Weight: 24.58 (11.15kg)

What’s Included:

• 1 x IP65 Locking Power Cable

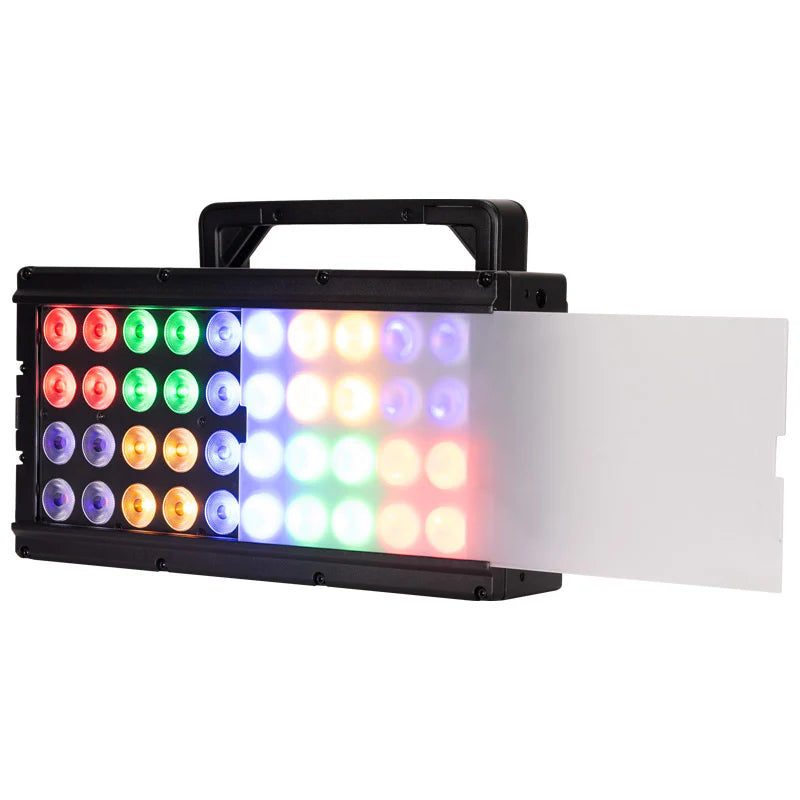

• 1 x Frost Filter

• 1 x Safety Cable

Optional Accessories:

• 180mm Omega Bracket

• JPFXBLKF (Sku: JPF001 - Black Filter for Jolt Panel FX, Jolt Panel FXIP and 40 HEX Panel IP)

• JPFX1X60LF (Sku: JPF014 - 1x60° Linear Effect Filter for Jolt Panel FX, Jolt Panel FXIP and 40 HEX Panel IP)

• JPFX60X1LF (Sku: JPF027 - 60X1° Linear Effect Filter for Jolt Panel FX, Jolt Panel FXIP and 40 HEX Panel IP)

• JPFXGS (Sku: JPF040 - Glare Shield for Jolt Panel FX2, Jolt Panel FXIP and 40 Hex Panel FXIP)

• JPFXBD (Sku: JPF053 - Barn Door for Jolt Panel FX2, Jolt Panel FXIP and 40 Hex Panel FXIP)

Approvals and Ratings:

• CE

• cETLus (Pending)

• IP65
