Accu-Cable AC3PDMX100, 100 ft 3-Pin DMX Cable

The Accu Cable AC3PDMX50 is a 50-foot, 3-pin DMX cable designed for reliable linking of lighting effects in DMX or Primary/Secondary modes. Its rugged, no-memory construction and flexible PVC jacket resist kinking and lay flat for clean, professional setups. Color-coded connector rings make length identification fast and easy.

The Accu Cable AC3PDMX50 50-foot, 3-pin DMX cable delivers dependable signal transmission for professional lighting applications. Ideal for linking lighting effects in DMX or Primary/Secondary operation modes, this cable is built to perform in demanding stage, event, and installation environments.

Constructed with 22 AWG stranded (0.15 x 19) tinned copper conductors and polyethylene insulation, the twisted pair design ensures stable, consistent data transfer. A polyethylene inner jacket, Duofoil shield with 100% coverage, cotton wrap, and an 85% coverage tinned copper braid shield provide superior protection against interference and signal loss.

Engineered with rugged, no-memory construction, the AC3PDMX50 lays flat without retaining coil memory, making setup and teardown quick and efficient. The durable PVC outer jacket helps prevent kinking while maintaining flexibility. A color ring on each connector tip allows for easy length identification at a glance, improving cable management on any production. Includes tie wrap for cable management.

Specifications

• Length: 100 feet (30.4M)

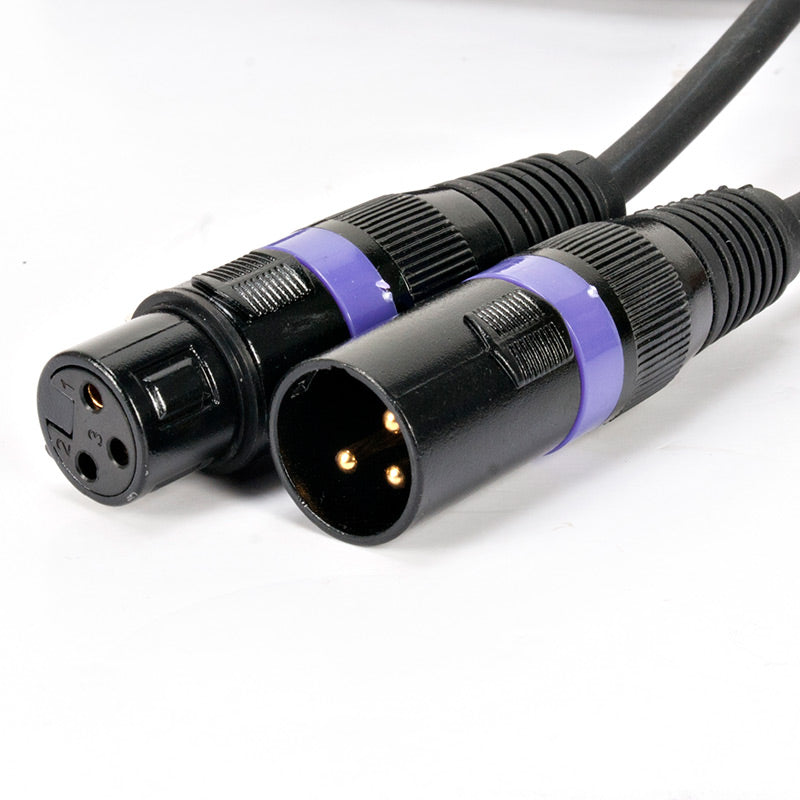

• Connector Type: 3-pin male to 3-pin female
• Application: DMX signal linking / Primary-Secondary lighting control
• Conductors: 22 AWG stranded (0.15 x 19) tinned copper
• Insulation: Polyethylene
• Pairing: Twisted pair construction
• Inner Jacket: Polyethylene
• Shielding: Duofoil (100% coverage) with cotton wrap
• Braid Shield: Tinned copper braid (85% coverage)
• Outer Jacket: PVC, kink-resistant
• Cable Type: Rugged, no-memory design

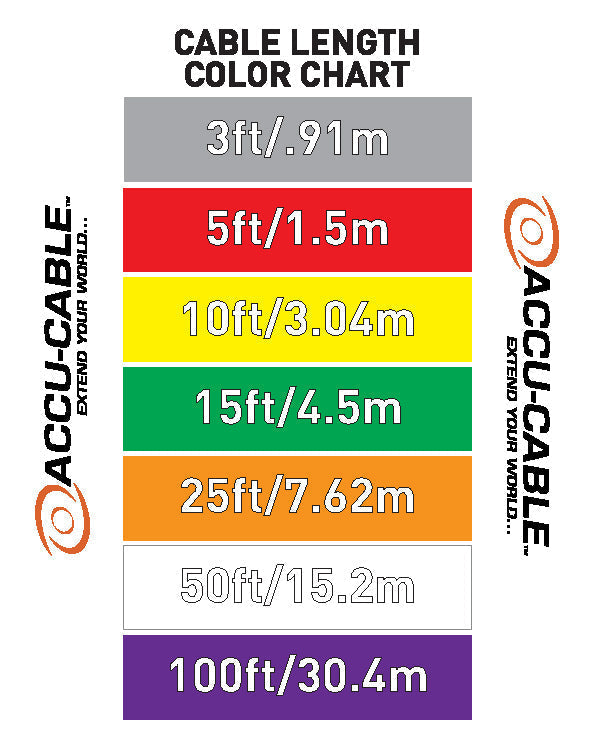

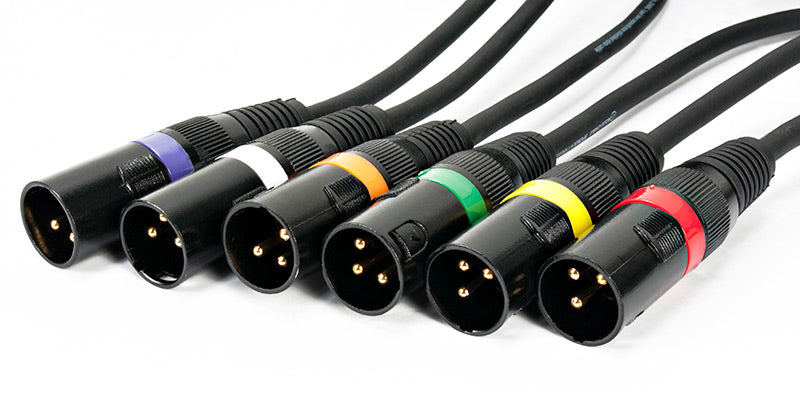

• Identification: Color ring on connector tips indicates length
