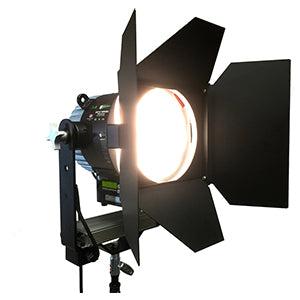

AAdynTech Jab V2 Variable, Light Output - 2,489 Footcandles at 10 feet, 1.77 Amp Power Draw, Built-in UIM Controller with Effects and DMX Assignment, DMX In and Out, Optional Tethered UIM Remote Controller, Color Temperature Readout in Kelvin Degrees

The JAB V2 Variable has an adjustable color temperature range of 2,800°K to 6,000°K and develops an output of 2,489 fc @ 10 feet. Most remarkable is the Variable draws only 1.78 amp of power at full output, and can be operated at 30v DC battery power in situations where conventional A/C supply is problematic or non-existent. Like all AAdynTech fixtures, the Variable generates no heat or harmful UV or IR emissions, is self-contained with an auto-ranging universal power supply requiring no ballast, head cables or lamps, and instant ON ensures no warm-up wait time on set.

Optical efficiency provides a single light source eliminating multiple shadows. The Variable comes equipped with four quick change lenses to vary the beam angle for spot, medium or flood while maintaining a flat, even field of light. There are several control possibilities with the Variable; built in User Interface Module (UIM) with Kelvin temperature display, DMX with DMX loop-thru, or via the optional corded UIM Controller with Kelvin temperature display. A heavy-duty yoke is provided and a full set of accessory options are available; barn doors, ATA Mil-spec road cases, speed rings, light banks, filters and more. Several Kit versions coupled with various accessories and housed in a rugged Mil-Spec waterproof molded rolling case. When your production requires precise color temperature control and reliable even lighting; the JAB V2 Variable by AAdynTech has no peer.

Features

• 2,489 foot candle output @ 10 feet
• Adjustable 2800°K to 6000°K color temperature
• Accurate color temperature readout on UIM
• Draws only 1.78 amp at full output
• Auto range voltage - 100/277 VAC - 50/60Hz
• Up to 90% energy savings
• Precise brightness control with no color shift
• Single light source eliminates multiple shadows
• No heat generation - operates cool to the touch
• Douse button (momentary off)
• Included 5°, 15°, 30°, 55° lenses to vary beam angle
• No head cables, ballast or spare lamps
• Optional corded digital User Interface Module (UIM) control
• Recalibration countdown hour ‘smart’ meter
• Full DMX control w/ DMX loop-thru
• 5-pin XLR DMX In/Out
• Programmable multiple lightning and strobe effects
• Multiple user memory storage with recall
• 2 year warranty on fixture
• Operating temperature at -20c to +50c
• Certified UL, ETL, CSA, CE & RoHS compliant

Specifications

Control: Local, UIM, DMX Source: LED, 2,800K to 6,000°K Cooling: Passive Mounting: Baby Pin or Junior Certifications: ETL, UL, CSA, CE and RoHS Compliant

Dimensions

Length: 339.0 mm 13.3 in Width: 326.5 mm 12.9 in Height: 554.9 mm 21.8 in Weight: 8.9 kg 19.5 lbs

Power

Input Voltage: 100-277v AC Battery (30v DC) Input Freq: 50/60 Hz Input Current: 1.78 Amp @ 120V 212 Watts @ full Connection: US NEMA 5-15

Highlights

• RoHS Compliant
• Variable Kelvin - 2800K to 6000K
• Dimmable with no color shift
• Draws 1.78 amps at max output
• No Harmful UV or IR Radiation
