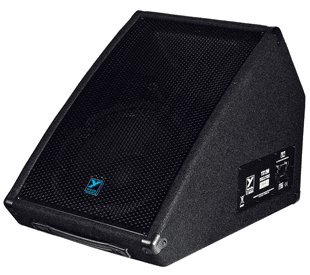

Yorkville YX12MC passive

Save $110.00
YorkvilleSKU: YX12MC

Price:
Sale price$289.00 Regular price$399.00

Description


12-inch / 1-inch Monitor - 200 watts

The YX12M delivers outstanding performance in a highly cost effective monitor package. Engineered in North America, the YX12M benefits from Yorkville's forty plus years of PA enclosure design experience in the creation of this compact passive monitor enclosure.



Features

  • 200 Watt Stage Monitor
  • 12-inch Woofer
  • 1-inch Compression Driver (1.4-inch Voicecoil)
  • Dedicated Wedge Monitor shape
  • Low Profile Cabinet Design
  • 90° x 30° Injection Molded ABS Waveguide Horn
  • Innovative Dual Bulb CTL™ High Frequency Driver Protection
  • 2 Speakon™ and 2 1/4-inch Paralleled Inputs
  • Solid 5/8-inch (15mm) Plywood Construction
  • Made in Canada


Specifications

System Type 2-Way
Active or Passive Passive
Program Power (Watts) 200
Biampable No
Max SPL (dB) 122
Driver Configuration 12 inch / 1.4 inch
HF Driver(s) 1.4 inch Aluminum (1 inch Throat)
HF Horn Injection Molded ABS
HF Dispersion (°H x °V) 90 x 30
HF Protection CTL™
LF Driver(s) 12 inch Ceramic
LF Program Power(Watts) 200
Inputs - 1/4" Jacks 2
Inputs - Speakon 4-pin 2
Corners Metal
Feet Plastic Glides
Strap Handles 1
Enclosure Materials 15mm (5/8inch) Plywood
Grille Custom Punched Black Perforated Metal
Covering / Finish Black Ozite
Dimensions (DWH xbackW, inches) 24 x 19.5 x 17.75 x 16
Dimensions (DWH xbackW, cm) 61 x 49.5 x 45.1 x 40.6
Weight (lbs/kg) 33 / 15

Specifications subject to change without notice
