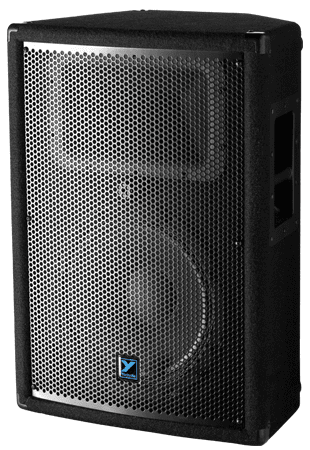

Yorkville YX12C passive
Roll over image to zoom in Click on image to zoom
Yorkville YX12C passive

Yorkville YX12C passive

Save $130.00
YorkvilleSKU: YX12C
Price:
$319.00 $449.00

Description


12-inch / 1.4-inch - 200 watts

The YX12 delivers outstanding performance in a highly versatile full range loudspeaker. Engineered in North America, the YX12 benefits from Yorkville's forty plus years of PA enclosure design experience in the creation of this compact general-purpose passive loudspeaker enclosure.




Features

  • 200 Watt Full Range Loudspeaker
  • 12-inch Woofer
  • 1-inch Compression Driver (1.4-inch Voicecoil)
  • Designed for Front-of-House or Monitor applications
  • 90° x 40° Injection Molded ABS Waveguide Horn
  • Innovative Dual Bulb CTL™ High Frequency Driver Protection
  • 2 x Speakon™ and 2 x 1/4-inch Parallel Inputs
  • Integrated All Metal Speaker Standmount Adaptor
  • Solid 5/8-inch (15mm) Plywood Construction
  • YX12B-FLY (Flyable - Painted Version
  • Made in Canada


Specifications

System Type 2-Way
Active or Passive Passive
Program Power (Watts) 200
Biampable No
Nominal Impedance (Ohms) 8
Sensitivity (dB @1Watt/1m) 99
Max SPL (dB) 122
Frequency Response (Hz +/- 3dB) 65 - 20k
Crossover Frequency (Hz) 1800
Driver Configuration 12 inch / 1.4 inch
HF Driver(s) 1.4 inch Aluminum (1 inch Throat)
HF Horn Injection Molded ABS
HF Dispersion (°H x °V) 90 x 40
HF Protection CTL™
LF Driver(s) 12 inch Ceramic
LF Program Power(Watts) 200
Inputs - 1/4" Jacks 2
Inputs - Speakon 4-pin 2
Corners Metal
Feet Plastic Glides
Bar Handles 2 (Side)
Flyable Version YX12B-FLY (EYEBOLT3/8A x 4 Required)
Pole Mount Adapter (1 3/8"-3.5cm) Yes
Enclosure Materials 15mm (5/8inch) Plywood
Grille Custom Punched Black Perforated Metal
Covering / Finish Black Ozite
Dimensions (DWH xbackW, inches) 13.75 x 18 x 25.5 x 8.5
Dimensions (DWH xbackW, cm) 34.9 x 45.7 x 64.8 x 21.6
Weight (lbs/kg) 37 / 16.8

Specifications subject to change without notice
