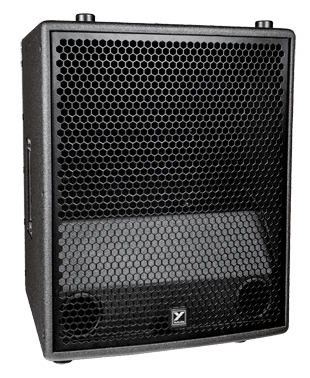

Yorkville SA153 Active Loudspeaker
Roll over image to zoom in Click on image to zoom
Yorkville SA153 Active Loudspeaker

Yorkville SA153 Active Loudspeaker

Save $1,200.00
YorkvilleSKU: SA153
Price:
$2,999.00 $4,199.00

Description

Active Loudspeaker

The Synergy Array Series is a truly revolutionary active point source system with unmatched flexibility, power, and directivity control. The Synergy System offers users unrivaled simplicity without sacrificing sonic performance.


Features

  • 3-way full-range powered speaker: 2600 watts (program), 5000 watts (peak)
  • 1 x 15-inch LF woofer, 1 x MF/HF Co-ax Compression Driver
  • Incorporates Tom Danley's patented Paraline Lens and Synergy Horn technologies
  • Exceptionally high output and pristine clarity
  • Simple and secure rigging hardware
  • Extremely well controlled coverage pattern
  • Measured MAX SPL (C-Weighted, Max Hold): 131dB continuous, 137dB Peak
  • Frequency Response (Hz +/- 3db): 55Hz-18K
  • Dispersion (°H x °V): 22.5° x 45° (Asymmetrical 10° Up, 35° Down)
  • Audio Inputs: 1 XLR, 2 x XLR Loops
  • AC Connections: 1 In, 1 Loop (Locking Powercon)
  • Dimensions (DWH x backW, inches): 24 x 21 x 26.5 x 12.25
  • Made in Canada


Specifications

Active or Passive Active
Program Power (Watts) 2600 Watts Program (5000 Watts Peak)
Biampable Triamp
Measured Max SPL (C-Weighted, Max Hold) 131 dB Cont. 137 dB Peak
Frequency Response (Hz +/- 3dB) 55Hz-18k
Dispersion (°H x °V) 22.5x45 Asymetrical 10 Up, 35 Down
Crossover Frequency (Hz) 400Hz, 7kHz
Cabinet Configuration Patented Synergy Horn and Paraline Lens Technology
Driver Configuration 1x15" LF woofer, 1x MF/HF Co-ax Compression
HF Driver(s) 1.75" Diaphragm/Voice Coil Annular Co-axial
HF Program Power (Watts) 300 Watts
HF Impedance (Ohms) 16 ohm Load
HF Protection Peak and Average Limiting
MF Driver(s) 3.5" Diaphragm/Voice Coil Annular Co-axial
MF Program Power (Watts) 300 Watts
MF Impedance (Ohms) 16 ohm Load
MF Protection Peak and Average Limiting
LF Driver(s) 1x15" Neo Woofer with 3.5" Voice Coil
LF Program Power(Watts) 2000 watts Program (4000 watts Peak)
LF Impedance (Ohms) 8 ohm Load
LF Protection Excursion, RMS
HF Power Amplifier (Watts) 300W
HF Amplifier Type 3-Tier Class H
MF Power Amplifier (Watts) 300W
MF Amplifier Type 3-Tier Cllass H
LF Power Amplifier (Watts) 2000W
LF Amplifier Type Class D
Cooling Scheme Convection
Power Cable Removable Locking Powercon True Input and Loop Thru Output
Power Switch Yes
Power Consumption (typ/max) 220 VA / 400 VA
Inputs 1 XLR, 2 x XLR Loop
Input Sensitivity (Vrms Sine) Line in 1.4 at center, 0.56 at max
Level Controls Volume
EQ Controls HF/MF Boost select,
Fullrange/Sub switch
LED Indicators Power, Limit, Clip
Enclosure Materials Multiply 15mm Birch Plywood
Standard Rigging Hardware RAIL and LOCKBAR Rigging System (Top and Bottom)
Stacking Feature Interlocking UHMW Feet (Top and Bottom)
Covering / Finish Paint
Dimensions (DWH xbackW, inches) 24 x 21 x 26.5 x 12.25
Dimensions (DWH xbackW, cm) 60.9 x 53.3 x 67.3 x 31.1
Weight (lbs/kg) 115/52.1

Optional Synergy Series Accessories

Pick Up Bar (SAPICKUPBAR1) Single column cabinet hanging hardware (2xSA153 Plus 1xSA315S MAX)
Flying Bumper (SABUMPER1) 4 wide flying bumper (8xSA153 Plus 4xSA315S MAX)
SA153 Cabinet Cover (SA153COVER) Will cover 2 Cabinets (stacked)
SA315S Cabinet Cover (SA315SCOVER) Will cover 1 Cabinet
Cabinet Dolly (SADOLLY1) Holds 2 x SA153 stacked or 1 x SA315S

Specifications subject to change without notice
