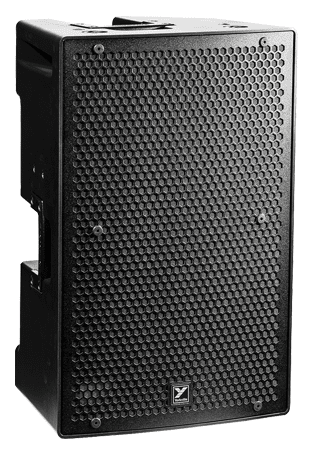

Yorkville PS12P Powered
Roll over image to zoom in Click on image to zoom
Yorkville PS12P Powered

Yorkville PS12P Powered

Save $450.00
YorkvilleSKU: PS12P
Price:
$1,149.00 $1,599.00

Description



12-inch / 1-inch - 1400 watts

Designed to be the most versatile cabinet in the Parasource Series, the PS12P uses a high power 12-inch woofer (with 3-inch voicecoil) to deliver maximum tone and low frequency response. The focused 85° x 50° (H x V) conical horn delivers improved constant directivity and better midrange response than competitive cabinets in this class.


Features

  • Integrated 4400 Watt Amplifier Peak Power (1400 Watts Program)
  • 12-inch Woofer with 3-inch Voicecoil
  • 85° x 50° Horn with Thermal and Peak Protection
  • 38mm Compression Driver with 1-inch Exit
  • Max SPL 133dB Peak (128dB Continuous)
  • High Efficiency Bi-Amplified Class-D Power Module
  • Passive Cooling Scheme (No Loud Fans Required)
  • Designed for Front-of-House or Monitor Applications
  • Integrated Two Channel Mini Mixer with XLR Microphone, 1/4-inch and RCA Line Inputs
  • Multiband Limiting Delivers Extremely Transparent Listening Experience (Vocals Are Not Modulated By Bass)
  • Ergonomic All Metal Handles
  • Integrated All Metal Speaker Standmount Adaptor
  • Reinforced Flypoints
  • Lightweight ABS Cabinet Construction
  • Optional PS12PCOVER available
  • Made in Canada


Specifications

System Type Active Loudspeaker
Active or Passive Active
Program Power (Watts) 1400 watts (4400 watts peak)
Max SPL (dB) 133dB Peak (128dB Continuous)
Frequency Response (Hz +/- 3dB) 45Hz to 26kHz
Crossover Frequency (Hz) 1.25kHz
Driver Configuration 12-inch / 1-inch
HF Driver(s) 38mm Voicecoil w/ 1-inch Exit
HF Dispersion (°H x °V) 85 x 50
HF Protection Thermal/Peak Limiter
LF Driver(s) 12-inch (3 inch voicecoil)
LF Protection Thermal/Multiband Peak Limiter
LF Processing Dynamic Bass Extension
Cooling Scheme Passive
Power Cable Detachable IEC
Power Consumption (typ/max) 2.4A/3.0A @ 120Vac 1.2/2.5 A @230Vac
Inputs 1/4-inch, XLR, RCA
Inputs - 1/4" Jacks Yes (x2)
Inputs - XLR Yes (x2)
Input Sensitivity (Vrms Sine) 1.23 Vrms +4dBu
Mixer Controls Sub Mode HPF, Bass Boost, Mixer Enable
Level Controls Master Level, Mic Level, Line Level
LED Indicators Power, Limit, Clip
Bar Handles Yes
Flying Hardware EYEBOLT1/4A
Pole Mount Adapter (1 3/8"-3.5cm) Yes
Enclosure Materials ABS
Baffle Material ABS
Grille Perforated Metal
Dimensions (DWH xbackW, inches) 13.5 x 16.7 x 26.5
Dimensions (DWH xbackW, cm) 34.3 x 42.5 x 66.7
Weight (lbs/kg) 60 / 26.3

Specifications subject to change without notice
