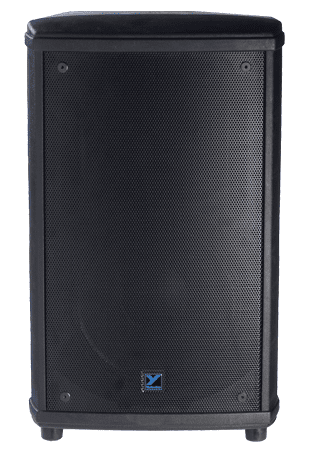

Yorkville NX35-2 Passive
Roll over image to zoom in Click on image to zoom
Yorkville NX35-2 Passive

Yorkville NX35-2 Passive

Save $180.00
YorkvilleSKU: NX35-2
Price:
$449.00 $629.00

Description



12-inch / 1-inch - 500 watts

The NX35-2 is the next evolution of the molded loudspeaker. Based on its predecessor, the popular NX20, the NX35-2 incorporates many new features and subtle improvements. For example, the NX35-2 is slightly larger that the NX20.and that increased cabinet volume greatly increases low frequency output making for balanced overall response with high efficiency. Its deep-excursion 12-inch woofer easily handles 500 watts and is complemented by a smooth, 1-inch compression driver on a custom 80° x 50° ABS waveguide horn similar to those used in the renowned élite loudspeaker line.


Features

  • 1000 Watt Full Range Loudspeaker (500 Watts Program)
  • Dual purpose full range and wedge monitor format enclosure
  • Ultra-clear reproduction throughout bandwidth
  • Ultra-high efficiency performance requires less power for more output
  • Max SPL 130dB Peak (127dB Continuous)
  • High quality 1" High Frequency drivers
  • Next generation woofer / driver / horn technology
  • Integrated flying hardware (1/4" threaded holes)
  • Tough, full length metal grille
  • Recessed Input panels
  • Dual bulb CTL™ HF protection system
  • Made in Canada


Specifications

System Type 2-Way
Active or Passive Passive
Program Power (Watts) 500 Watts (1000 Watts Peak)
Biampable No
Nominal Impedance (Ohms) 8
Sensitivity (dB @1Watt/1m) 100
Max SPL (dB) 130dB Peak (127dB Continuous)
Frequency Response (Hz +/- 3dB) 60 - 18k
Crossover Frequency (Hz) 2k
Driver Configuration 12 inch / 1 inch
HF Driver(s) 1.4-inch Aluminum Diaphragm / 1-inch exit
HF Impedance (Ohms) 8
HF Dispersion (°H x °V) 80 x 50
HF Protection Dual bulb CTL™
LF Driver(s) 12-inch, 2.5-inch voicecoil
LF Impedance (Ohms) 8
Inputs - 1/4" Jacks 2
Inputs - Speakon 4-pin 2
Feet Yes
Bar Handles 1 (Side)
Flying Hardware 1/4-20 x 5 - 2 (Top), 2 (Bottom), 1 (Pullback)
Optional Flying Hardware NXF Flyware
Pole Mount Adapter (1 3/8"-3.5cm) Yes
Enclosure Materials Molded Polypropylene
Grille Black Perforated Metal
Covering / Finish Black
Dimensions (DWH xbackW, inches) 12.25 x 16 x 26.5 x 9
Dimensions (DWH xbackW, cm) 31.12 x 40.6 x 67.3 x 22.9
Weight (lbs/kg) 28 / 12.7

Specifications subject to change without notice
