Description

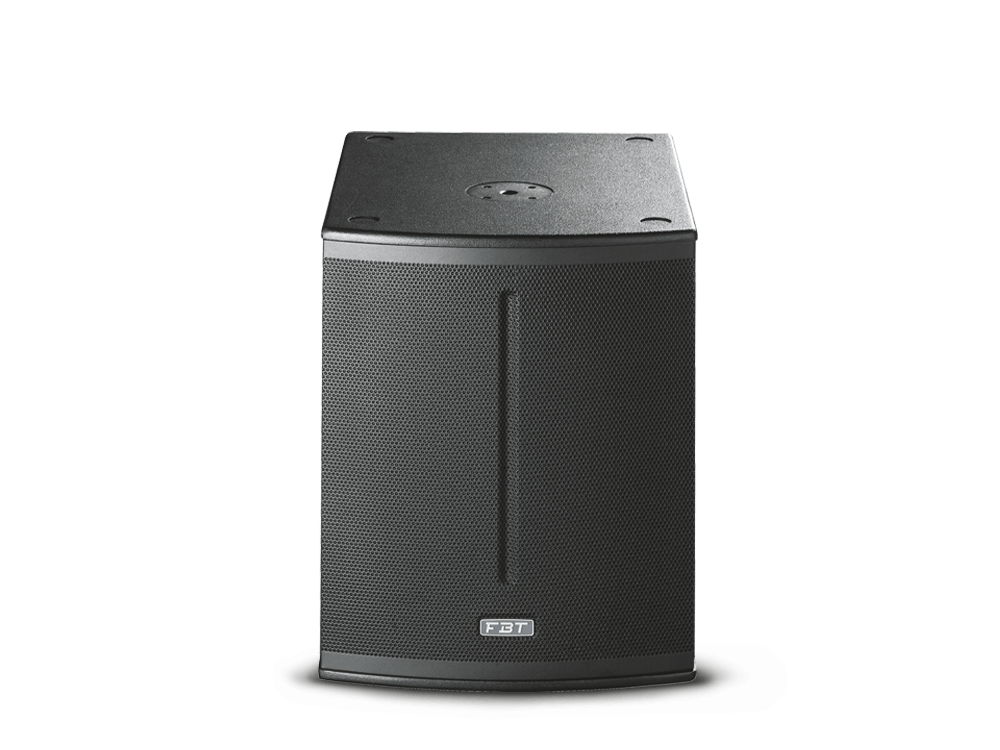

X SUB 115SA is an active 15″ subwoofer with bass-reflex design, engineered to complement the X LITE and X PRO series by extending low-frequency performance in both portable and installed sound systems. It is equipped with a 15″ woofer featuring a 3″ voice coil, powered by a 1200W Class D amplifier, delivering up to 135 dB SPL and a frequency response from 42 Hz to 120 Hz.
The built-in DSP includes 4 presets, allowing flexibility for different system configurations. The control panel features stereo combo XLR/Jack inputs and outputs, stereo XLR HP filter outputs, level control, preset selector, phase reverse switch (0°/180°), and protection/limit LEDs.
Constructed from 15 mm birch plywood with a scratch-resistant black finish, X SUB 115SA includes M20 top-mounted stand adapter, two ergonomic aluminum handles, and optional 100 mm transport wheels. Suitable for fixed installations, live events, and touring.
Technical Specifications
| Code | 44145 |
| Configuration | Bass reflex |
| Built-in amplifier LF/HF | 1200W |
| Built-in amplifier peak LF/HF | --- |
| Frequency response | 42Hz - 120Hz -6dB |
| Low Frequency woofer | 15” / 3” coil |
| Maximum SPL cont/peak | 135dB half space |
| Dispersion | Omnidirectional |
| Input impedance | 22 kOhm |
| Crossover Frequency | --- |
| AC Power requirements | 600W |
| Input connector | XLR with loop |
| Power cord | 5m / 16.4 ft |
| Net Dimension (WxHxD) | 455 x 584 x 570 mm / 17.91 x 22.9 x 22.44 inch |
| Net Weight | 30.3 kg / 66.8 lb |
| Transport Dimension (WxHxD) | 710 x 650 x 600 mm / 27.9 x 25.5 x 22.4 inch |
| Transport Weight | 36.5 Kg / 80.4 lb |
