Description

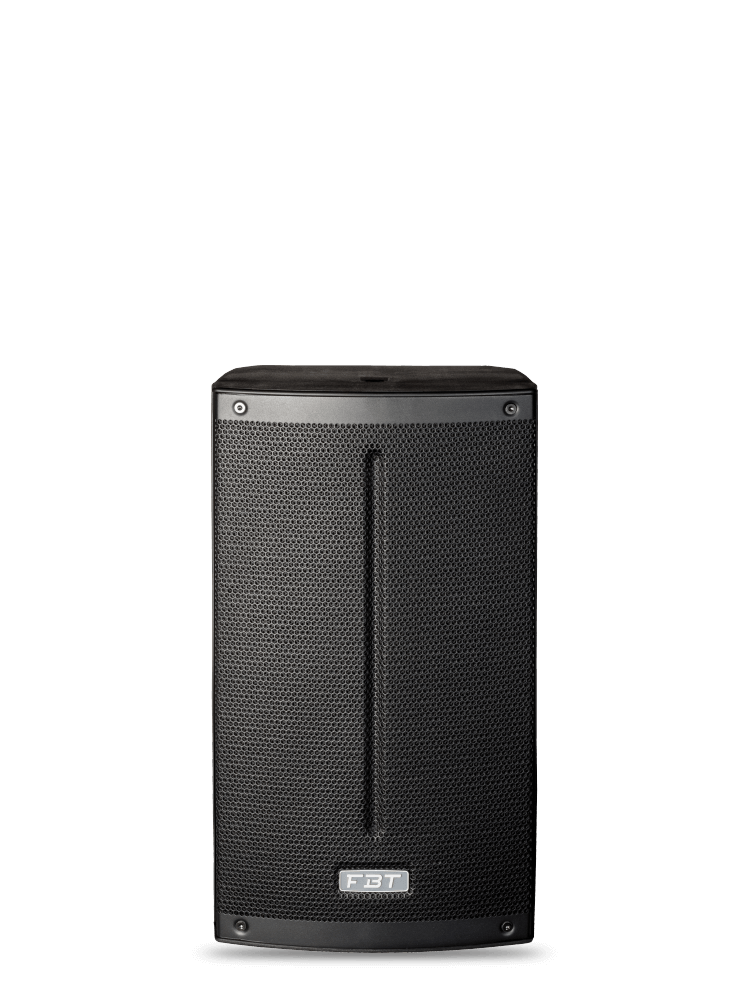

The X LITE 108A is a compact 2-way bi-amplified active speaker, ideal for portable sound reinforcement and small fixed installations. Housed in a gas-injected polypropylene cabinet with steel grille, it features an 8″ woofer with 2″ voice coil and a 1″ compression driver with 1″ voice coil. The Class D amplifier delivers 600W LF + 200W HF, for a maximum SPL of 124 dB and a frequency response from 58 Hz to 20 kHz.
The control panel includes two input channels: one Bluetooth 5.0 channel with pairing LED and one mic/line input with volume control. A balanced XLR output with link/mix selector, high-pass filter, and four DSP presets ensure flexible operation. The enclosure also provides four M10 rigging points, 35 mm pole mount, and monitor angles of 30° and 45°.
Technical Specifications
| Code | 47425 |
| Configuration | 2 way |
| Built-in amplifier LF/HF | 600 / 200W |
| Frequency response | 58Hz- 20kHz -6dB |
| Low frequency woofer | 8'' - 2'' coil |
| High Frequency driver | 1'' - 1'' coil |
| Maximum SPL cont/peak | 120 / 124dB |
| Dispersion | 90° x 60° H x V |
| Input impedance | 22Ohm |
| Input connector | XLR IN/OUT, Jack ST |
| Power cord | 5 m / 14.8 ft |
| Net Dimension (WxHxD) | 265 x 460 x 281 mm / 10.43 x 18.11 x 11.06 inch |
| Net Weight | 10 Kg / 22 Lb |
| Transport Dimension (WxHxD) | 355 x 570 x 335 mm / 13.97 x 22.44 x 13.18 inch |
| Transport Weight | 12.5 Kg / 27.5 Lb |
