Description

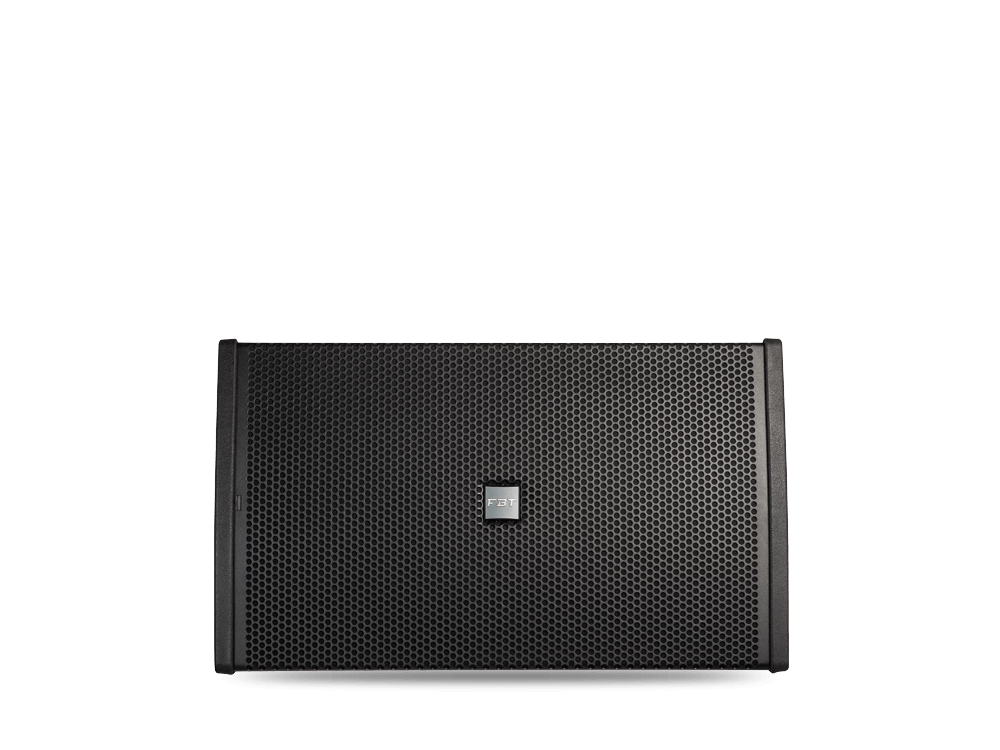

The VHA 112S is a compact bass-reflex passive subwoofer from the Horizon series, designed to integrate seamlessly with VHA 406 line array modules. Tailored for applications where space is limited but deep and defined low-frequency response is essential, it is ideal for indoor concerts, theatres, touring events, and fixed installations.
Equipped with a high-excursion 12″ woofer featuring a 3″ neodimium voice coil, the VHA 112SA delivers an extended frequency response down to 50Hz, providing a solid foundation for compact full-range setups. Featuring a custom 12″ high-excursion woofer with a 3″ voice coil, the VHA 112S delivers a solid low-end foundation with extended frequency response down to 50Hz. Optimized for use with external amplification and DSP, the subwoofer is well-suited for use in scalable sound reinforcement systems, providing flexibility in both indoor and outdoor setups.
The cabinet is made from 15mm birch plywood and finished with a durable black scratch-resistant coating. A front steel grille with internal acoustic cloth protects the transducer, while the rear panel features two Neutrik NL4M connectors (In & Link) for easy integration.
Technical Specifications
| Code | 45260 |
| Configuration | 1 reflex |
| Recommended amplifier | 1200W RMS |
| Long Term power | 400W |
| Short term power | 2400W |
| Nominal impedance | 8 Ohm |
| Frequency response | 50Hz preset dependant |
| Low Frequency woofer | 12'' - 3'' coil |
| Maximum SPL cont/peak | 132 / 136dB half space |
| Dispersion | Omnidirectional |
| Crossover Frequency | --- |
| Input connector | 2 x Speakon NL4M |
| Net Dimension (WxHxD) | 612 x 360 x 397 mm / 25 x 14.1 x 15.6 inch |
| Net Weight | 23.8 Kg / 52.4 lb |
| Transport Dimension (WxHxD) | 520 x 725 x 415 mm / 20.4 x 28.5 x 16.3 inch |
| Transport Weight | 25.8 KG / 56.8 lb |
