Description

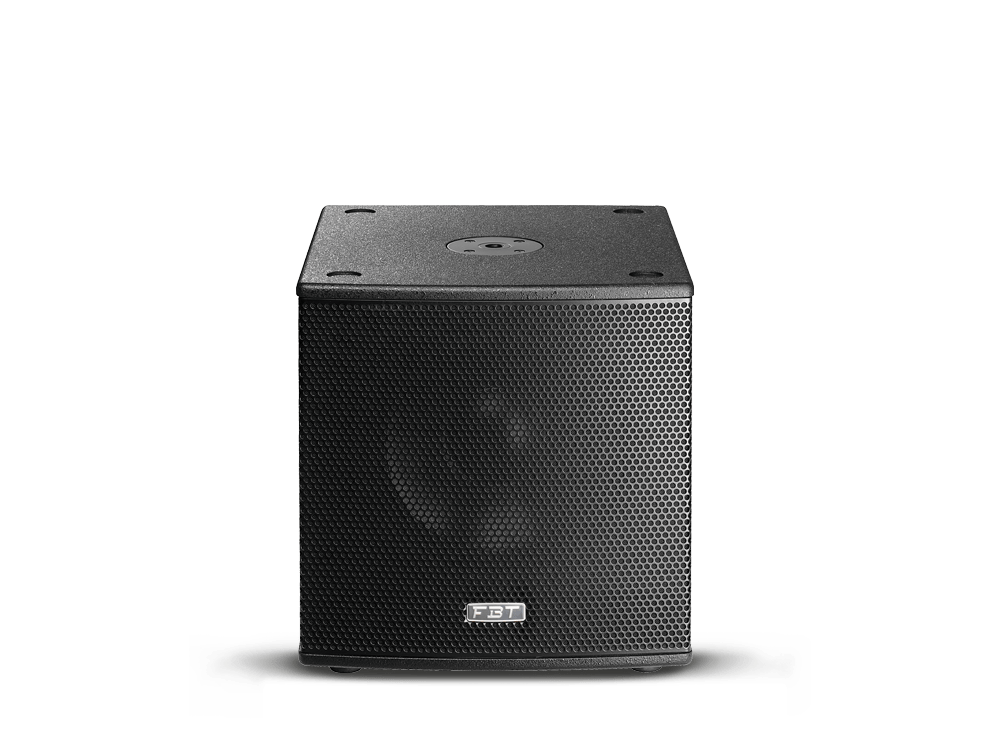

The SUBLINE 112SA is a compact active subwoofer designed for applications where powerful bass is needed in a portable, lightweight format. It features a 12” high-excursion woofer with a 2.5” voice coil, powered by a 700W Class D amplifier delivering precise low-frequency performance. Constructed from robust birch plywood with a scratch-resistant paint finish, this subwoofer includes ergonomic carrying handles and an M20 top mount for pole installation.
Integrated DSP with 8 presets ensures flexible system tuning, making it the perfect match for FBT’s active full-range speakers in both live and installed sound setups. The SUBLINE 112SA features balanced stereo XLR IN and LINK OUT connectors, volume control, phase inversion, and HP filter for seamless integration and crossover management.
Technical Specifications
| Code | 41223 |
| Configuration | 1 way Reflex |
| Built-in amplifier LF/HF | 700W RMS |
| Built-in amplifier peak LF/HF | 1400W |
| Frequency response | 40Hz - 140Hz -6dB |
| Low Frequency woofer | 12'' - 3'' coil |
| Maximum SPL cont/peak | 130 / 133dB half-space |
| Dispersion | Omnidirectional |
| Input impedance | 22 Kohm |
| Crossover Frequency | 90Hz - 140Hz |
| AC Power requirements | 600 VA |
| Input connector | XLR IN/OUT |
| Power cord | 5 m / 16.4 ft |
| Net Dimension (WxHxD) | 430 x 447 x 480 mm / 16.9 x 21.5 x 18.9 inch |
| Net Weight | 22.8 Kg / 50.2 lb |
| Transport Dimension (WxHxD) | 582 x 545 x 530 mm / 22.9 x 21.4 x 20.8 inch |
| Transport Weight | 26 Kg / 57.3 lb |
