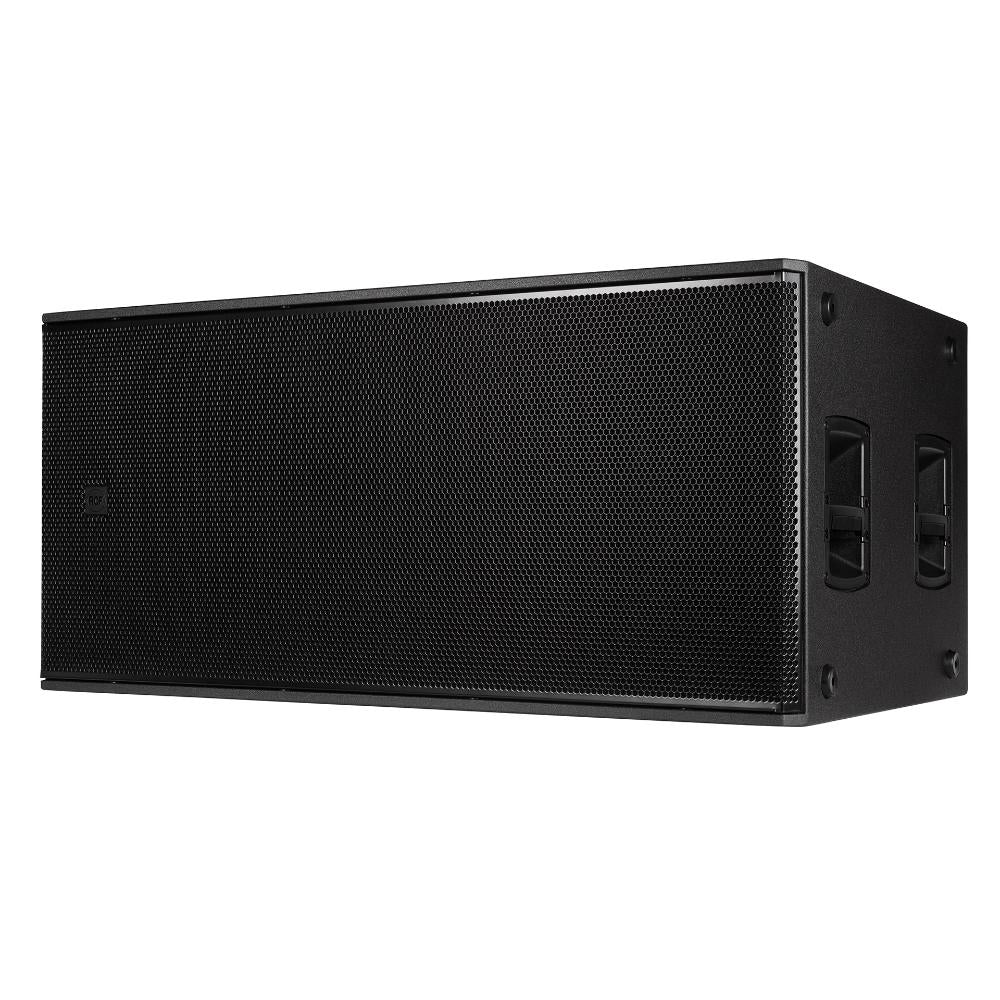

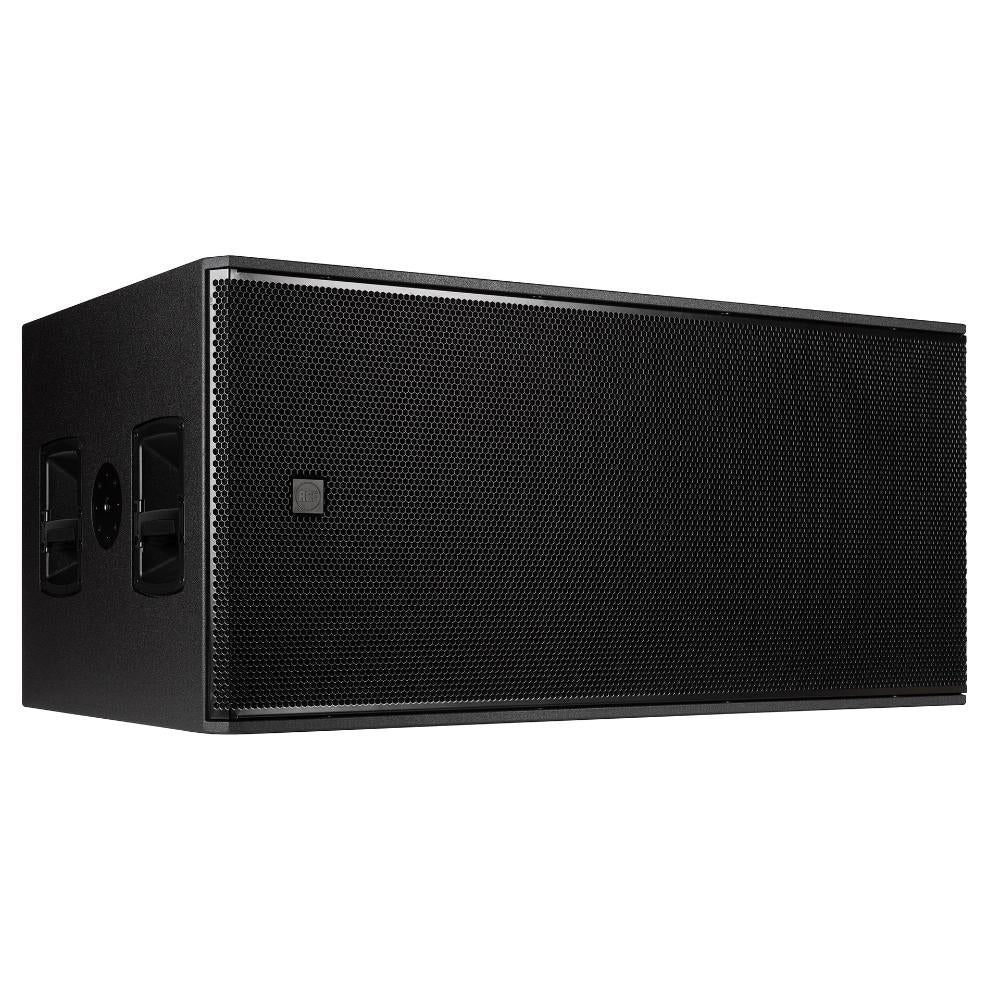

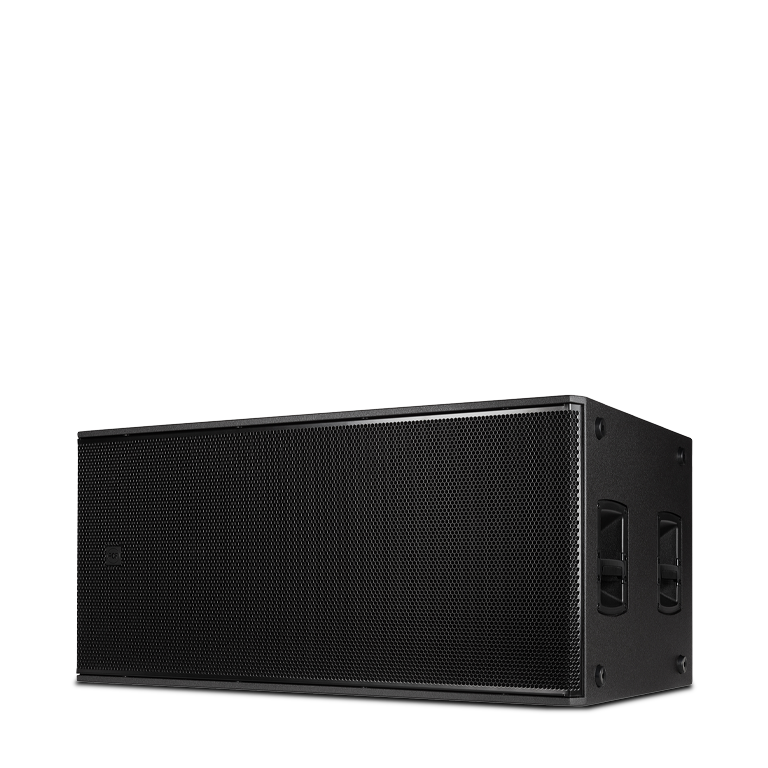

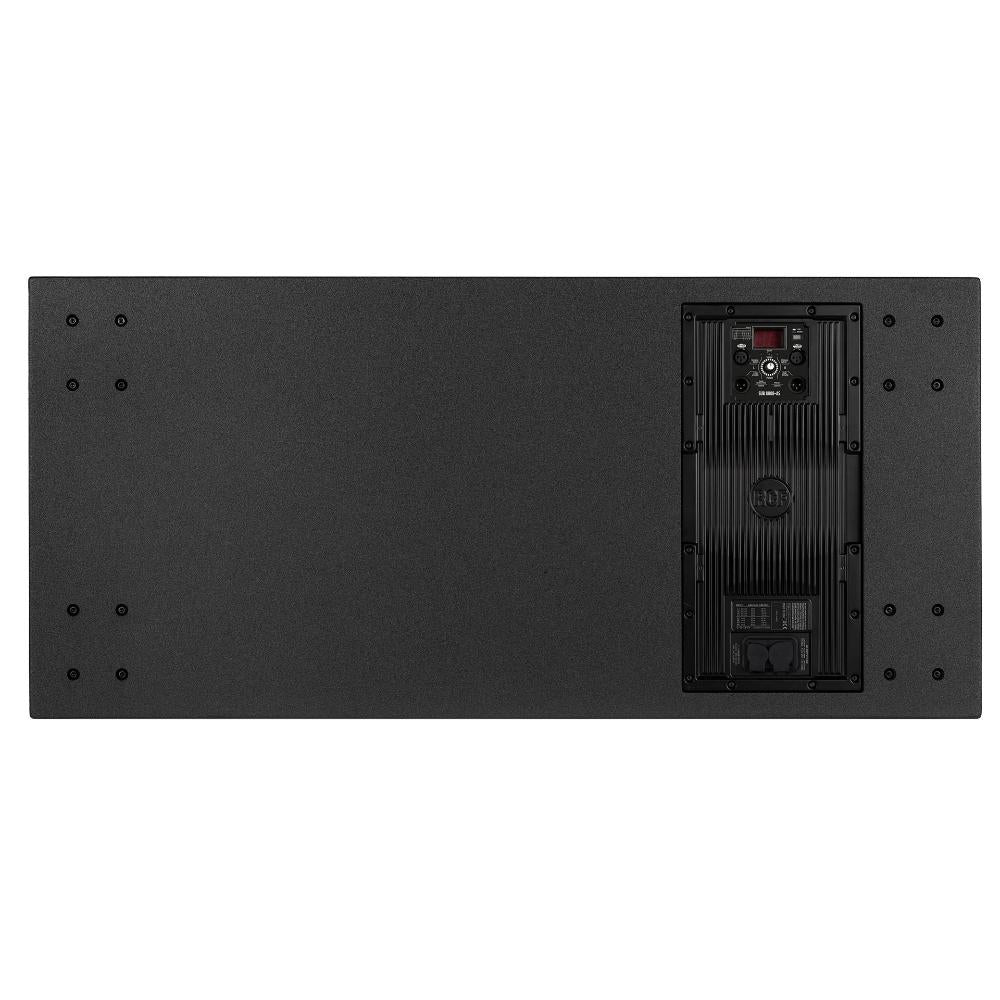

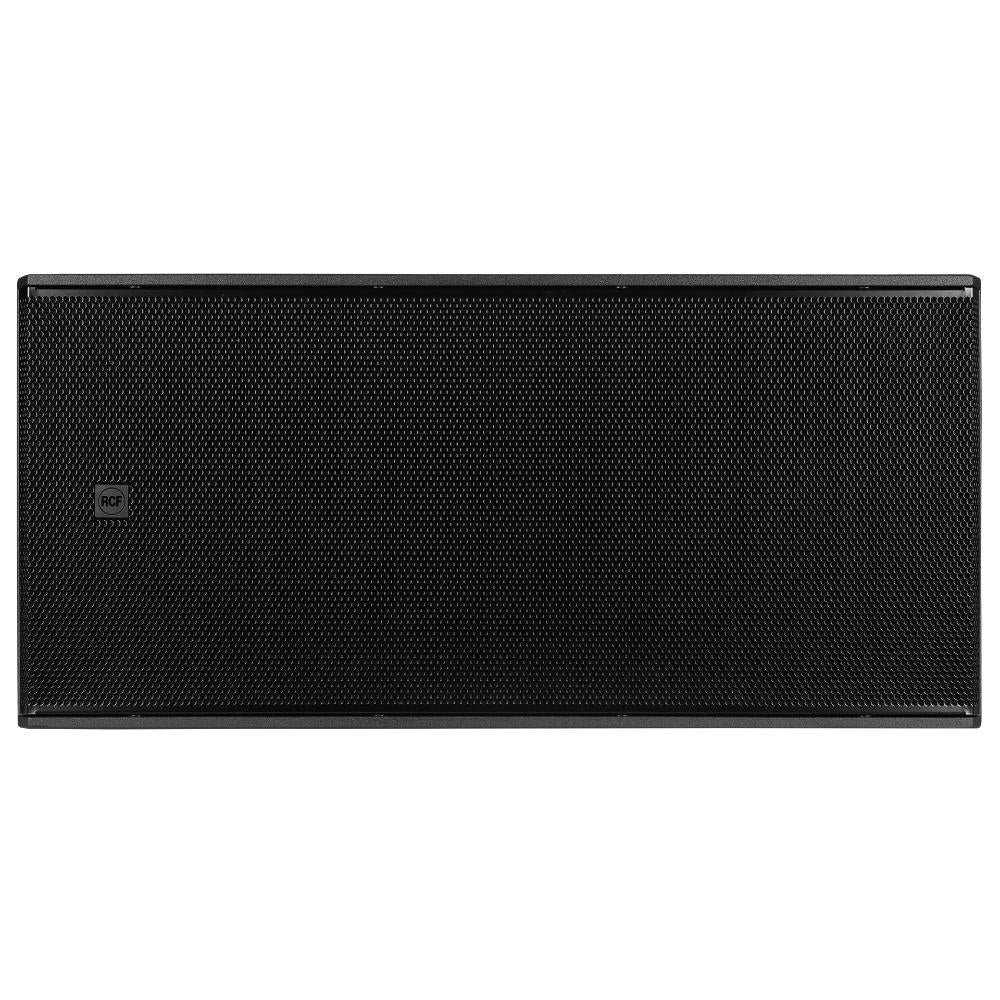

ARCHIVED | TOURING | SUB 9007-AS | ACTIVE HIGH POWER SUBWOOFER | Technical Specifications | 141 dB max SPL
Technical Specifications
| Acoustical specifications |
| Frequency Response |
20 Hz - 400 Hz |
| Max SPL @ 1m |
141 dB |
| Transducers |
| Woofer |
2 x 21'' neo, 4.0'' v.c |
| Input/Output section |
| Input signal |
bal/unbal |
| Input connectors |
XLR, RDNet Ethercon |
| Output connectors |
Input sensitivity |
| +4 dBu |
| Processor section |
| Hi-Pass Frequencies |
25Hz, 35Hz |
| Low-Pass Frequencies |
Variable from 50Hz to 400Hz |
| Protections |
Thermal, RMS |
| Limiter |
Fast Limiter |
| Controls |
| Gain, EQ, Xover, Phase switch, Output Delay Settings, Cardiloid |
Onboard |
| Power section |
| Total Power |
7200 W Peak, 3600 W RMS |
| Low frequencies |
Cooling |
| Convection |
| Connections |
| Powercon IN/OUT |
| Standard compliance |
| Safety agency |
CE compliant |
| Physical specifications |
| Cabinet/Case Material |
Baltic birch plywood |
| Hardware |
Mounting points, 2 x M20 |
| Handles |
8 side |
| Pole mount/Cap |
M20 thread |
| Grille |
Steel |
| Color |
Black |
| Size / Weight |
| Height |
708 mm / 27.87 inches |
| Width |
1188 mm / 46.77 inches |
| Depth |
785 mm / 30.91 inches |
| Weight |
96 kg / 211.64 lbs |
| Shipping information |
| Package Height |
760 mm / 29.92 inches |
| Package Width |
825 mm / 32.48 inches |
| Package Depth |
1135 mm / 44.69 inches |
| Package Weight |
110 kg / 242.51 lbs |
